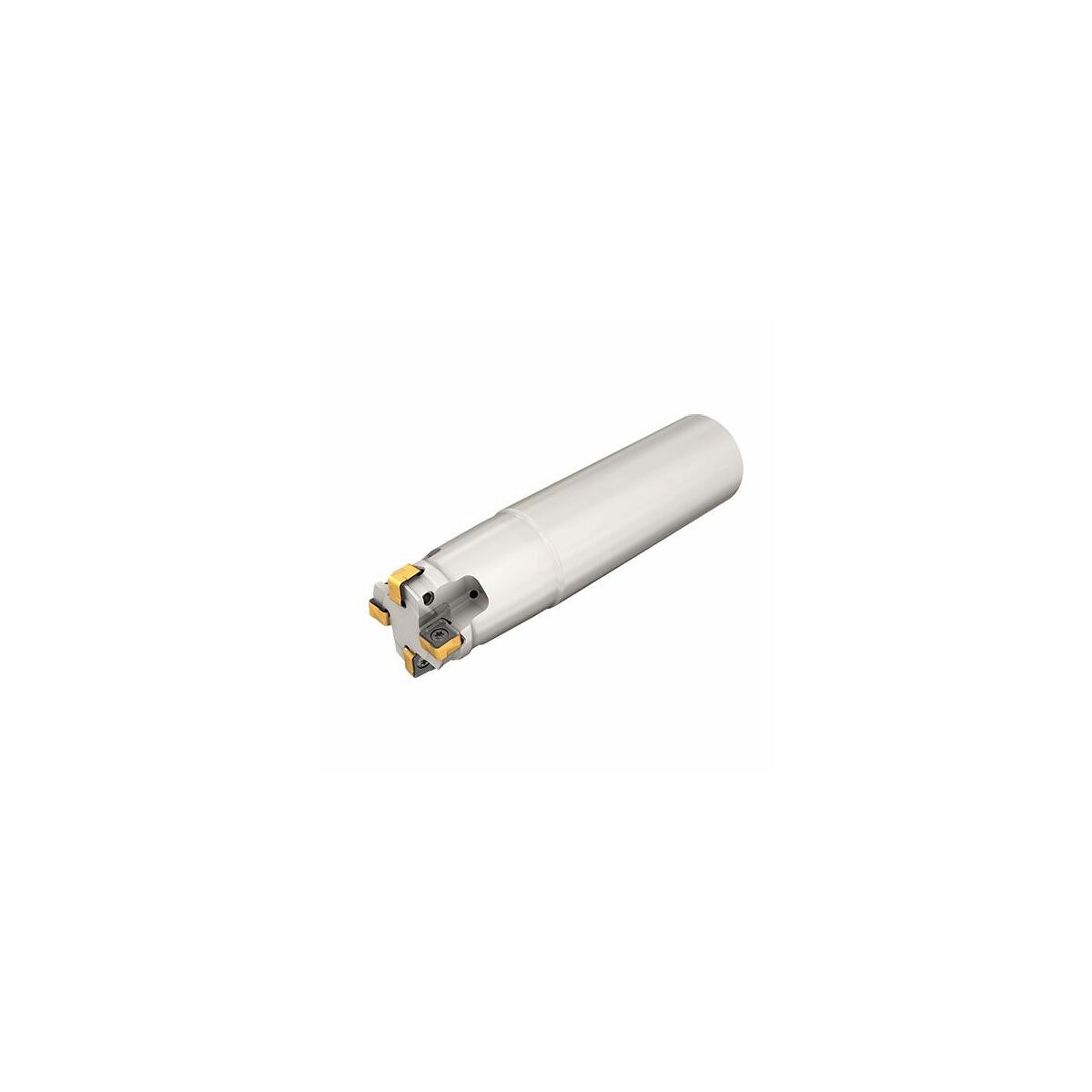

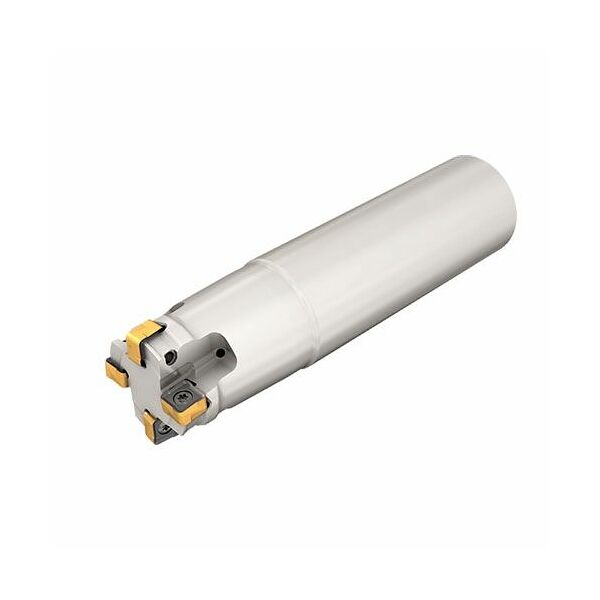

NEODO indexable face / shoulder mill, Plain shank, ⌀ DC / number of effective cutting edges Z: 25/3mm
Article no.: 225750 25/3
Copy
Article code:
Copy
- Setting angle κ: 90
- Milling application: Ramping
- Spacing of the cutters: unequal spacing
- Through-coolant: yes
Product details
Technical Data

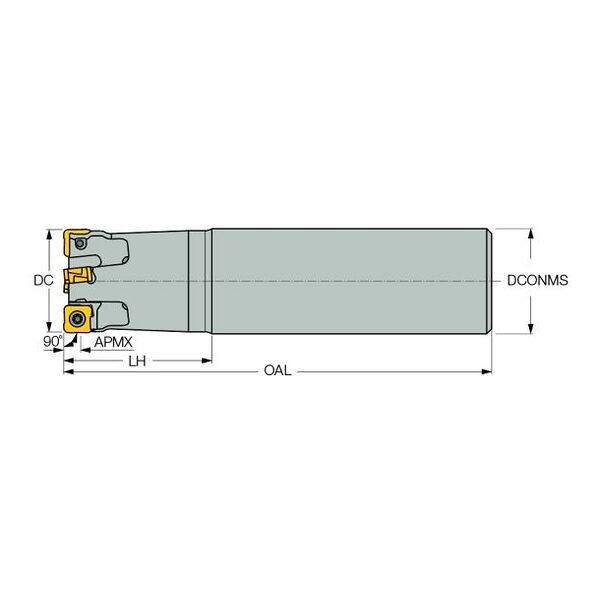

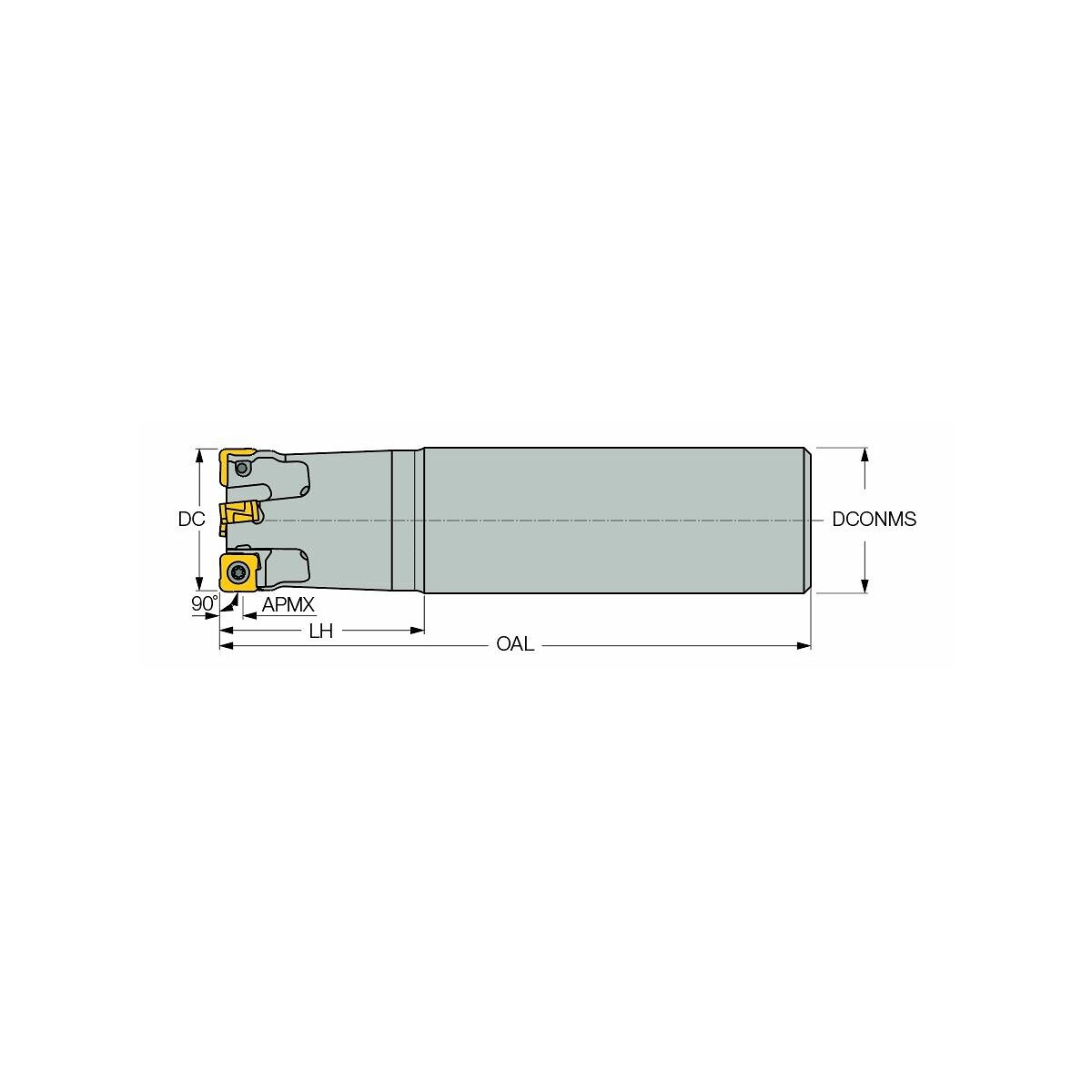

| Series | NEODO | |
| Cutting edge ⌀ DC | 25 mm | |
| Number of cutting edges Z | 3 | |
| Shank type | Plain shank | |
| Setting angle κ | 90 degrees | |
| Milling application | Ramping | |
| Spacing of the cutters | unequal spacing | |
| Through-coolant | yes | |
| maximum cutting depth ap max | 5 mm | |
| Overhang L1 | 35 mm | |
| Overall length Ltot | 120 mm | |
| Shank ⌀ Ds h6 | 25 mm | |
| suitable indexable insert | SZ.U0804.. | |
| Manufacturer's designation | S890 ESZ D25-3-C25-R08 | |
| Type of product | End / face mill |
Identification & Classification
| Article number |
225750 25/3
Copy |
|
| EAN / GTIN |
7291075481617
Copy |
|
| Manufacturer number |
3417100
Copy |
Description
Version:
Highly efficient milling system for facing and milling 90° shoulders. For roughing and pre-finishing especially of steel and cast iron materials. Cost-effective due to 8 cutting edges per indexable insert. Extremely stable embedding for the inserts in a dovetail-shaped insert seating.
Spare part:
Pack of insert screws No. 229696 3 (IP9; 2.0 Nm).
