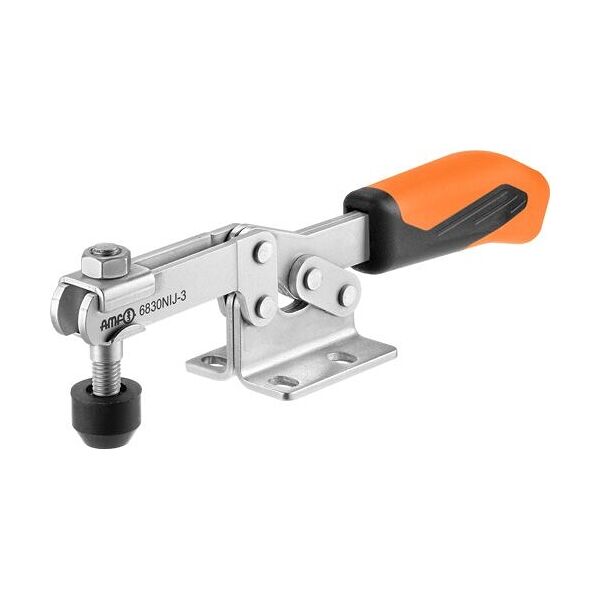

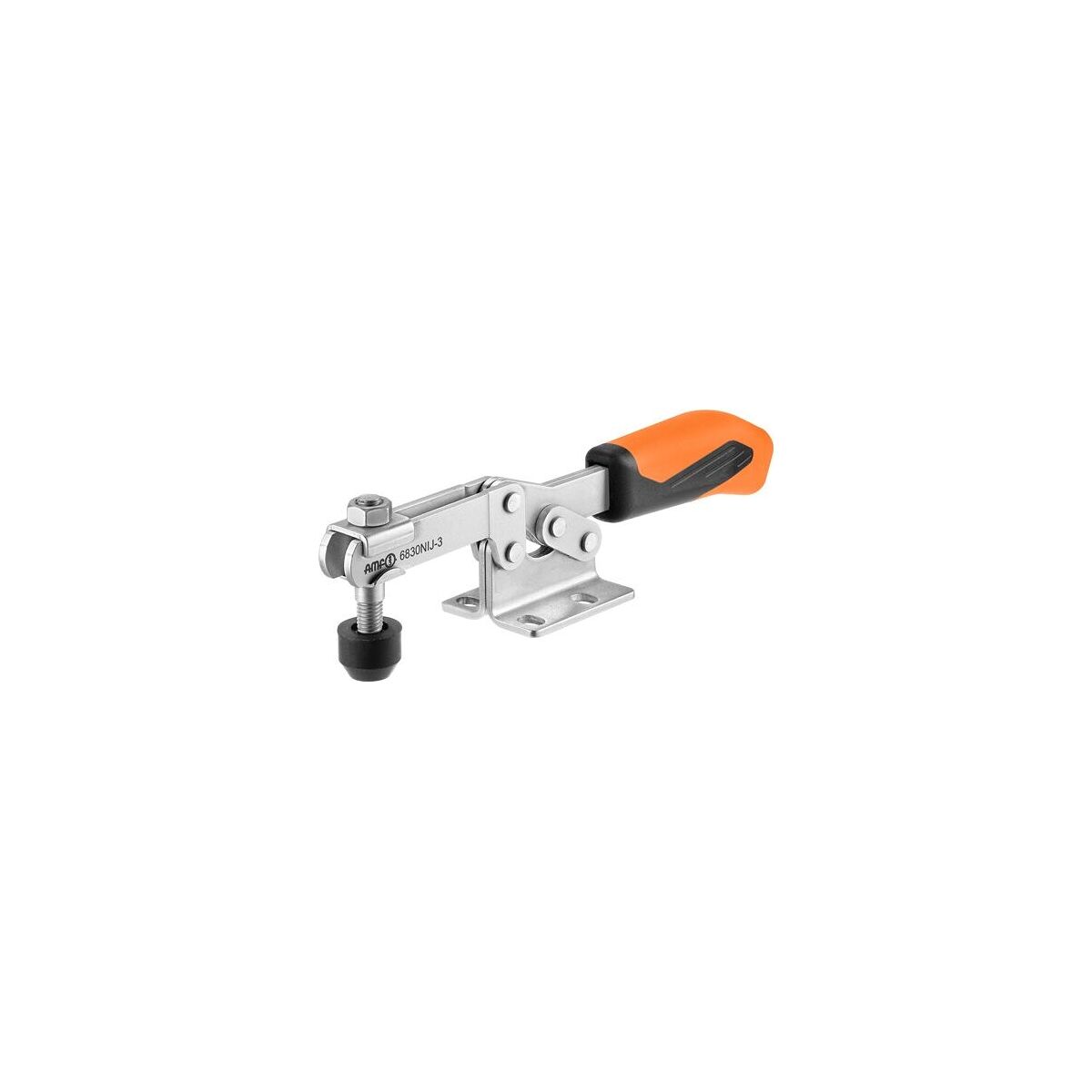

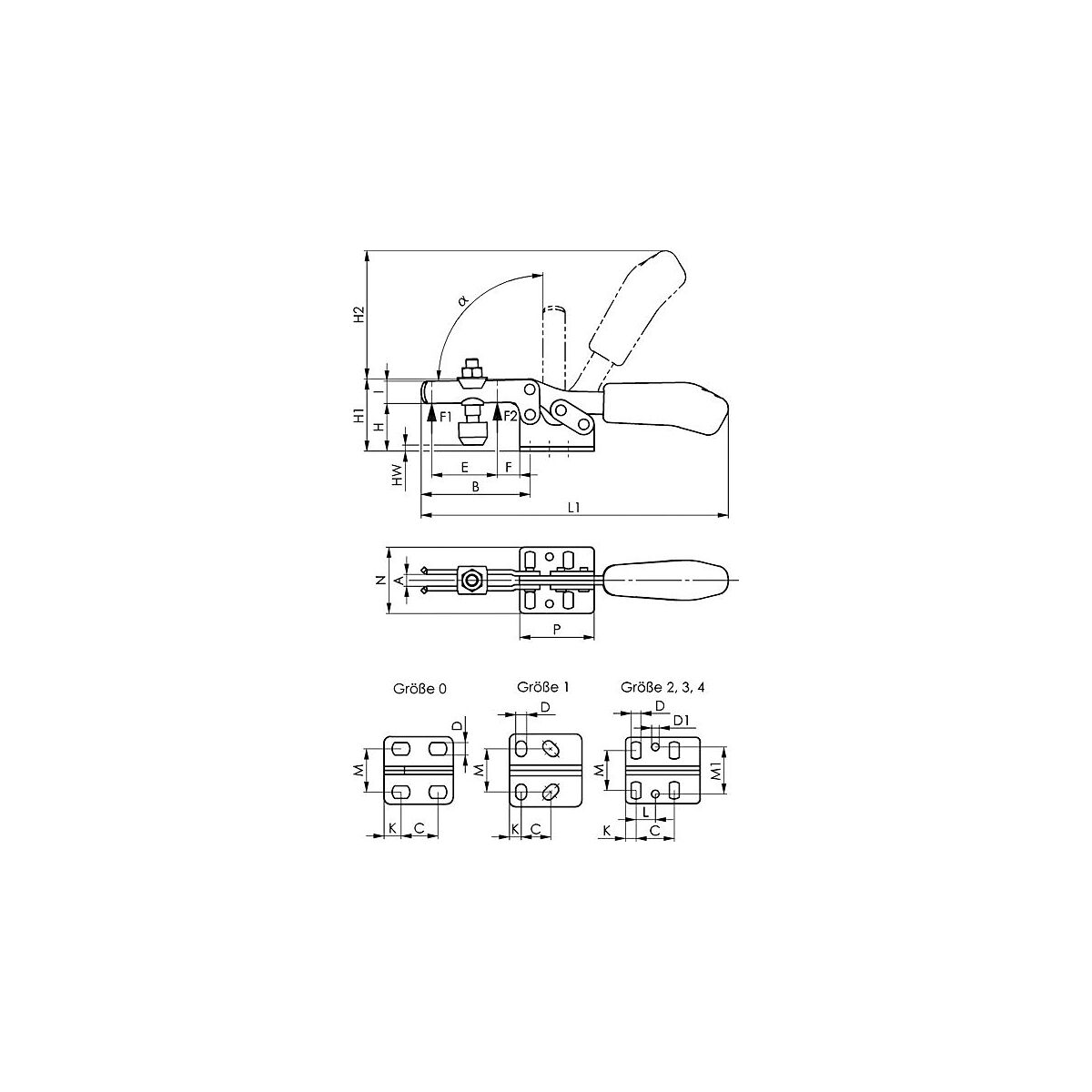

Horizontal toggle clamp with horizontal base, stainless, Type: 0
Article no.: 376620 0
Copy
Article code:
Copy
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
For uneven components: contact screw with joint, on request.
Click to enlarge image
For two-point clamping: cross arm with 2 contact screws No. 376970.
Click to enlarge image
Click to enlarge image
Product details

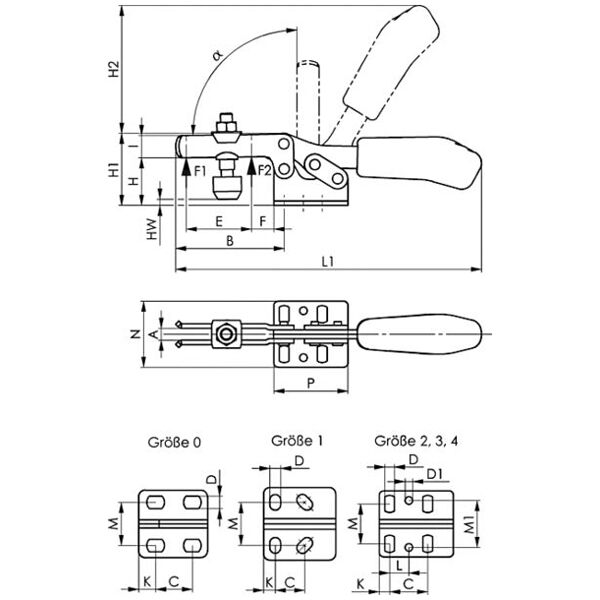

Technical Data
| Type | 6830NIJ | |
| Hole spacing e | 11.5-15.5 mm | |
| Hole spacing f | 16 mm | |
| Bore ⌀ d | 4.6 mm | |
| Clamping height H | 14.5 mm | |
| Clamping force P1 | 250 N | |
| Clamping force P2 | 400 N | |
| overall height | 23 mm | |
| overall length | 79 mm | |
| Contact screw | M4×25 mm | |
| Type of product | Horizontal toggle clamp |
Identification & Classification
| Article number |
376620 0
Copy |
|
| EAN / GTIN |
4020772008932
Copy |
|
| Manufacturer number |
557439
Copy |
|
| Manufacturer | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
Captive contact screws.
Compact design due to new handle.
Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
With horizontal base for fixing to base plates etc.
Compact design due to new handle.
Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
With horizontal base for fixing to base plates etc.
Application:
For quick clamping and releasing of parts in series production or for installation as part of special clamping jigs. Suitable for clamping during drilling, reaming, grinding, bending, welding, fitting etc.
