Height setting screw jack, highest support height: 75mm
Article no.: 374480 75
Copy
Article code:
Copy
Product details

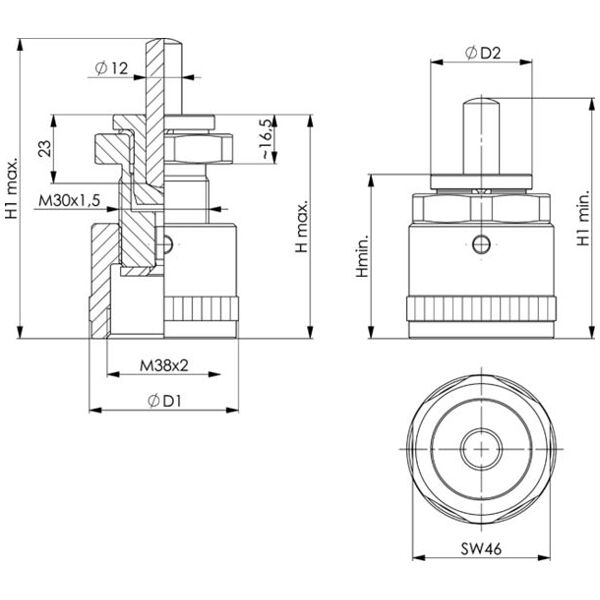

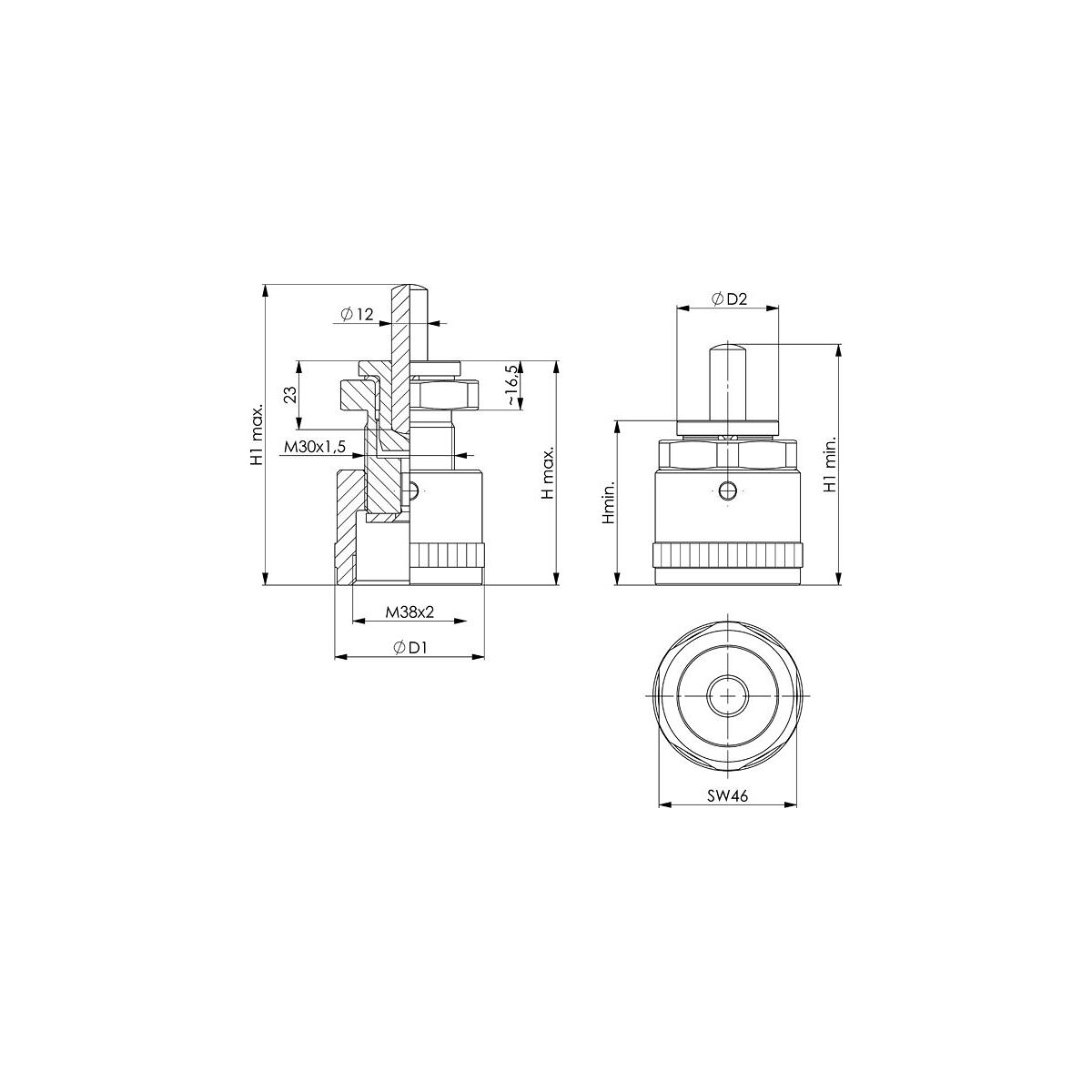

Technical Data
| Type | 6415 | |
| highest support height | 75 mm | |
| lowest support height | 55 mm | |
| Head size AF | 46 mm | |
| Lower part ⌀ | 50 mm | |
| Load capacity | 30 kN | |
| Type of product | Screw jack |
Identification & Classification
| Article number |
374480 75
Copy |
|
| EAN / GTIN |
4020772086503
Copy |
|
| Manufacturer number |
86504
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
- For precision alignment using fine pitch thread M 30×1.5. The fixed slide pad prevents the component from rotating and moving during alignment.
- The parallel pins supplied are ⌀ 12×50 mm and ⌀ 12×80 mm; they can be inserted in the centring hole, increasing the overall height by 30 or 60 mm.
- If centring jack pad No. 375030 is placed under the screw jack, a support height of up to approx. 1370 mm can be achieved in combination with other screw jacks.
