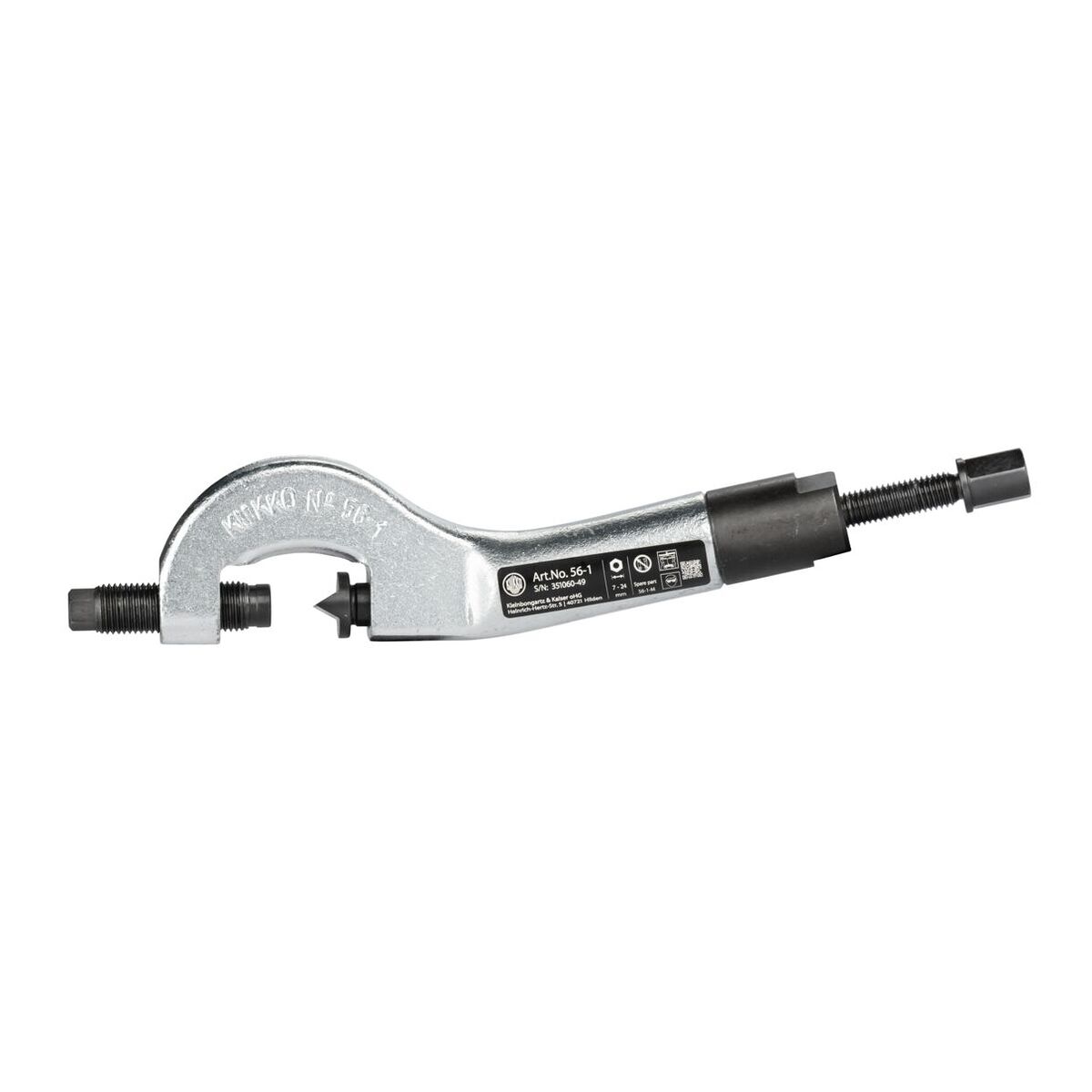

Nut splitter, for nuts: M4-M14
Article no.: 884900 M4-M14
Article code:
Click to enlarge image
Click to enlarge image

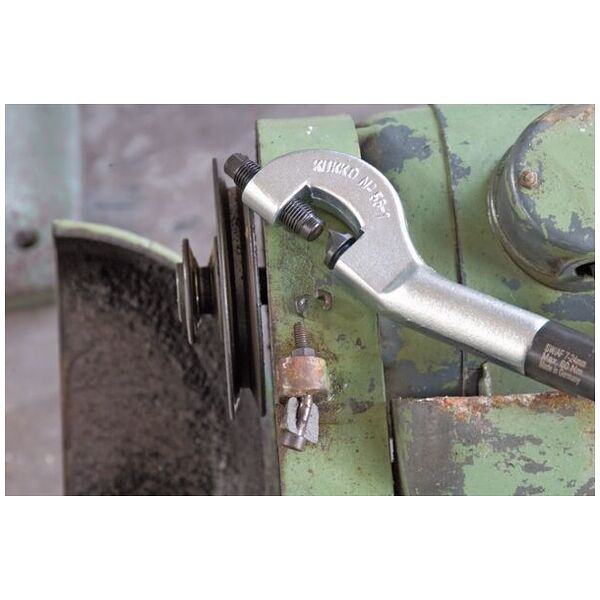

Space-saving method (chisel blade turned 90°).
Click to enlarge image

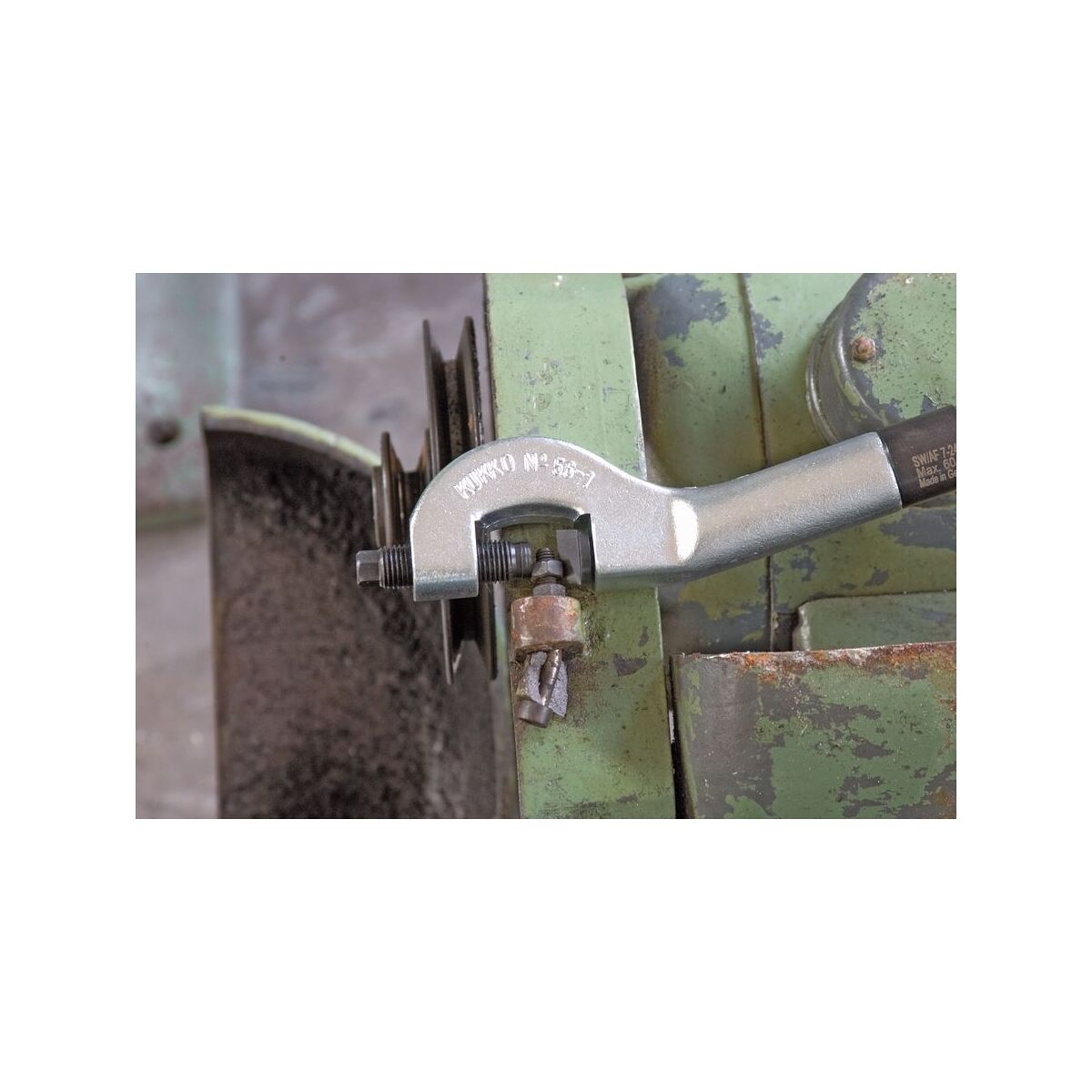

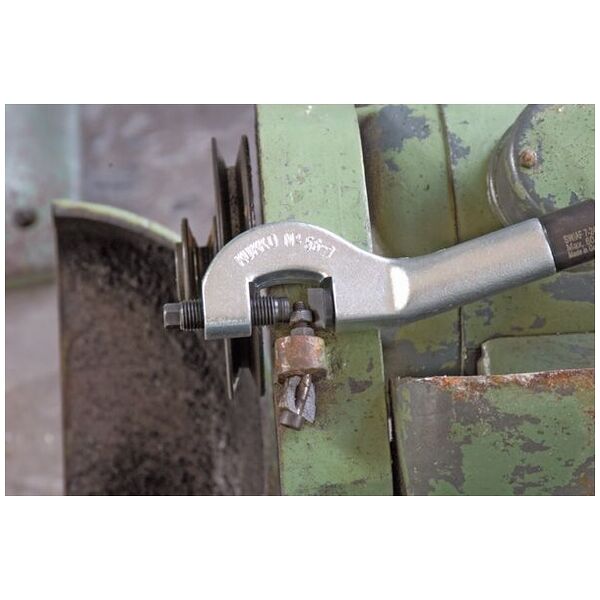

Normal application method
Product details
Technical Data
| Manufacturer's designation | 56 | |
| for nuts | M4-M14 | |
| Chisel edge width | 18 mm | |
| Total length without spindle screw | 185 mm | |
| Jaw capacity | 7 mm - 24 mm | |
| Type of product | Nut splitters |
Identification & Classification
| Article number | 884900 M4-M14 | |
| EAN / GTIN | 4021176020483 | |
| Manufacturer number | 56-1 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Version:
With hydraulic ram for splitting jammed or seized nuts (grade 5 − 10) without damaging the bolts. Double curved, allowing operation even where access is difficult. With hardened chisel edge blade. Actuated by tightening the pressure screw. After the nut has been split, unscrew the nut pressure screw and push the chisel back to the stop. Size M18 − M30 for stainless steel nuts - up to M30 in strength class 8, up to M24 in strength class 10.
Note:
The pressure screw may be tightened to a maximum of 60 Nm for sizes M4 − M14 to a maximum of 70 Nm for sizes M14 − M24 and to a maximum of 50 Nm for sizes M18 − M30. Do not exceed the tightening torques; excessive torque can break the tool and cause accidents.
