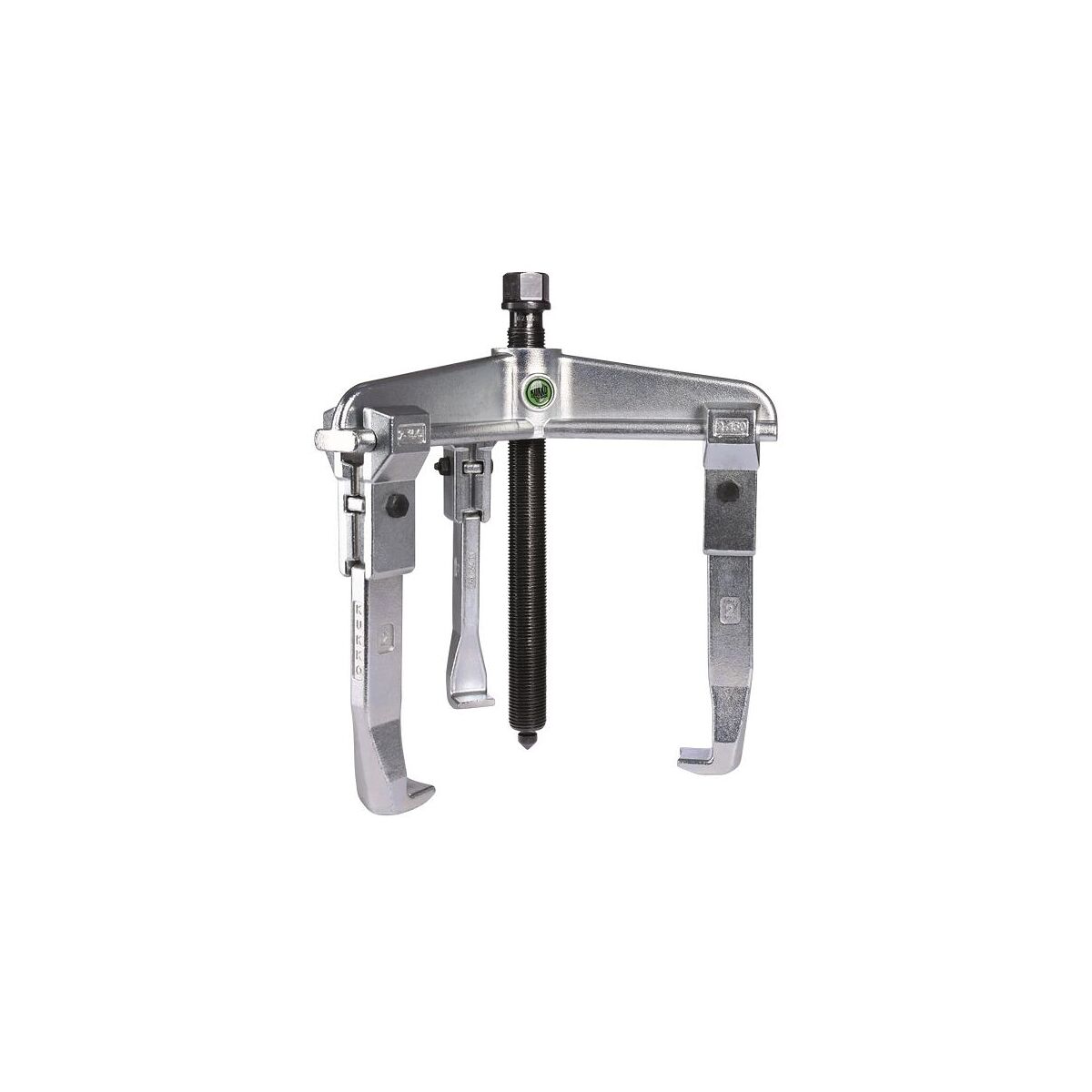

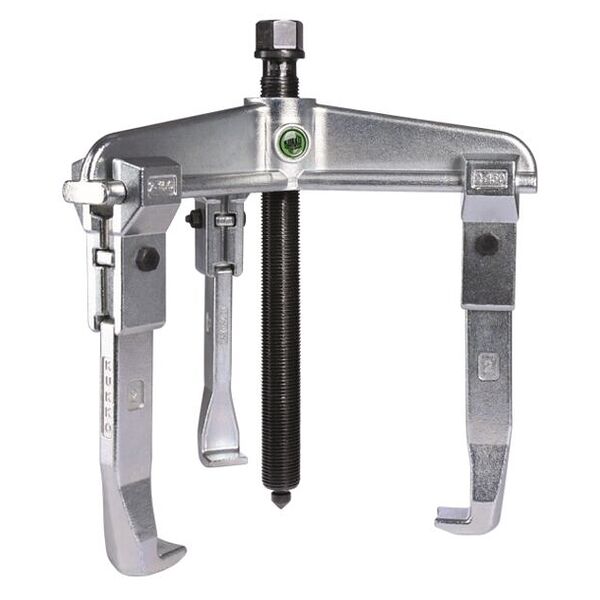

Three-leg extractor, Type: 20
Article no.: 880130 20
Article code:
Product details
Technical Data
| External clamping range | 35 mm - 200 mm | |
| Internal capacity | 100 mm - 260 mm | |
| Depth of reach up to | 150 mm | |
| maximum torque | 150 Nm | |
| Power | 7 t | |
| Number of hooks | 3 | |
| External hexagon drive | 22 mm | |
| Weight | 4.14 kg | |
| Type of product | Three-leg extractor |
Identification numbers & Classifications
| Article number | 880130 20 | |
| EAN / GTIN | 4021176013706 | |
| Manufacturer number | 30-20 |
Description
Version:
With reversible extraction legs (for external and internal extraction). Extraction legs adjustable on cross beam for different workpiece ⌀. Extraction legs and cross beam of high-quality tool steel; sturdy double-ended spindle (ball end and point end).
Application:
Universally applicable for extracting bearings, discs, gear wheels etc. On model 880100 size 5 the depth of reach can be extended from 400 mm (normal) up to 700 mm by adjusting the legs.
