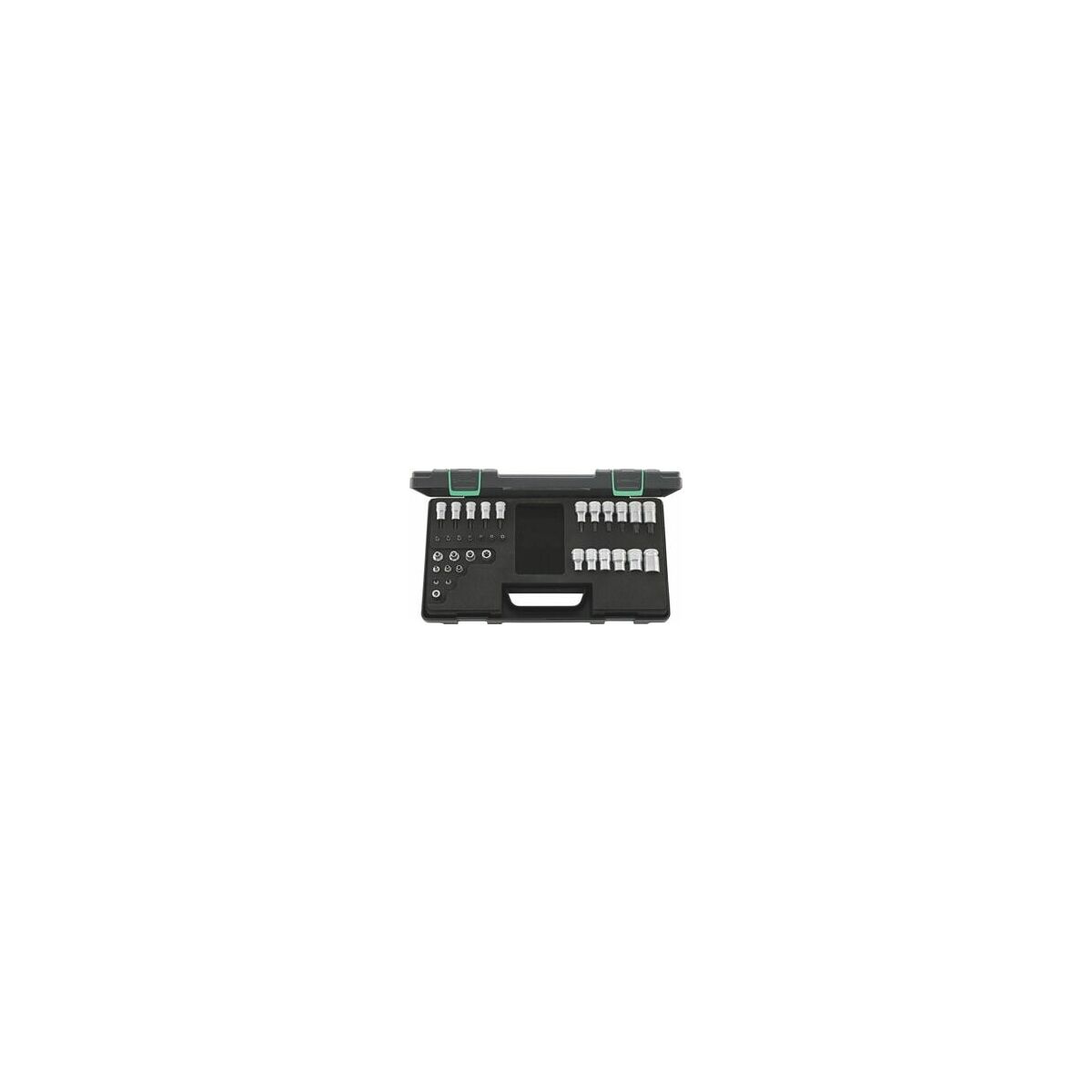

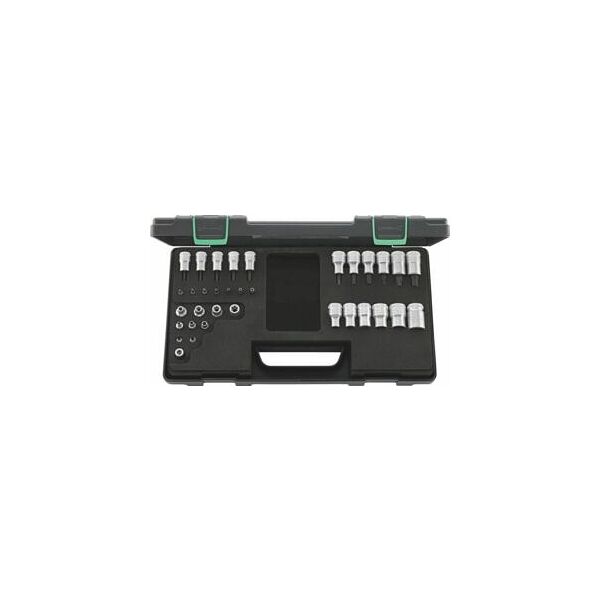

Socket set for Torx®, 1/4; 3/8; 1/2 inch square drive 34 pieces
Article no.: 630031
Copy
Article code:
Copy
- Square drive: 1/4; 3/8; 1/2
Product details
Technical Data
| Number of pieces | 34 | |
| Square drive | 1/4 inch; 3/8 inch; 1/2 inch | |
| Packaging | ABS plastic box | |
| Length | 413 mm | |
| Width | 230 mm | |
| Height | 57 mm | |
| Drive profile | Socket for TORX® screws; Screwdriver for TORX® screws; Screwdriver for TORX® screws with hole | |
| Type of product | Socket insert |
Identification & Classification
| Article number |
630031
Copy |
|
| EAN / GTIN |
4018754261017
Copy |
|
| Manufacturer number |
98811908
Copy |
|
| Manufacturer/responsible person | STAHLWILLE Eduard Wille GmbH & Co. KG, Lindenallee 27, 42349 WUPPERTAL, Germany, www.stahlwille.de |
Description
Version:
Drives / accessories to DIN 3122 / 3123; sockets to DIN 3124. Internal / external square drives to DIN 3120.
Application:
For external Torx® screws with thread M3 − M20. For internal Torx® screws with thread M2.5 − M14.
For internal Torx® screws with retaining pin with thread M3 − M8.
For internal Torx® screws with retaining pin with thread M3 − M8.
Material:
Chrome alloy steel, chrome-plated.
Supplied with:
1/4 inch sockets for Torx®: 3 pcs. No. 631500 size E4; E5; E6
3/8 inch sockets for Torx®: 4 pcs. No. 637450 size E7; E8; E10; E12
1/2 inch sockets for Torx®: 6 pcs. No. 642700 size E11; E14; E16; E18; E20; E24
1/4 inch bits for Torx®: 2 pcs. No. 631801 size TX8; TX9
3/8 inch bits for Torx®: 5 pcs. No. 637560 size TX10; TX15; TX20; TX25; TX27
1/2 inch bits for Torx®: 6 pcs. No. 643650 size TX30; TX40; TX45; TX50; TX55; TX60
Bits with bore for Torx®, C 6.3: 7 pcs. similar to No. 675350 size TX10; TX15; TX20; TX25; TX27; TX30; TX40
Bit adapter: 1 pc. similar to No. 676945 size 8/4
Presented in: ABS plastic box
3/8 inch sockets for Torx®: 4 pcs. No. 637450 size E7; E8; E10; E12
1/2 inch sockets for Torx®: 6 pcs. No. 642700 size E11; E14; E16; E18; E20; E24
1/4 inch bits for Torx®: 2 pcs. No. 631801 size TX8; TX9
3/8 inch bits for Torx®: 5 pcs. No. 637560 size TX10; TX15; TX20; TX25; TX27
1/2 inch bits for Torx®: 6 pcs. No. 643650 size TX30; TX40; TX45; TX50; TX55; TX60
Bits with bore for Torx®, C 6.3: 7 pcs. similar to No. 675350 size TX10; TX15; TX20; TX25; TX27; TX30; TX40
Bit adapter: 1 pc. similar to No. 676945 size 8/4
Presented in: ABS plastic box
