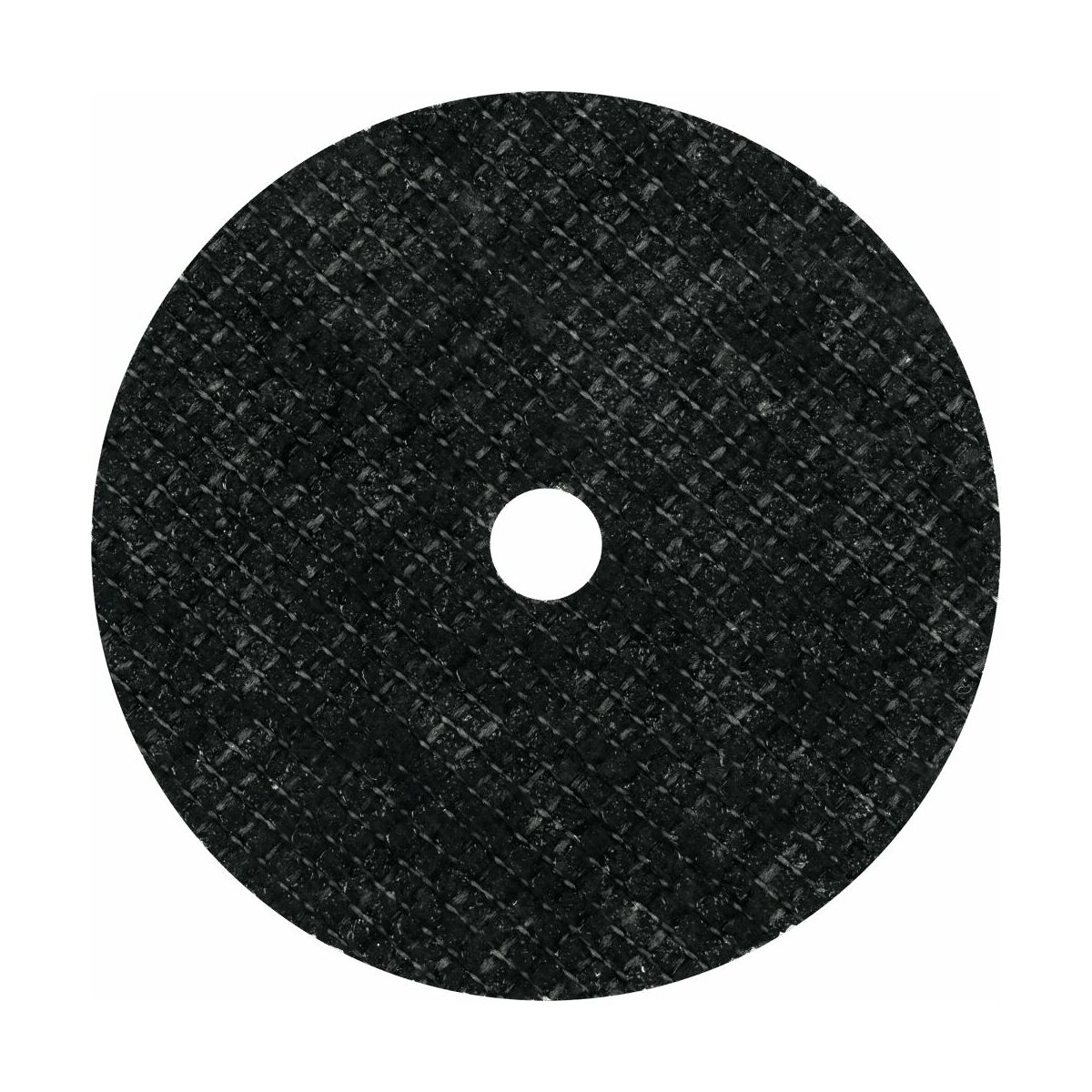

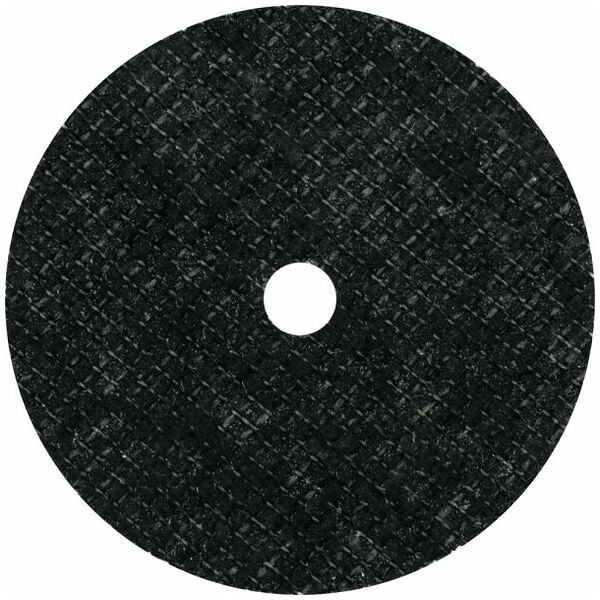

Small cutting disc 0.8mm SG SUPER THIN, Disc ⌀: 50mm
Article no.: 563410 50
Copy
Article code:
Copy
- Grinding medium code: A
- Iron, sulphur and chlorine constituents: < 0.1
- Shape description: flat
- Bore ⌀: 6
- recommended approach angle: 90
Product details
Technical Data
| Grinding medium code | A | |
| Specification | A60P-SG | |
| Iron, sulphur and chlorine constituents | < 0.1 % | |
| Shape | 41 | |
| Shape description | flat | |
| Disc ⌀ | 50 mm | |
| Disc thickness | 0.8 mm | |
| Bore ⌀ | 6 mm | |
| for material thicknesses | 2.4 mm - 4 mm | |
| recommended approach angle | 90 degrees | |
| optimised for material | Steel | |
| Propulsive equipment | Straight die grinder | |
| maximum circumferential speed | 80 m/s | |
| maximum speed | 30,500 rpm | |
| Type of product | Cutting disc |
Identification & Classification
| Article number |
563410 50
Copy |
|
| EAN / GTIN |
4007220849156
Copy |
|
| Manufacturer number |
4007220849156
Copy |
|
| Manufacturer/responsible person | August Rueggeberg GmbH & Co. KG, Hauptstraße 13, 51709 MARIENHEIDE, Germany, www.pferd.com |
Application Table
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
suitable for / [m/min]
Description
Version:
- Grit, bonding, abrasive additives as well as reinforcement of the cut-off discs are optimised for maximum cutting performance and working life in their respective applications.
- Thin cutting discs (0.8 mm / 1.0 mm / 1.6 mm) specially suited for quick burr-free cutting with low thermal stress. On older angle grinders please ensure discs are precisely centred! Cutting discs from 2.0 mm disc thickness exhibit increased lateral stability, stiffness and service life.
- Shapes: Cutting discs flat (shape 41) or with depressed centre (shape 42).
Small cutting disc specially for confined spaces. For use on pneumatic or electric straight grinders. For use with mandrel No. 563415.
Specification:
A60P-SG STEELOX.
Note:
The disc thickness should be at least 20% of the material thickness to be cut. For stainless steel, use cutting discs at reduced speed.
