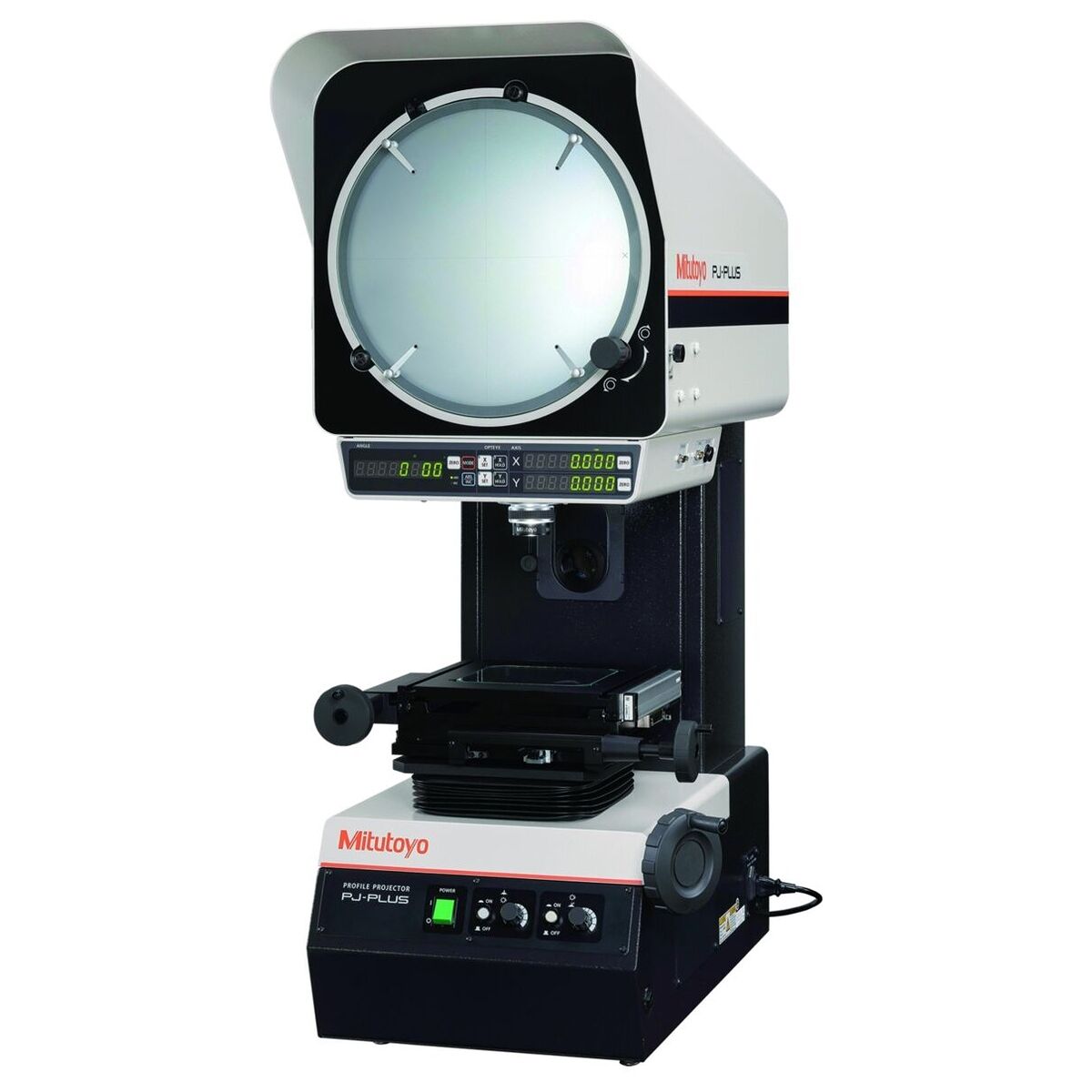

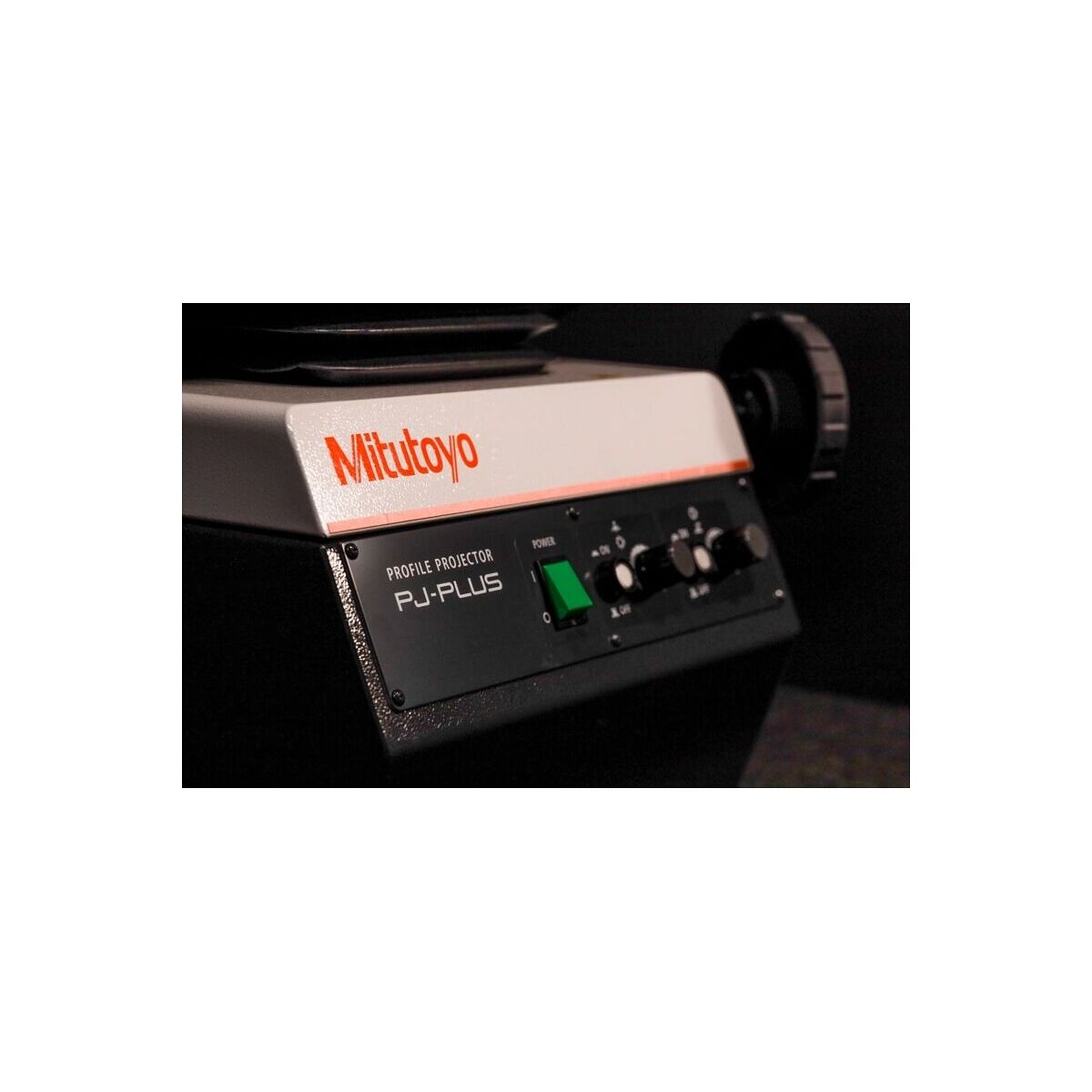

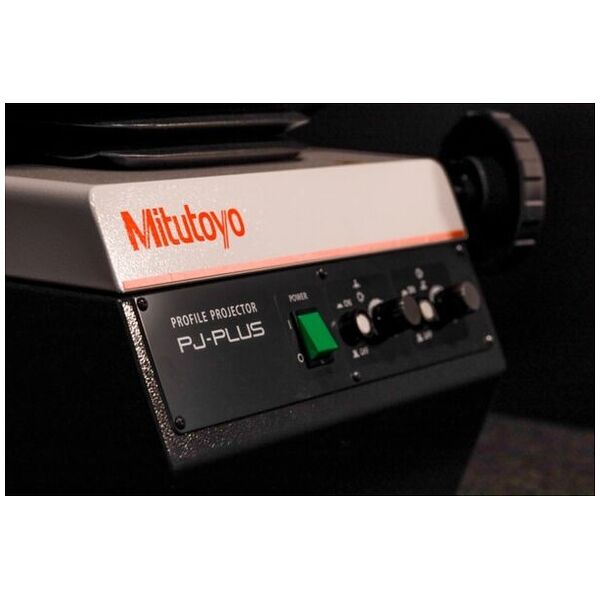

Measuring projector with screen and lens PJ-PLUS, Type: P1010A
Article no.: 493513 P1010A
Copy
Article code:
Copy
Product details
Technical Data
| Series | PJ-PLUS | |
| Measuring range x-axis | 100 mm | |
| Measuring range, y-axis | 100 mm | |
| Scale divisions | 0.001 mm | |
| digital display | yes | |
| Power supply | Mains operated | |
| Lighting | LED | |
| Screen ⌀ | 315 mm | |
| Length | 742 mm | |
| Width | 575 mm | |
| Height | 1,093 mm | |
| Weight | 114 kg | |
| maximum component weight | 10 kg | |
| Type of product | Shadowgraph |
Identification & Classification
| Article number |
493513 P1010A
Copy |
|
| EAN / GTIN |
4946368848181
Copy |
|
| Manufacturer number |
302-801-10
Copy |
|
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Version:
Projector for the exact transillumination and incident light inspection of small to medium-sized components. Universal tool for use in production, laboratories, inspection, and grinding shops.

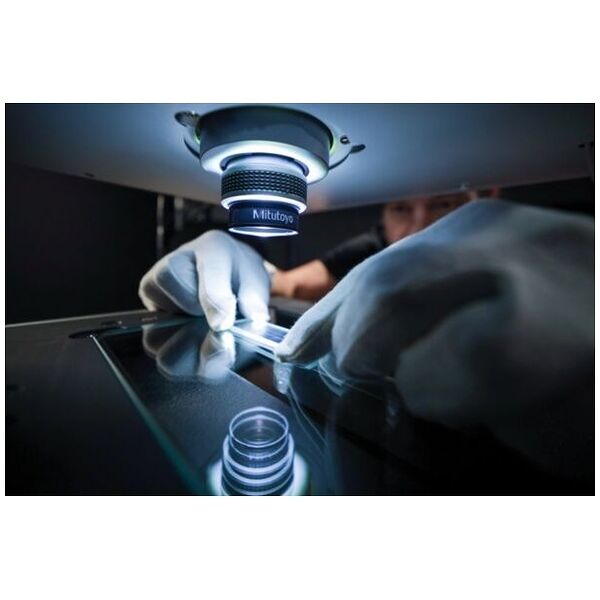

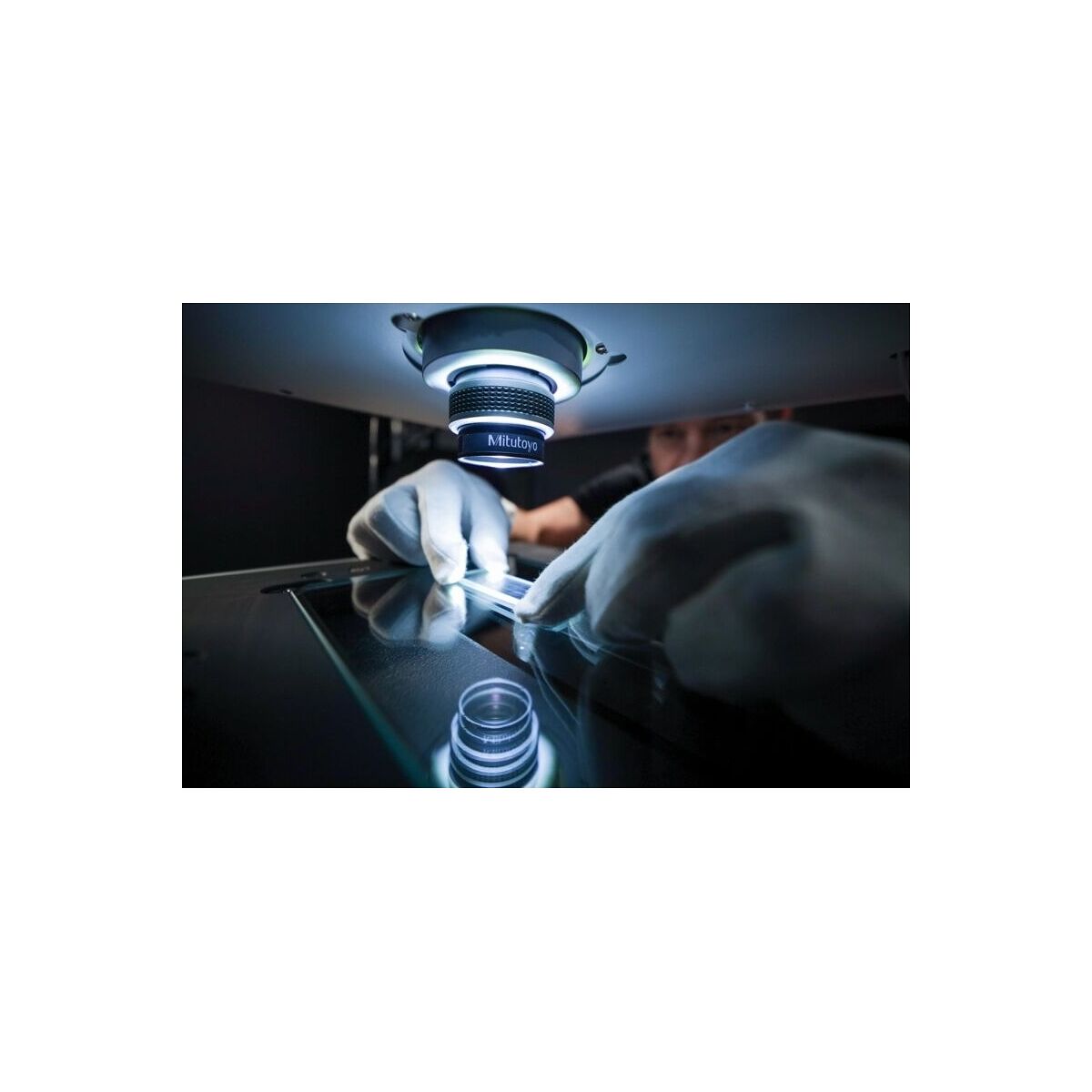

- Standard lens 10×. 20x, 50x and 100x magnification lenses on request.

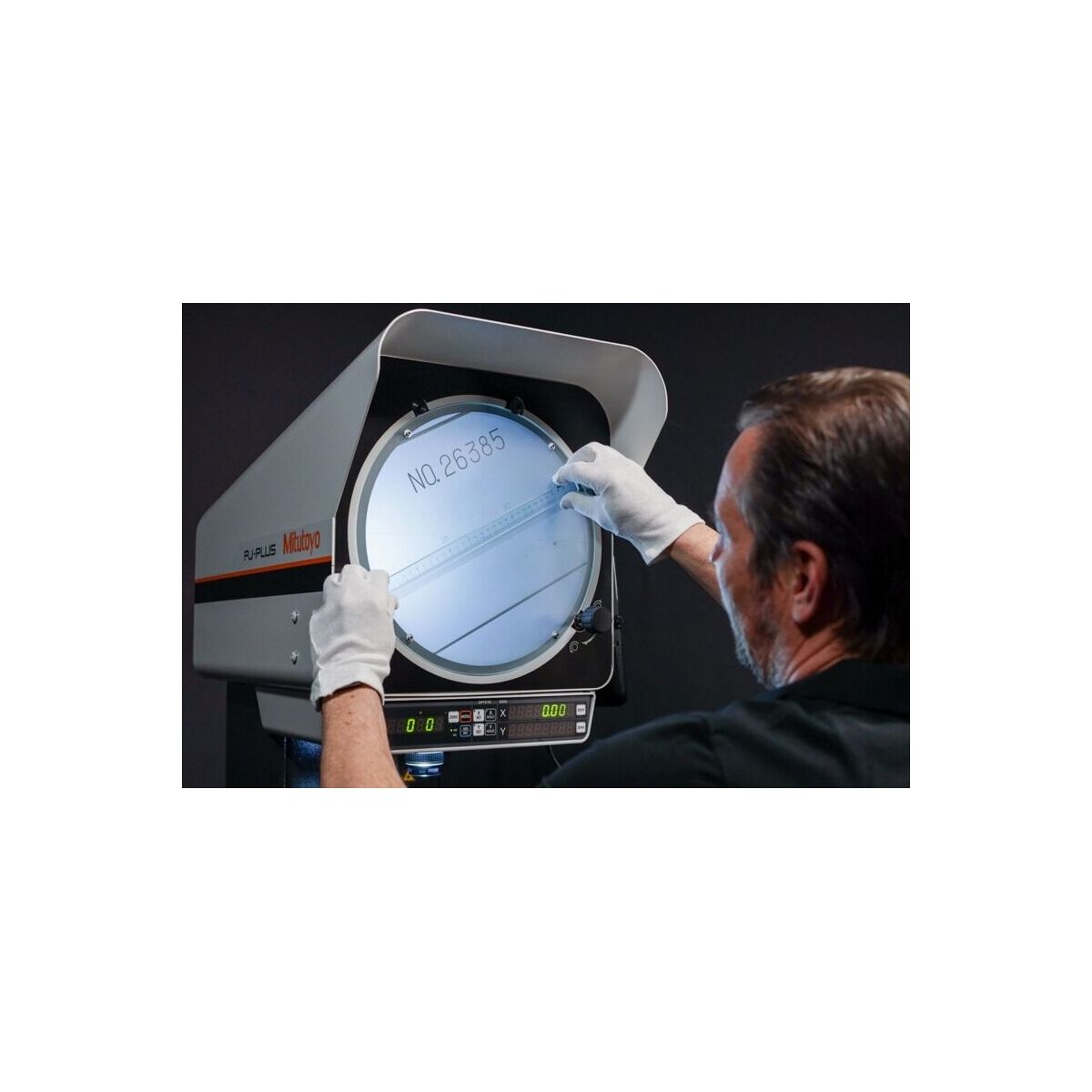

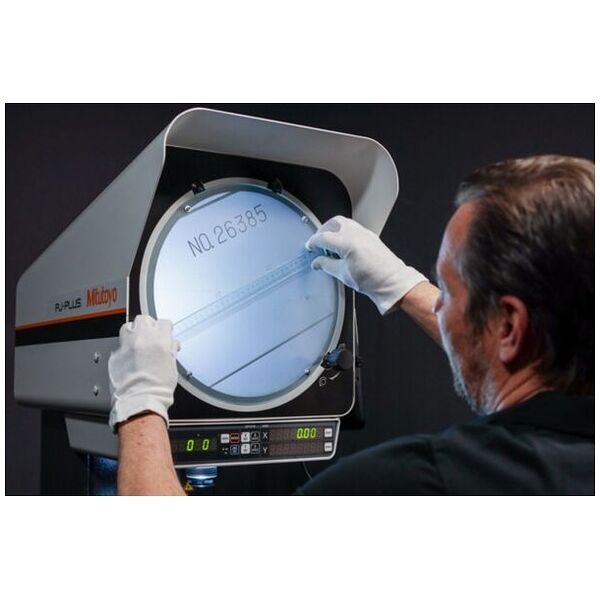

- Vertical, rotating 315 mm cross hair screen with built-in digital angle display, changeover function for reading in degrees or decimal.
- The telecentric lighting system guarantees a vertical and even illumination of the image field.
- LED transillumination and incident lighting with stepless light intensity control ensure a long service life with low power consumption.
- Fanless design prevents the ingress of contamination into the unit.
- Sturdy coordinate measurement table, with quick adjustment in both axes.
- Built-in digital display (with data output) guarantees reliable, error-free measuring.
- For measuring lengths, angles, curves, and radii.
Supplied with:
Incl. lens 10× magnification, anti-glare, cover, and mains lead.
Optional extras:
Cutting edge cleaner No. 354788.
Note:
Further special accessories such as lenses, tilting central support, horizontal Vee, toolholder, standard comparison scales or an edge sensor with QM-Data 200 analysis unit available on request.
