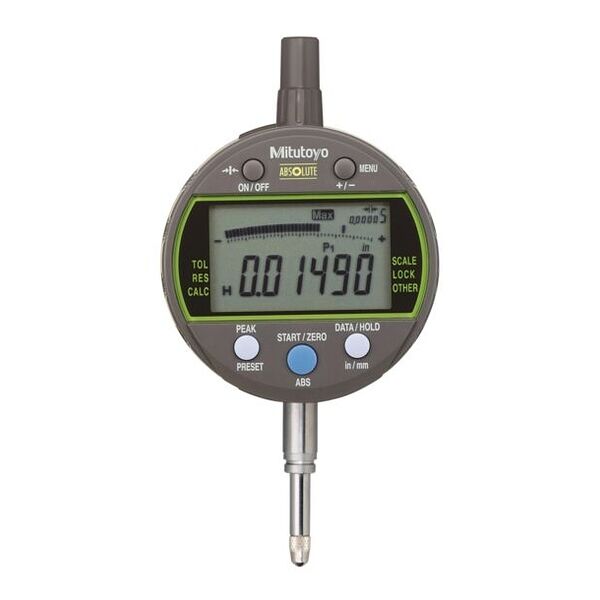

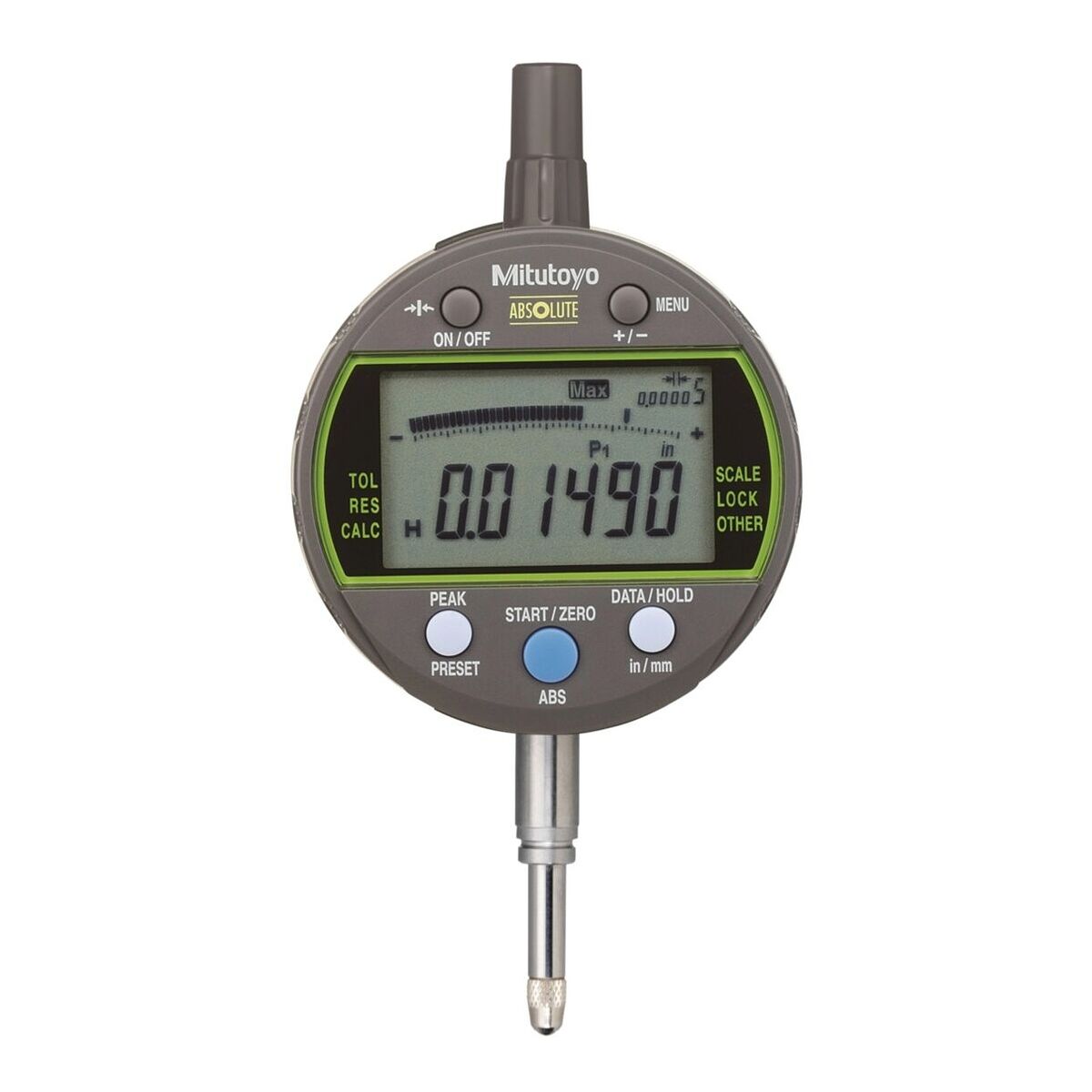

Digital absolute dial indicator with PEAK function, Measuring range: 12,5mm
Article no.: 434540 12,5
Copy
Article code:
Copy
- Standard: Manufacturer’s standard
- Reversible reading: mm / inch
- Interface: USB interface; Digimatic interface
- IP Index of Protection: IP 42
- Measured value saving: once-off setting of the zero position
Product details
Technical Data
| Standard | Manufacturer’s standard | |
| Measuring range | 0 mm - 12.5 mm | |
| Reversible reading | mm / inch | |
| Selectable display | 0.01 / 0,001 mm | |
| Selectable display | 0.005 / 0.0001 / 0.00005 inch | |
| Measurement variation E MPE (measurement range) | 0.003 mm | |
| Measurement variation E MPE (measurement range) | 0.0001 inch | |
| Interface | USB interface; Digimatic interface | |
| IP Index of Protection | IP 42 | |
| Gauging force | ≤ 1.5 N | |
| Clamping shank ⌀ h6 | 8 mm | |
| Measured value saving | once-off setting of the zero position | |
| Measurement technology | digital | |
| Body ⌀ | 61 mm | |
| Thickness of housing | 39 mm | |
| Loop on the back of the dial indicator | no | |
| Power supply | Battery-powered | |
| Number of batteries contained | 1 | |
| Article no of the battery / rechargeable battery fitted | 081560 CR2032 | |
| Type of product | dial gauge |
Identification & Classification
| Article number |
434540 12,5
Copy |
|
| EAN / GTIN |
4946368863061
Copy |
|
| Manufacturer number |
543-301B-10
Copy |
|
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Version:
Multifunction indicator with absolute capacitive scale. Measured values remain stored even after switching off. With improved PEAK function. With 50 measurement per second, peak values are detected and measured more reliable and exactly.
Function:
ABS / INC, PRESET, zeroing, tolerance analysis. Measured value hold function, MIN / MAX function.
IP42: Protected against splashed water from directions up to 15° (dripping water) and protected against penetration by foreign bodies with ⌀ > 1 mm, however tools and wires should be kept away.
Application:
Exact determination of the highest and lowest points of a curved surface.
Supplied with:
2 batteries No. 081560 size CR2032.
