Internal micrometer set, Measuring range: 50-150mm
Article no.: 427500 50-150
Copy
Article code:
Copy
- Standard: Manufacturer’s standard
- Micrometer barrel graduations: 1/50
- Packaging: sturdy box
Product details
Technical Data
| Standard | Manufacturer’s standard | |
| Measuring range | 50 mm - 150 mm | |
| Scale divisions | 0.01 mm | |
| Micrometer barrel graduations | 1/50 mm | |
| Barrel ⌀ | 15 mm | |
| Pipe ⌀ | 12.5 mm | |
| Measurement technology | analogue | |
| Number of extensions | 3 | |
| Packaging | sturdy box | |
| Type of product | 2-point internal micrometer |
Identification & Classification
| Article number |
427500 50-150
Copy |
|
| EAN / GTIN |
4946368438320
Copy |
|
| Manufacturer number |
137-201
Copy |
|
| Manufacturer | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Version:

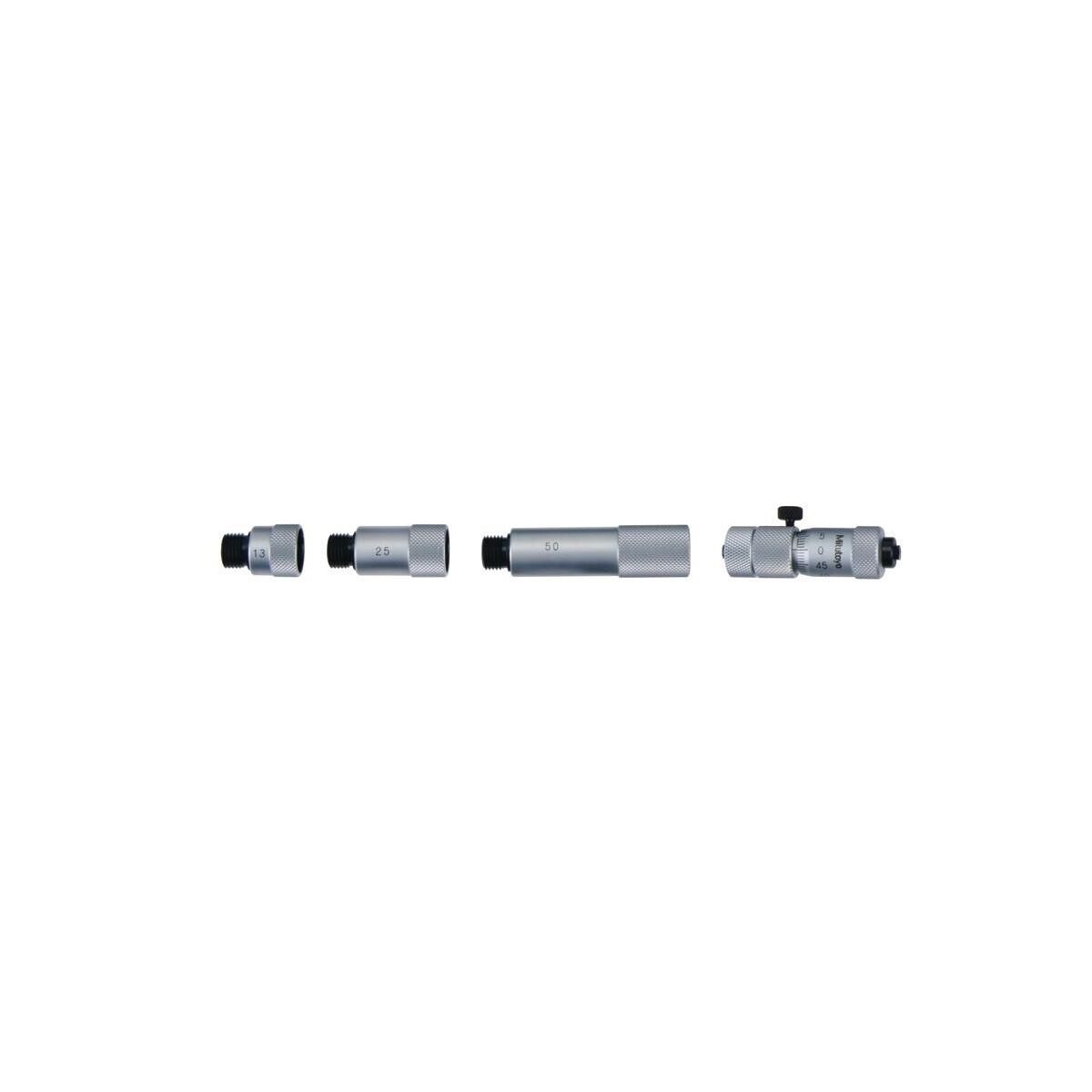

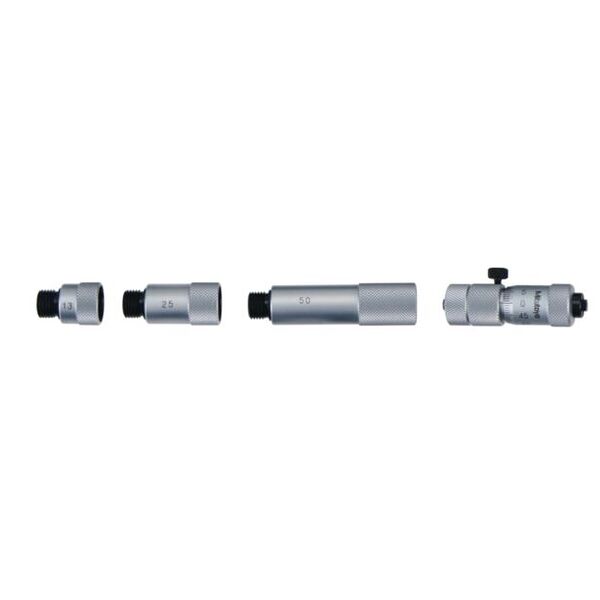

One standard micrometer head 50 − 63 mm and various extensions. One or more extensions are screwed into the standard micrometer head, depending on the desired measuring range. Extensions consist of cylindrical gauge blocks.
Version - image:
Protective cap for thread
Extension 13 mm
Extension 25 mm

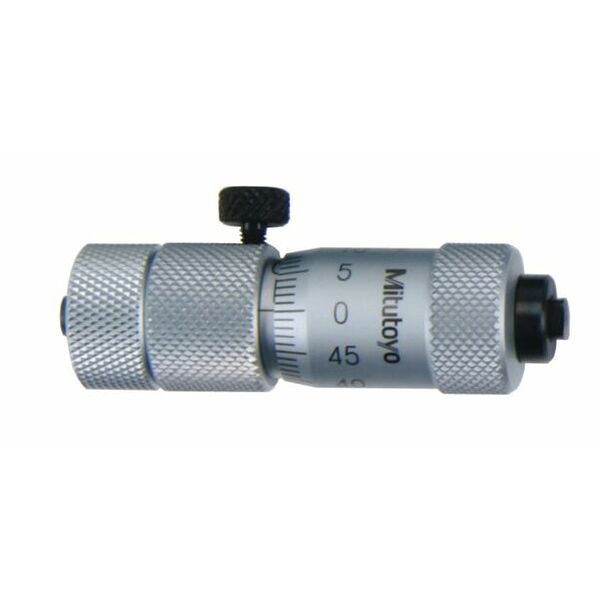

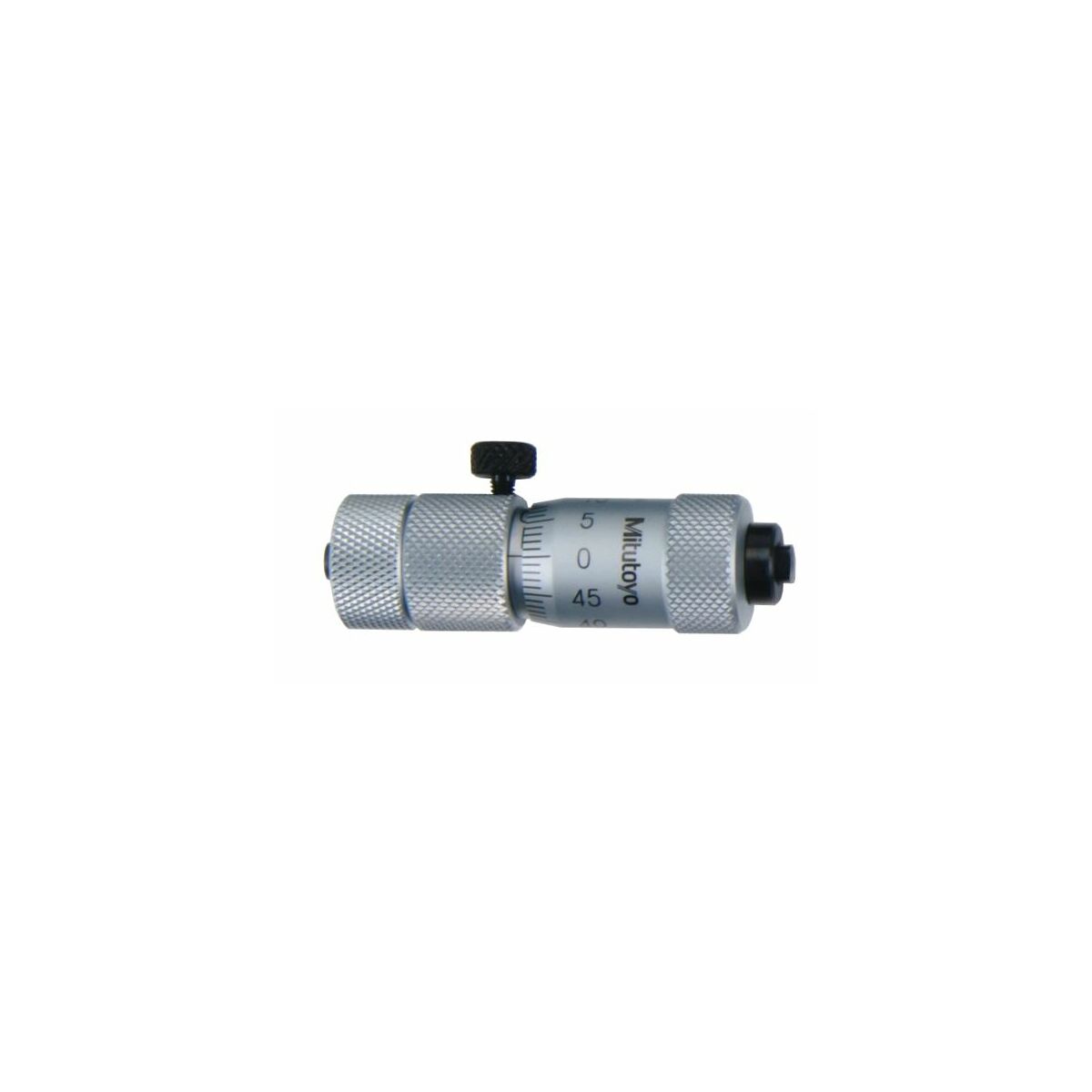

Standard micrometer head 50 - 63 mm
Extension 13 mm
Extension 25 mm
Standard micrometer head 50 - 63 mm
Accuracy:
(3 + number of extensions + L / 50) µm.
Supplied with:
Standard micrometer head and extensions.
