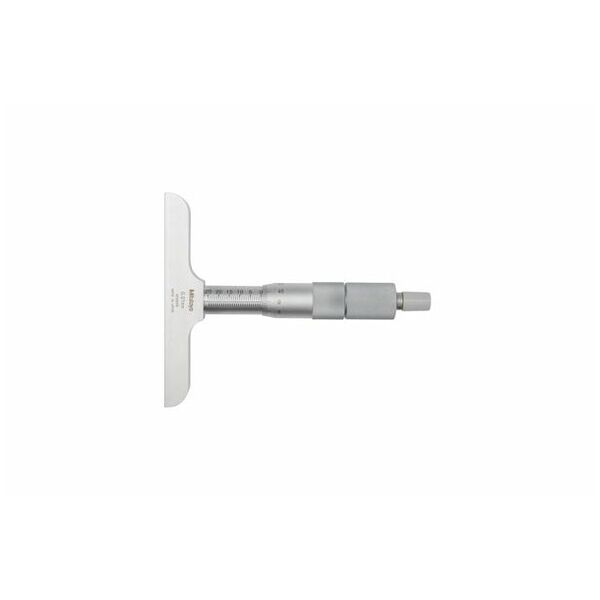

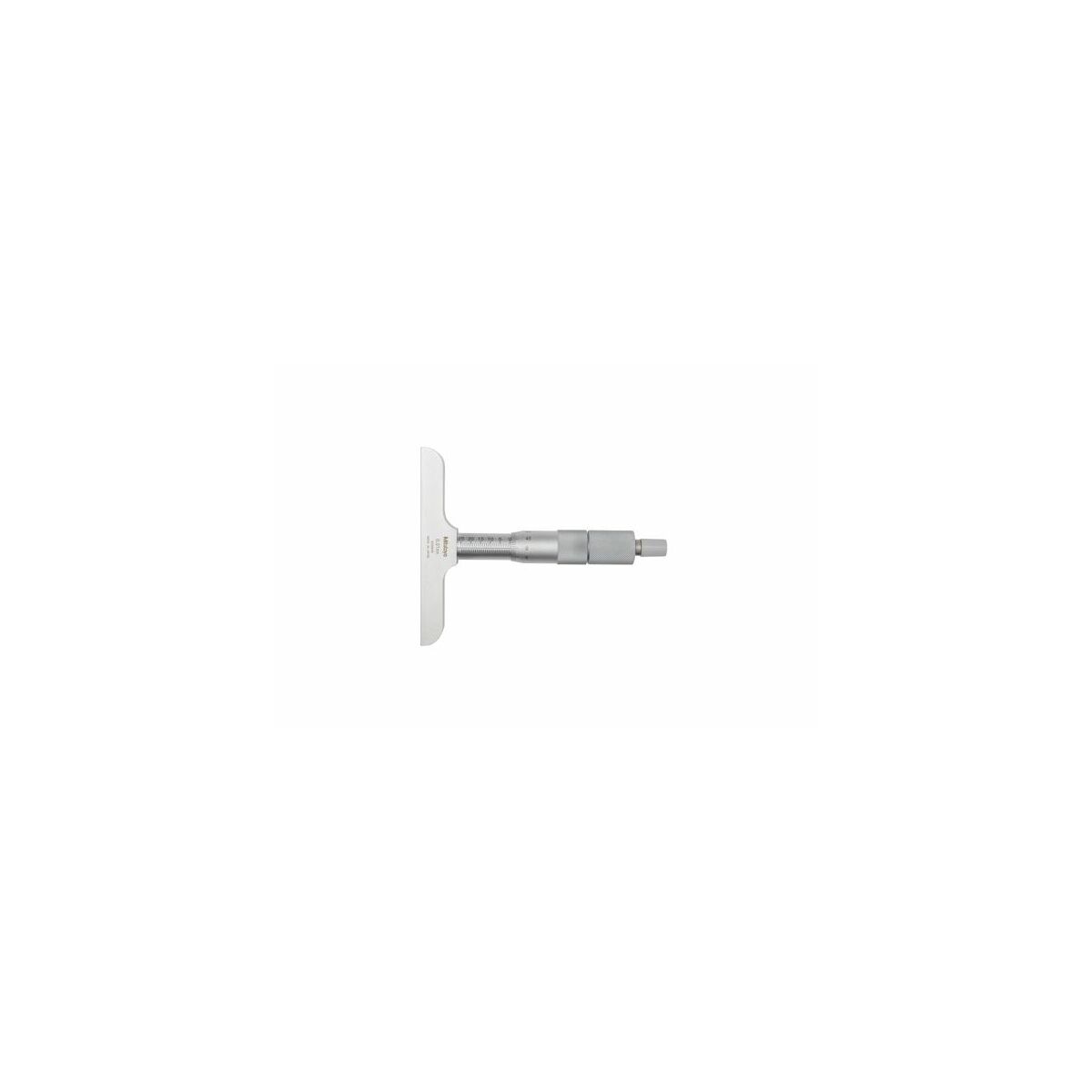

Depth micrometer, Measuring range: 0-100mm
Article no.: 425200 0-100
Copy
Article code:
Copy
Click to enlarge image
Click to enlarge image
Click to enlarge image

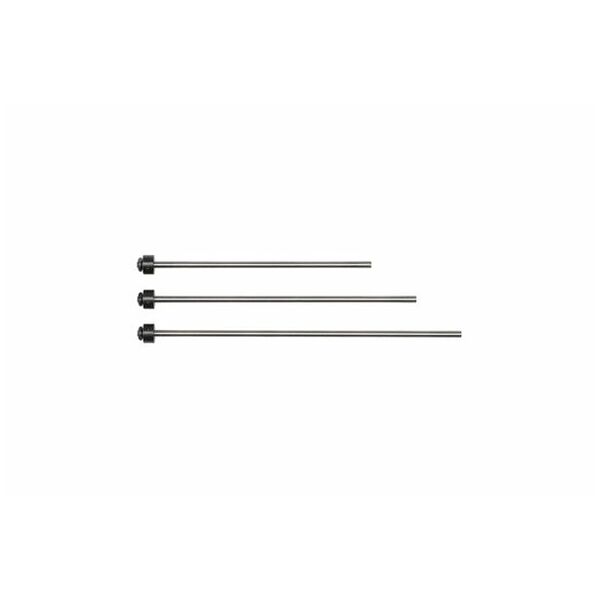

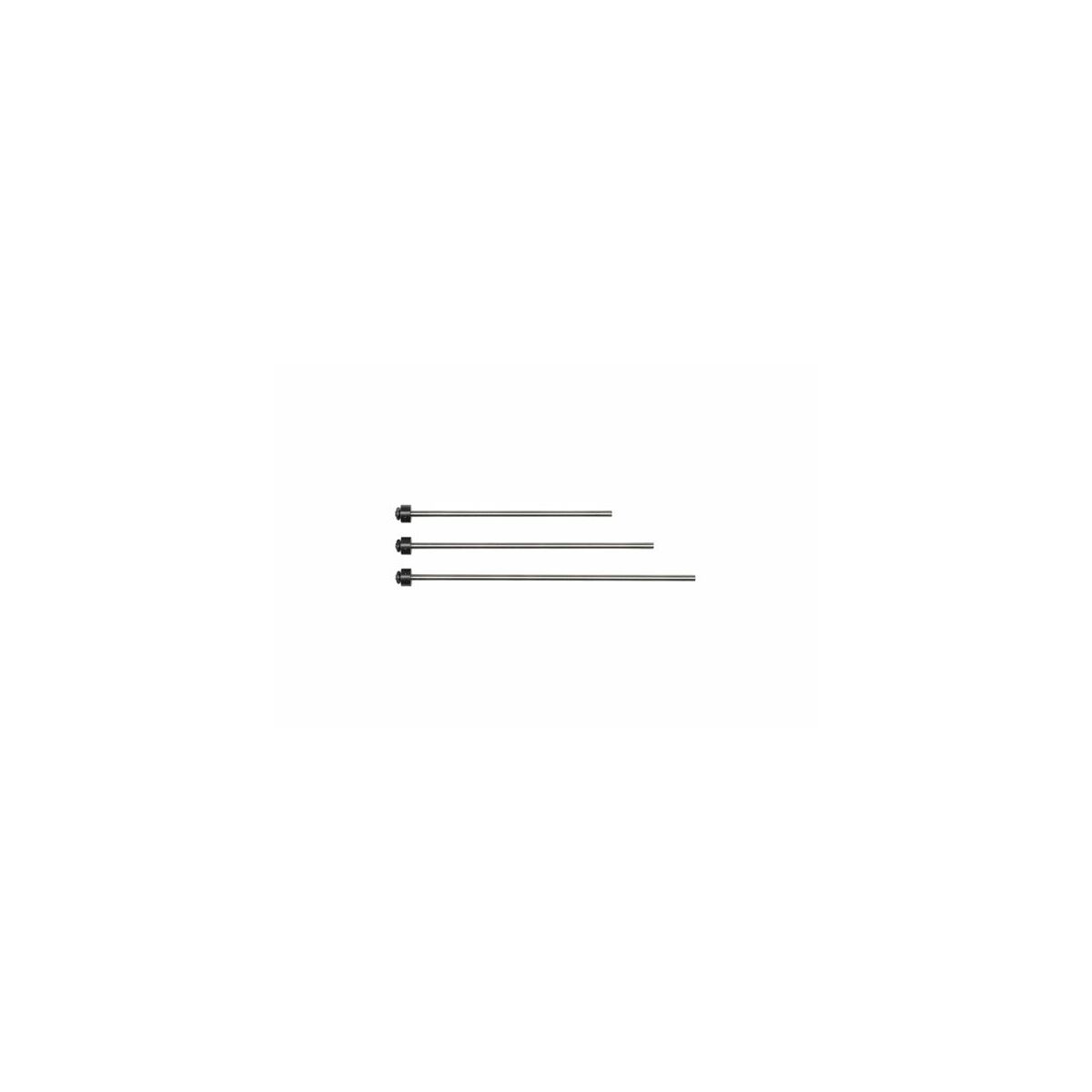

25 mm stepped interchangeable measuring pins.
Click to enlarge image
Click to enlarge image
Click to enlarge image
- Standard: DIN 863
- Micrometer barrel graduations: 1/50

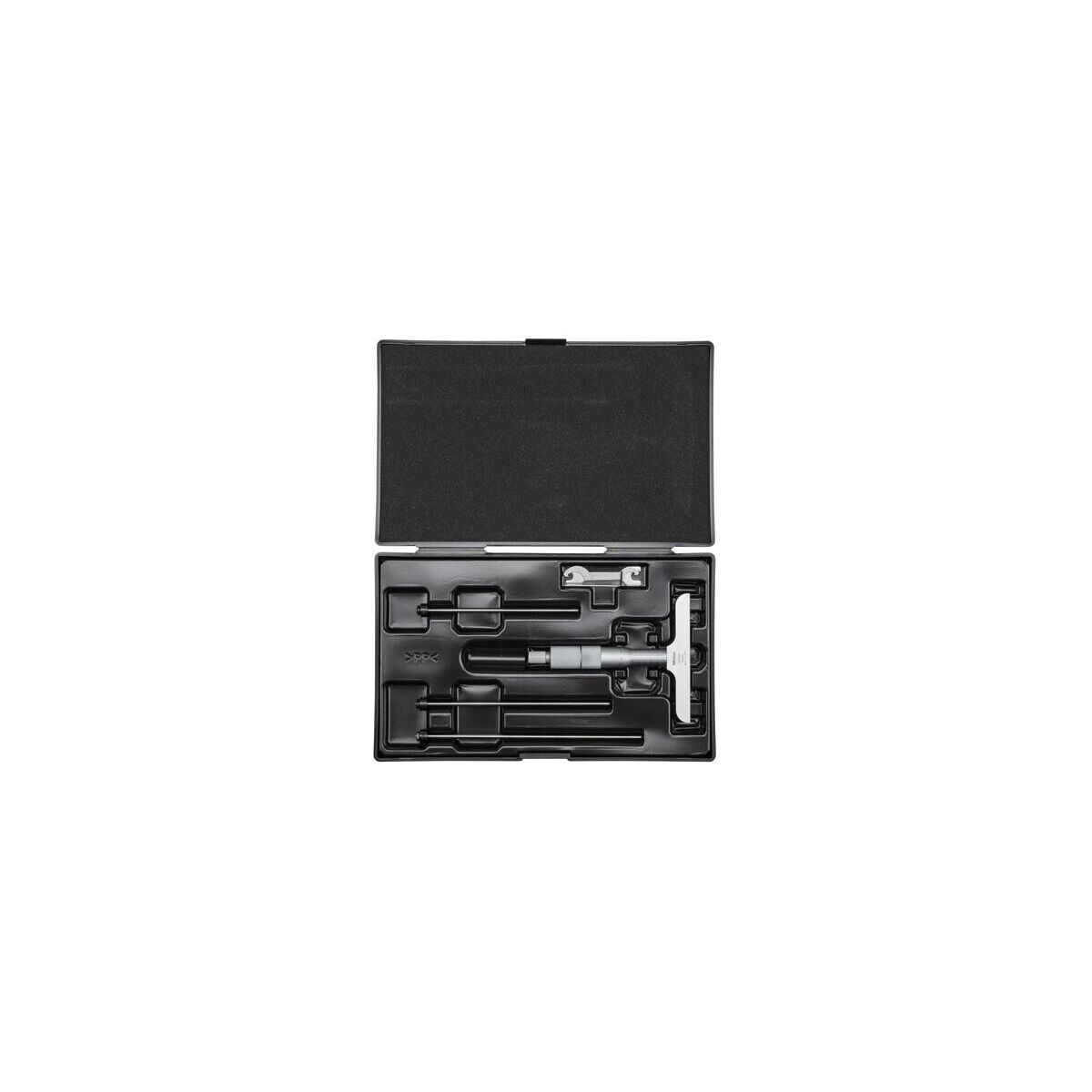

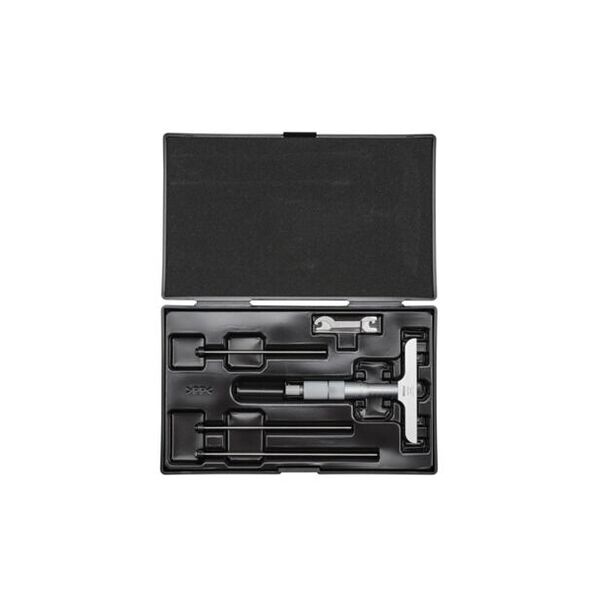

- Packaging: sturdy box
Product details
Technical Data
| Standard | DIN 863 | |
| Measuring range | 0 mm - 100 mm | |
| Scale divisions | 0.01 mm | |
| Micrometer barrel graduations | 1/50 mm | |
| Measuring needle ⌀ | 4 mm | |
| Barrel ⌀ | 18 mm | |
| Measurement technology | analogue | |
| Bridge length | 100 mm | |
| Number of gauging pins | 4 | |
| Packaging | sturdy box | |
| Type of product | Depth micrometer |
Identification & Classification
| Article number |
425200 0-100
Copy |
|
| EAN / GTIN |
4946368016382
Copy |
|
| Manufacturer number |
129-115
Copy |
|
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Version:
Various measuring depths can be achieved by exchanging the measuring pins with 25 mm increments. Measuring spindle fully hardened and ground. Base of hardened tool steel with lapped measuring anvil. Micrometer satin chrome-plated. Barrel with clearly engraved black scale and numerals. Constant measuring force due to integral ratchet.
Supplied with:
Measuring pins.
