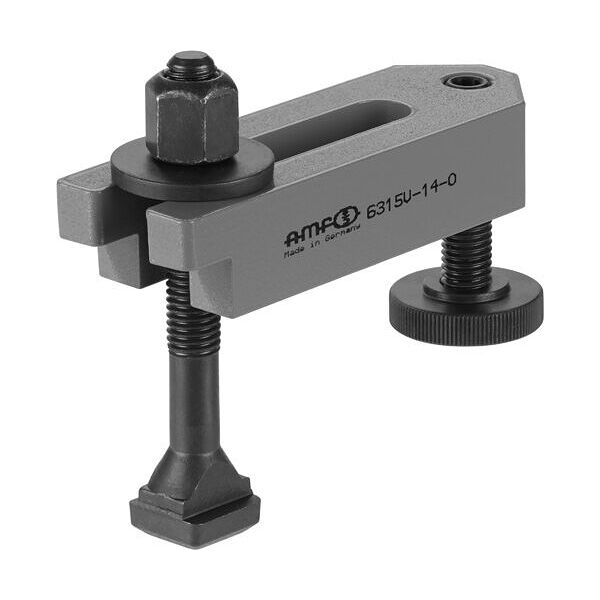

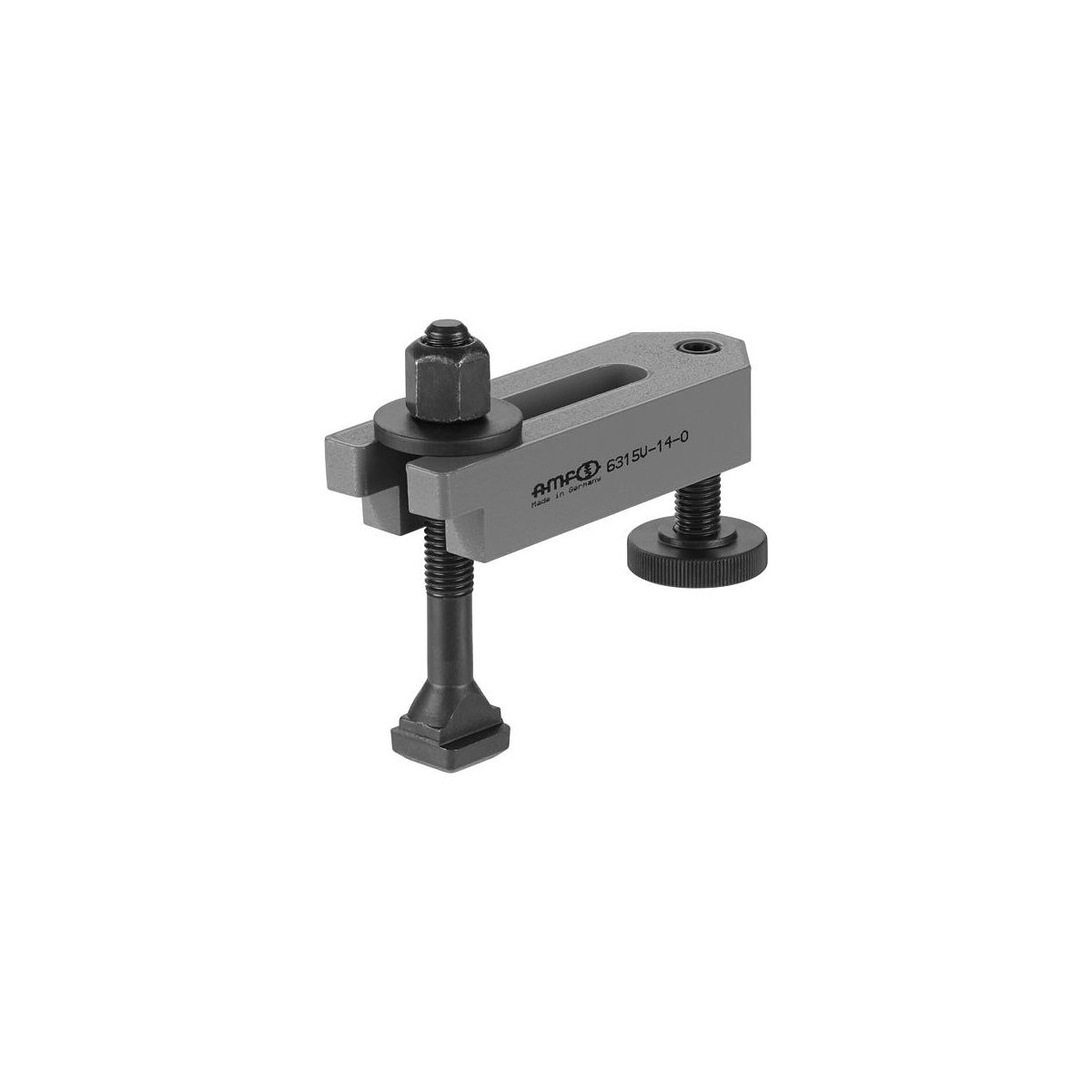

Forked clamp offset, Slot width a: 10mm
Article no.: 370810 10
Copy
Article code:
Copy
Product details

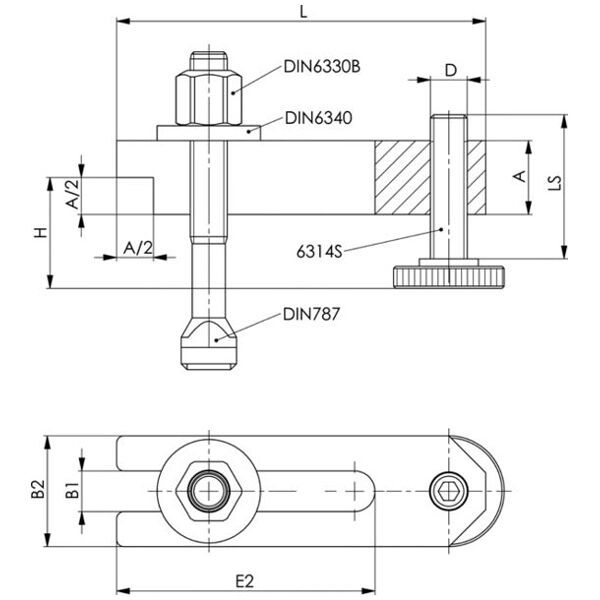

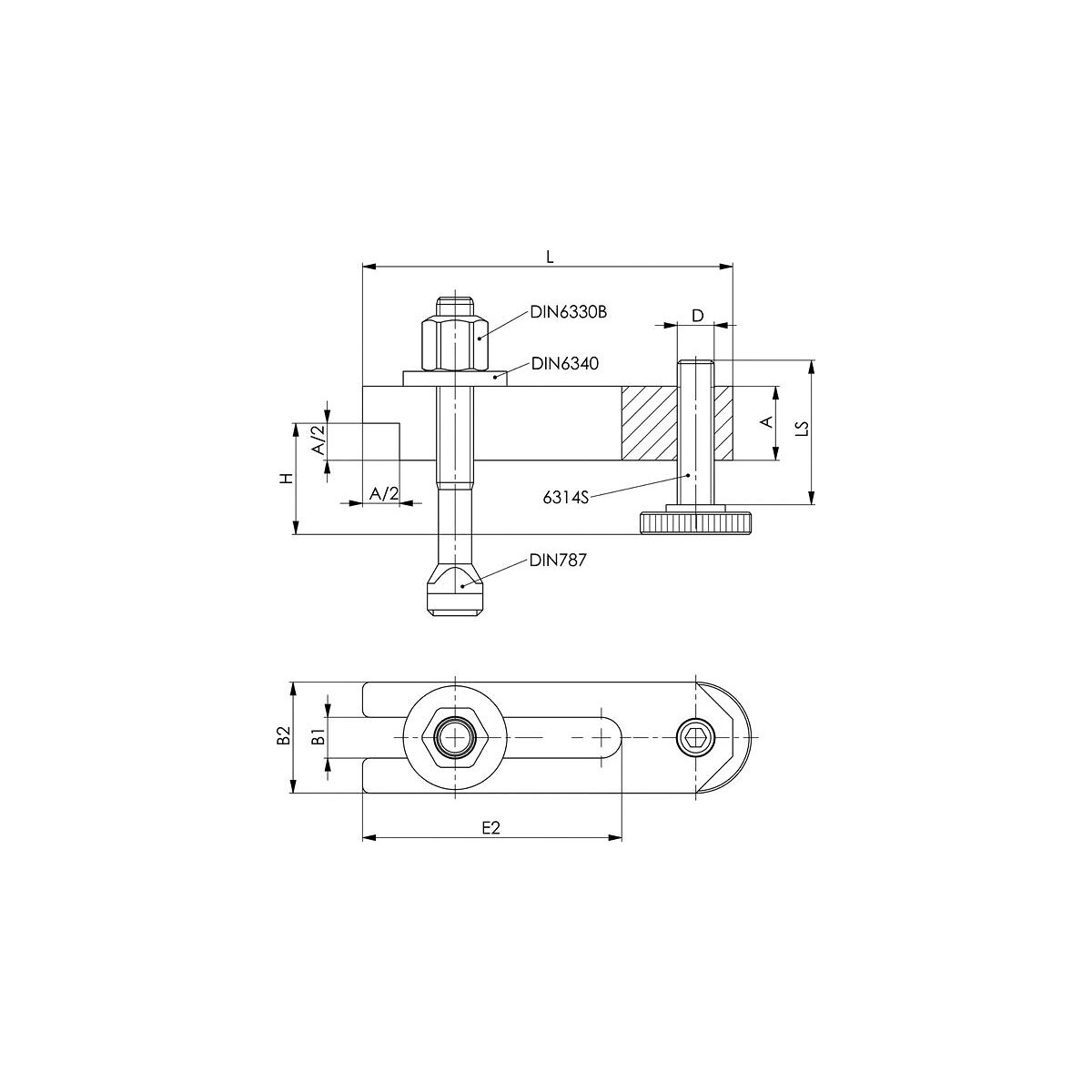

Technical Data
| Type | 6315V | |
| Slot width a | 10 mm | |
| Clamping height h | 8 mm - 37 mm | |
| Tee bolt DIN 787, No. 375300 | Size 101080 | |
| Length L | 100 mm | |
| Width B | 30 mm | |
| Height H | 20 mm | |
| Distance e from tip to end of slot | 70 mm | |
| Type of product | Plain clamp |
Identification & Classification
| Article number |
370810 10
Copy |
|
| EAN / GTIN |
4020772073183
Copy |
|
| Manufacturer number |
73189
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
Quenched and tempered steel, painted.
Application:
To achieve the lowest clamping height, turn the clamp around.
Material:
Screw strength 8.8.
Supplied with:
Adjusting screw and T-bolts DIN 787 (see No. 375300).
