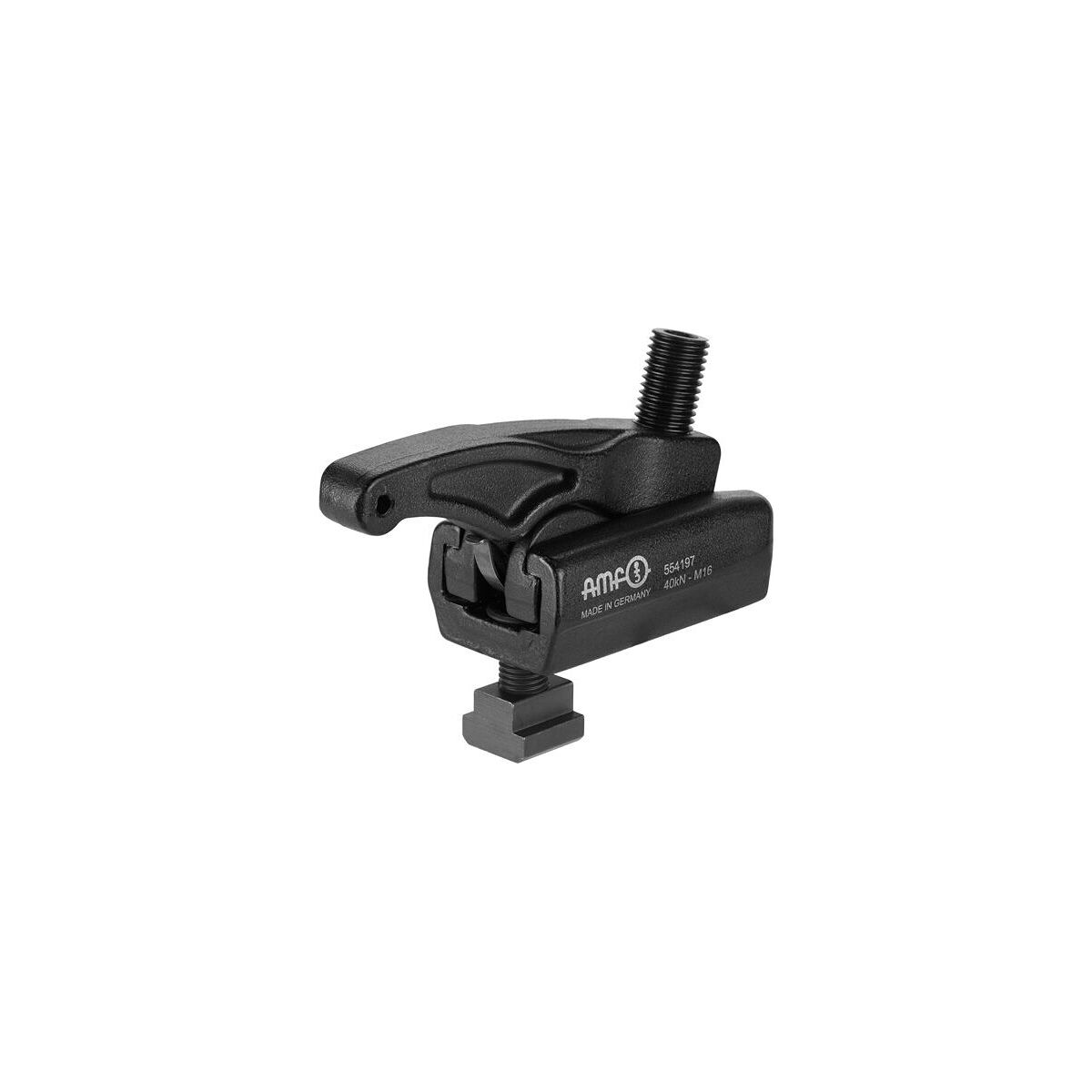

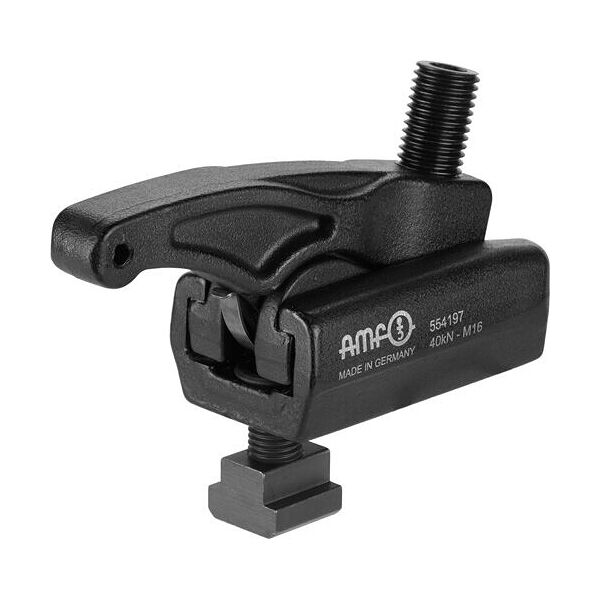

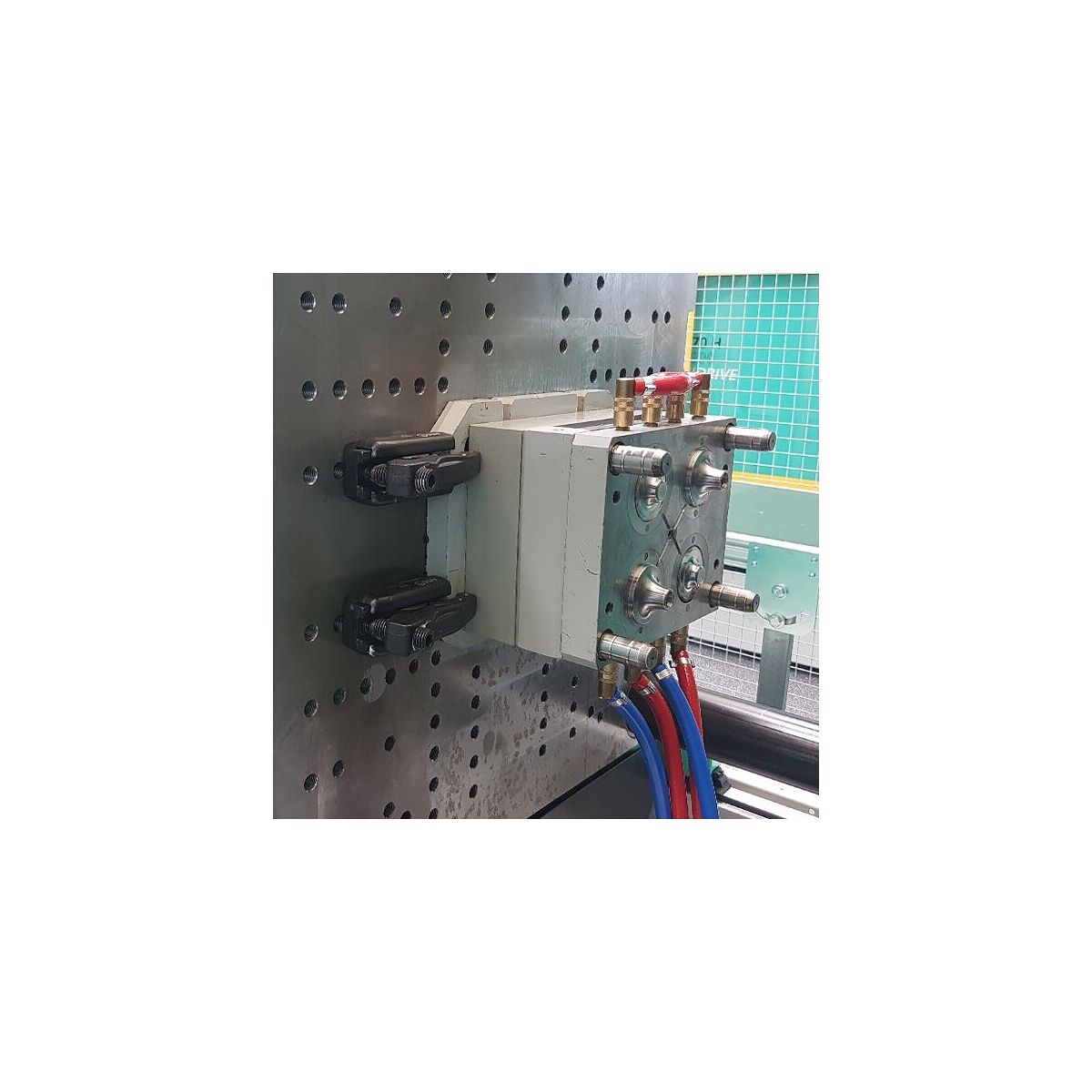

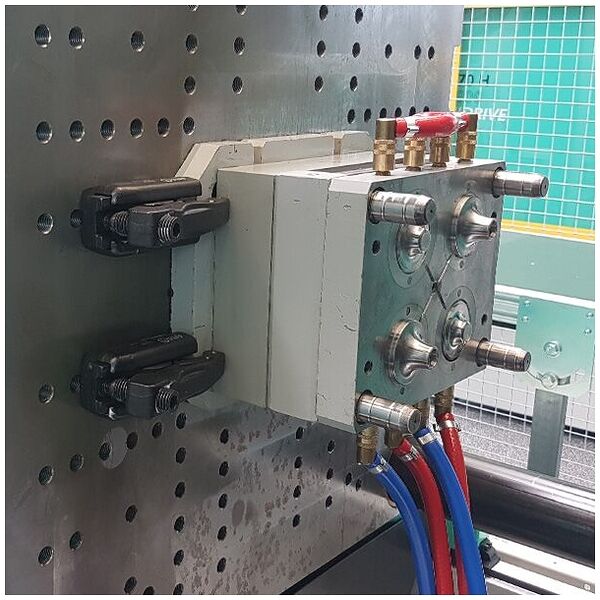

Power clamp adjustable long, Type: 1
Article no.: 370091 1
Copy
Article code:
Copy
Product details
Technical Data

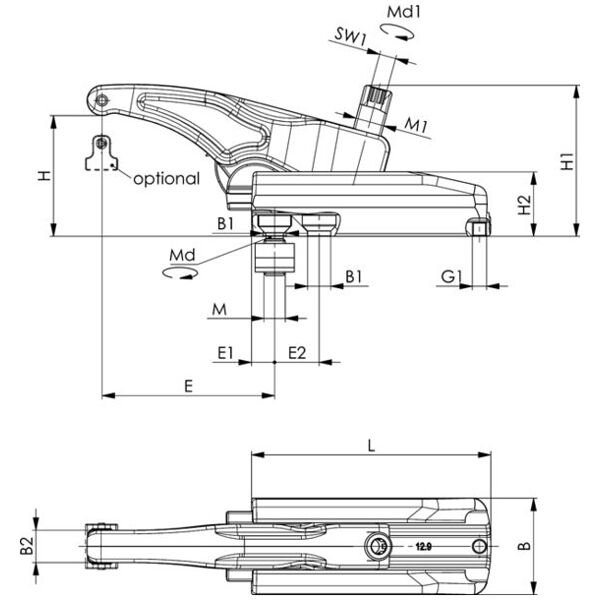

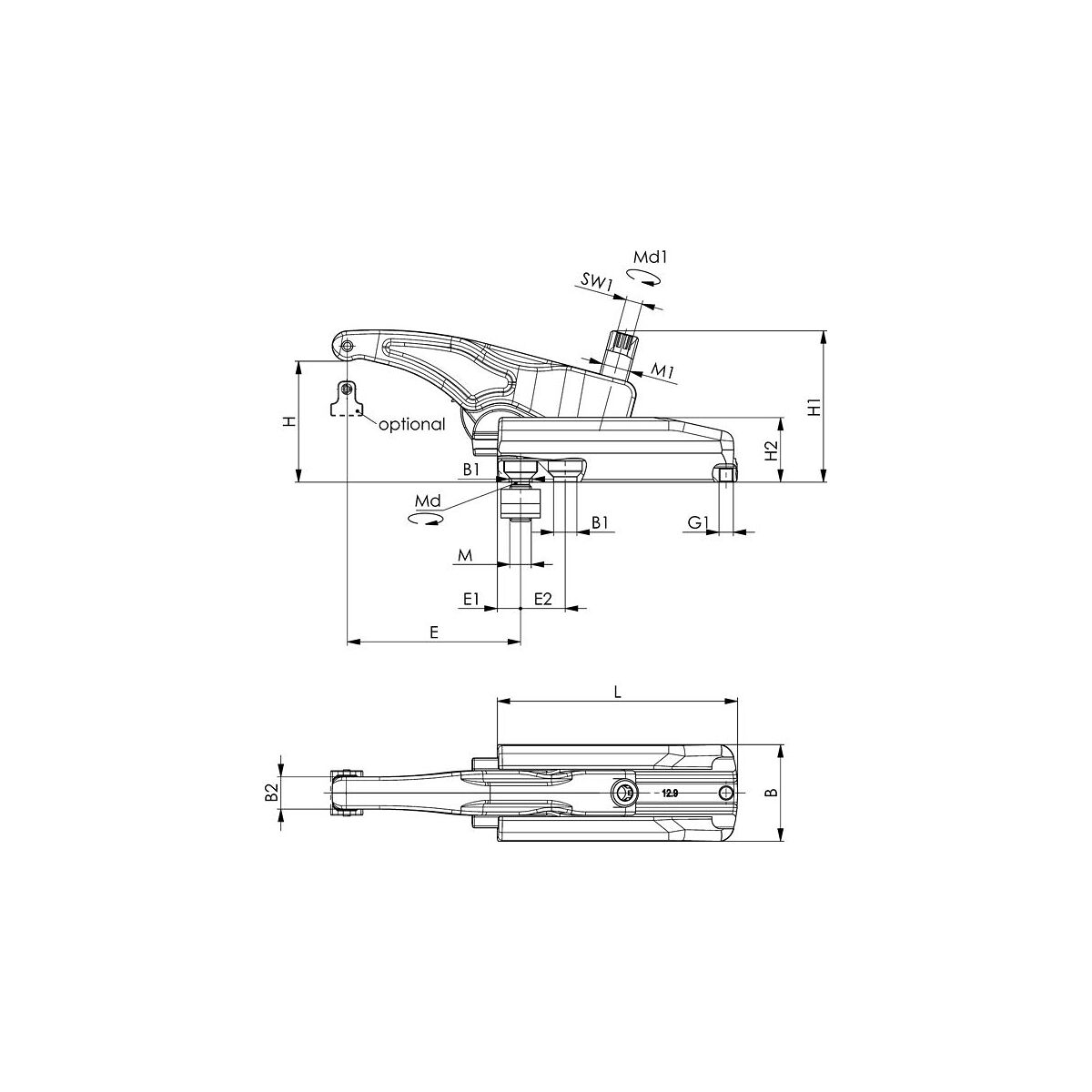

| Type | 764CC | |
| T-slot width | 14 mm | |
| Fastening screw G | M12 | |
| Clamping height h-H | 6 mm - 68 mm | |
| Clamping force | 30 kN | |
| A | 36 mm | |
| A1 | 85 mm | |
| B | 54 mm | |
| B1 | 18 mm | |
| L | 135 mm | |
| Adjustment travel V | 20 mm - 110 mm | |
| Width across flats AF | 8 mm | |
| with height element | no | |
| Fastening screw G1 | M16 | |
| Type of product | Sliding clamp |
Identification & Classification
| Article number |
370091 1
Copy |
|
| EAN / GTIN |
4020772004644
Copy |
|
| Manufacturer number |
556186
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
- Clamping force 30 or 49 kN with tightening torque of approx. 100 Nm.
- Forged clamping element of alloy heat-treatable steel, black galvanised.
- Steplessly adjustable height and length.
- Low installed height.
Supplied with:
- Base element and carrier.
- T-nut DIN 508 with T-bolt strength class 12.9.
Optional extras:
Pressure pads No. 370095.
