Diamond needle file set, 5 pieces, 140 mm, Grit: D91µm
Article no.: 529300 D91
Article code:
- Grinding medium code: D
Product details
Technical Data
| Abrasive media | Diamond | |
| Grinding medium code | D | |
| Overall length | 140 mm | |
| Number of individual files | 5 | |
| Packaging | Plastic case | |
| Type of product | Needle file |
Identification & Classification
| Article number | 529300 D91 | |
| EAN / GTIN | 4007220017371 | |
| Manufacturer number | 4007220017371 | |
| Manufacturer | August Rueggeberg GmbH & Co. KG, Hauptstraße 13, 51709 MARIENHEIDE, Germany, www.pferd.com |
Application Table
Description
Version:
The blanks for these needle files are forged and ground from special steel. The diamond needle files are evenly spread with diamond powder of uniform grit and electro-bonded in place. The even diamond coating and the hardness of the diamond ensure best filing results. Overall file length = 140 mm; diamond coated length = 70 mm; shank ⌀ = 3 mm.
Application:
For precision finishing of cutting, stamping and press tools made of hardened steel or carbide. Also for working glass, ceramic etc. Use light pressure for filing, particularly at edges. Heavier pressure does not increase the removal rate but damages the file.
Fine grit
Supplied with:

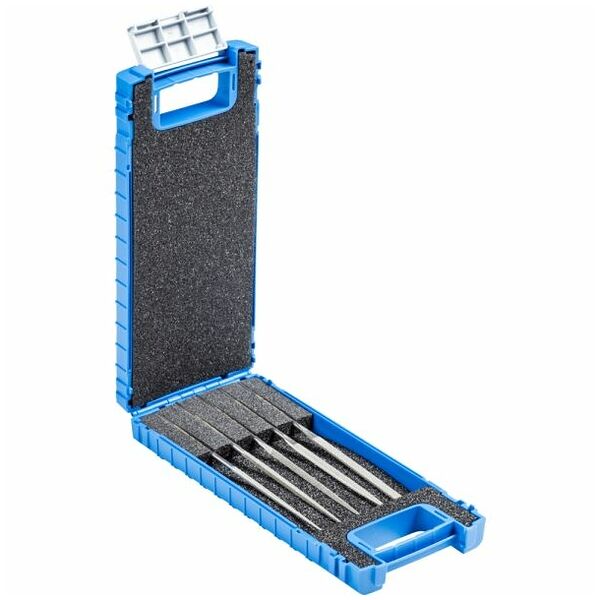

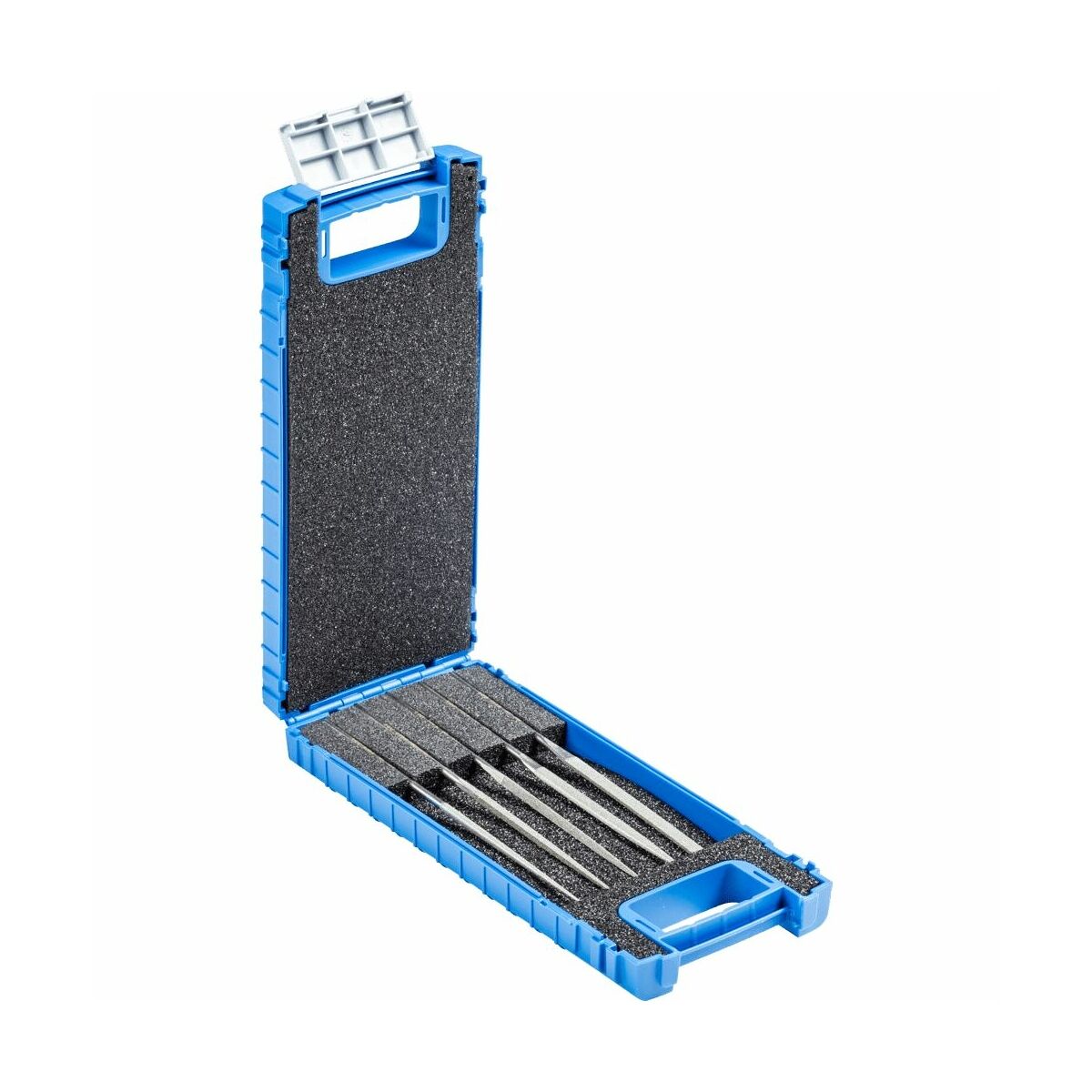

In a plastic box.
5 pieces, 1 each file of shape 1; 3; 4; 5; 6.
5 pieces, 1 each file of shape 1; 3; 4; 5; 6.
Optional extras:
A quick-release handle for these files can be found under No. 519700.
