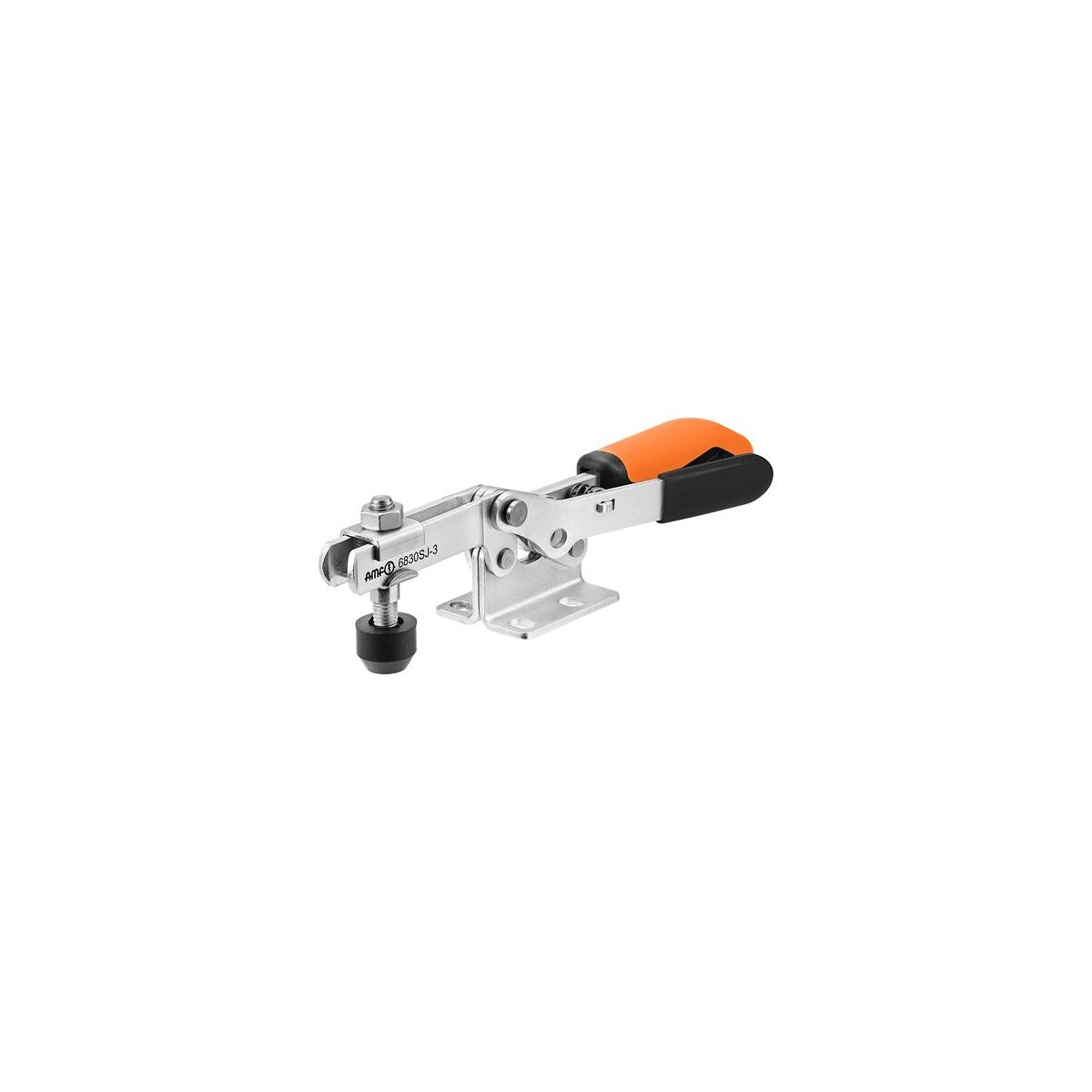

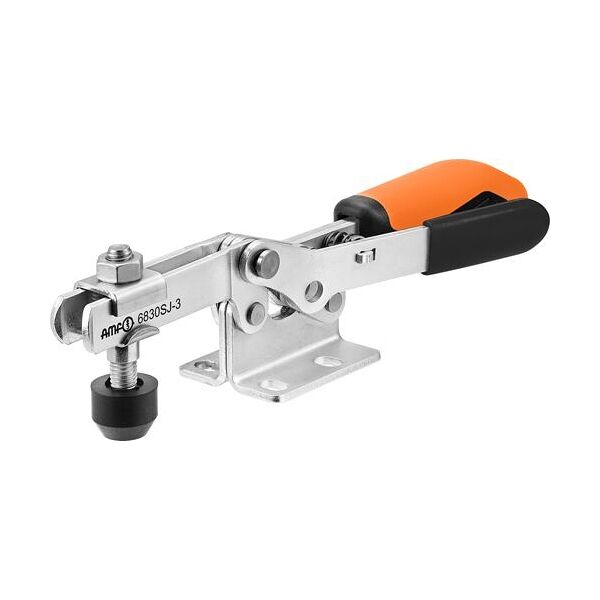

Horizontal toggle clamp with safety-locking mechanism, Type: 3
Article no.: 376650 3
Copy
Article code:
Copy
Product details
Technical Data

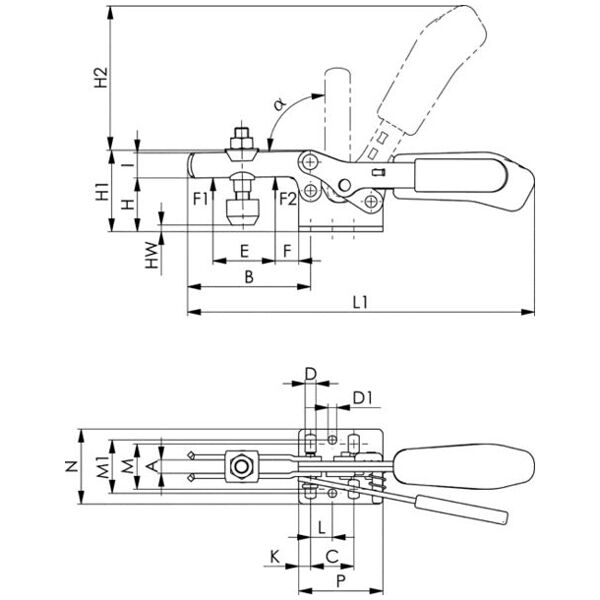

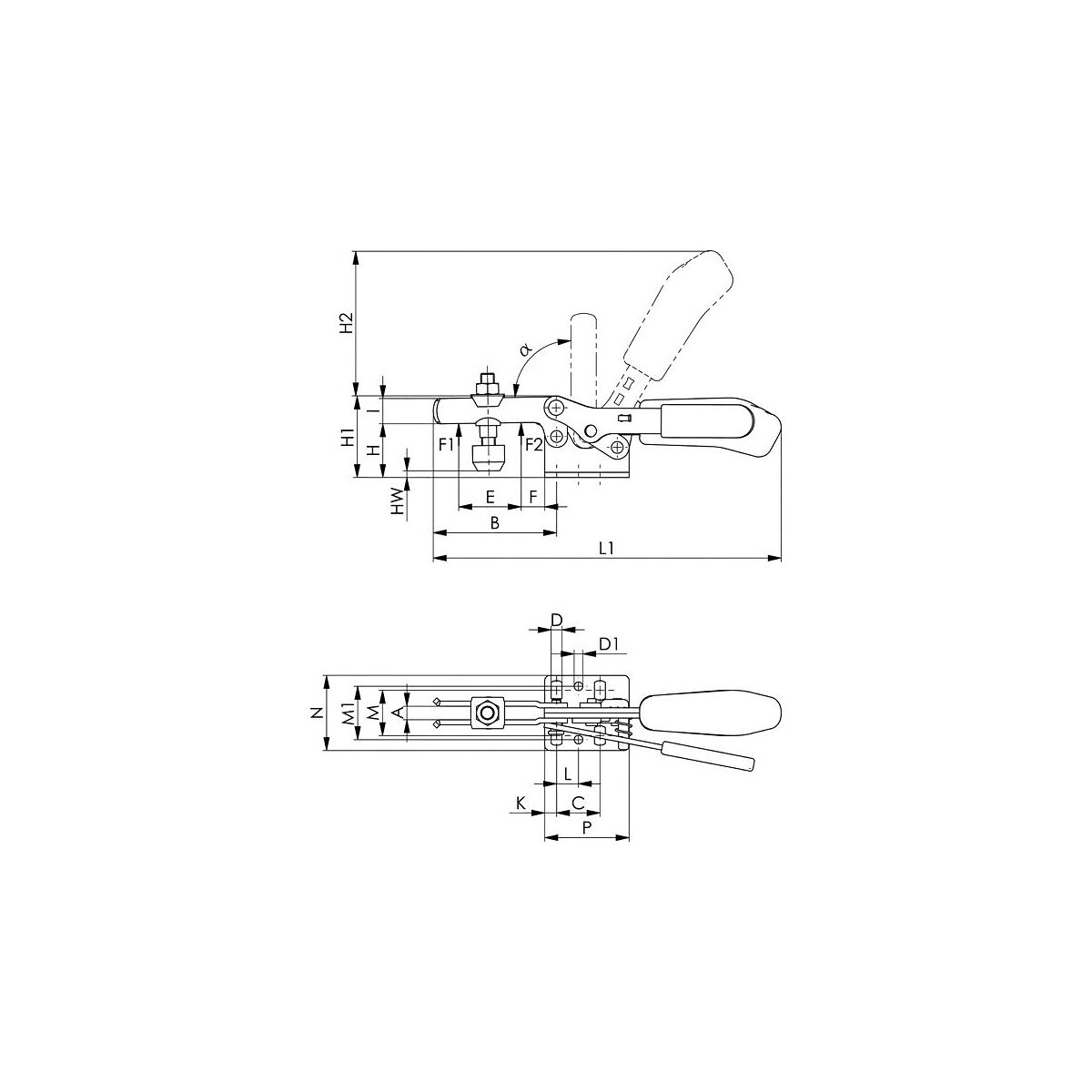

| Type | 6830SJ | |
| Hole spacing e | 25.7 mm | |
| Hole spacing f | 22-31.8 mm | |
| Bore ⌀ d | 6.5 mm | |
| Clamping height H | 32 mm | |
| Clamping force P1 | 1,800 N | |
| Clamping force P2 | 2,500 N | |
| overall height | 48.5 mm | |
| overall length | 206 mm | |
| Contact screw | M8×45 mm | |
| Type of product | Horizontal toggle clamp |
Identification & Classification
| Article number |
376650 3
Copy |
|
| EAN / GTIN |
4020772008819
Copy |
|
| Manufacturer number |
557427
Copy |
|
| Manufacturer | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
- Rivet made of stainless steel.
- Case-hardened bearing bushes.
- Bearings greased.
- Complete with hardened and galvanised contact screw.
- More compact design due to new handle.
- Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
- Captive contact screws.
Application:
Particularly suitable for use where vibrations occur and for overhead applications due to patented safety-locking in closed and open state.
