Vertical toggle clamp with horizontal base, stainless 1
Article no.: 376505 1
Article code:
Click to enlarge image
Click to enlarge image

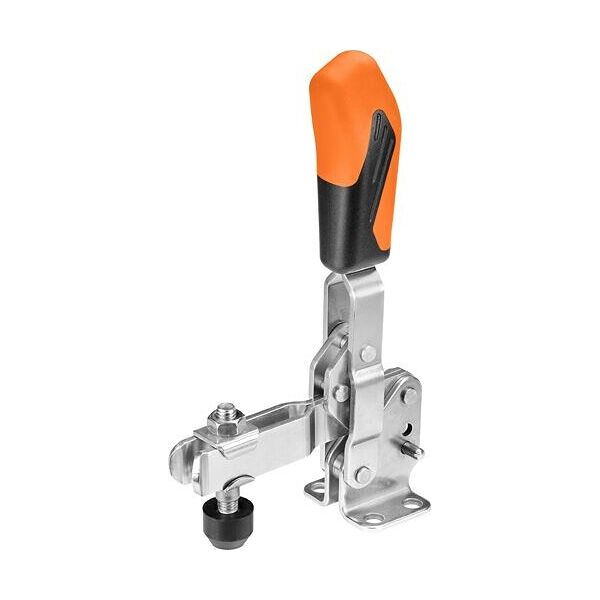

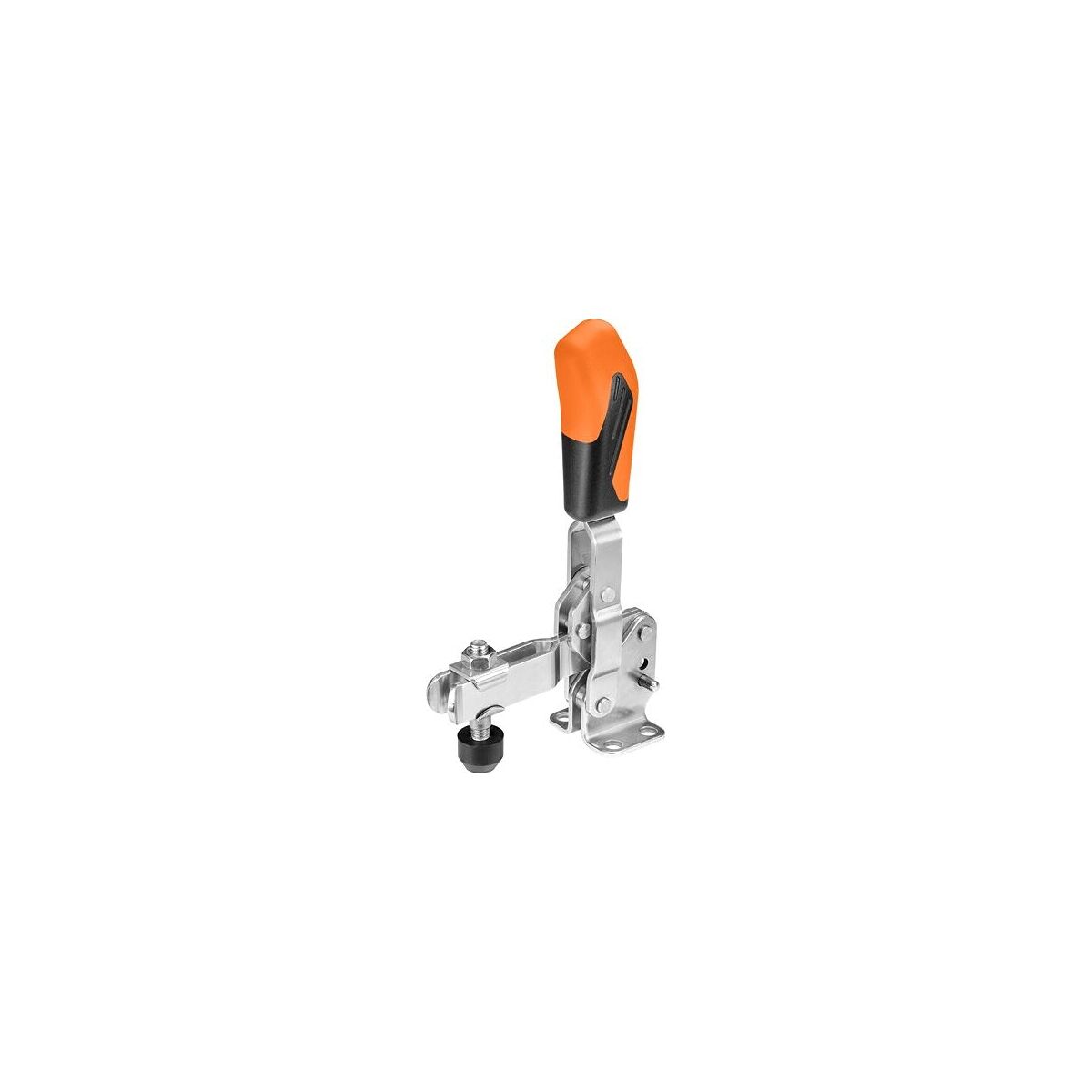

For plain workpieces: Contact screw with rubber cap (standard version).
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Product details

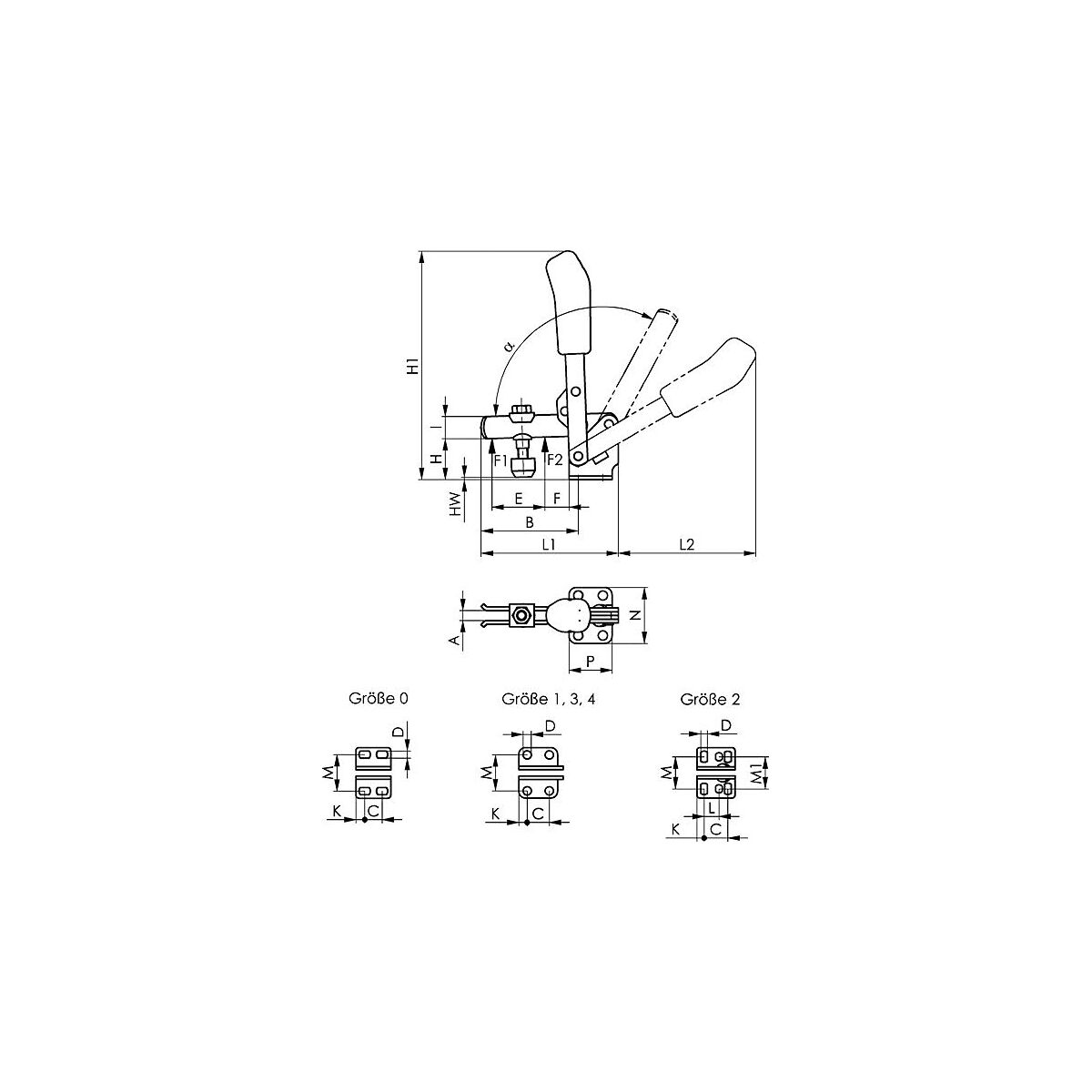

Technical Data
| Type | 6800NIJ | |
| Hole spacing e | 16 mm | |
| Hole spacing f | 22.5-26 mm | |
| Bore ⌀ d | 4.5 mm | |
| Clamping height H | 19 mm | |
| Clamping force P1 | 600 N | |
| Clamping force P2 | 1,100 N | |
| overall height | 98 mm | |
| overall length | 61 mm | |
| Contact screw | M5×30 mm | |
| Type of product | Vertical toggle clamps |
Identification numbers & Classifications
| Article number | 376505 1 | |
| EAN / GTIN | 4020772008888 | |
| Manufacturer number | 557434 |
Description
Version:
With horizontal base for fixing to base plates etc.
- Compact design due to new handle.
- Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
- Captive contact screw.
- Finger protection thanks to safety clamping mechanism no trap points.
Application:
For quick clamping and releasing of parts in series production or for installation as part of special clamping jigs. Suitable for clamping during drilling, reaming, grinding, bending, welding, fitting etc.
