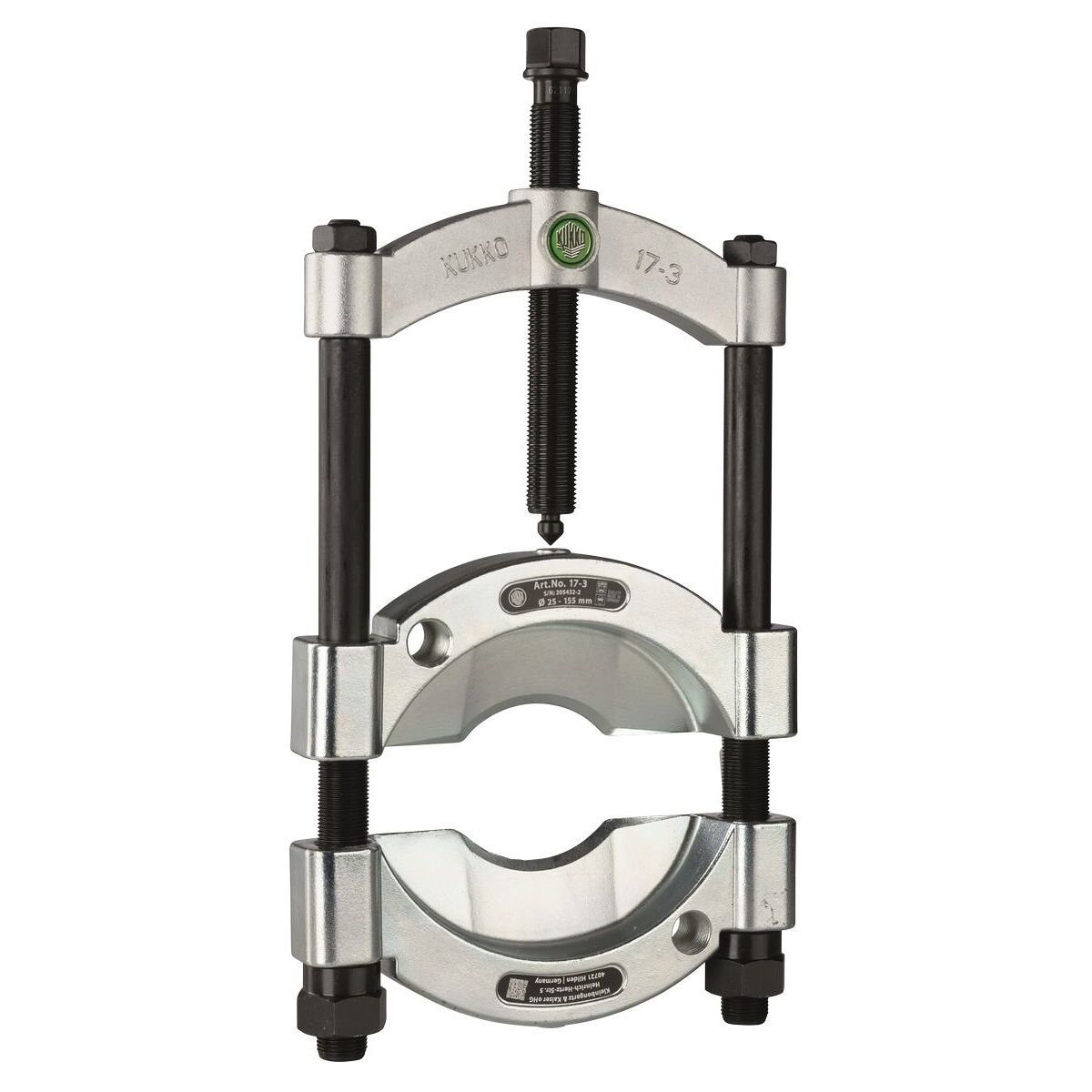

Bearing separator separately 3
Article no.: 884600 3
Article code:
Product details
Technical Data
| Manufacturer's designation | 17 | |
| Clamping range dimension A | 25 mm - 155 mm | |
| Spacing of side pins dimension B | 155 mm | |
| Connection thread for bearing extractor | M18×1.5 | |
| Type of product | Separator |
Identification & Classification
| Article number | 884600 3 | |
| EAN / GTIN | 4021176008443 | |
| Manufacturer number | 17-3 | |
| Manufacturer | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Deutschland, www.kukko.com |
Description
Version:
Bearing separator of high-quality tool steel.
Separator: The quick-release semicircular jaws are symmetrically tensioned by a screw. This causes the wedge-shaped jaws to insert themselves between bearings and shaft.
Extractor: Used in conjunction with the separator to extract bearings from their seating (for this the draw bolts are screwed into the threaded holes in the separation jaws).
Separator: The quick-release semicircular jaws are symmetrically tensioned by a screw. This causes the wedge-shaped jaws to insert themselves between bearings and shaft.
Extractor: Used in conjunction with the separator to extract bearings from their seating (for this the draw bolts are screwed into the threaded holes in the separation jaws).
The semicircular separation jaws are symmetrically tensioned by a quick-release pressure spindle.
Application:
For the separation of tightly wedged ball bearings, gears, etc., if the gap is too small for normal extraction arms.
