Solid carbide end mill TPC TiAlN 10 mm GARANT
Article no.: 203083 10
Copy
Article code:
Copy
- Tool material: Solid carbide
- Standard: Manufacturer’s standard
- Type: N
- Tolerance nominal ⌀: f8
- No. of teeth Z: 5
Product details
Technical Data
| Cutting edge ⌀ DC | 10 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | N | |
| Tolerance nominal ⌀ | f8 | |
| No. of teeth Z | 5 | |
| Helix angle | 45 degrees | |
| Helix angle characteristic | unequal spacing | |
| Spacing of the cutters | unequal spacing | |
| Direction of infeed | horizontal and oblique | |
| Cutting width ae for milling operation | 0.06×D | |
| Shank | DIN 6535 HB to h6 | |
| Balance quality with shank | G 2.5 with HB | |
| Through-coolant | no | |
| Machining strategy | TPC | |

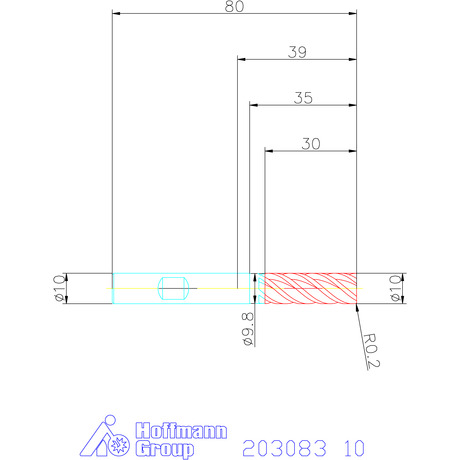

| Flute length Lc | 30 mm | |
| Overhang length L1 incl. recess | 35 mm | |
| Recess ⌀ D1 | 9,8 mm | |
| Overall length L | 80 mm | |
| Shank ⌀ Ds | 10 mm | |
| Corner rounding rv | 0,2 mm | |
| Average chip thickness hmax for TPC milling in titanium > 850 N/mm2 | 0,06 mm | |
| Average chip thickness hmax for TPC milling in Inconel® | 0,05 mm | |
| Colour ring | pink | |
| Type of product | End / face mill |
Identification & Classification
| Article number |
203083 10
Copy |
|
| EAN / GTIN |
4045197609915
Copy |
|
| Manufacturer number |
203083 10
Copy |
|
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Deutschland, www.hoffmann-group.com |
Application Table
suitable for / [m/min]
S
ISO code:
180
suitable for / [m/min]
S
ISO code:
90
suitable for / [m/min]
Description
Version:
High-performance miller for machining superalloys, specially designed for TPC applications.
Strengthened core.
Strengthened core.
Note:
hmax: The values stated in the table are maximum values.
ae max = 0.06×D for TPC machining.
ae max = 0.06×D for TPC machining.
