Cermet Turning Insert - VNMG160404L-VC TN620
Article no.: TSR07894
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable insert for turning |
Identification & Classification
| Article number |
TSR07894
Copy |
|
| EAN / GTIN |
4960664785155
Copy |
|
| Manufacturer number |
TSR07894
Copy |
|
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:

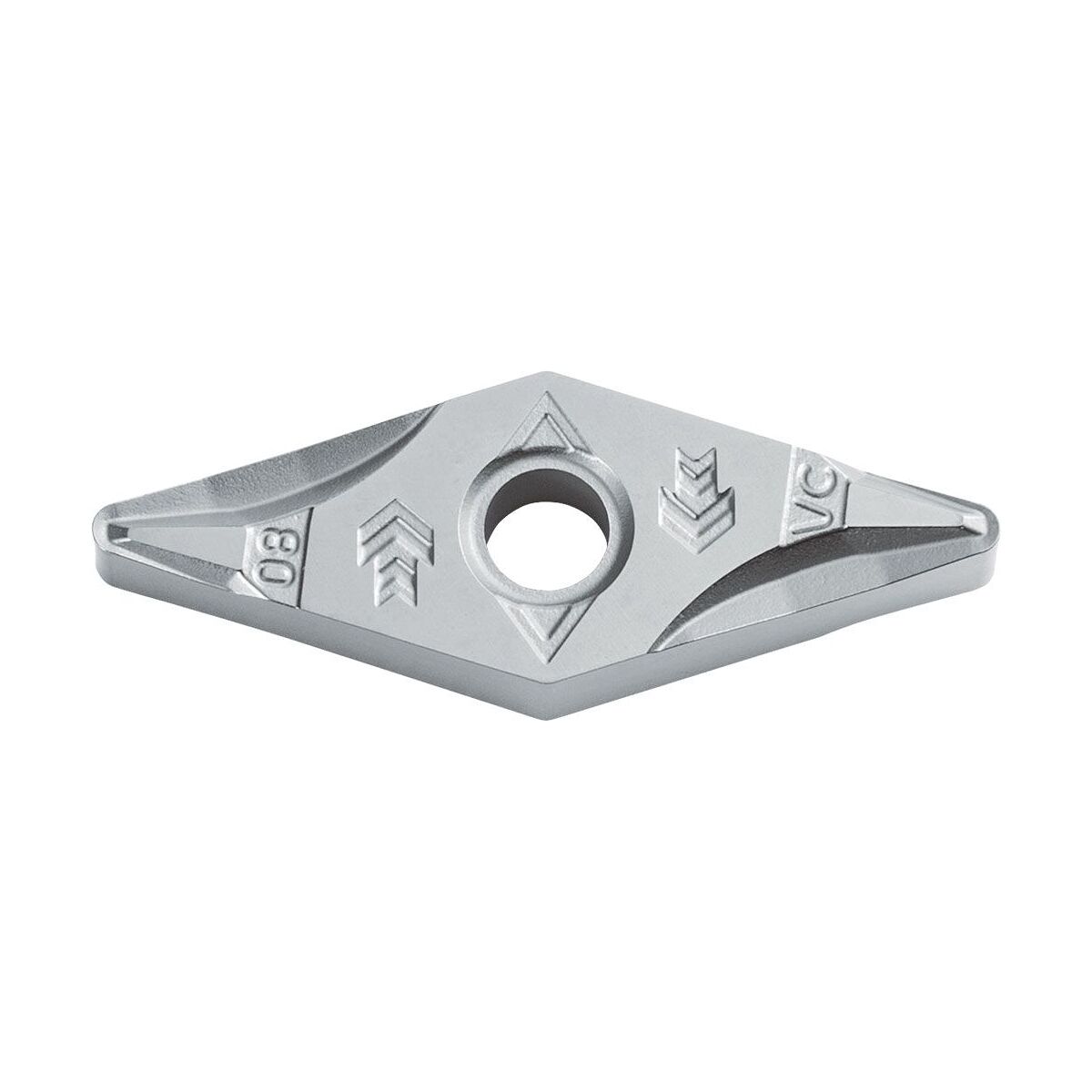

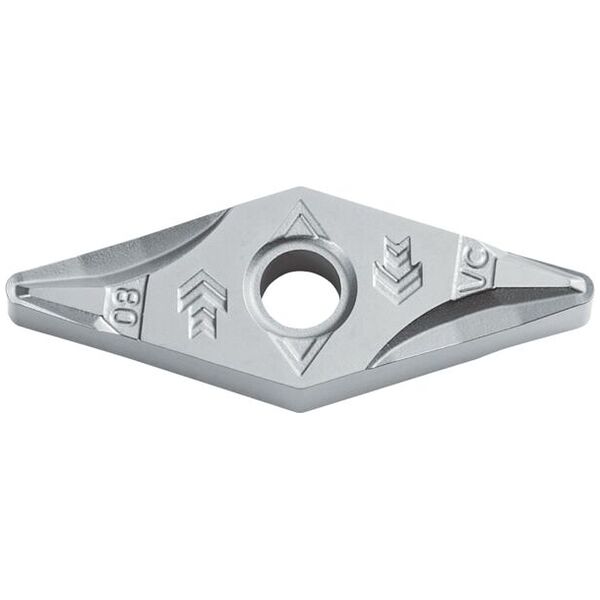

Cermet Turning Insert VNMG160404L-VC TN620

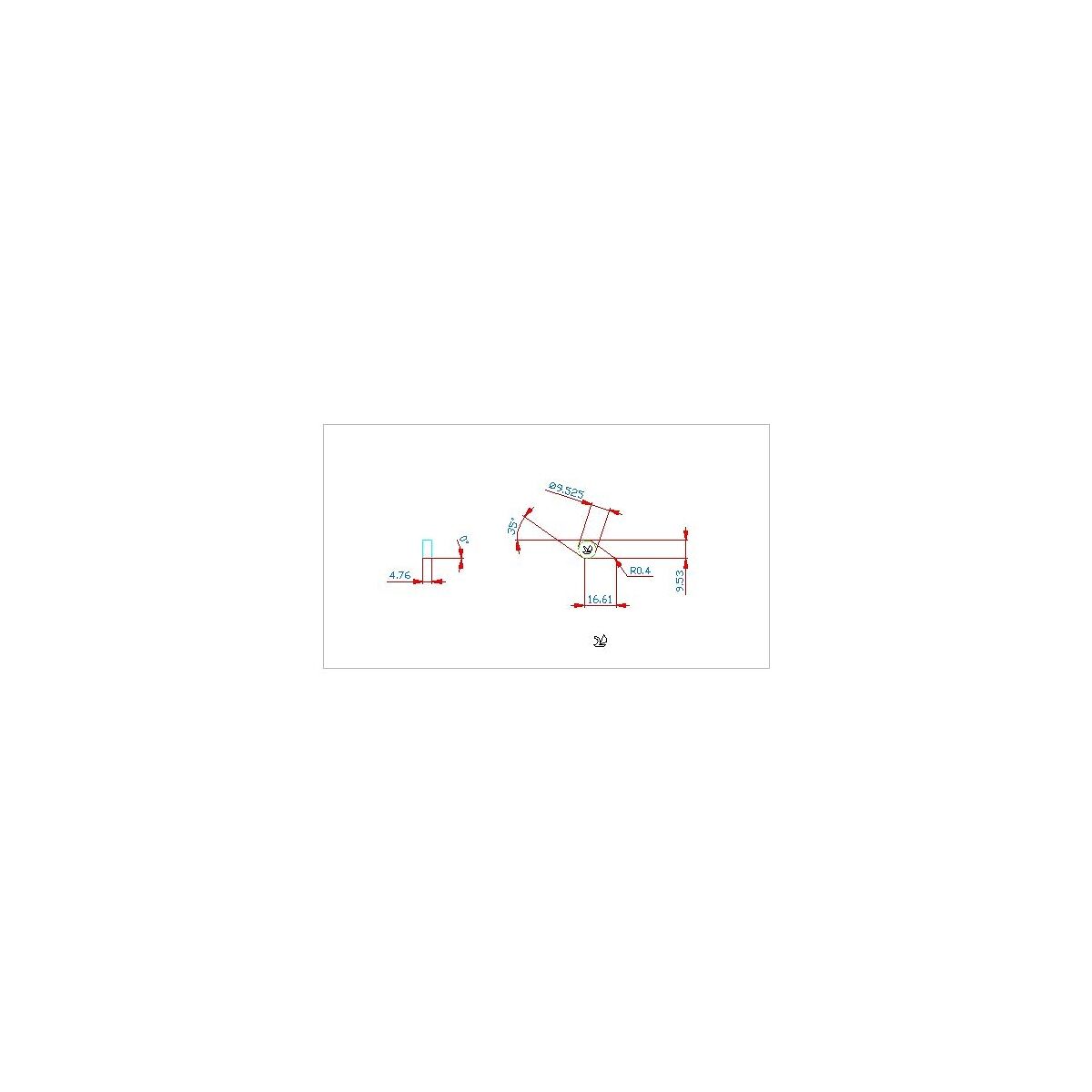

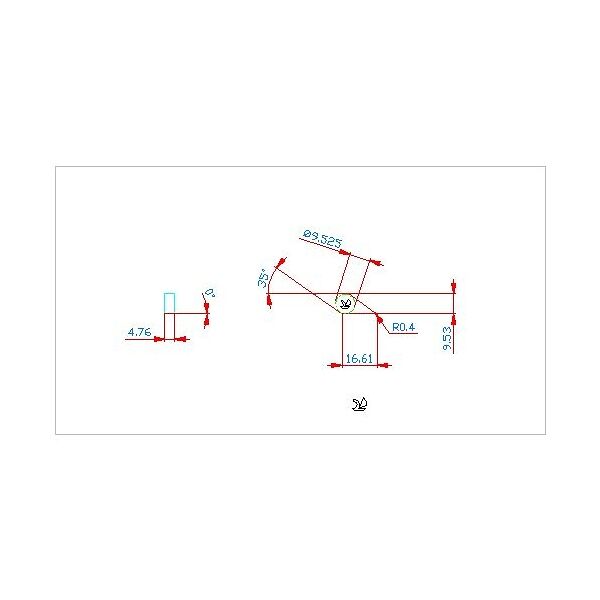

Feature:
AN (GTC - Clearance angle major): 0 Degree
RE (GTC - Corner radius): 0.4 mm
IFS (GTC - Insert mounting style code): 2
Corner radius (RE): 4
S (GTC - Insert thickness): 4.76 mm
IC (GTC - Inscribed circle diameter): 9.525 mm
L (GTC - Cutting edge length): 16.606 mm
EPSR (GTC - Insert included angle): 35 Degree
Size: 1604
HAND (GTC - Insert hand): L
TC (GTC - Tolerance class insert): M
Grade: TN620
Chip breaker: VC
Description: VNMG
RE (GTC - Corner radius): 0.4 mm
IFS (GTC - Insert mounting style code): 2
Corner radius (RE): 4
S (GTC - Insert thickness): 4.76 mm
IC (GTC - Inscribed circle diameter): 9.525 mm
L (GTC - Cutting edge length): 16.606 mm
EPSR (GTC - Insert included angle): 35 Degree
Size: 1604
HAND (GTC - Insert hand): L
TC (GTC - Tolerance class insert): M
Grade: TN620
Chip breaker: VC
Description: VNMG
