Carbide Turning Insert - CCGT0602005MFP-SKS PR1725
Article no.: TLM40215
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable insert for turning |
Identification & Classification
| Article number |
TLM40215
Copy |
|
| EAN / GTIN |
4960664923328
Copy |
|
| Manufacturer number |
TLM40215
Copy |
|
| L-Number |
L22270 2851
Copy |
|
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:

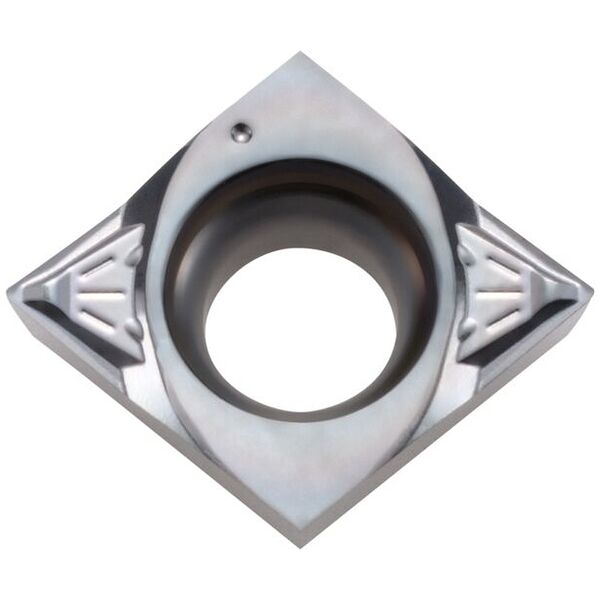

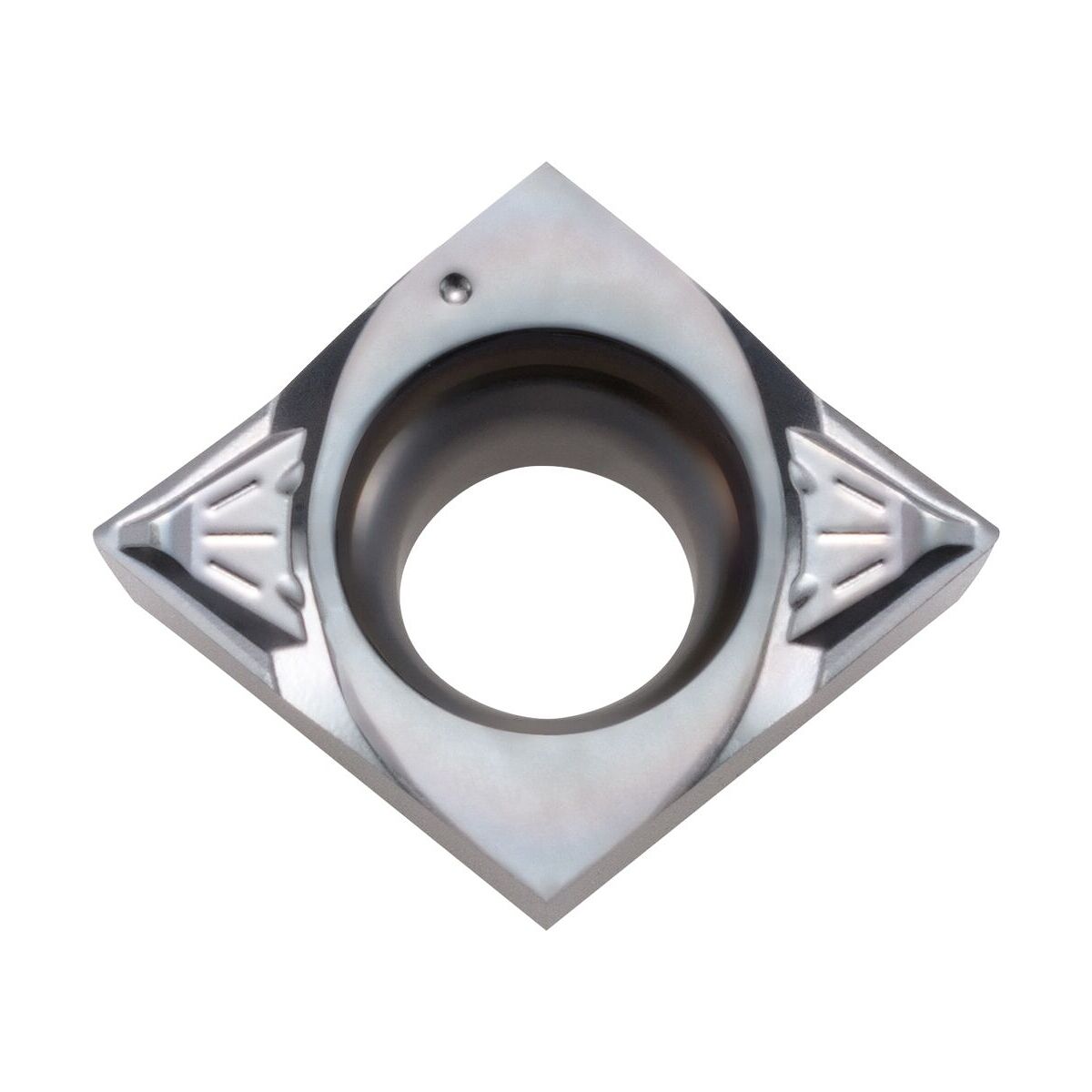

Carbide Turning Insert CCGT0602005MFP-SKS PR1725

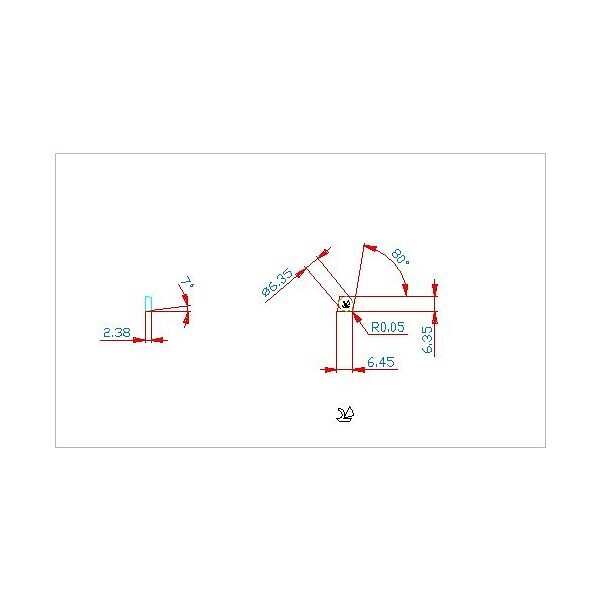

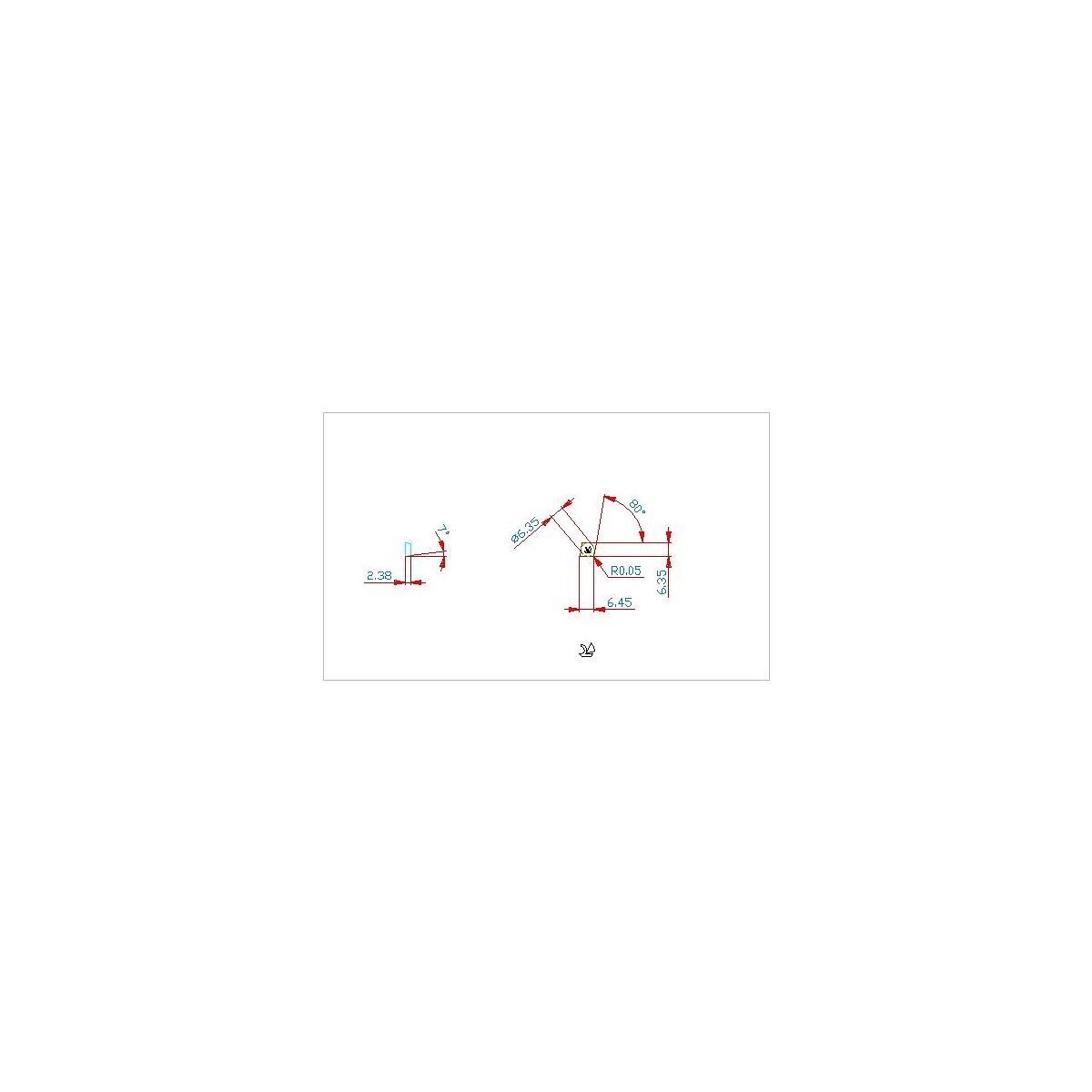

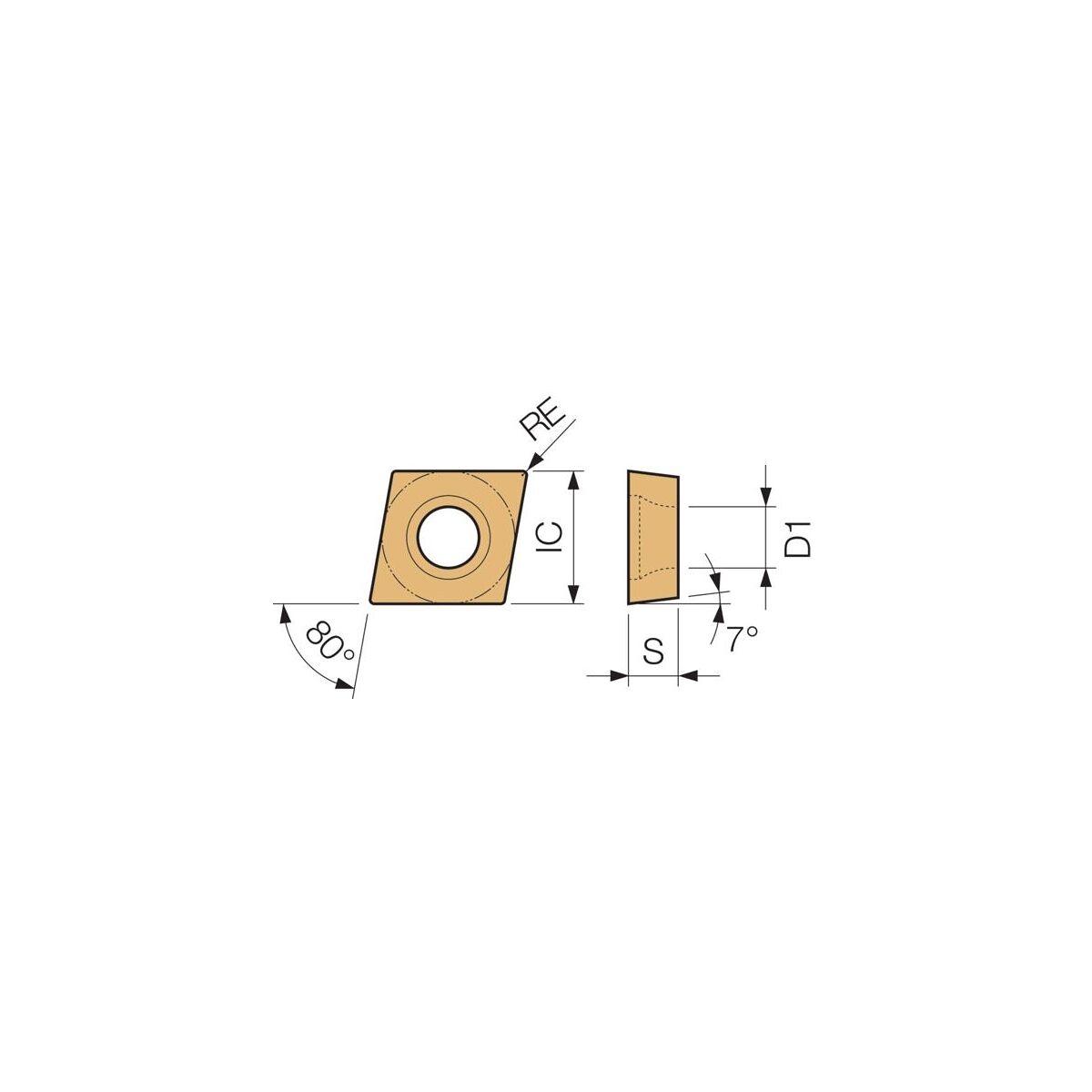

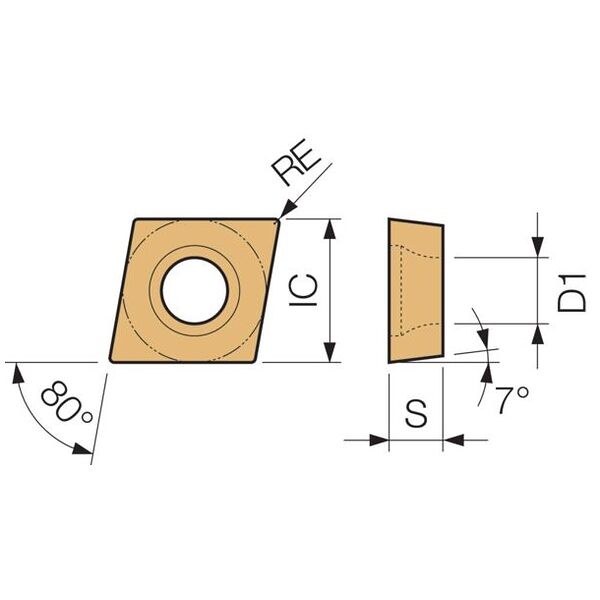

Feature:
RE (GTC - Corner radius): 0.05 mm
S (GTC - Insert thickness): 2.38 mm
IFS (GTC - Insert mounting style code): 3
Corner radius (RE): 5
IC (GTC - Inscribed circle diameter): 6.35 mm
L (GTC - Cutting edge length): 6.448 mm
AN (GTC - Clearance angle major): 7 Degree
EPSR (GTC - Insert included angle): 80 Degree
Size: 602
Description: CCGT
TC (GTC - Tolerance class insert): G
COATING (GTC - Coating): MEGACOAT NANO PLUS
HAND (GTC - Insert hand): N
Grade: PR1725
Chip breaker: SKS
S (GTC - Insert thickness): 2.38 mm
IFS (GTC - Insert mounting style code): 3
Corner radius (RE): 5
IC (GTC - Inscribed circle diameter): 6.35 mm
L (GTC - Cutting edge length): 6.448 mm
AN (GTC - Clearance angle major): 7 Degree
EPSR (GTC - Insert included angle): 80 Degree
Size: 602
Description: CCGT
TC (GTC - Tolerance class insert): G
COATING (GTC - Coating): MEGACOAT NANO PLUS
HAND (GTC - Insert hand): N
Grade: PR1725
Chip breaker: SKS
