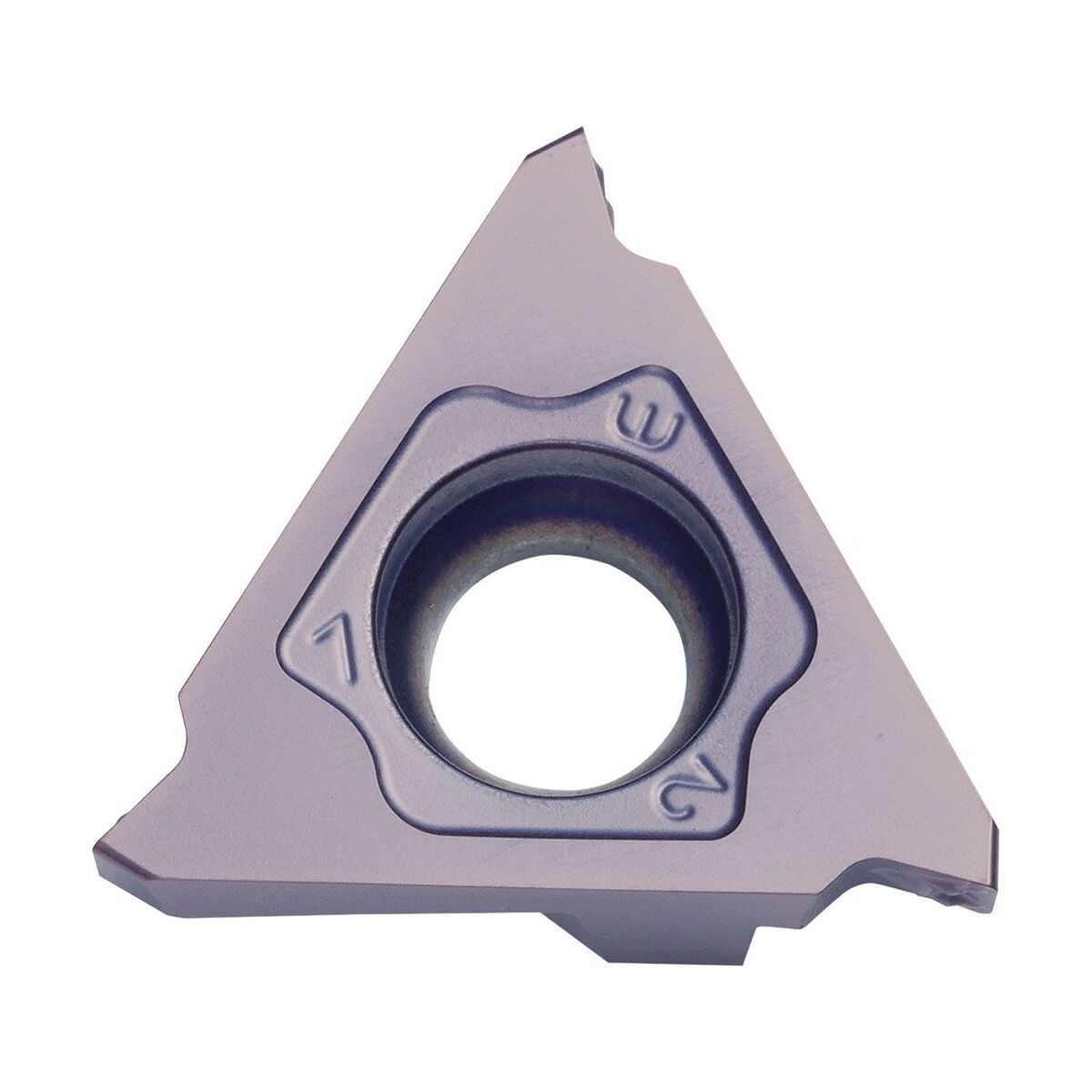

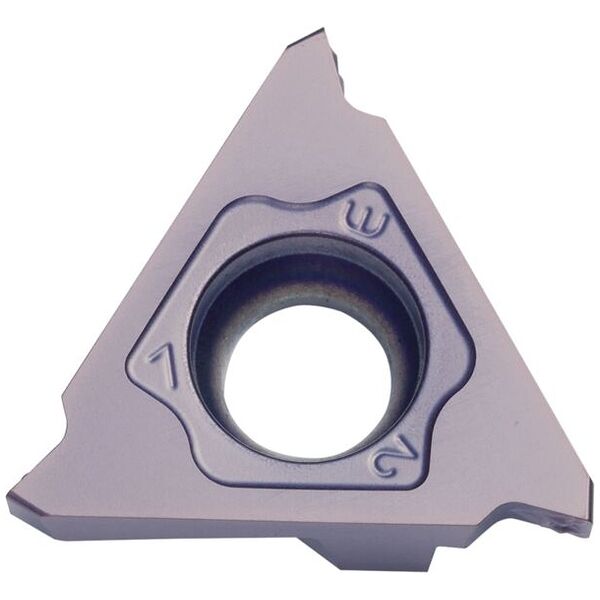

Carbide Grooving Insert - GBA43R150-020GM PR1625
Article no.: TLL17620
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable insert for grooving |
Identification & Classification
| Article number |
TLL17620
Copy |
|
| EAN / GTIN |
4960664873876
Copy |
|
| Manufacturer number |
TLL17620
Copy |
|
| L-Number |
L22310 814
Copy |
|
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:
Carbide Grooving Insert GBA43R150-020GM PR1625
Feature:
ANR (GTC - Clearance angle flank right hand): 0 Degree
AN (GTC - Clearance angle major): 0 Degree
WT (GTC - Weight of item): 0.007 kg
REL (GTC - Corner radius left hand): 0.2 mm
RER (GTC - Corner radius right hand): 0.2 mm
PFS (GTC - Profile form): 1

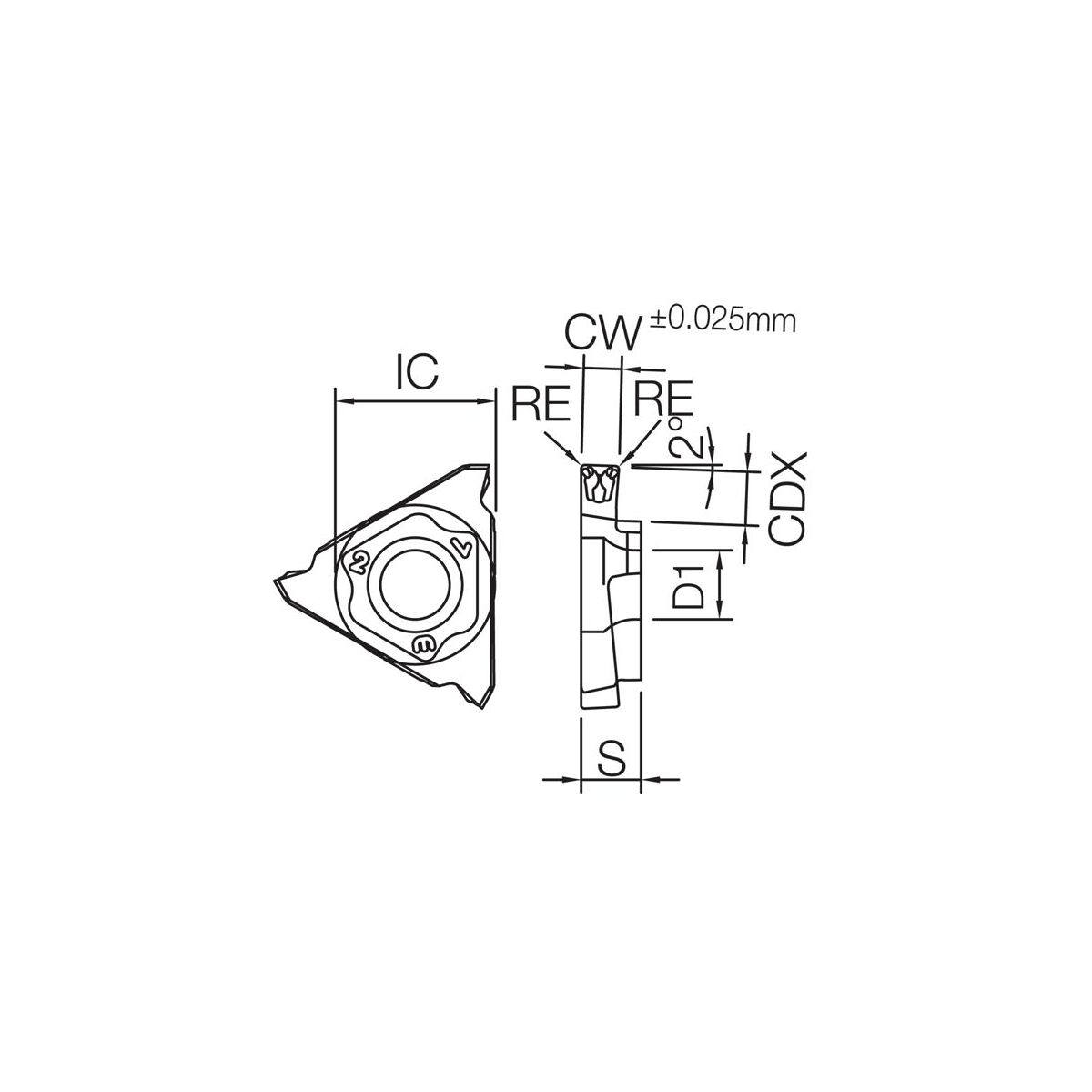

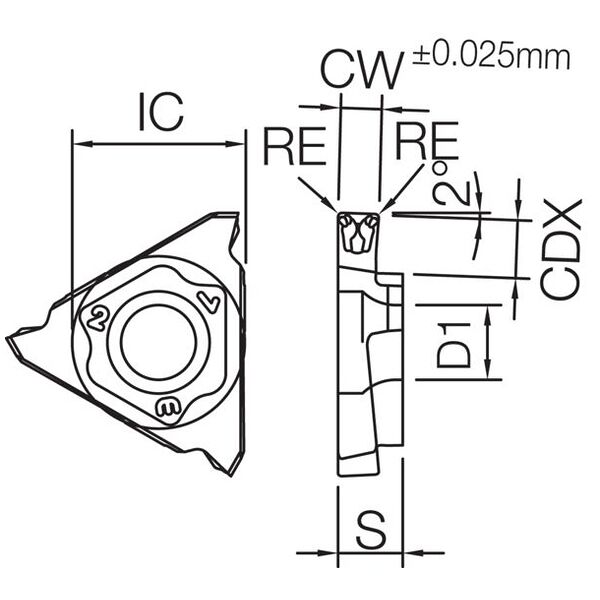

CW (GTC - Cutting width): 1.5 mm
CEDC (GTC - Flute count): 3
ANL (GTC - Clearance angle flank left hand): 4 Degree
INSL (GTC - Insert length): 22 mm
Grooving width: 1,50
CECC (GTC - Cutting edge condition code): E
Description: GBA
CBMD (GTC - Chip breaker manufacturers designation): GM
COATING (GTC - Coating): MEGACOAT NANO
Grade: PR1625
HAND (GTC - Insert hand): R
TCE (GTC - Tipped cutting edge code): S
AN (GTC - Clearance angle major): 0 Degree
WT (GTC - Weight of item): 0.007 kg
REL (GTC - Corner radius left hand): 0.2 mm
RER (GTC - Corner radius right hand): 0.2 mm
PFS (GTC - Profile form): 1
CW (GTC - Cutting width): 1.5 mm
CEDC (GTC - Flute count): 3
ANL (GTC - Clearance angle flank left hand): 4 Degree
INSL (GTC - Insert length): 22 mm
Grooving width: 1,50
CECC (GTC - Cutting edge condition code): E
Description: GBA
CBMD (GTC - Chip breaker manufacturers designation): GM
COATING (GTC - Coating): MEGACOAT NANO
Grade: PR1625
HAND (GTC - Insert hand): R
TCE (GTC - Tipped cutting edge code): S
