Carbide Turning Insert - TPGH110308R-H PR930
Article no.: TKT03745
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable insert for turning |
Identification & Classification
| Article number |
TKT03745
Copy |
|
| EAN / GTIN |
4960664169290
Copy |
|
| Manufacturer number |
TKT03745
Copy |
|
| L-Number |
L22270 3620
Copy |
|
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:

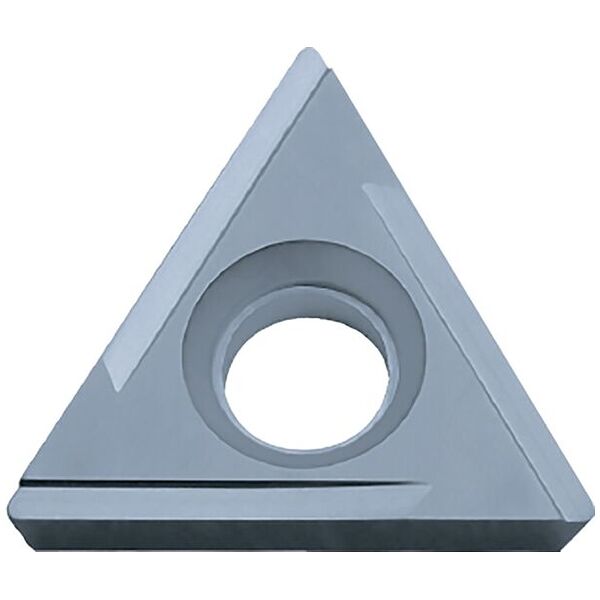

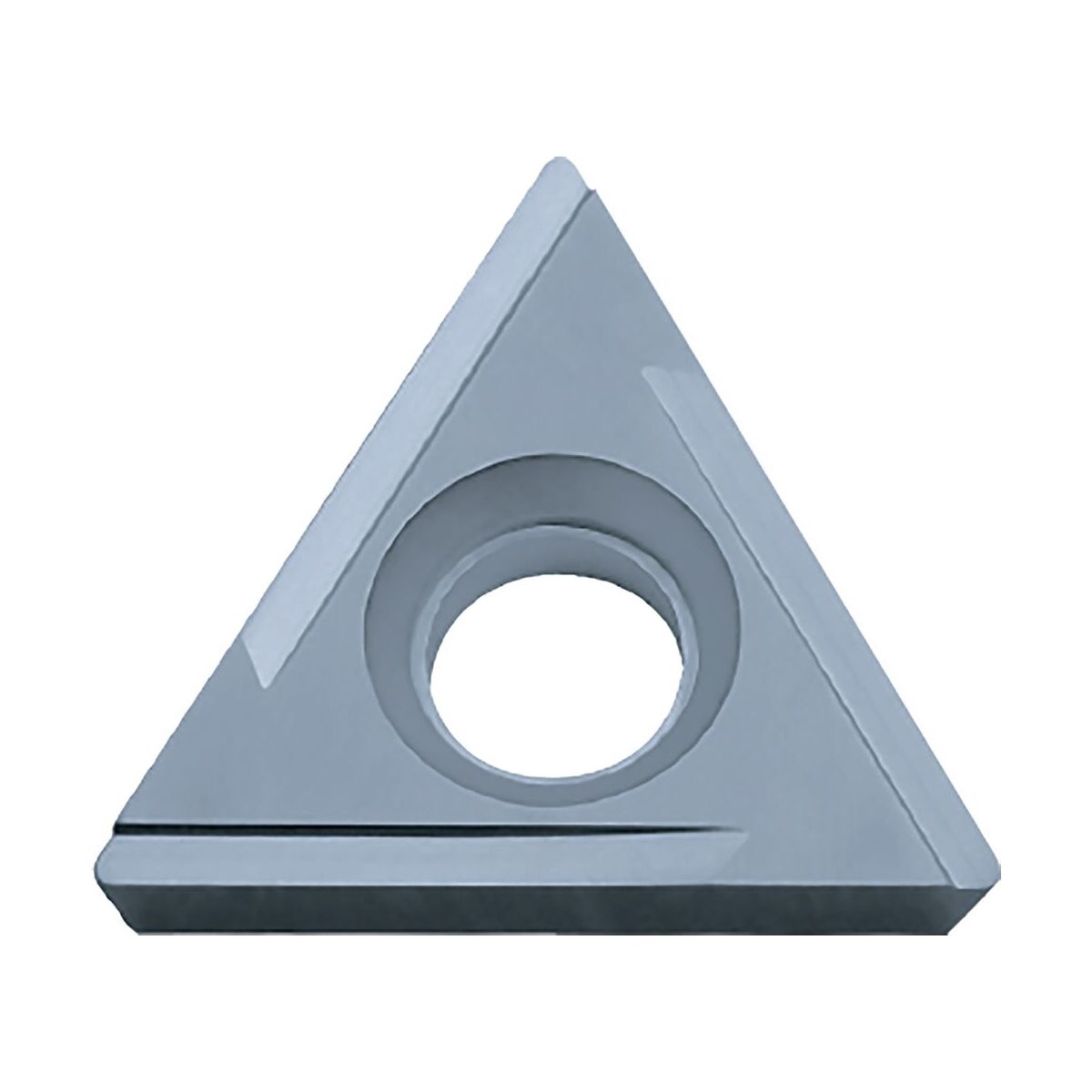

Carbide Turning Insert TPGH110308R-H PR930

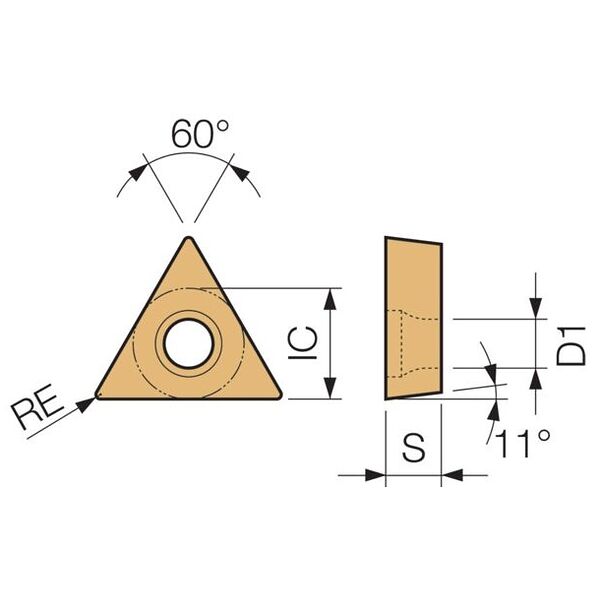

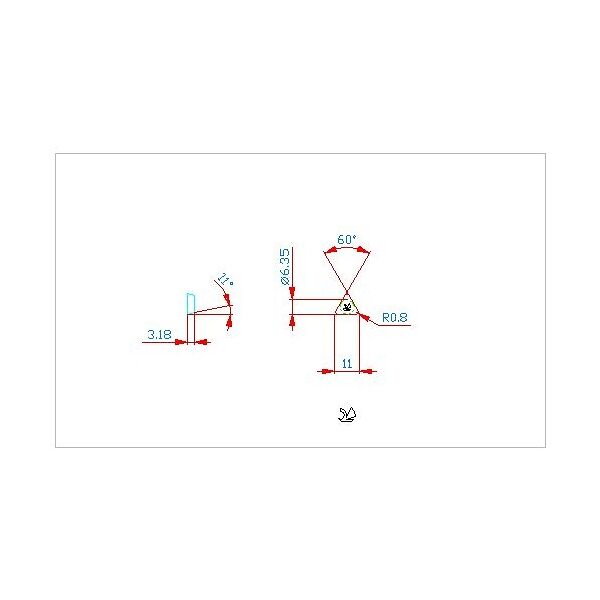

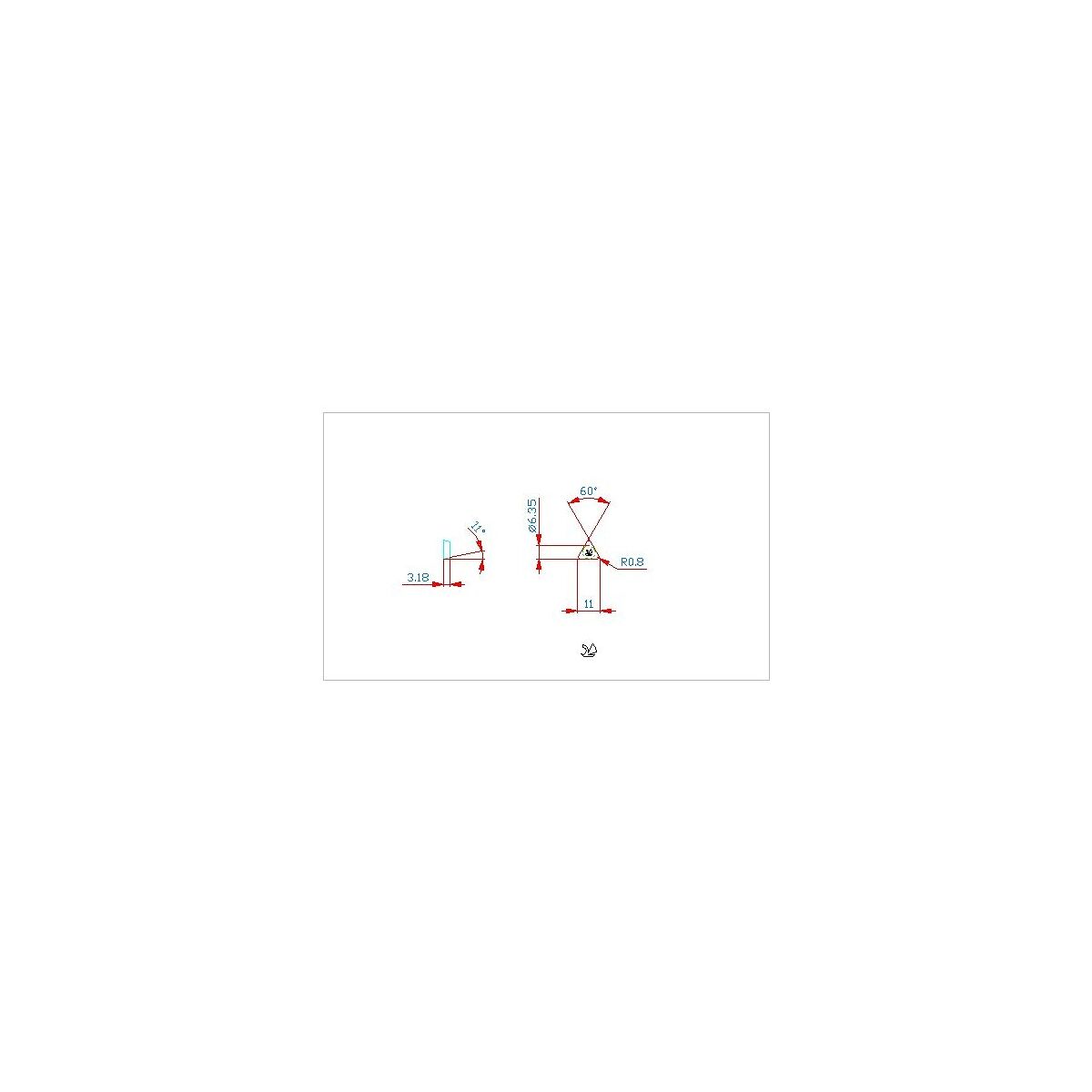

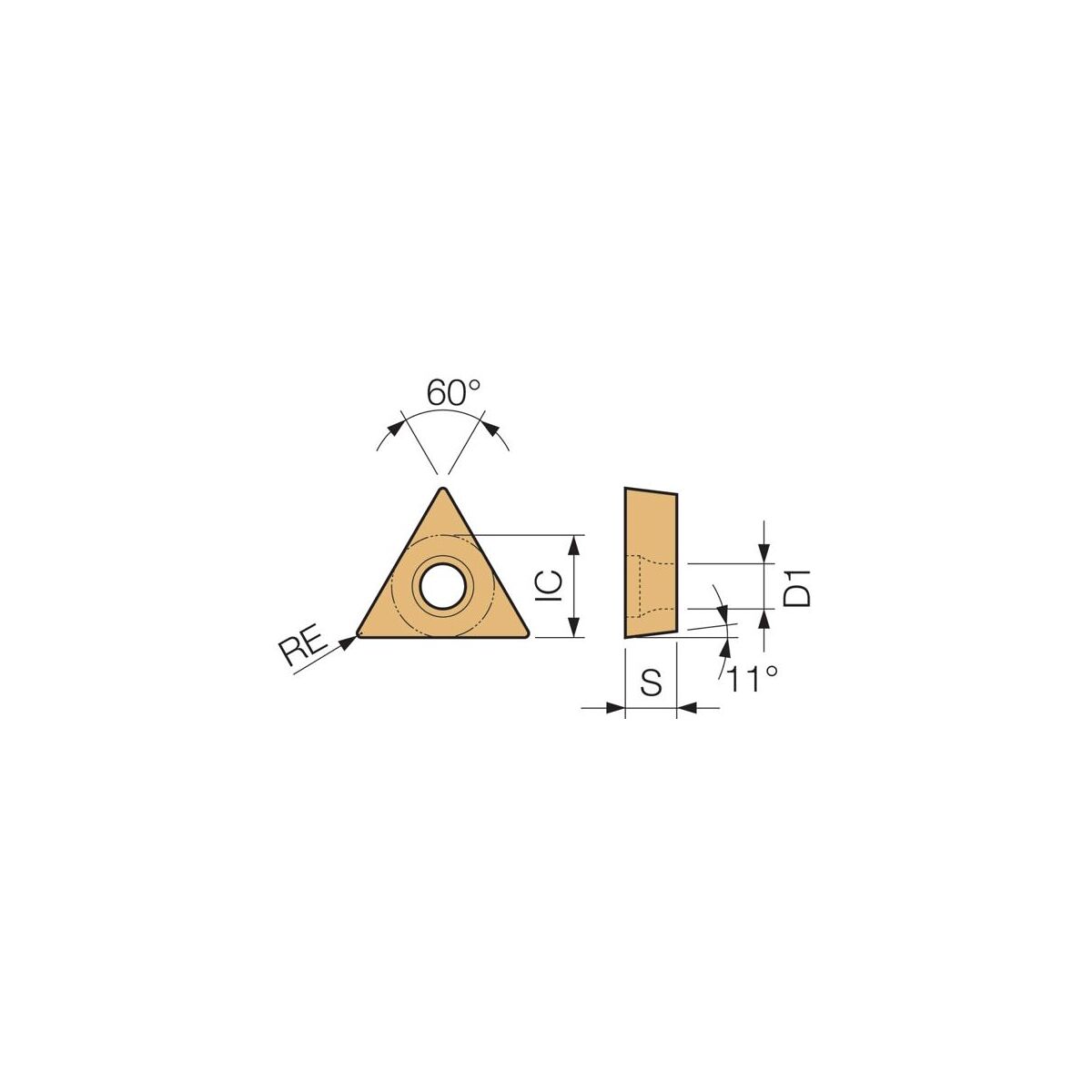

Feature:
RE (GTC - Corner radius): 0.8 mm
S (GTC - Insert thickness): 3.18 mm
IFS (GTC - Insert mounting style code): 4
IC (GTC - Inscribed circle diameter): 6.35 mm
LE (GTC - Cutting edge effective length): 7.5 mm
Corner radius (RE): 8
L (GTC - Cutting edge length): 10.998 mm
AN (GTC - Clearance angle major): 11 Degree
EPSR (GTC - Insert included angle): 60 Degree
Size: 1103
TC (GTC - Tolerance class insert): G
Chip breaker: H
Grade: PR930
COATING (GTC - Coating): PVD Coated Carbide
HAND (GTC - Insert hand): R
Description: TPGH
S (GTC - Insert thickness): 3.18 mm
IFS (GTC - Insert mounting style code): 4
IC (GTC - Inscribed circle diameter): 6.35 mm
LE (GTC - Cutting edge effective length): 7.5 mm
Corner radius (RE): 8
L (GTC - Cutting edge length): 10.998 mm
AN (GTC - Clearance angle major): 11 Degree
EPSR (GTC - Insert included angle): 60 Degree
Size: 1103
TC (GTC - Tolerance class insert): G
Chip breaker: H
Grade: PR930
COATING (GTC - Coating): PVD Coated Carbide
HAND (GTC - Insert hand): R
Description: TPGH
