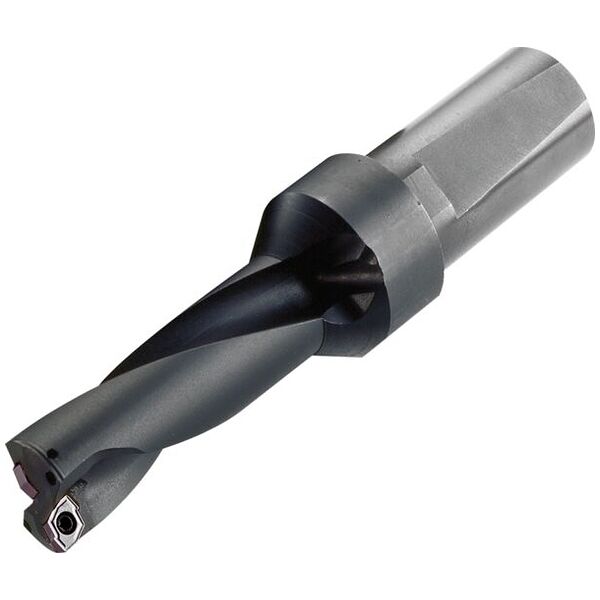

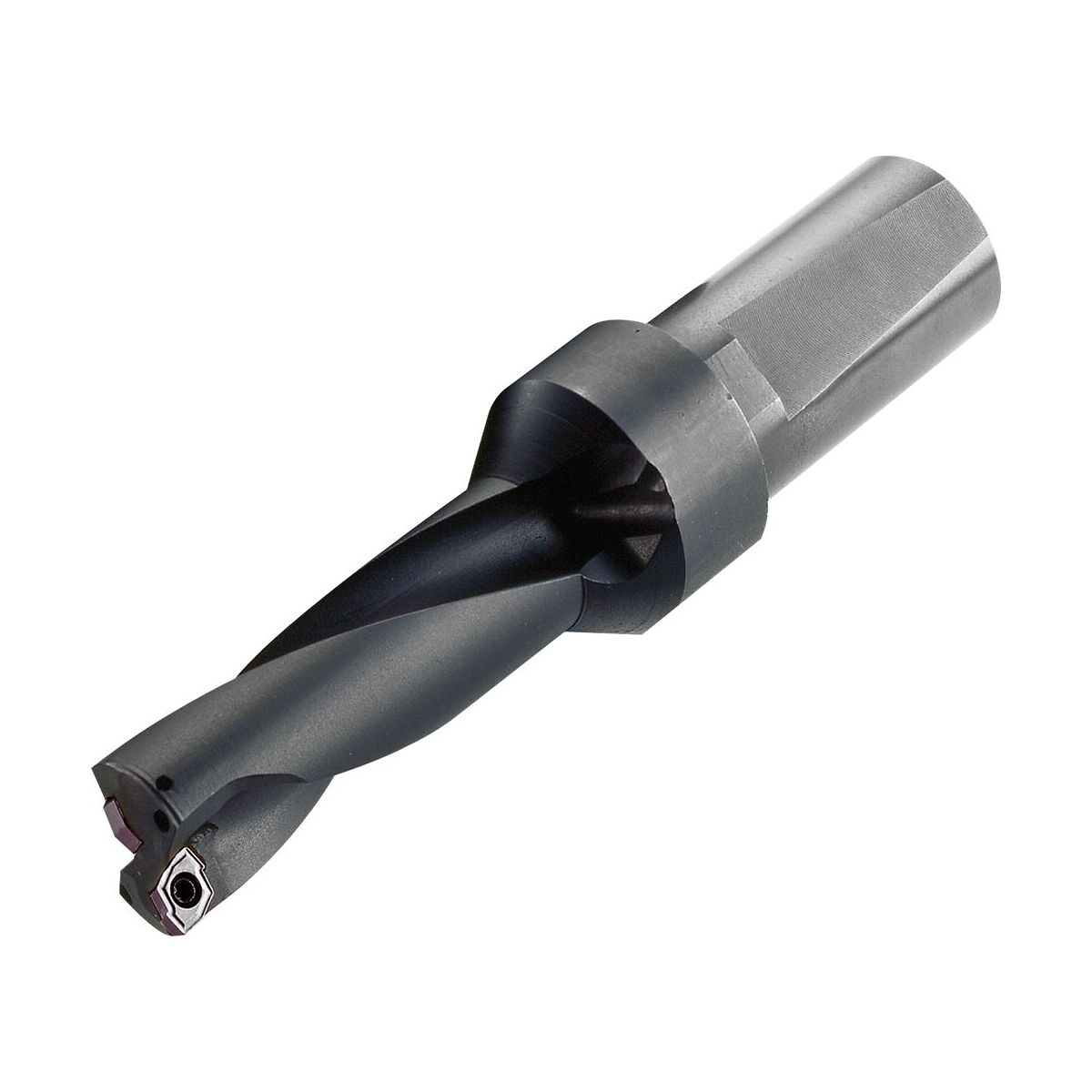

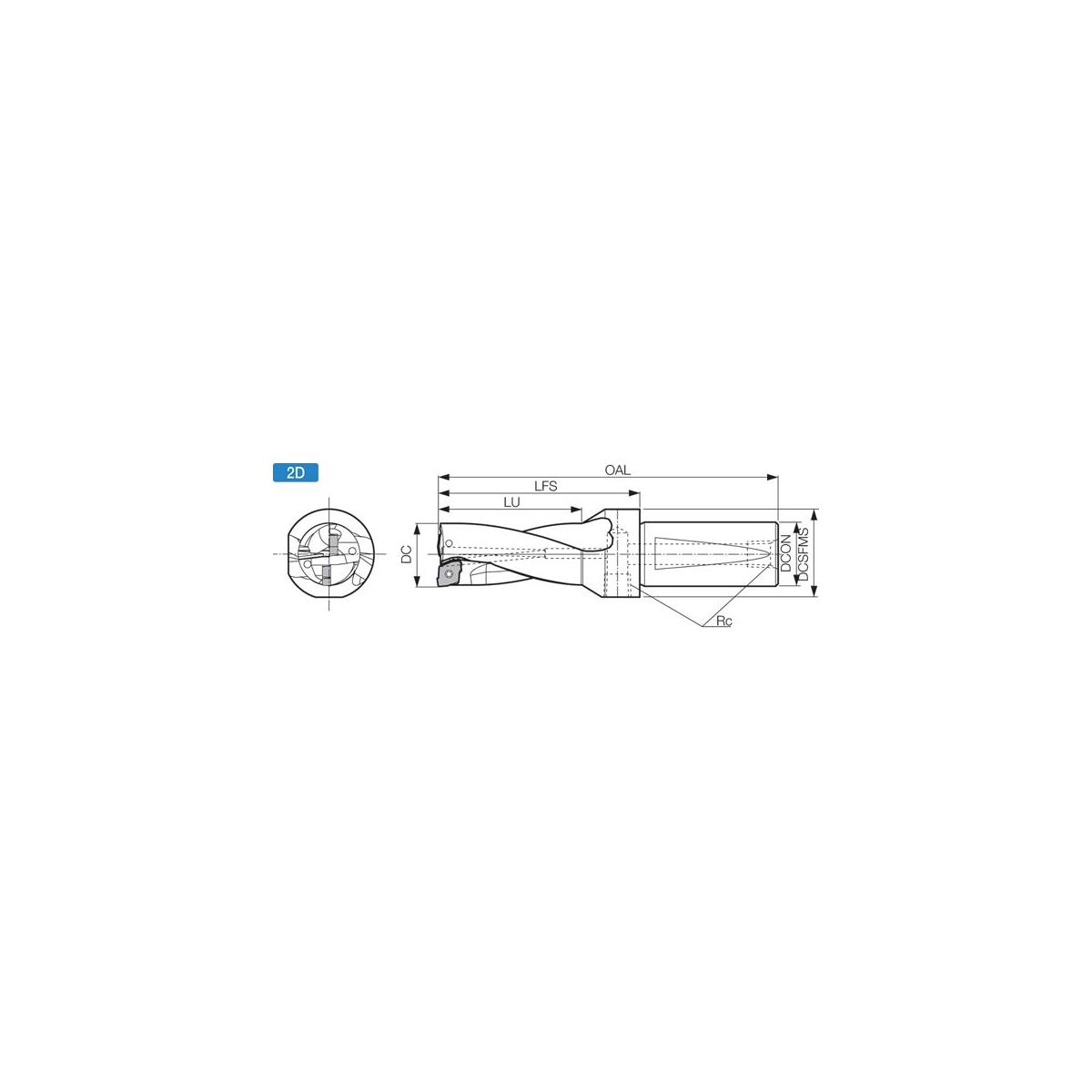

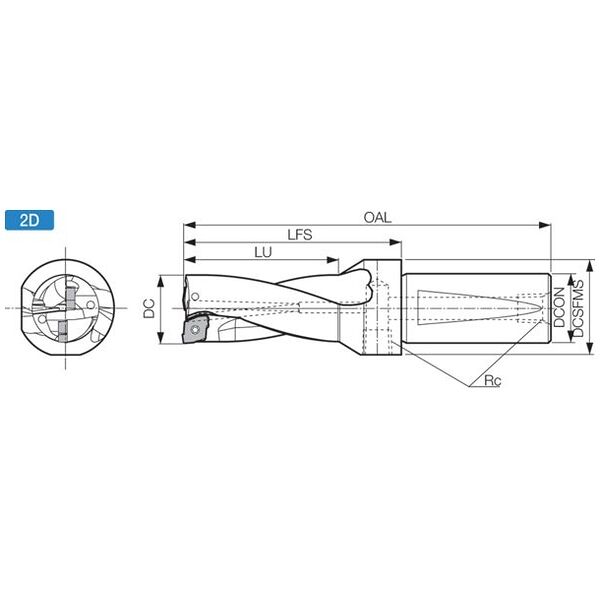

Drilling Toolholder - S20-DRZ155310-05
Article no.: THD02531
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable drill |
Identification & Classification
| Article number | THD02531 | |
| EAN / GTIN | 4960664431267 | |
| Manufacturer number | THD02531 | |
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:
Drilling Toolholder S20-DRZ155310-05
Feature:
WT (GTC - Weight of item): 0.182 kg
RE (GTC - Corner radius, Pos. B): 0.3 mm
CNSC (GTC - Coolant entry style code): 1
NOF (GTC - Cutting edge count): 1
S (GTC - Insert thickness, Pos. B): 2.38 mm
L (GTC - Cutting edge length, Pos. B): 5.1 mm
IC (GTC - Inscribed circle diameter, Pos. B): 5.9 mm
AN (GTC - Clearance angle major, Pos. B): 7 Degree
BD (GTC - Body diameter 1st step): 14.6 mm
DC (GTC - Cutting diameter minimum): 15.5 mm
Shank diameter (DCON): 20
DCON (GTC - Connection diameter machine side): 20 mm
FLGT (GTC - Length bond): 23.93 mm
Collar diameter (DCSFMS): 27
DF (GTC - Flange diameter): 27 mm
LU (GTC - Usable length): 31 mm
LS (GTC - Shank length): 43 mm
Head length (LFS): 57
OHX (GTC - Protruding length): 57 mm
EPSR (GTC - Cutting edge angle major, Pos. B): 87 Degree
Total length (OAL): 100
OAL (GTC - Overall length): 100 mm
SIG (GTC - Point angle 1st step): 166 Degree
CZCMS (GTC - Connection size code machine side): 200
Drilling depth (Rdd): 2XD
Drilling depth (LU): 31,0
Diameter (DC): ø15,50
HAND (GTC - Cutting direction): R
BMC (GTC - Body material code): S
Internal coolant: Yes
MIID (GTC - Master insert identification, inside cutting edge, 1st step): ZCMT050203
RE (GTC - Corner radius, Pos. B): 0.3 mm
CNSC (GTC - Coolant entry style code): 1
NOF (GTC - Cutting edge count): 1
S (GTC - Insert thickness, Pos. B): 2.38 mm
L (GTC - Cutting edge length, Pos. B): 5.1 mm
IC (GTC - Inscribed circle diameter, Pos. B): 5.9 mm
AN (GTC - Clearance angle major, Pos. B): 7 Degree
BD (GTC - Body diameter 1st step): 14.6 mm
DC (GTC - Cutting diameter minimum): 15.5 mm
Shank diameter (DCON): 20
DCON (GTC - Connection diameter machine side): 20 mm
FLGT (GTC - Length bond): 23.93 mm
Collar diameter (DCSFMS): 27
DF (GTC - Flange diameter): 27 mm
LU (GTC - Usable length): 31 mm
LS (GTC - Shank length): 43 mm
Head length (LFS): 57
OHX (GTC - Protruding length): 57 mm
EPSR (GTC - Cutting edge angle major, Pos. B): 87 Degree
Total length (OAL): 100
OAL (GTC - Overall length): 100 mm
SIG (GTC - Point angle 1st step): 166 Degree
CZCMS (GTC - Connection size code machine side): 200
Drilling depth (Rdd): 2XD
Drilling depth (LU): 31,0
Diameter (DC): ø15,50
HAND (GTC - Cutting direction): R
BMC (GTC - Body material code): S
Internal coolant: Yes
MIID (GTC - Master insert identification, inside cutting edge, 1st step): ZCMT050203
