Turning Toolholder - S10H-SCLCR04-08AE
Article no.: THC11622
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Clamp toolholder |
Identification & Classification
| Article number |
THC11622
Copy |
|
| EAN / GTIN |
4960664541317
Copy |
|
| Manufacturer number |
THC11622
Copy |
|
| L-Number |
L22410 95
Copy |
|
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:

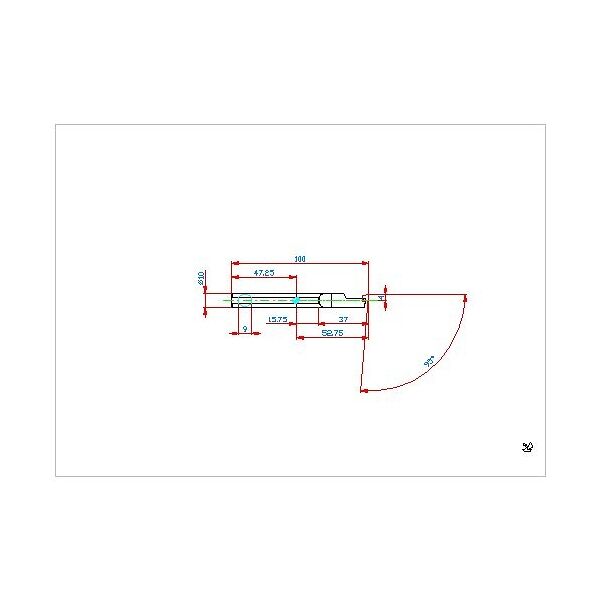

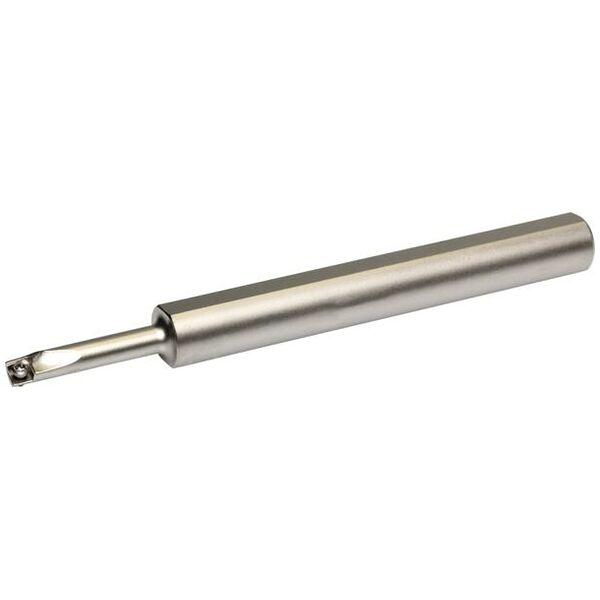

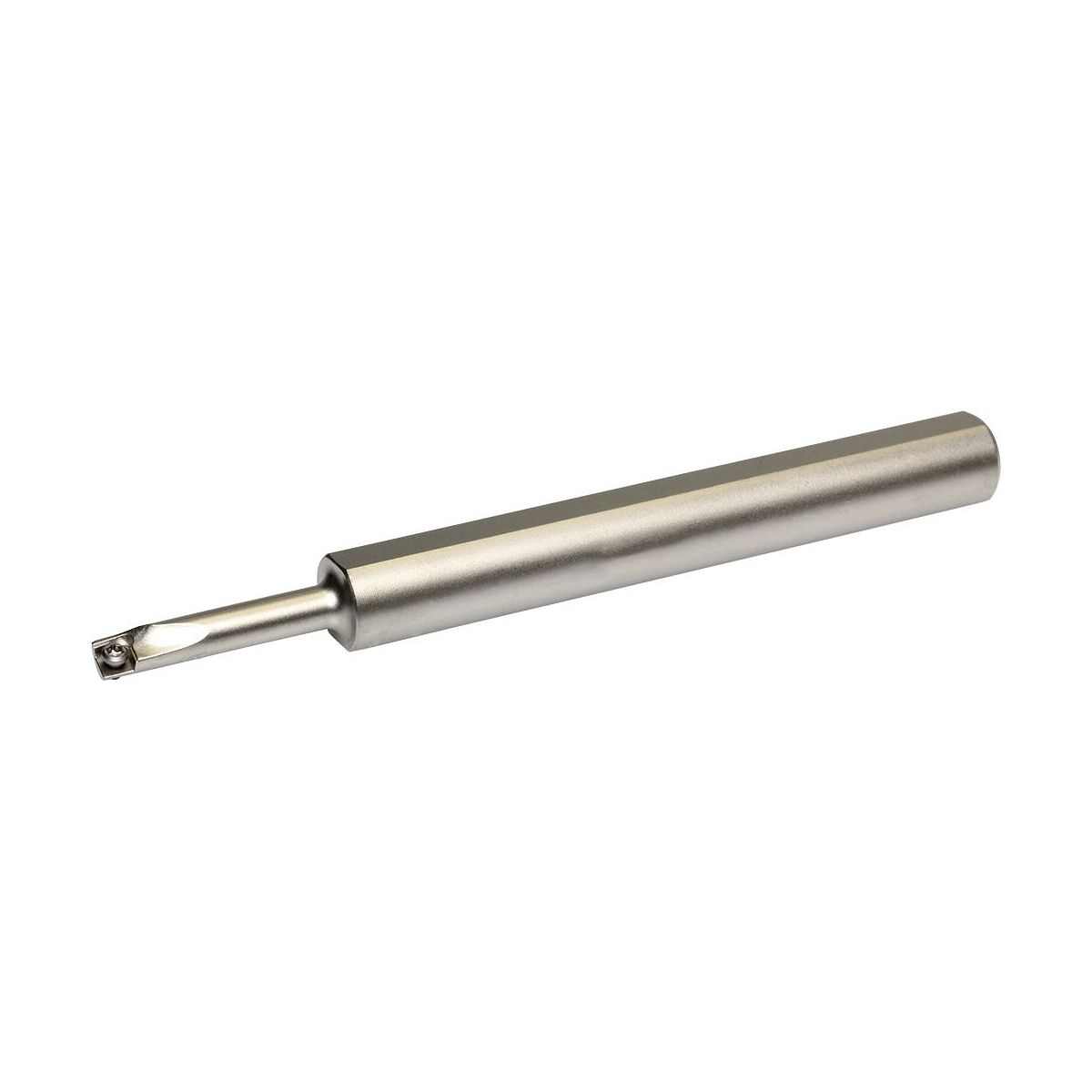

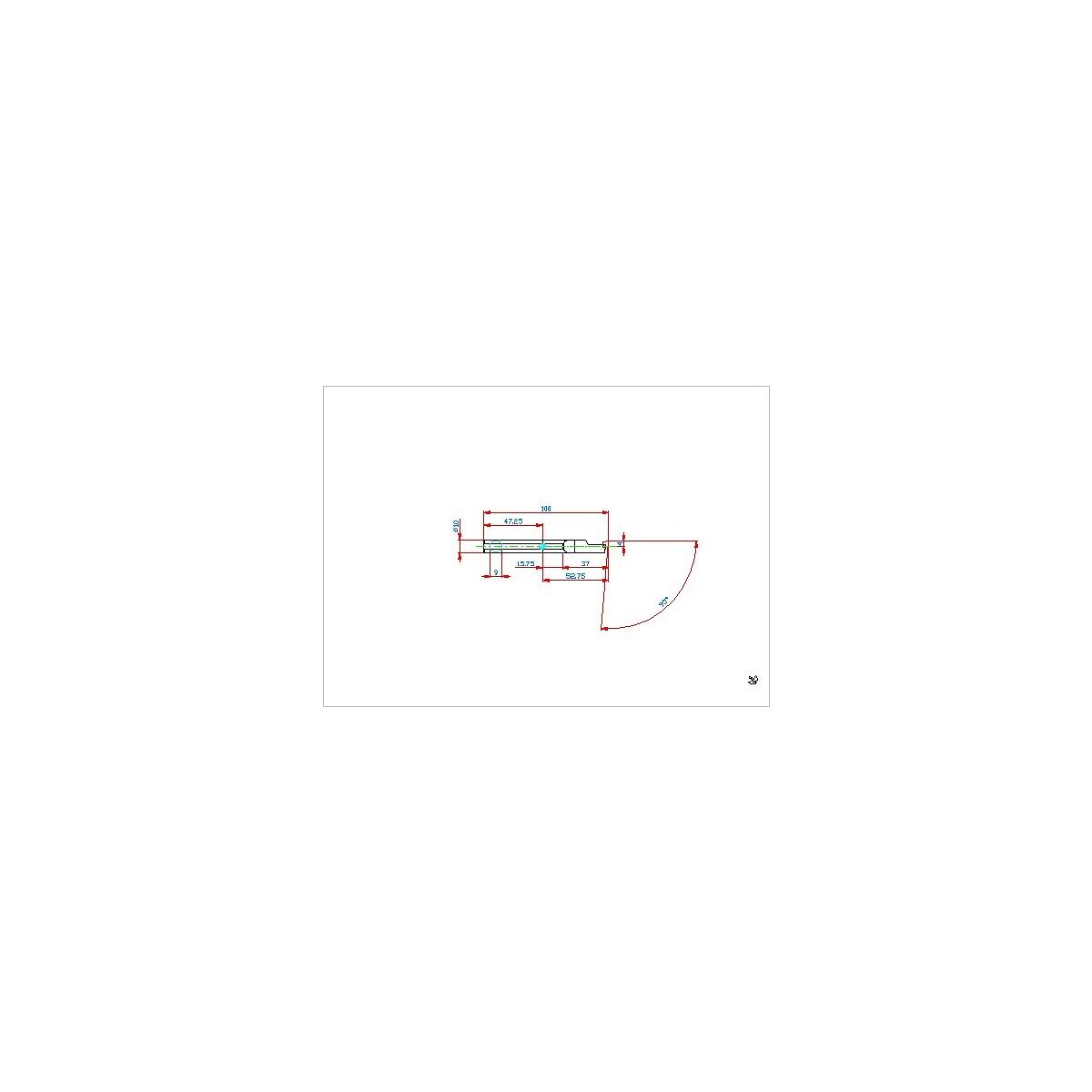

Turning Toolholder S10H-SCLCR04-08AE

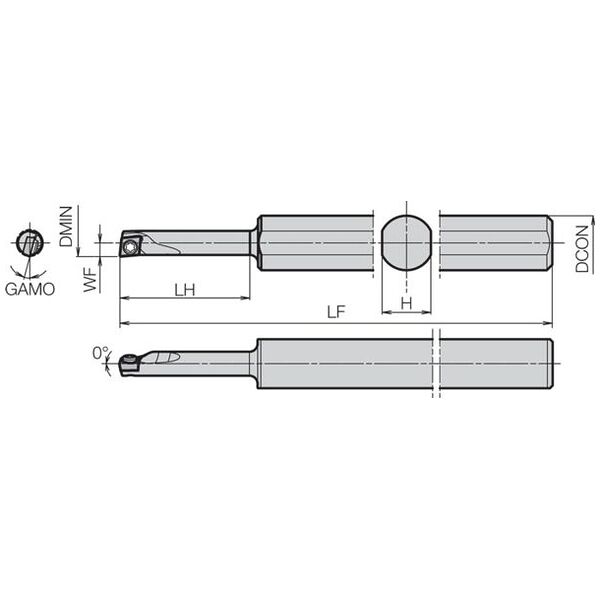

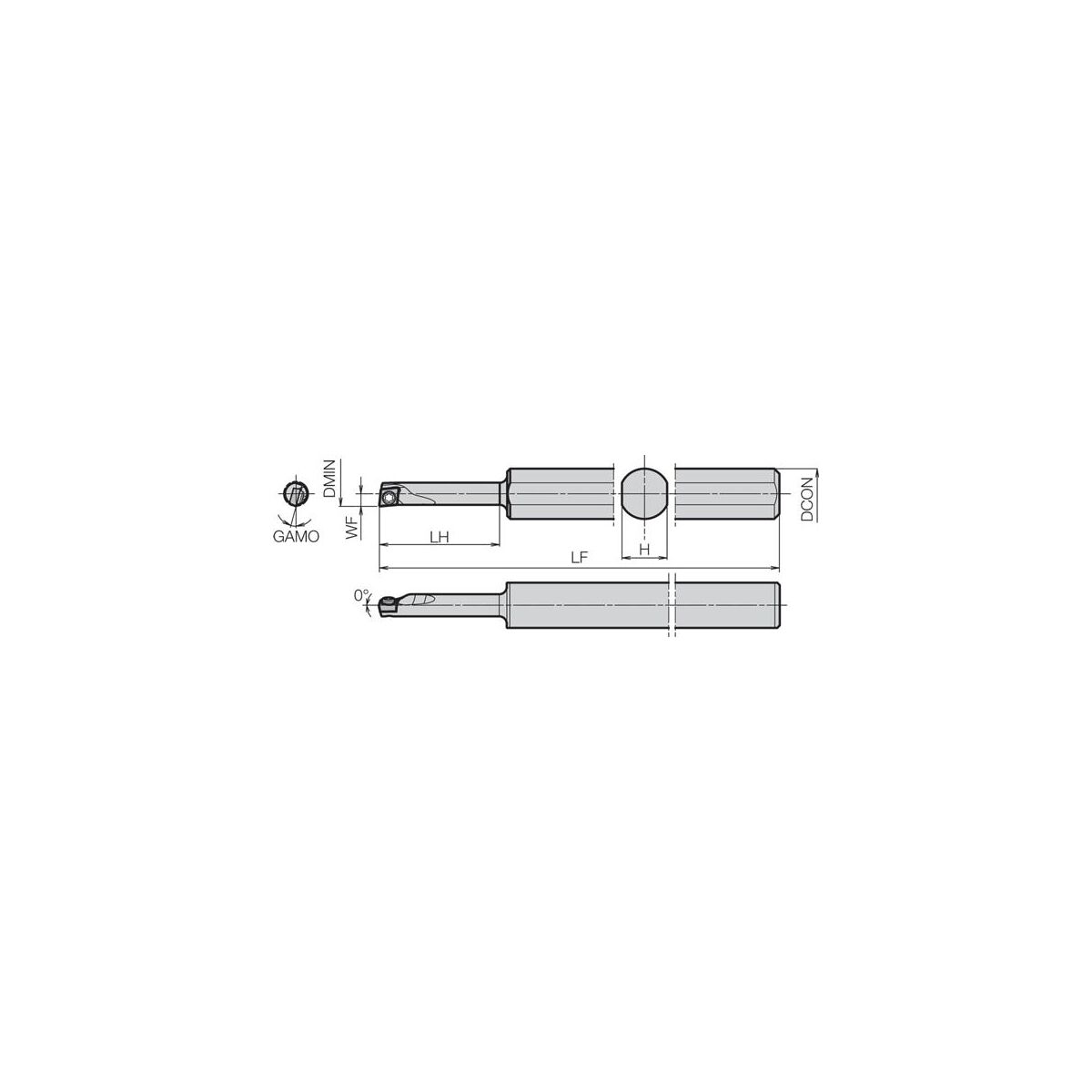

Feature:
CNSC (GTC - Coolant entry style code): 0
CXSC (GTC - Coolant exit style code): 0
RE (GTC - Corner radius, Pos. A): 0.2 mm
S (GTC - Insert thickness, Pos. A): 1.8 mm
HF (GTC - Functional height): 3.7 mm
Insert size: 4
WF (GTC - Functional width): 4 mm
IC (GTC - Inscribed circle diameter, Pos. A): 4.3 mm
AN (GTC - Clearance angle major, Pos. A): 7 Degree
Minimum drill diameter: 8
DMIN (GTC - Minimum bore diameter): 8 mm
H (GTC - Shank height): 9 mm
Shank diameter (DCON): 10
DCON (GTC - Connection diameter machine side): 10 mm
GAMO (GTC - Rake angle orthogonal): 11 Degree
Head length (LH): 37
KAPR (GTC - Tool cutting edge angle): 95 Degree
Total length (OAL): 100
CZCMS (GTC - Connection size code machine side): 100
LF (GTC - Functional length): 100 mm
OAL (GTC - Overall length): 100 mm
MIID (GTC - Master insert identification): CCGT040102
Internal coolant: No
HAND (GTC - Cutting direction): R
Type: Right
Material: Steel
CXSC (GTC - Coolant exit style code): 0
RE (GTC - Corner radius, Pos. A): 0.2 mm
S (GTC - Insert thickness, Pos. A): 1.8 mm
HF (GTC - Functional height): 3.7 mm
Insert size: 4
WF (GTC - Functional width): 4 mm
IC (GTC - Inscribed circle diameter, Pos. A): 4.3 mm
AN (GTC - Clearance angle major, Pos. A): 7 Degree
Minimum drill diameter: 8
DMIN (GTC - Minimum bore diameter): 8 mm
H (GTC - Shank height): 9 mm
Shank diameter (DCON): 10
DCON (GTC - Connection diameter machine side): 10 mm
GAMO (GTC - Rake angle orthogonal): 11 Degree
Head length (LH): 37
KAPR (GTC - Tool cutting edge angle): 95 Degree
Total length (OAL): 100
CZCMS (GTC - Connection size code machine side): 100
LF (GTC - Functional length): 100 mm
OAL (GTC - Overall length): 100 mm
MIID (GTC - Master insert identification): CCGT040102
Internal coolant: No
HAND (GTC - Cutting direction): R
Type: Right
Material: Steel
