SC Drill 4.10 3xD HA IC - KDA0410X03S060C
Article no.: TDJ00274
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Jobber drill |
Identification & Classification
| Article number |
TDJ00274
Copy |
|
| EAN / GTIN |
4960664953776
Copy |
|
| Manufacturer number |
TDJ00274
Copy |
|
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:

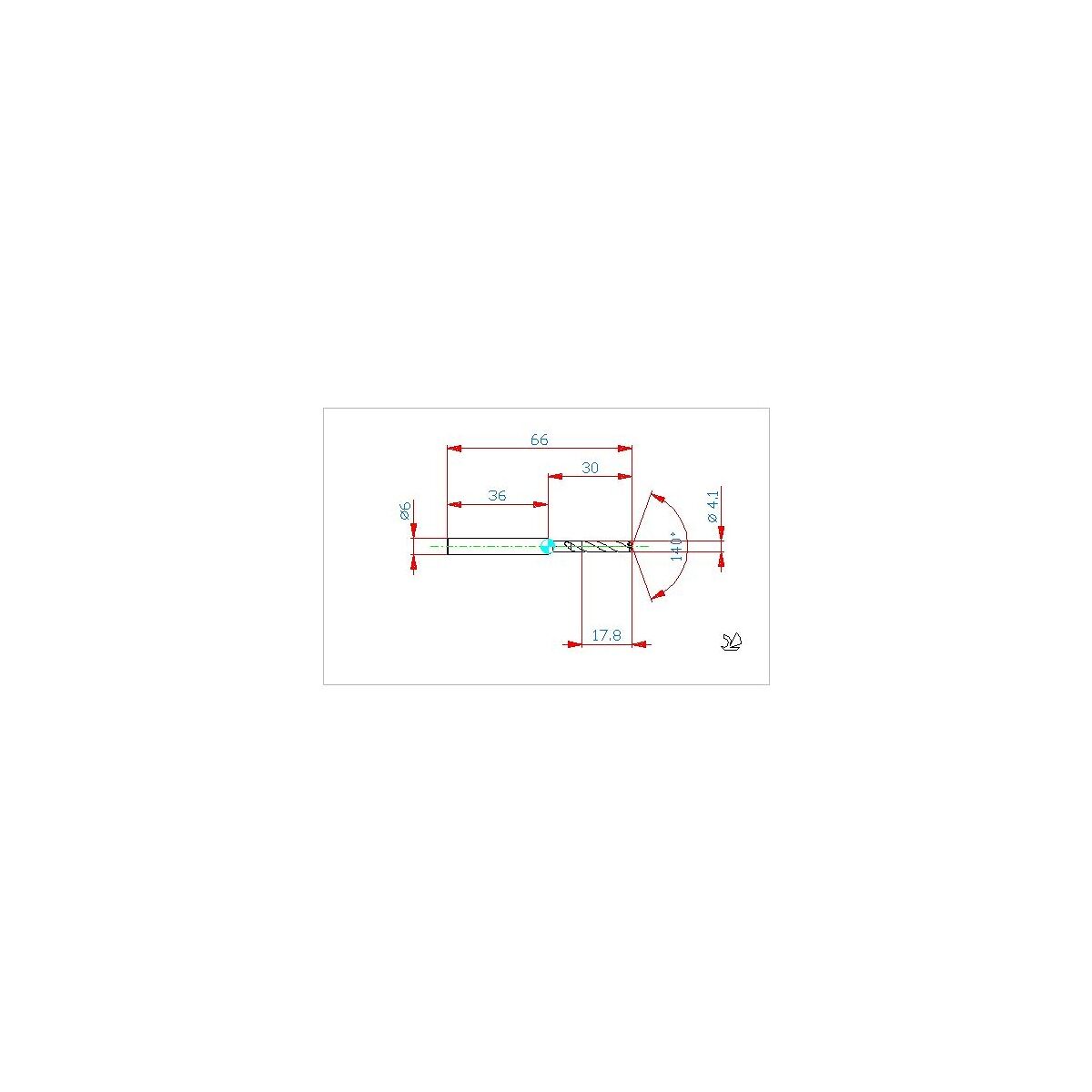

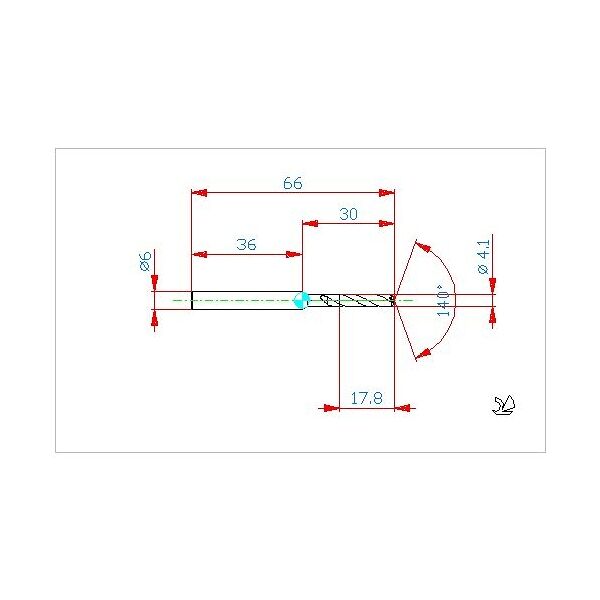

SC Drill 4.10 3xD HA IC KDA0410X03S060C
Feature:
PL (GTC - Point length): 0.7 mm
CCFMS (GTC - Connection code form at machine side): 1
Number of flutes: 2
NOF (GTC - Flute count): 2
CNSC (GTC - Coolant entry style code): 4
CXSC (GTC - Coolant exit style code): 4
DC (GTC - Cutting diameter minimum): 4.1 mm
DCON (GTC - Connection diameter machine side): 6 mm
LU (GTC - Usable length): 17.8 mm
LCF (GTC - Length chip flute): 24 mm
FHA (GTC - Flute helix angle): 30 Degree
OHX (GTC - Protruding length): 30 mm
Shank length (LS): 36
LS (GTC - Shank length): 36 mm
CZCMS (GTC - Connection size code machine side): 60
Total length (OAL): 66
OAL (GTC - Overall length): 66 mm
Point angle (SIG): 140
SIG (GTC - Point angle 1st step): 140 Degree
Flute length (LCF): 24,0
Drilling depth (Rdd): 3xD
Shank diameter (DCON): 6,00
COATING (GTC - Coating): AlCr PVD
Coating: Coated
BMC (GTC - Body material code): H
TCDCON (GTC - ISO-tolerance class connection bore diameter machine side): h6
Diameter (DC): ø4,10
FHH (GTC - Flute helix hand): R
HAND (GTC - Cutting direction): R
Tool material: Solid carbide
Internal coolant: Yes
CCTMS (GTC - Connection code type machine side): ZYL
CCFMS (GTC - Connection code form at machine side): 1
Number of flutes: 2
NOF (GTC - Flute count): 2
CNSC (GTC - Coolant entry style code): 4
CXSC (GTC - Coolant exit style code): 4
DC (GTC - Cutting diameter minimum): 4.1 mm
DCON (GTC - Connection diameter machine side): 6 mm
LU (GTC - Usable length): 17.8 mm
LCF (GTC - Length chip flute): 24 mm
FHA (GTC - Flute helix angle): 30 Degree
OHX (GTC - Protruding length): 30 mm
Shank length (LS): 36
LS (GTC - Shank length): 36 mm
CZCMS (GTC - Connection size code machine side): 60
Total length (OAL): 66
OAL (GTC - Overall length): 66 mm
Point angle (SIG): 140
SIG (GTC - Point angle 1st step): 140 Degree
Flute length (LCF): 24,0
Drilling depth (Rdd): 3xD
Shank diameter (DCON): 6,00
COATING (GTC - Coating): AlCr PVD
Coating: Coated
BMC (GTC - Body material code): H
TCDCON (GTC - ISO-tolerance class connection bore diameter machine side): h6
Diameter (DC): ø4,10
FHH (GTC - Flute helix hand): R
HAND (GTC - Cutting direction): R
Tool material: Solid carbide
Internal coolant: Yes
CCTMS (GTC - Connection code type machine side): ZYL
