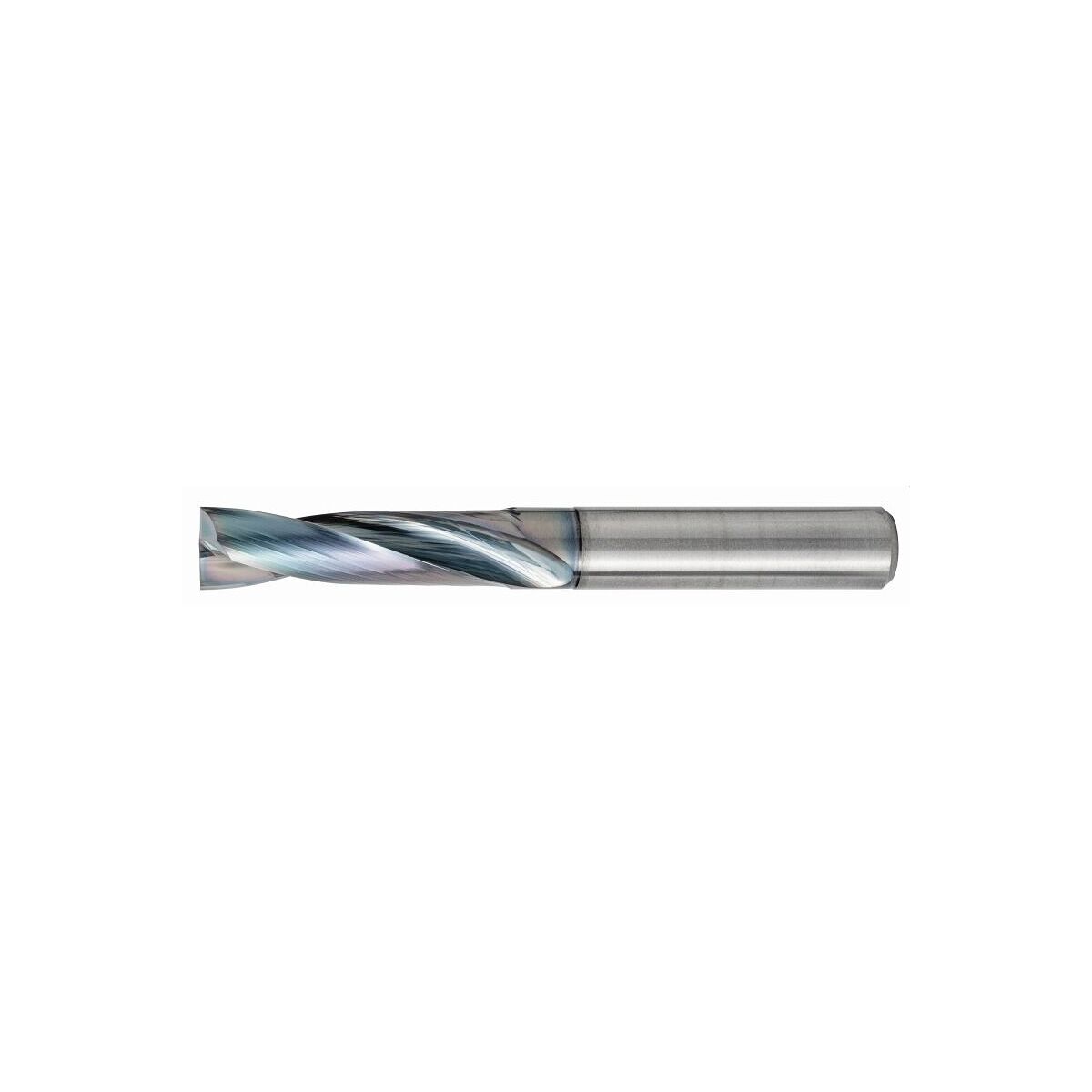

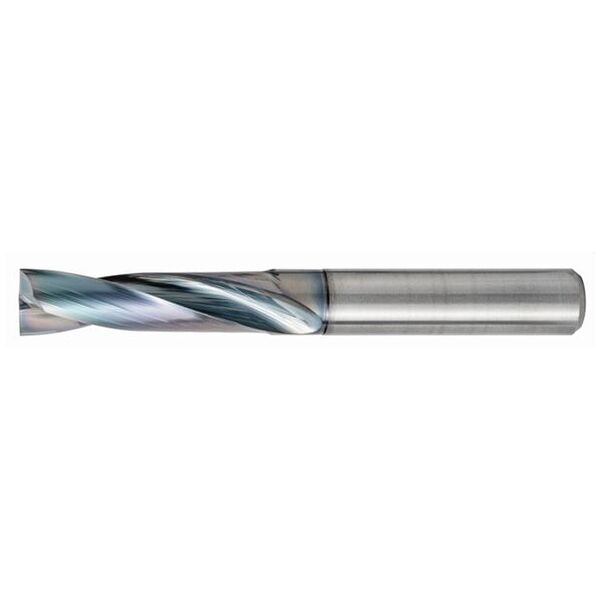

Solid carbide drills - 2ZDK030HP-3D-OH
Article no.: TDG40001
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Jobber drill |
Identification & Classification
| Article number |
TDG40001
Copy |
|
| EAN / GTIN |
4960664912674
Copy |
|
| Manufacturer number |
TDG40001
Copy |
|
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:

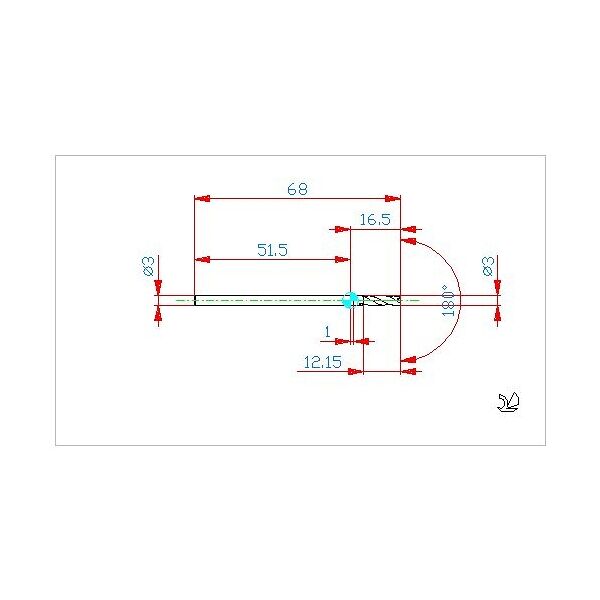

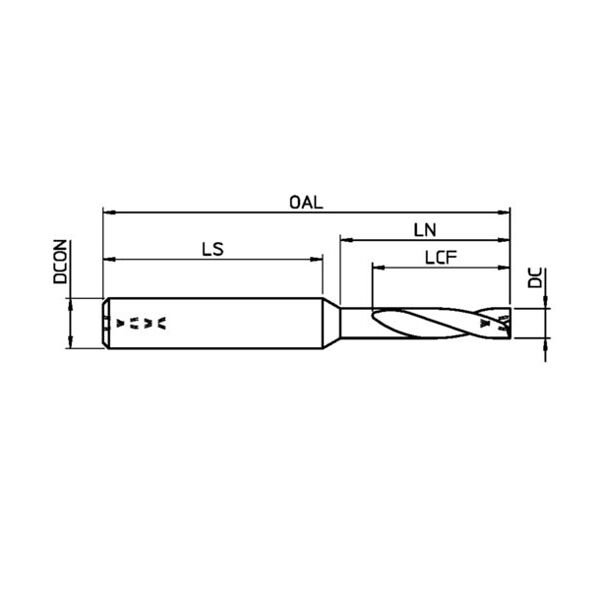

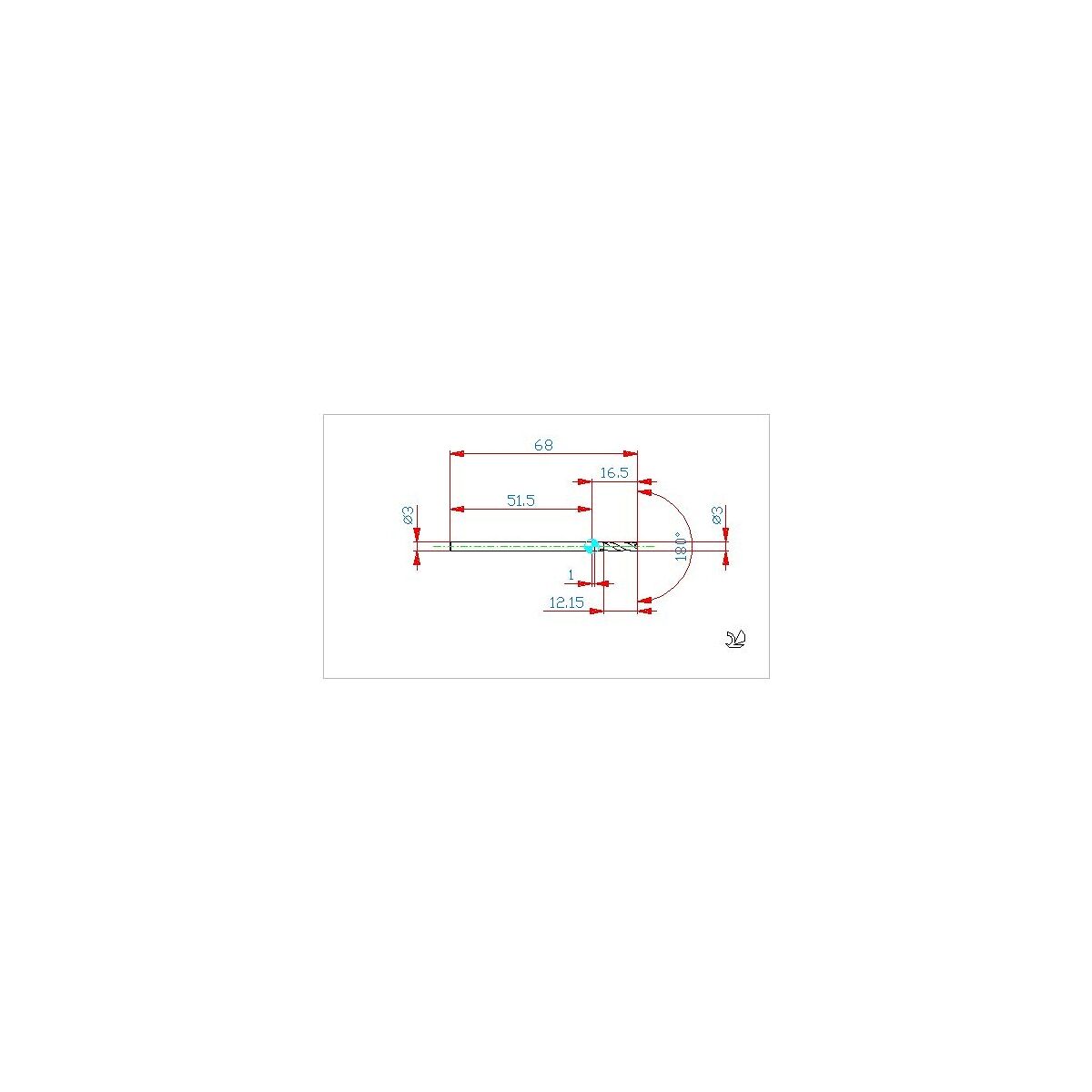

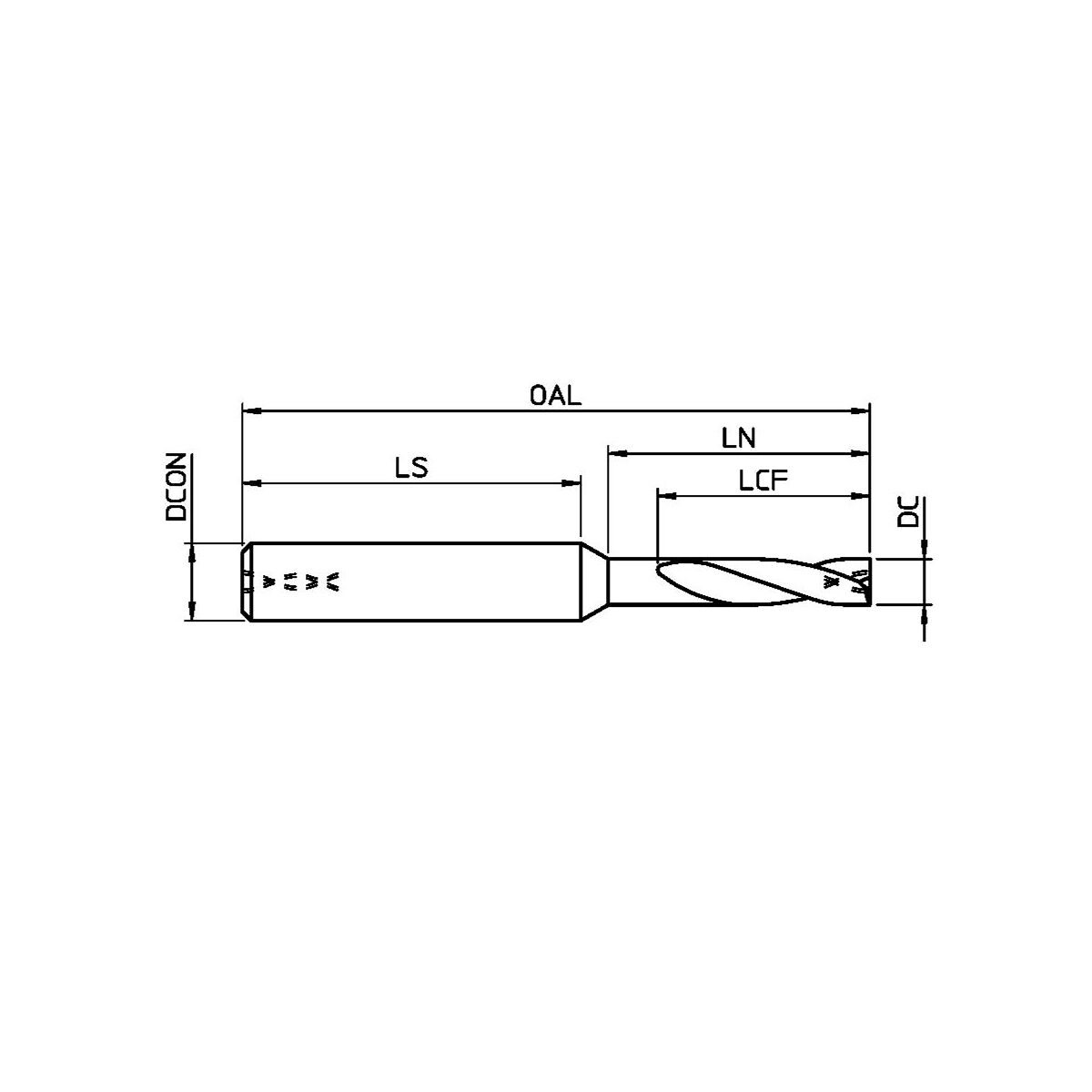

Solid carbide drills 2ZDK030HP-3D-OH
Feature:
PL (GTC - Point length): 0 mm
CCFMS (GTC - Connection code form at machine side): 1
Number of flutes: 2
NOF (GTC - Flute count): 2
DC (GTC - Cutting diameter minimum): 3 mm
DCON (GTC - Connection diameter machine side): 3 mm
CNSC (GTC - Coolant entry style code): 4
CXSC (GTC - Coolant exit style code): 4
LCF (GTC - Length chip flute): 13.5 mm
OHX (GTC - Protruding length): 16.5 mm
CZCMS (GTC - Connection size code machine side): 30
FHA (GTC - Flute helix angle): 30 Degree
LS (GTC - Shank length): 52.5 mm
Shank length (LS): 53
Total length (OAL): 68
OAL (GTC - Overall length): 68 mm
Point angle (SIG): 180
SIG (GTC - Point angle 1st step): 180 Degree
Flute length (LCF): 13,5
Shank diameter (DCON): 3,00
Drilling depth (Rdd): 3xD
Coating: Coated
BMC (GTC - Body material code): H
TCDCON (GTC - ISO-tolerance class connection bore diameter machine side): h5
COATING (GTC - Coating): MEGACOAT NANO
Diameter (DC): ø3,00
FHH (GTC - Flute helix hand): R
HAND (GTC - Cutting direction): R
Tool material: Solid carbide
Internal coolant: Yes
CCTMS (GTC - Connection code type machine side): ZYL
CCFMS (GTC - Connection code form at machine side): 1
Number of flutes: 2
NOF (GTC - Flute count): 2
DC (GTC - Cutting diameter minimum): 3 mm
DCON (GTC - Connection diameter machine side): 3 mm
CNSC (GTC - Coolant entry style code): 4
CXSC (GTC - Coolant exit style code): 4
LCF (GTC - Length chip flute): 13.5 mm
OHX (GTC - Protruding length): 16.5 mm
CZCMS (GTC - Connection size code machine side): 30
FHA (GTC - Flute helix angle): 30 Degree
LS (GTC - Shank length): 52.5 mm
Shank length (LS): 53
Total length (OAL): 68
OAL (GTC - Overall length): 68 mm
Point angle (SIG): 180
SIG (GTC - Point angle 1st step): 180 Degree
Flute length (LCF): 13,5
Shank diameter (DCON): 3,00
Drilling depth (Rdd): 3xD
Coating: Coated
BMC (GTC - Body material code): H
TCDCON (GTC - ISO-tolerance class connection bore diameter machine side): h5
COATING (GTC - Coating): MEGACOAT NANO
Diameter (DC): ø3,00
FHH (GTC - Flute helix hand): R
HAND (GTC - Cutting direction): R
Tool material: Solid carbide
Internal coolant: Yes
CCTMS (GTC - Connection code type machine side): ZYL
