Carbide Turning Insert - TNMG160408R-ST CA515
Article no.: TAB06273
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable insert for turning |
Identification & Classification
| Article number |
TAB06273
Copy |
|
| EAN / GTIN |
4960664677603
Copy |
|
| Manufacturer number |
TAB06273
Copy |
|
| L-Number |
L22200 484
Copy |
|
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:
Carbide Turning Insert TNMG160408R-ST CA515

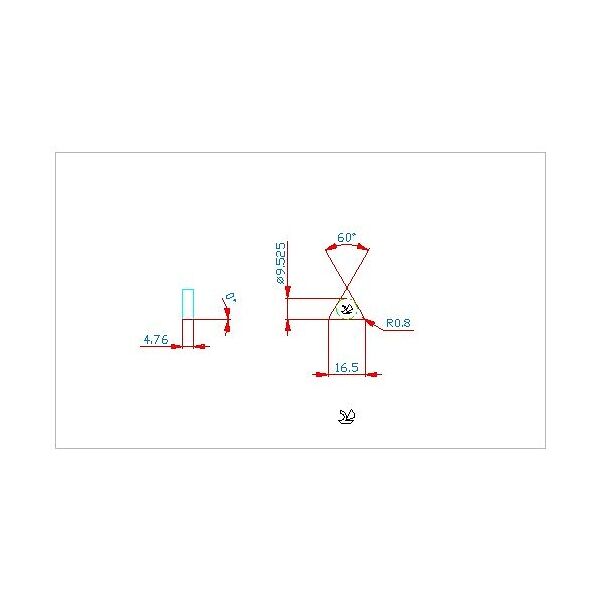

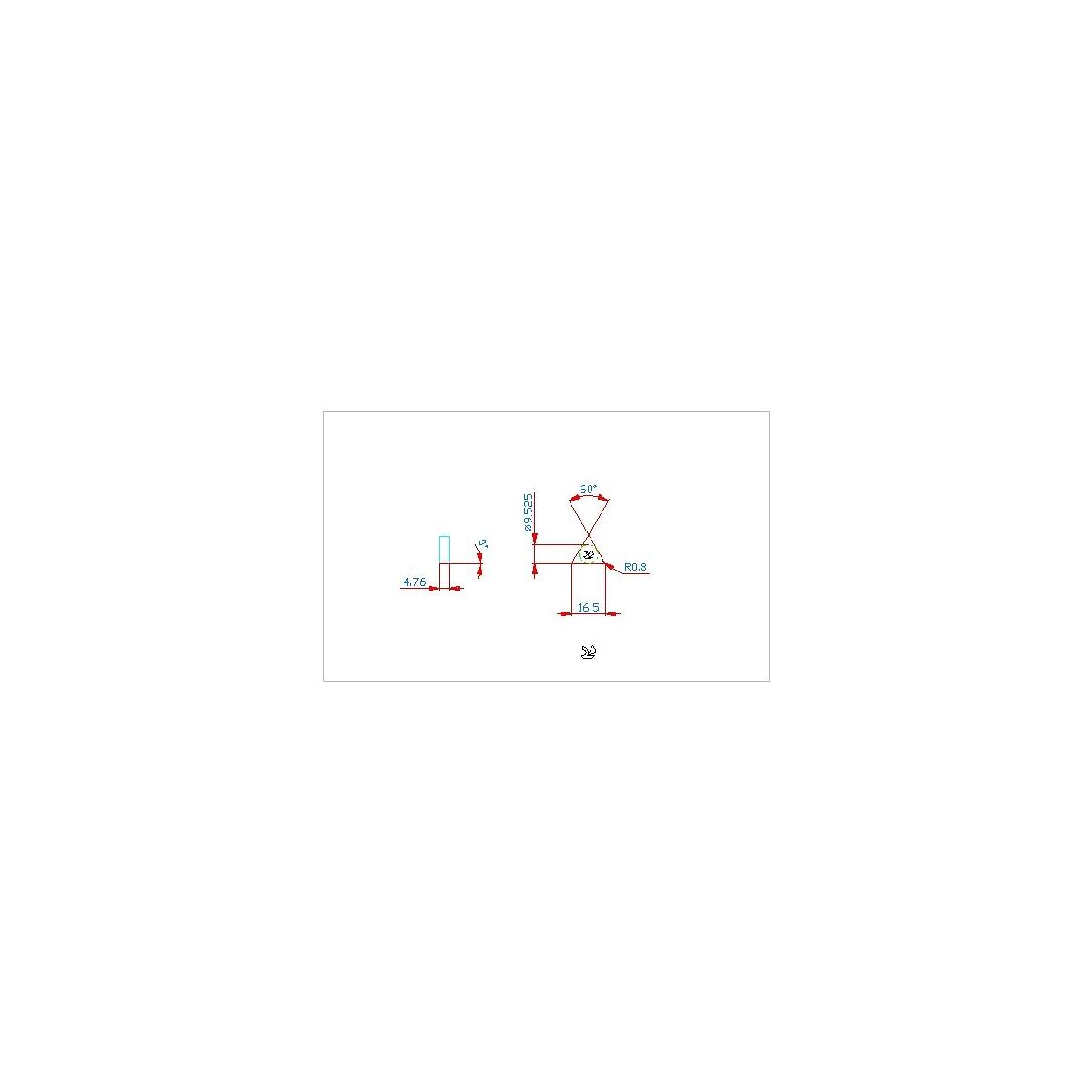

Feature:
AN (GTC - Clearance angle major): 0 Degree
RE (GTC - Corner radius): 0.8 mm
IFS (GTC - Insert mounting style code): 2
S (GTC - Insert thickness): 4.76 mm
Corner radius (RE): 8
IC (GTC - Inscribed circle diameter): 9.525 mm
LE (GTC - Cutting edge effective length): 10 mm
L (GTC - Cutting edge length): 16.498 mm
EPSR (GTC - Insert included angle): 60 Degree
Size: 1604
Grade: CA515
COATING (GTC - Coating): CVD Coated Carbide
TC (GTC - Tolerance class insert): M
HAND (GTC - Insert hand): R
Chip breaker: ST
Description: TNMG
RE (GTC - Corner radius): 0.8 mm
IFS (GTC - Insert mounting style code): 2
S (GTC - Insert thickness): 4.76 mm
Corner radius (RE): 8
IC (GTC - Inscribed circle diameter): 9.525 mm
LE (GTC - Cutting edge effective length): 10 mm
L (GTC - Cutting edge length): 16.498 mm
EPSR (GTC - Insert included angle): 60 Degree
Size: 1604
Grade: CA515
COATING (GTC - Coating): CVD Coated Carbide
TC (GTC - Tolerance class insert): M
HAND (GTC - Insert hand): R
Chip breaker: ST
Description: TNMG
