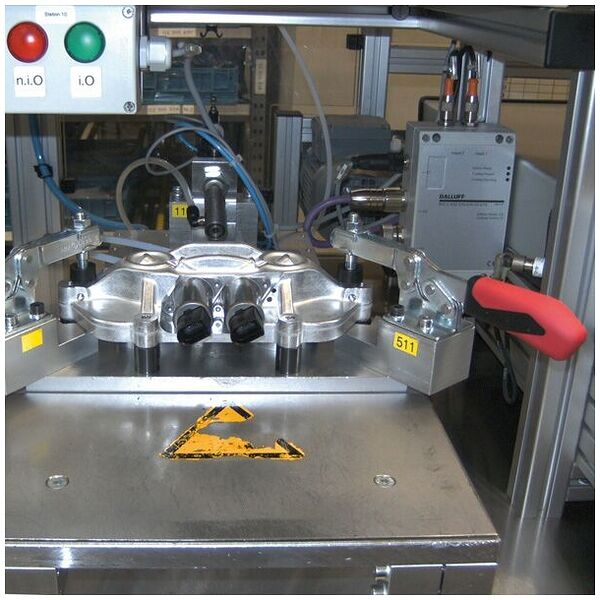

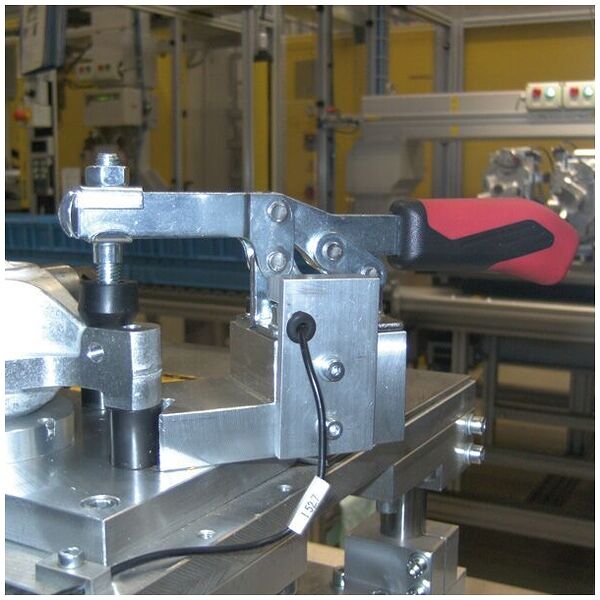

Horizontal clamp with red handle
Article no.: 93013
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
93013
Copy |
|
| EAN / GTIN |
4020772093013
Copy |
|
| Manufacturer number |
93013
Copy |
|
| L-Number |
L30090 612
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:

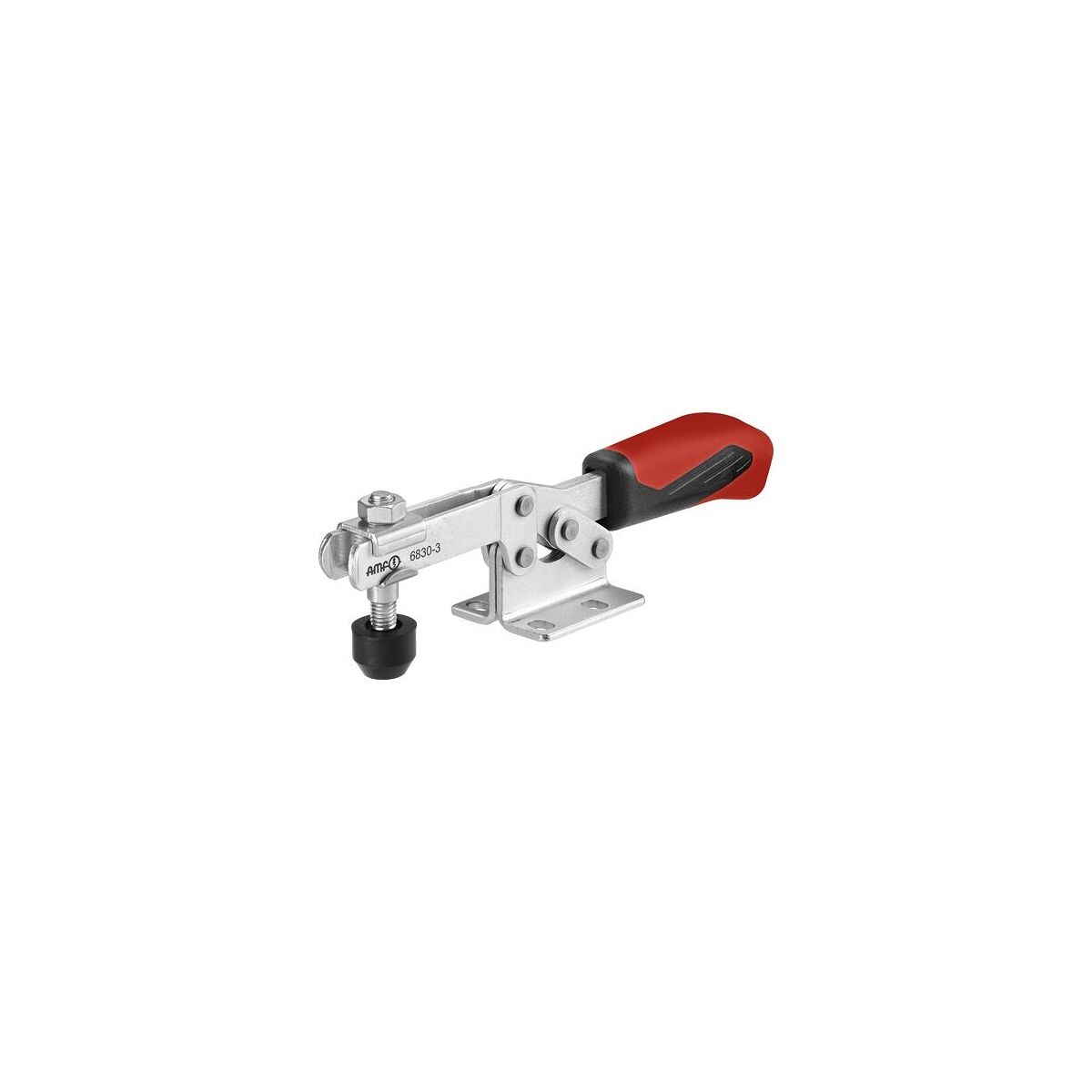

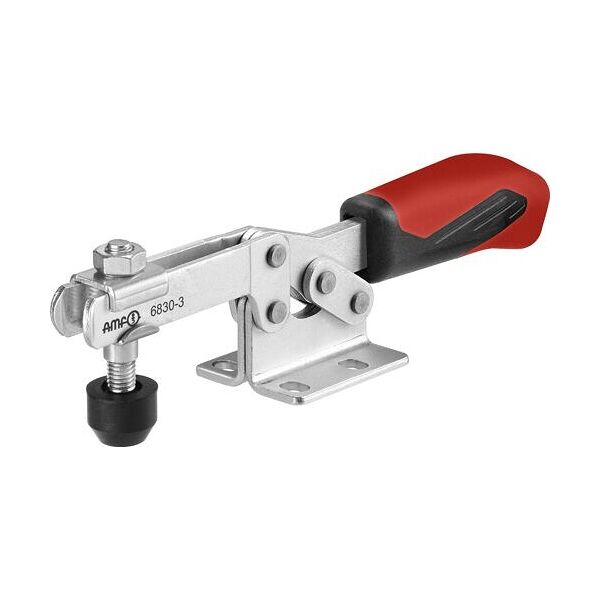

Horizontal clamp with red handle, with open holding arm and horizontal foot.
Galvanized and passivated. Stainless steel rivets that run in case-hardened bushings for sizes 2 to 6. Bearing points are greased.
Ergonomic, oil-resistant handle with large palm rest and soft component. Loss protection for the clamping screw at the end of the tensioning arm.
Complete with tempered, zinc-plated push-on screw
No. 6890.
Galvanized and passivated. Stainless steel rivets that run in case-hardened bushings for sizes 2 to 6. Bearing points are greased.
Ergonomic, oil-resistant handle with large palm rest and soft component. Loss protection for the clamping screw at the end of the tensioning arm.
Complete with tempered, zinc-plated push-on screw
No. 6890.
Feature:
- Size: 1
- F1: 0.8 kN
- F2: 1.1 kN
- Contact screw: M5x30
- Weight: 105 g

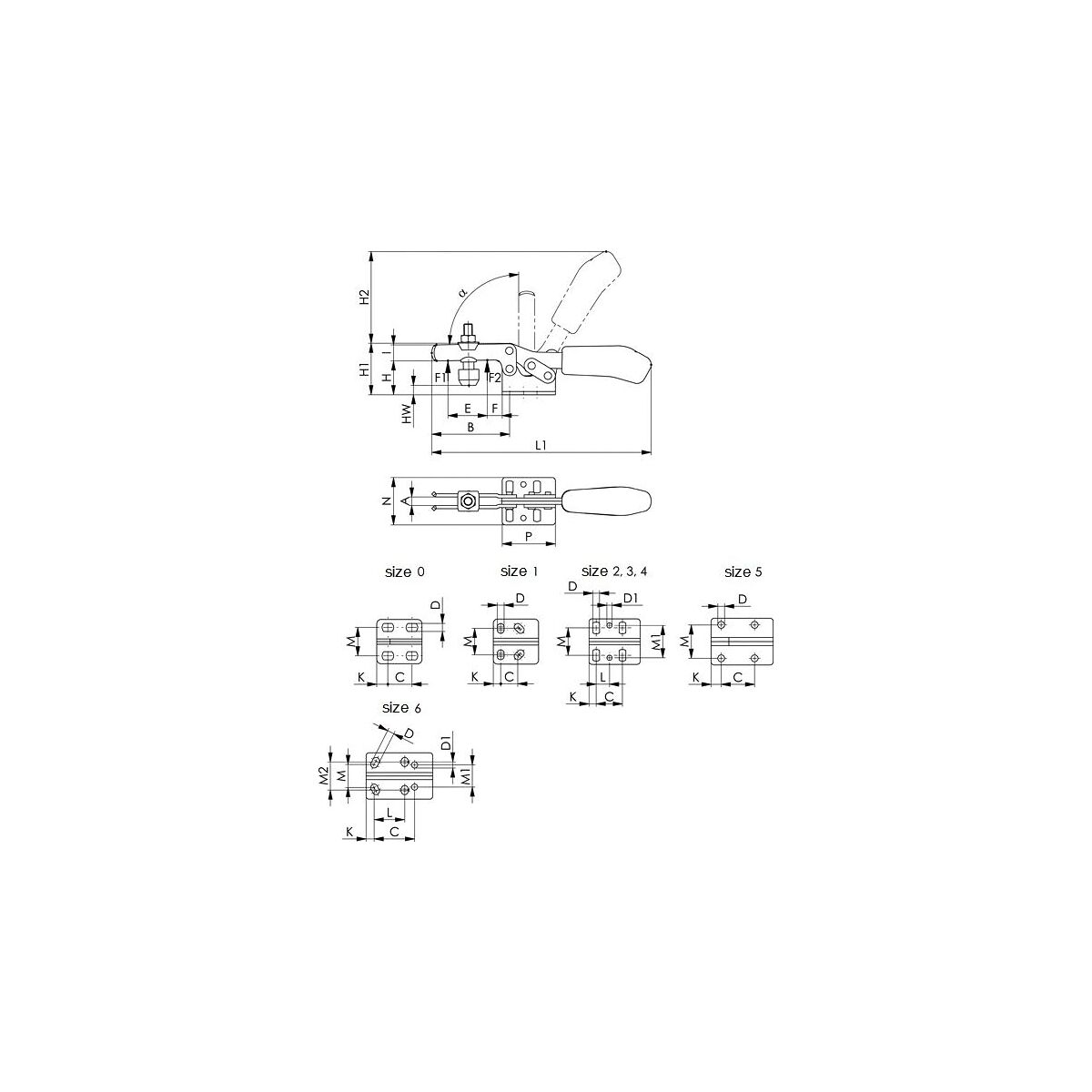

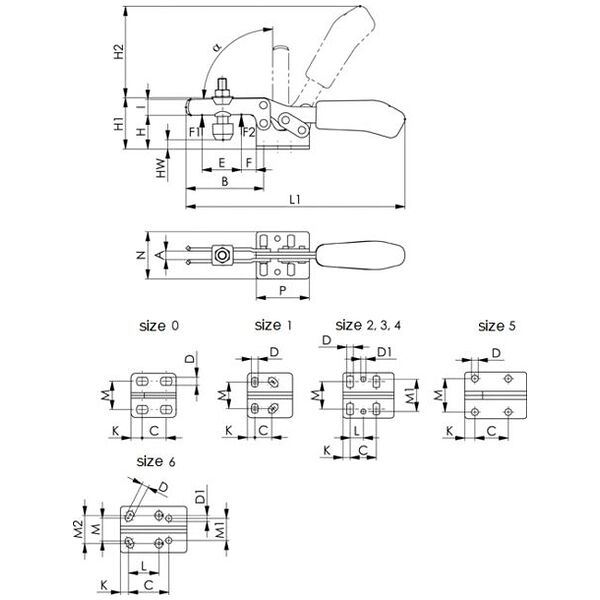

- Size: 1
- A: 5
- B: 42
- C: 13.0-14.5
- D: 5.2
- D1: -
- E: 18.7
- F: 8.0
- H: 19.0
- H1: 30.0
- H2: 49
- HW min.: -3.0
- HW max.: 2.5
- I: 10.0
- O: 5.5
- L: -
- L1: 120
- M: 18.0-21.5
- M1: -
- M2: -
- N: 34.0
- P: 34.0
- α: 90°
