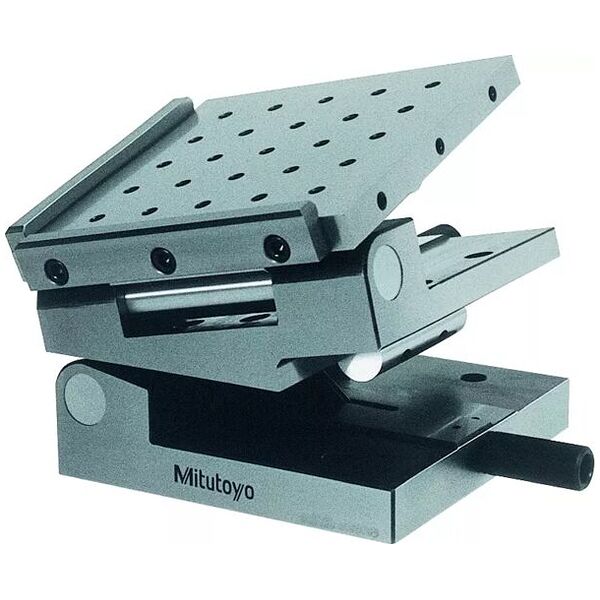

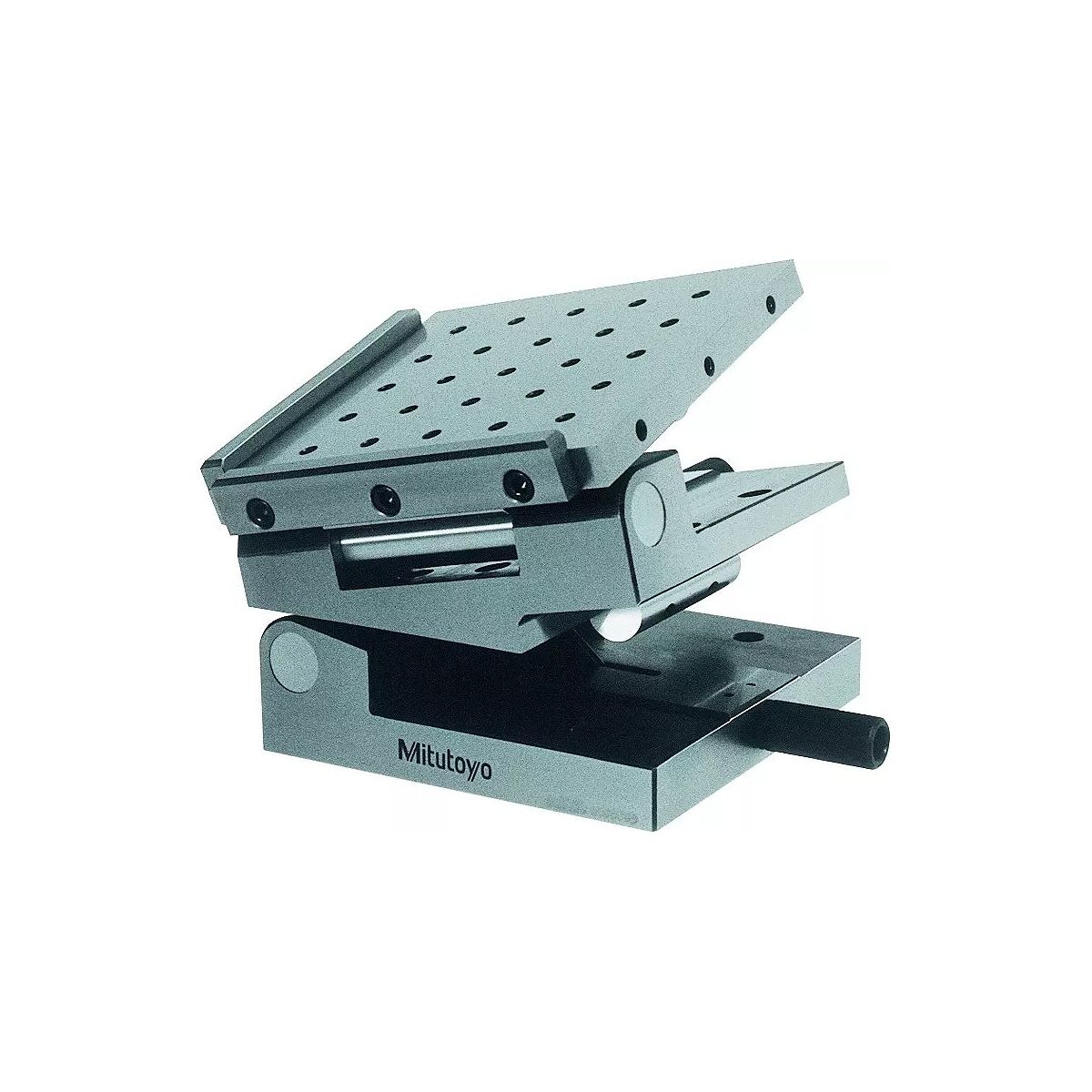

Compound Precision Sine Plate 150x150mm, with M6 Holes
Article no.: 930-628
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Checking vice |
Identification & Classification
| Article number |
930-628
Copy |
|
| Manufacturer number |
930-628
Copy |
|
| L-Number |
L40950 495
Copy |
|
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Description:
Sine bar style of auxiliary plate. It is made of tool steel, hardened and precision ground. Accurate angle setting is made by gauge blocks, max. 45°. 930-626 Work piece can be fixed on plate surface by tap holes and stoppers on side. 930-628 and 930-629 can set the angle at two directions which go straight angularly. 930-629 Permanently magnet chuck is adapted.
Feature:
Perpendicularity: 0.005 mm / 100 mm

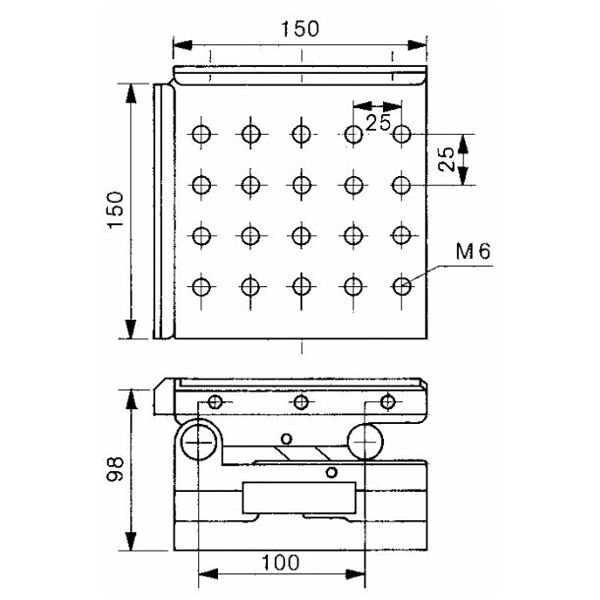

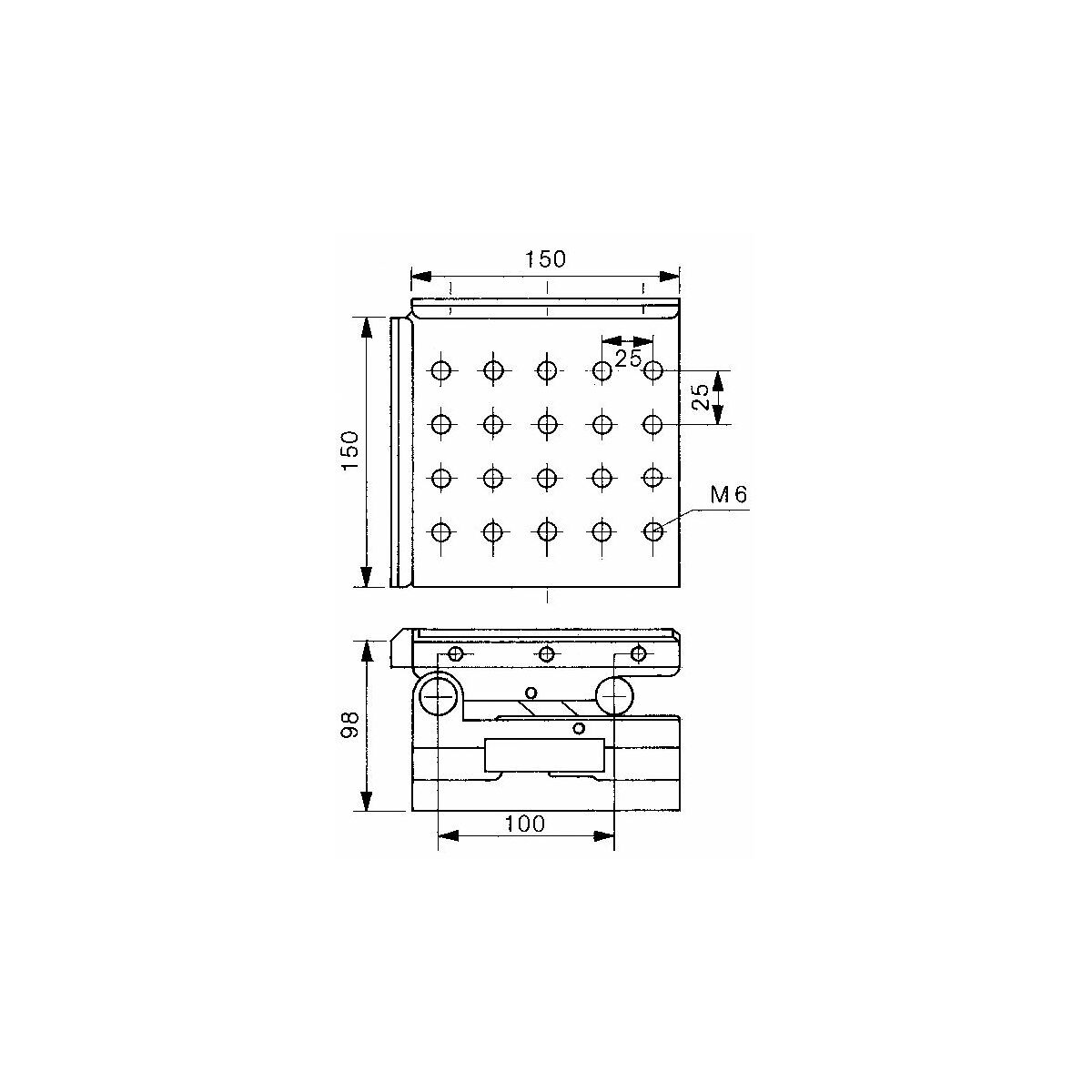

Remarks: Composite axis type with angle in two directions With M6 clamping holes.
Remarks: Composite axis type with angle in two directions With M6 clamping holes.
