Module clamp
Article no.: 90761
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
90761
Copy |
|
| EAN / GTIN |
4020772090760
Copy |
|
| Manufacturer number |
90761
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:

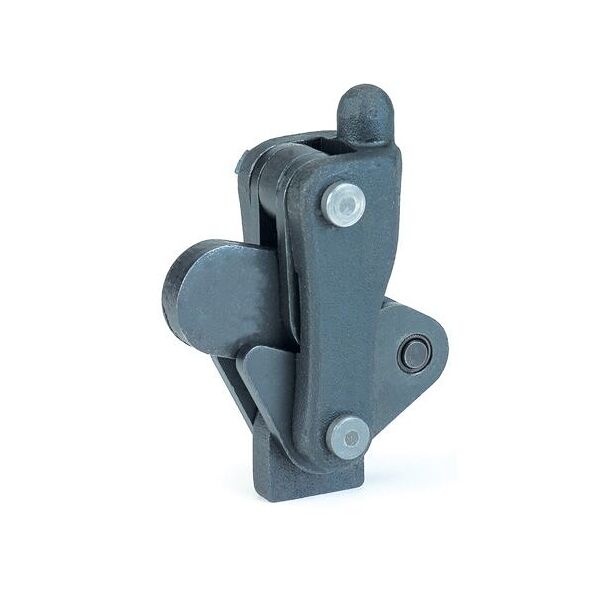

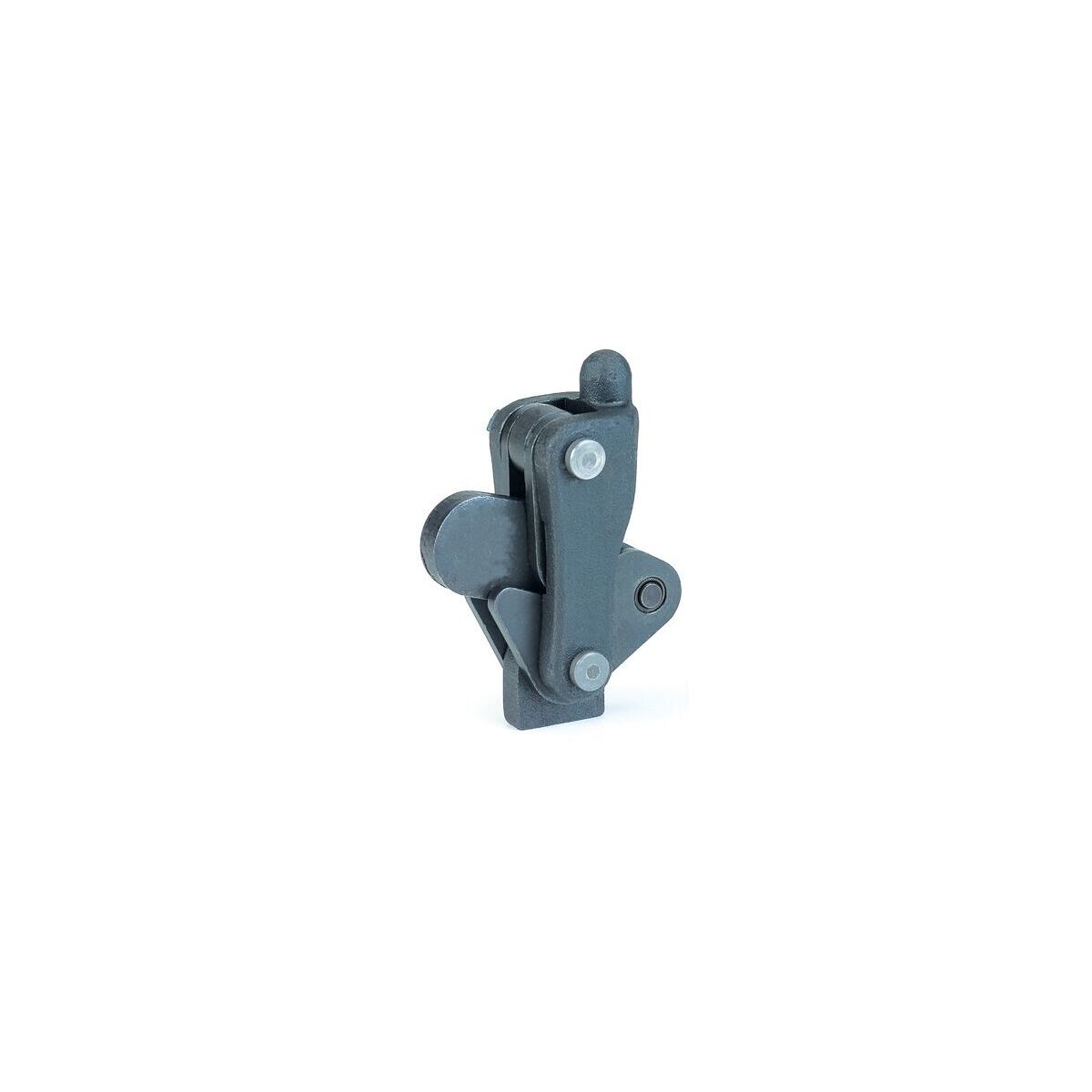

Module clamp, with swivel base, weldable version.

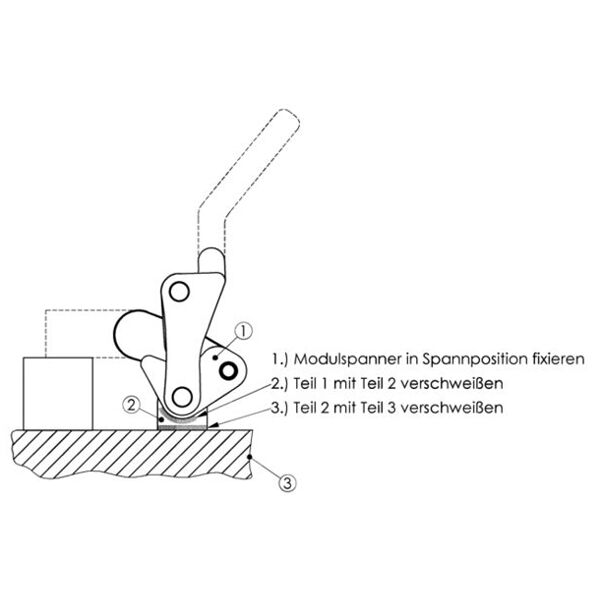

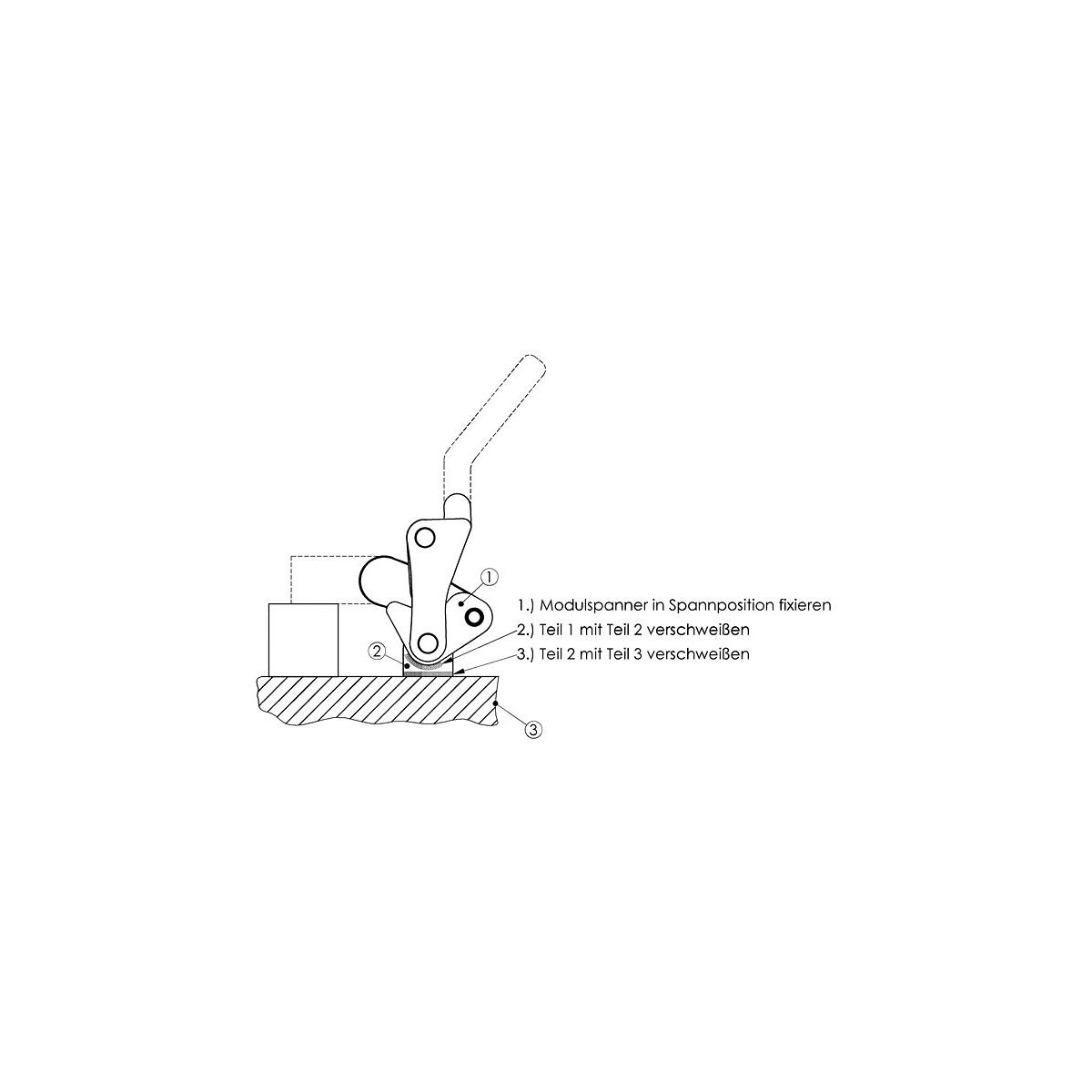

Gear can be welded on under angle position. Rubbed and case hardened bearing bushings. Hardened, ground and permanently greased bolts. Clamping nut on the lever arm for adjustable movement.
Material: Steel, burnished. Cast steel lever arm, burnished.
Gear can be welded on under angle position. Rubbed and case hardened bearing bushings. Hardened, ground and permanently greased bolts. Clamping nut on the lever arm for adjustable movement.
Material: Steel, burnished. Cast steel lever arm, burnished.
Feature:

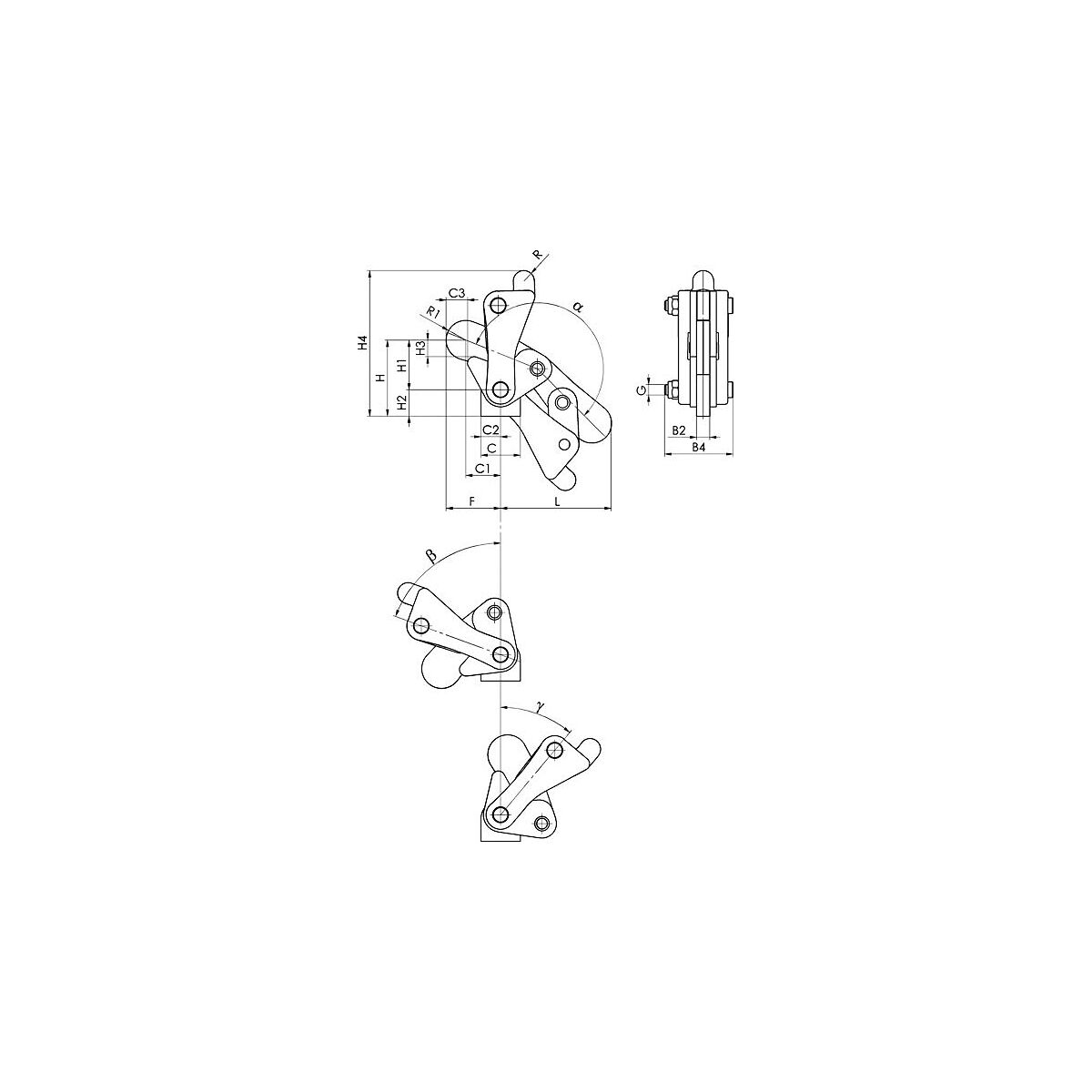

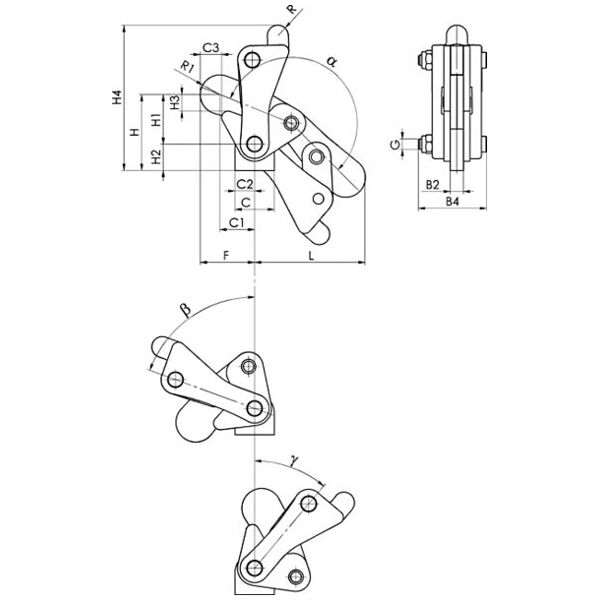

- Size: 8
- F1: 22.5 kN
- Weight: 3100 g
- Size: 8
- B2: 16
- B4: 76
- C: 50
- C1: 50
- C2: 25
- C3: 27
- F: 72
- G: M12
- H: 98
- H1: 65
- H2: 33.0
- H3: 19
- H4: 172
- L: 135
- R: 14
- R1: 22.5
- α: 200°
- β: 70°
- γ: 40°
