Pneumatic clamps, double-acting
Article no.: 567170
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
567170
Copy |
|
| EAN / GTIN |
4020772353704
Copy |
|
| Manufacturer number |
567170
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:

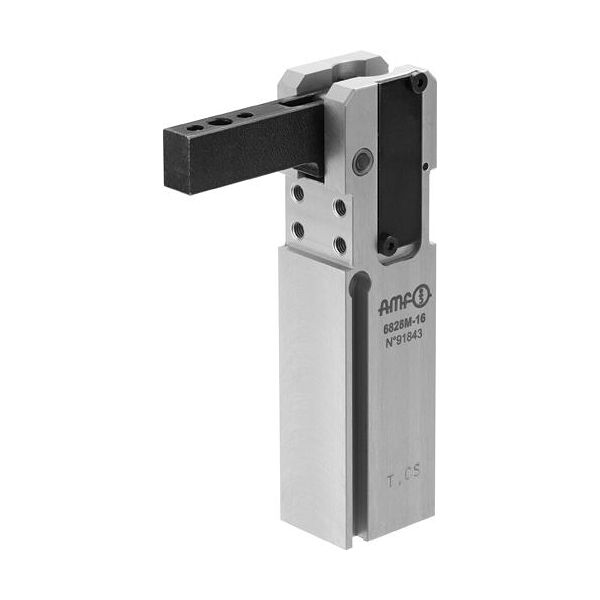

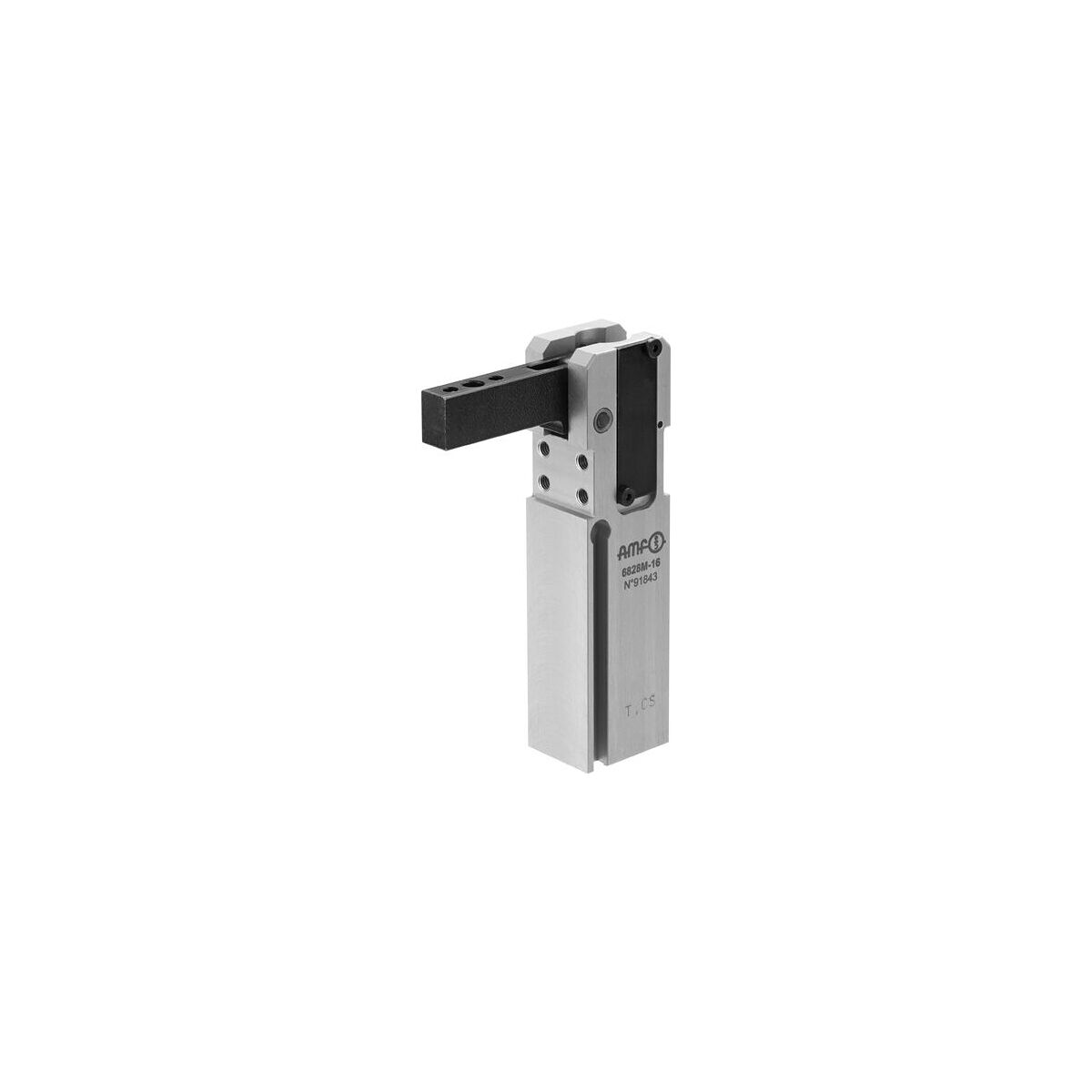

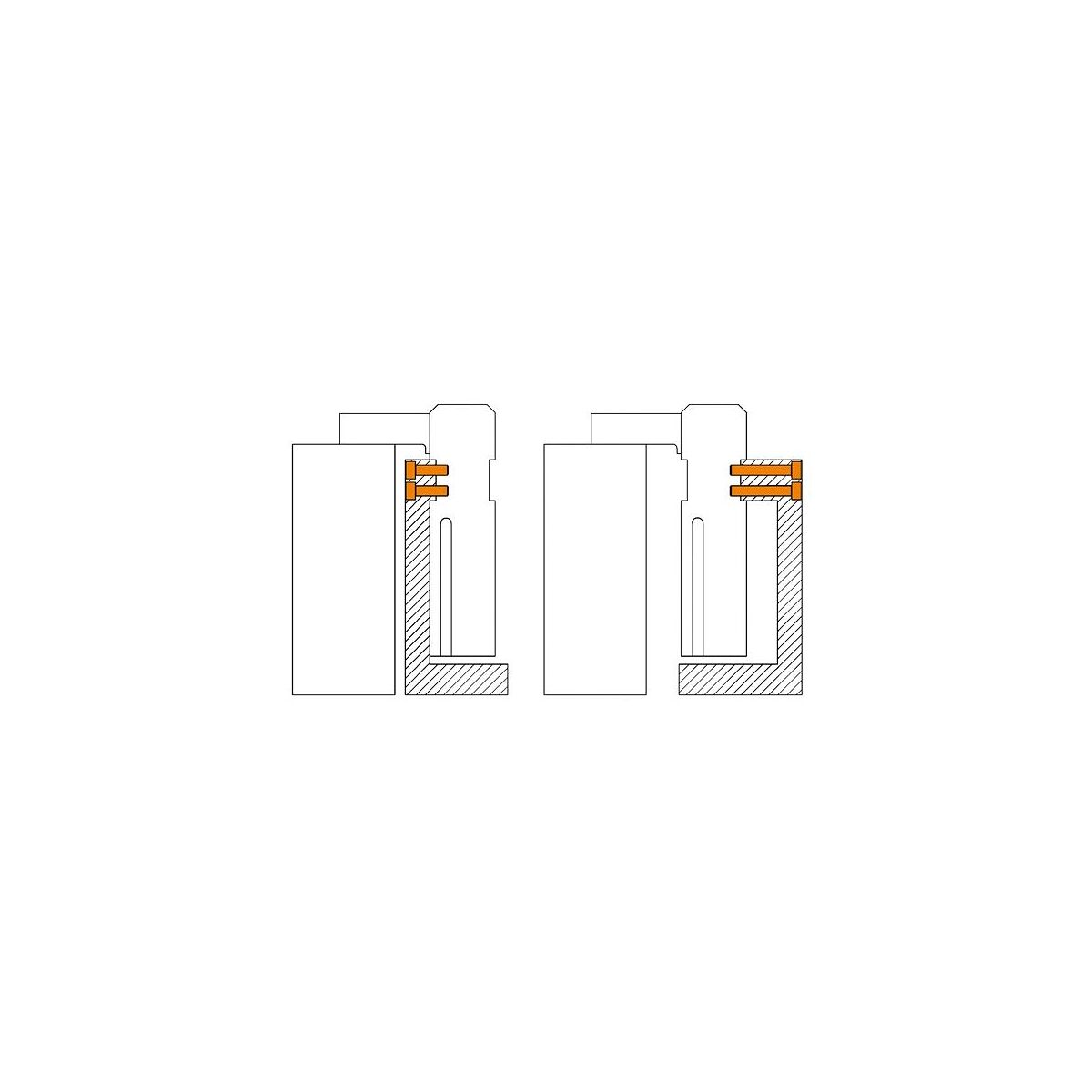

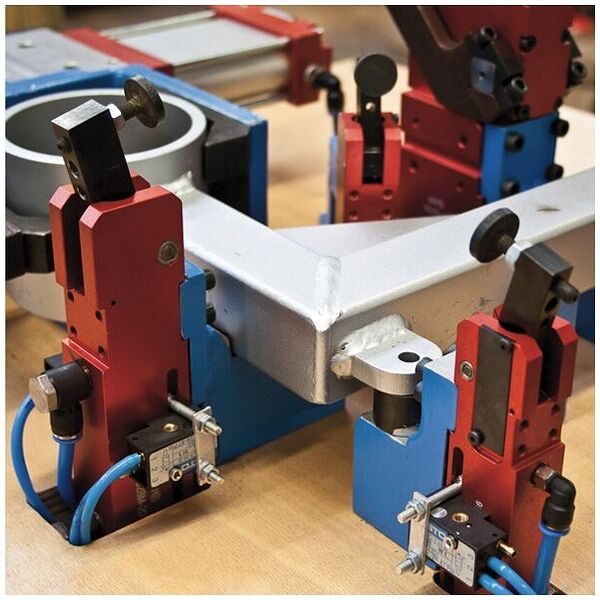

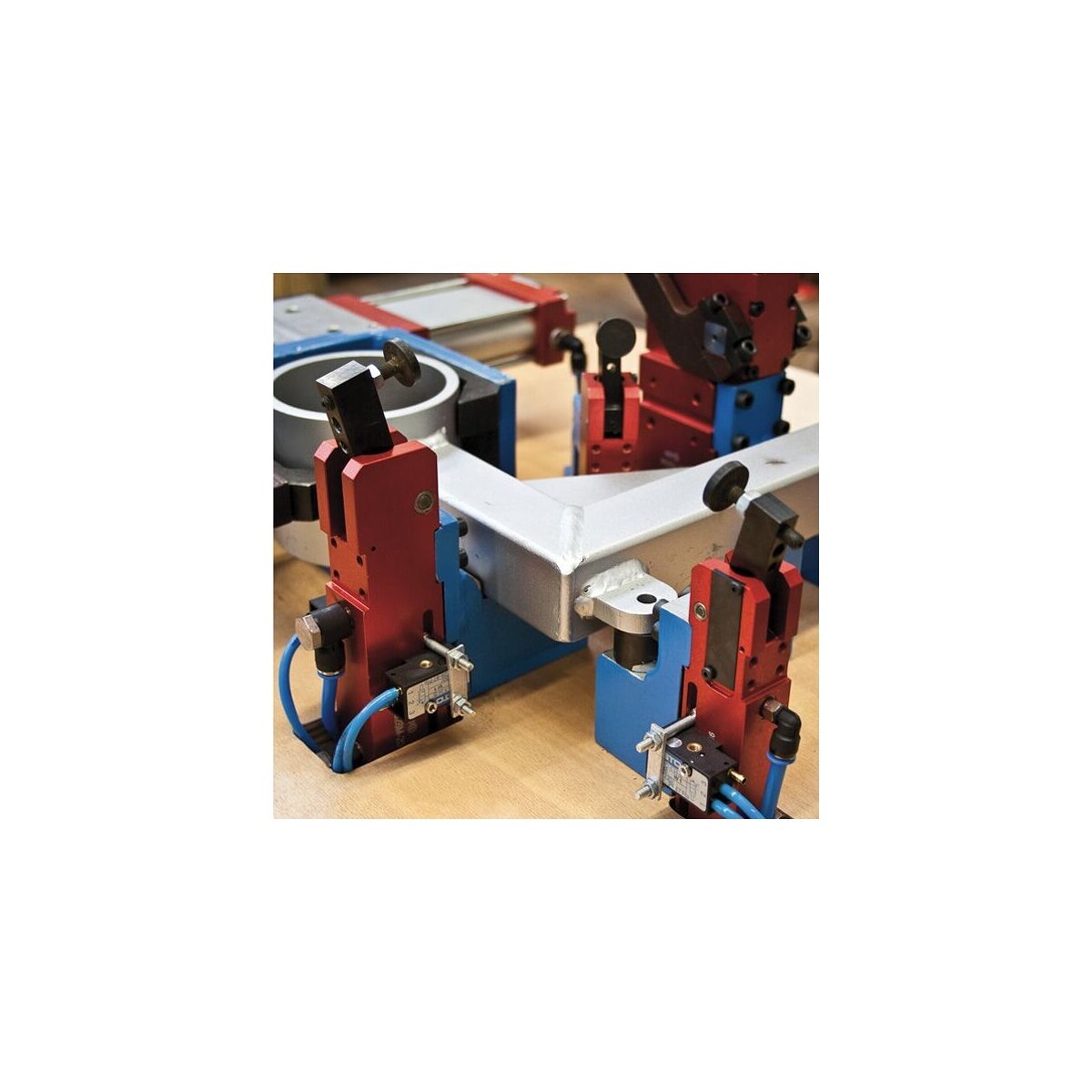

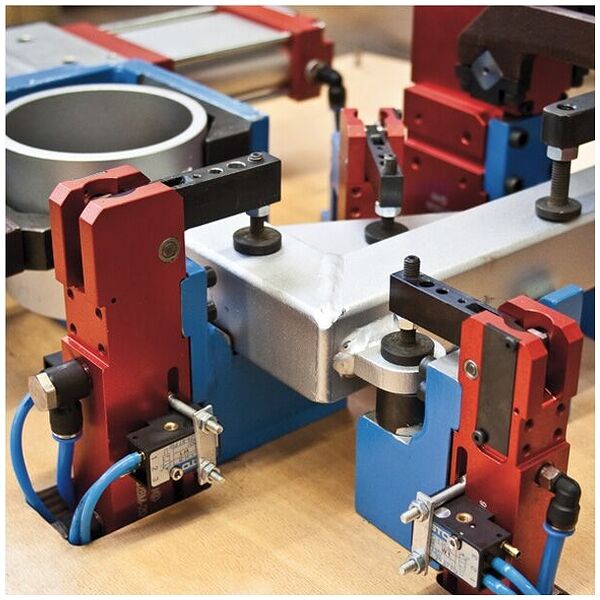

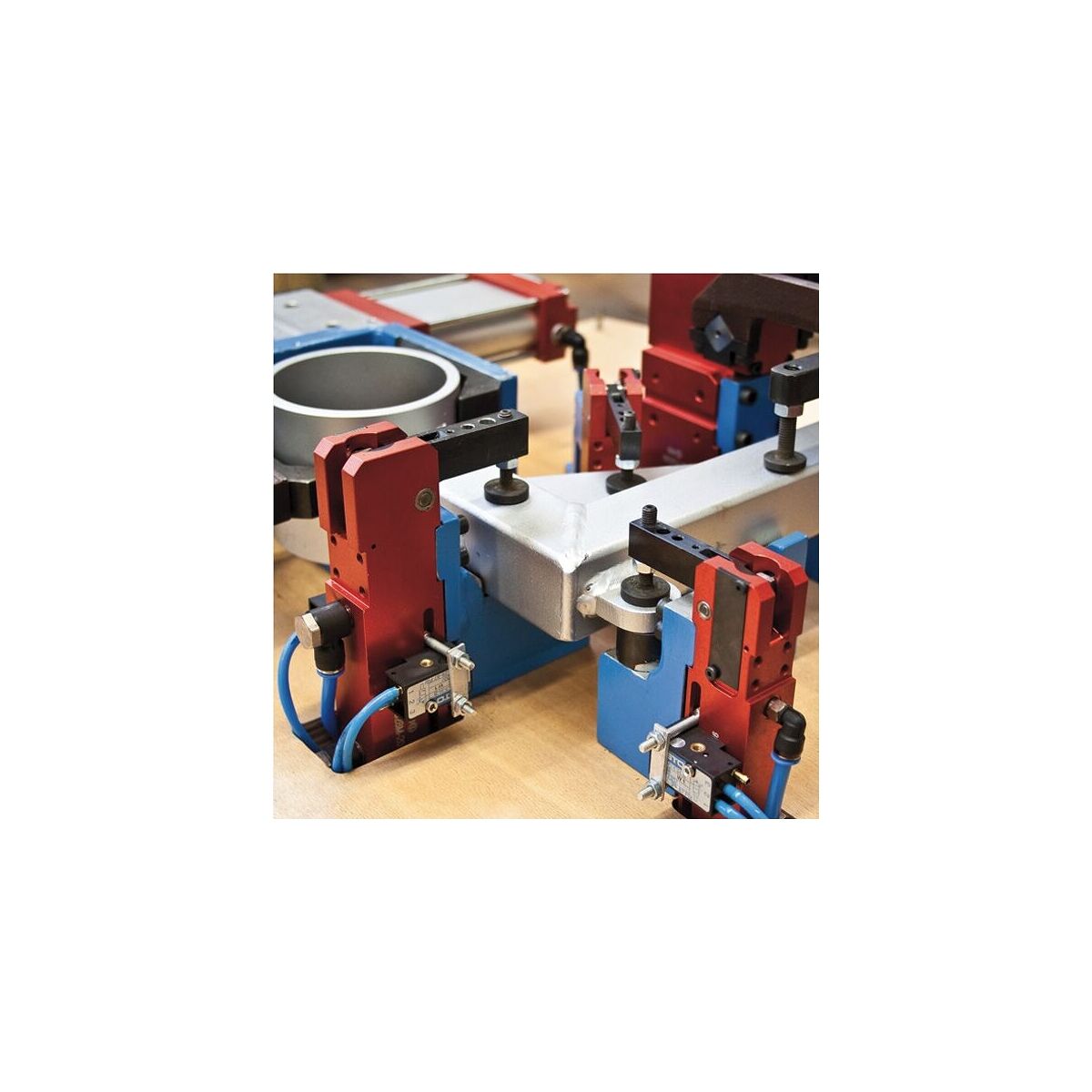

Pneumatic clamp
Double-acting.
Max. Operating pressure 6 bar.
Mini version in block version for clamping and gripping technology. High-strength anodized aluminum housing.
Size 16, 20 and 25 with magnetic piston for end position detection. Clamping arm made of steel, burnished, with three bores.
Double-acting.
Max. Operating pressure 6 bar.
Mini version in block version for clamping and gripping technology. High-strength anodized aluminum housing.
Size 16, 20 and 25 with magnetic piston for end position detection. Clamping arm made of steel, burnished, with three bores.
Feature:
- Size: 10
- Tension torque at 5 bar: 2.5 Nm
- Holding torque max.: 8 Nm
- Weight: 100 g

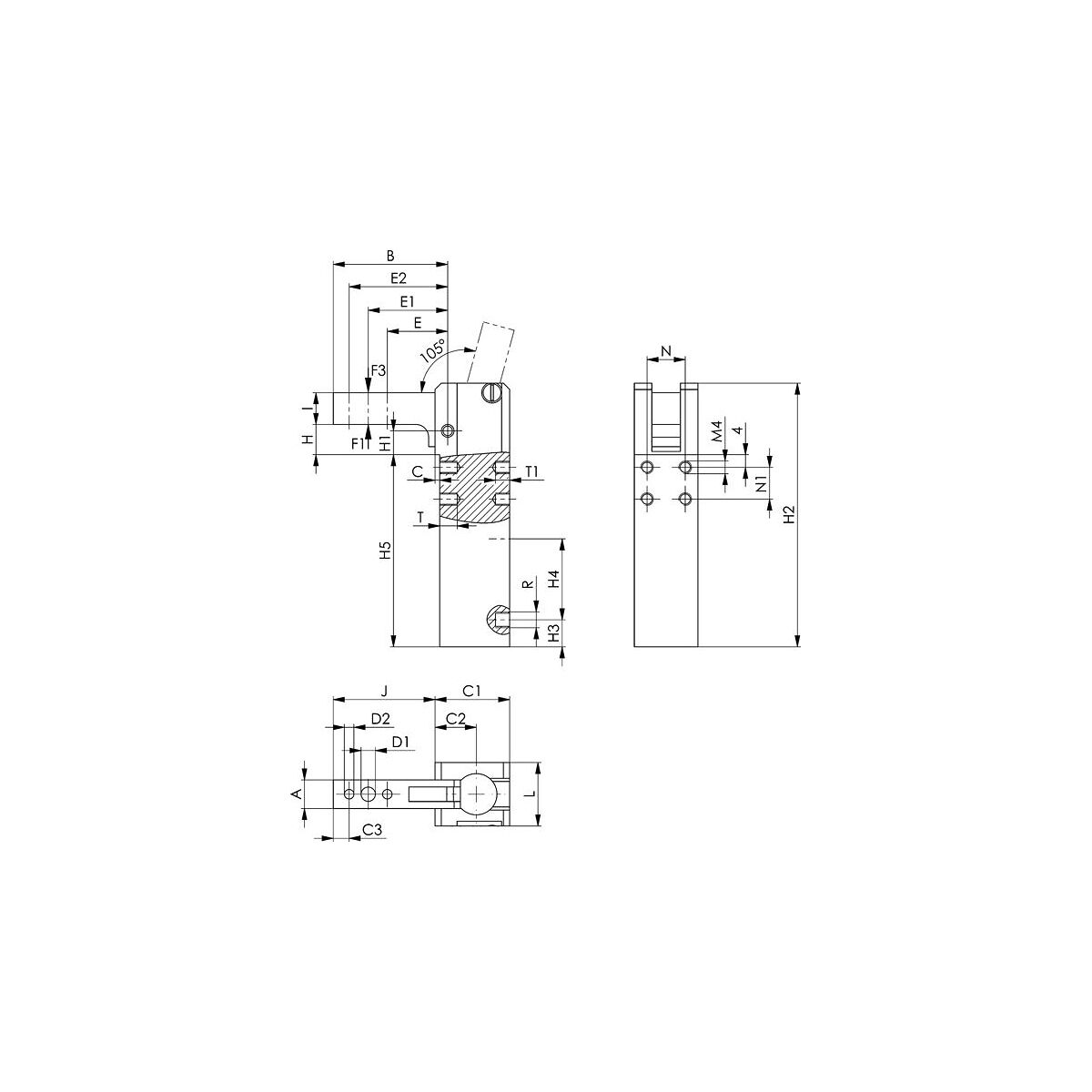

- Size: 10
- A: 9
- B: 36
- C: 1.5
- C1: 23.5
- C2: 13
- C3: 5
- D1: 4.5
- D2 H7: 3
- E: 19
- E1: 25.0
- E2: 31
- H: 9.5
- H1: 7.5
- H2: 83
- Size: 10
- H3: 8.5
- H4: 25.5
- H5: 60.5
- I: 10
- J: 32
- L: 20
- N ±0.1: 12
- N1 ±0.1: 10
- R: M5
- T: 5.5
- T1: 4.5
- Piston Ø
: 10
