Collet attachment for internal clamping
Article no.: 567125
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
567125
Copy |
|
| EAN / GTIN |
4020772529291
Copy |
|
| Manufacturer number |
567125
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:

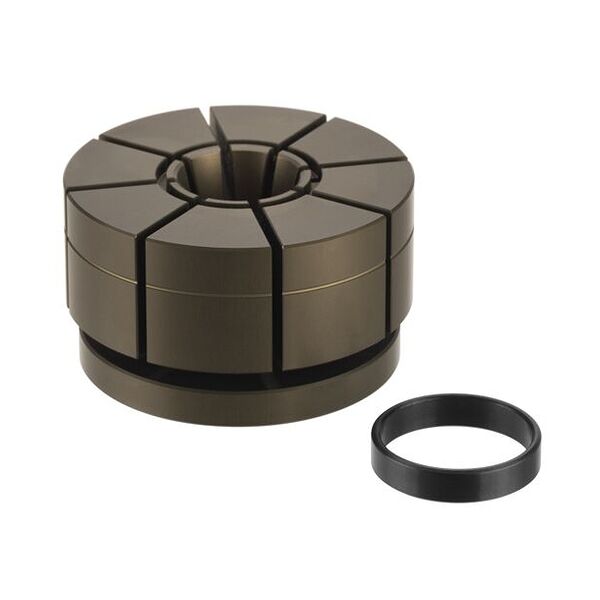

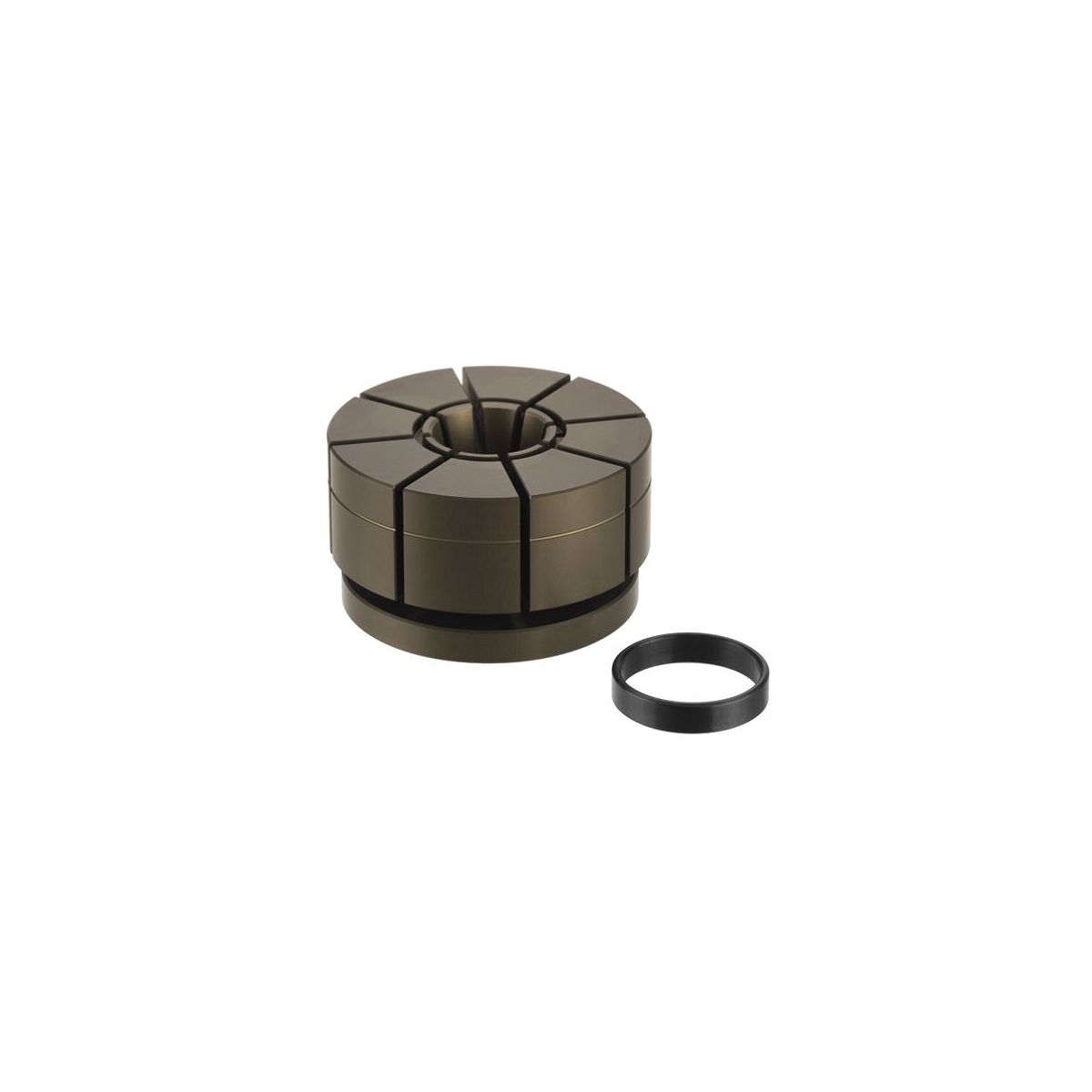

Collet attachment for internal clamping
Collet attachment made of high-strength aluminium, hard anodised. With retaining ring made of tempered steel, burnished.
Collet attachment made of high-strength aluminium, hard anodised. With retaining ring made of tempered steel, burnished.

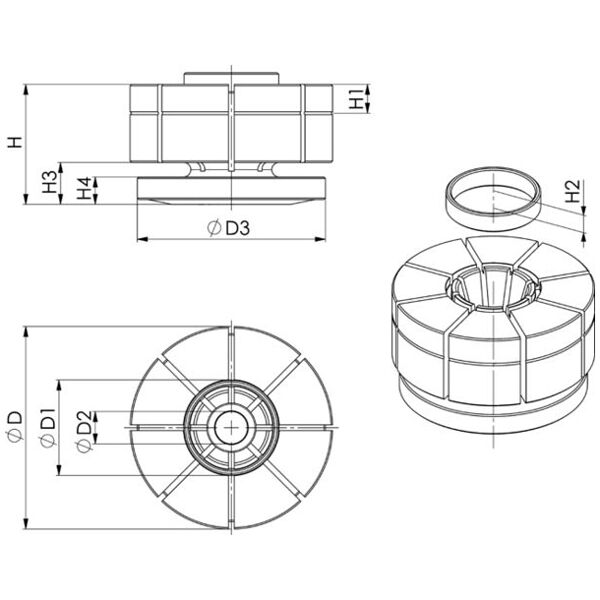

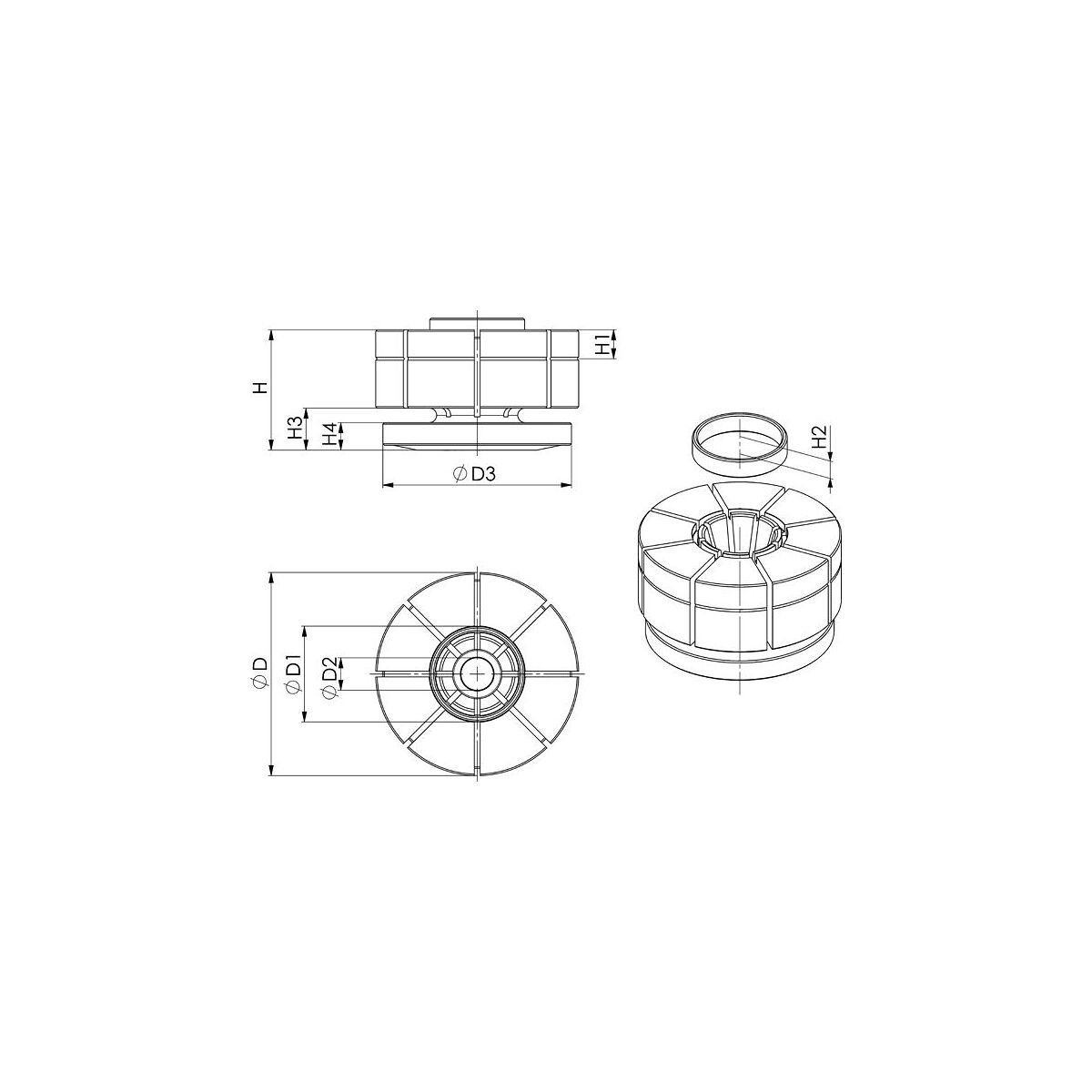

Feature:
- Size: 10
- ØD: 70
- ØD1: 32.7
- ØD2: 11.2
- ØD3: 65
- H: 41.5
- H1: 10
- H2: 7
- H3: 14.5
- H4: 9.5
- Clamping stroke Ø: 0.3 mm
- Weight: 327 g
