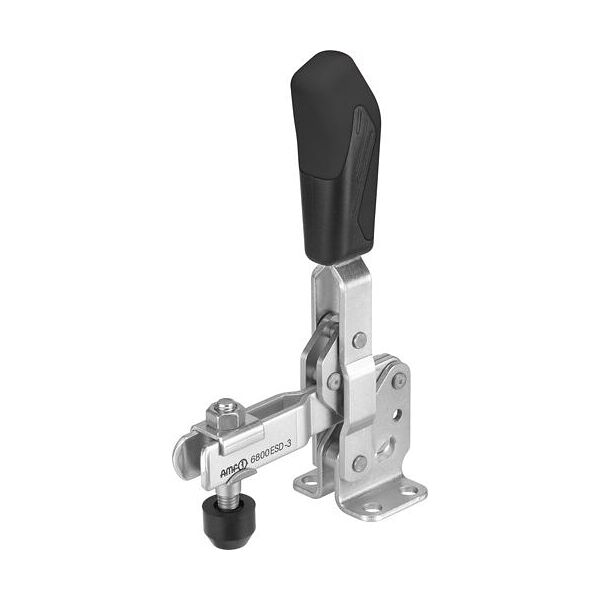

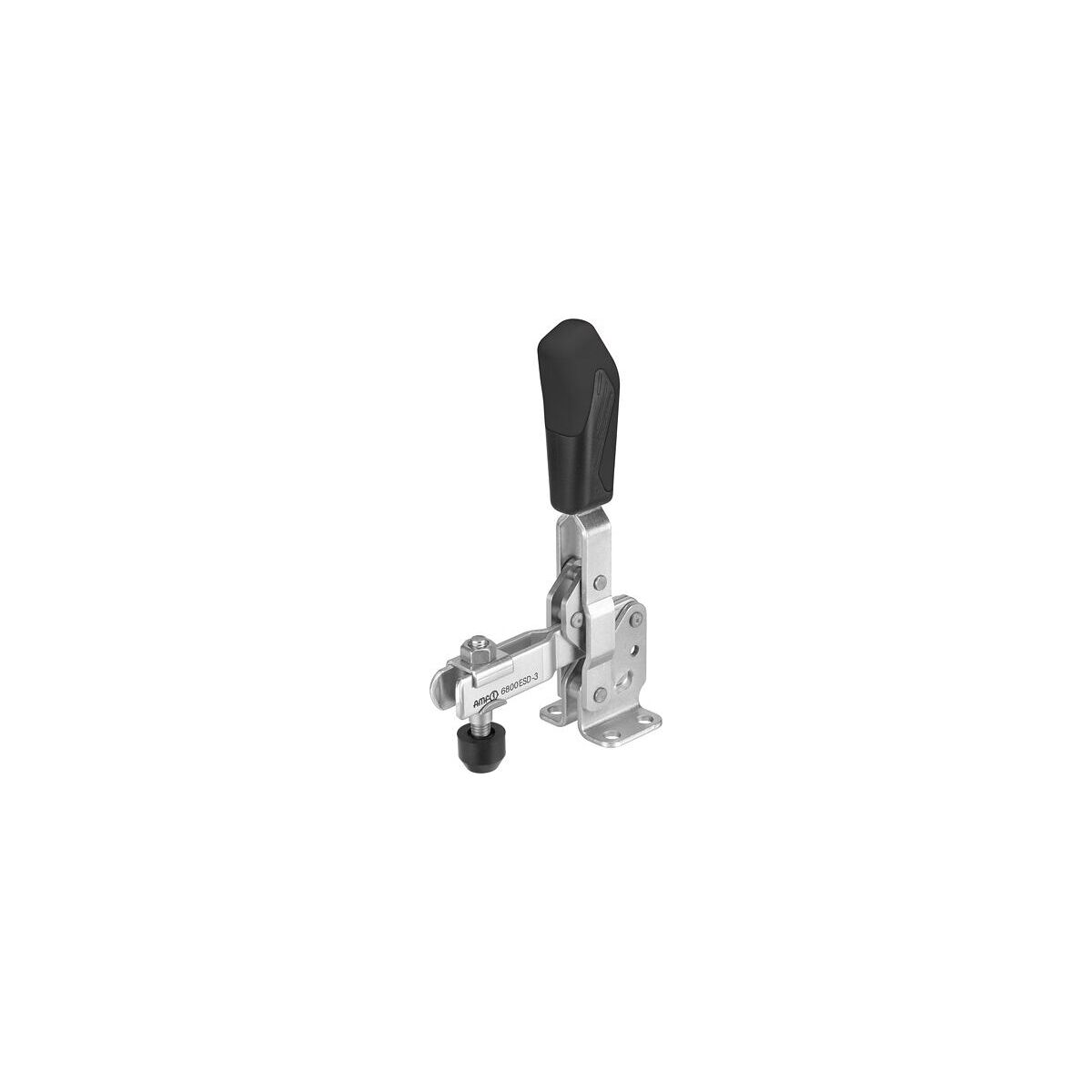

ESD vertical clamp
Article no.: 562487
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
562487
Copy |
|
| EAN / GTIN |
4020772023904
Copy |
|
| Manufacturer number |
562487
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:
ESD vertical clamp
with protective cap and handle made of electrostatically dissipative material.
With open support arm and horizontal foot.
Galvanized and passivated. Stainless steel rivets that run in case-hardened bushings on sizes 2 and 3. Bearing points are greased.
Ergonomic, oil-resistant handle with large palm rest and soft component. Safety clamping piece with finger protection, loss protection for the clamping screw at the clamping arm end.
Complete with tempered, galvanized push-on screw No. 6890ESD.
with protective cap and handle made of electrostatically dissipative material.
With open support arm and horizontal foot.
Galvanized and passivated. Stainless steel rivets that run in case-hardened bushings on sizes 2 and 3. Bearing points are greased.
Ergonomic, oil-resistant handle with large palm rest and soft component. Safety clamping piece with finger protection, loss protection for the clamping screw at the clamping arm end.
Complete with tempered, galvanized push-on screw No. 6890ESD.
Feature:
- Size: 3
- F1: 1.2 kN
- F2: 2.5 kN
- Contact screw: M8 x 45
- Weight: 410 g

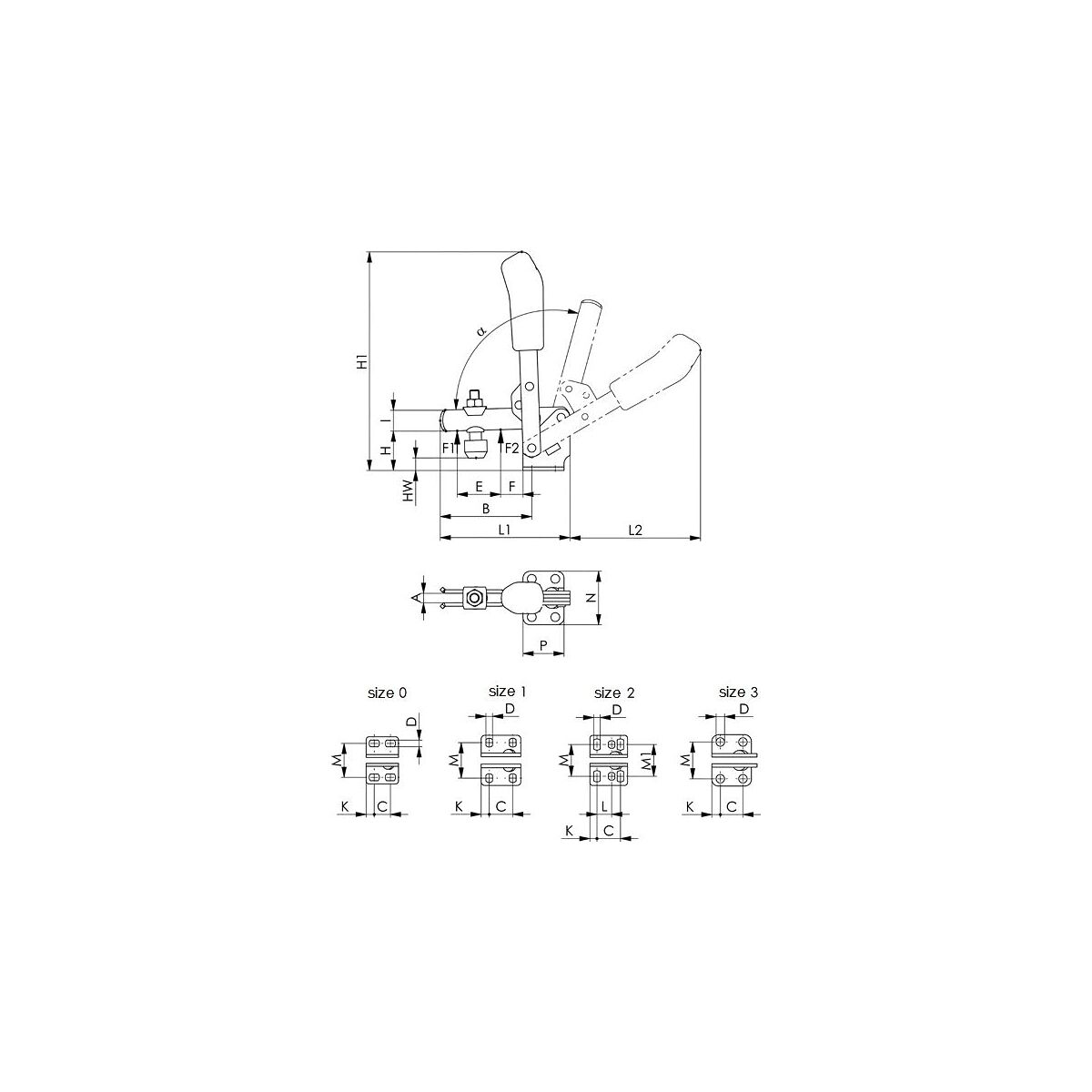

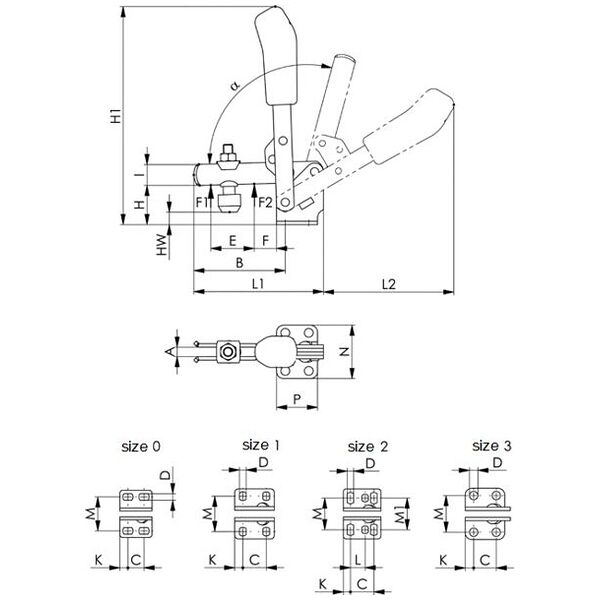

- Size: 3
- A: 8
- B: 79
- C: 20.0
- D: 7.5
- E: 37
- F: 19.0
- H: 33
- H1: 186
- HW min.: 2.0
- HW max.: 11.0
- I: 18
- O: 7.5
- L1: 112
- L2: 112
- M: 32.5
- N: 46
- P: 35
- α: 105°
- α*: 60°
