pneumatic rod clamp
Article no.: 560008
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
560008
Copy |
|
| EAN / GTIN |
4020772021269
Copy |
|
| Manufacturer number |
560008
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:

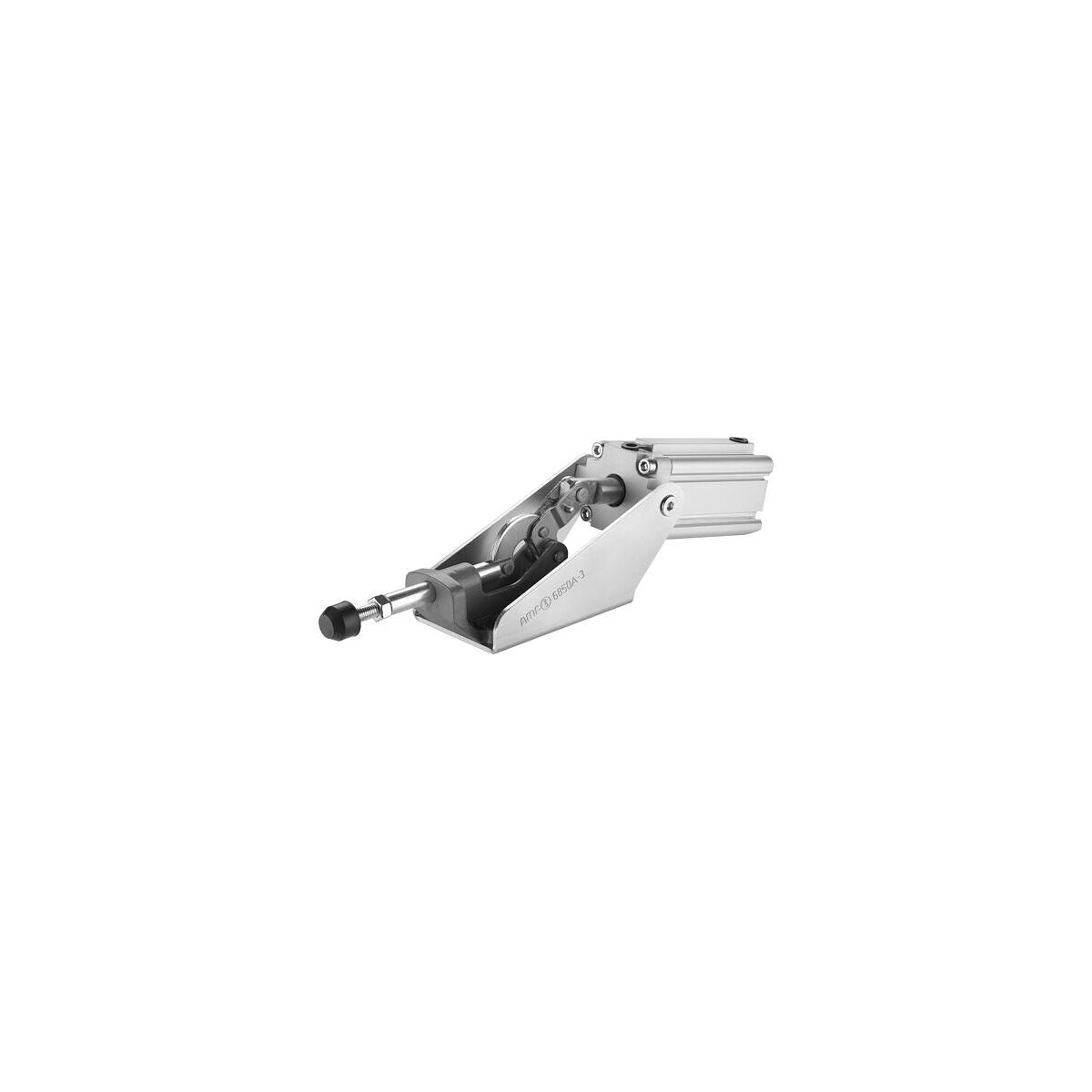

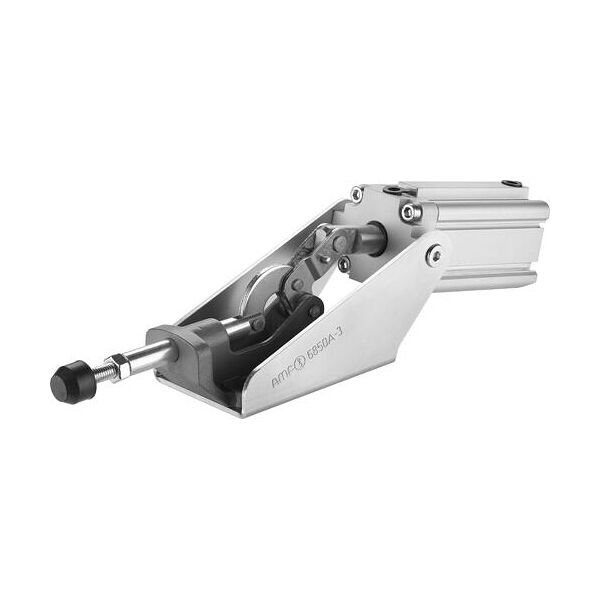

pneumatic rod clamp
Pressure clamp.
Heavy version for long tool life. Pneumatic cylinder with magnetic piston for end position sensing. Bracket galvanised and passivated, base body made of malleable cast iron, painted. Lever parts and push rod made of tempered steel, galvanized and passivated. Stainless steel rivets. Bearing points are greased.
Complete with quenched, galvanized push-on screw No. 6880.
Pressure clamp.
Heavy version for long tool life. Pneumatic cylinder with magnetic piston for end position sensing. Bracket galvanised and passivated, base body made of malleable cast iron, painted. Lever parts and push rod made of tempered steel, galvanized and passivated. Stainless steel rivets. Bearing points are greased.
Complete with quenched, galvanized push-on screw No. 6880.

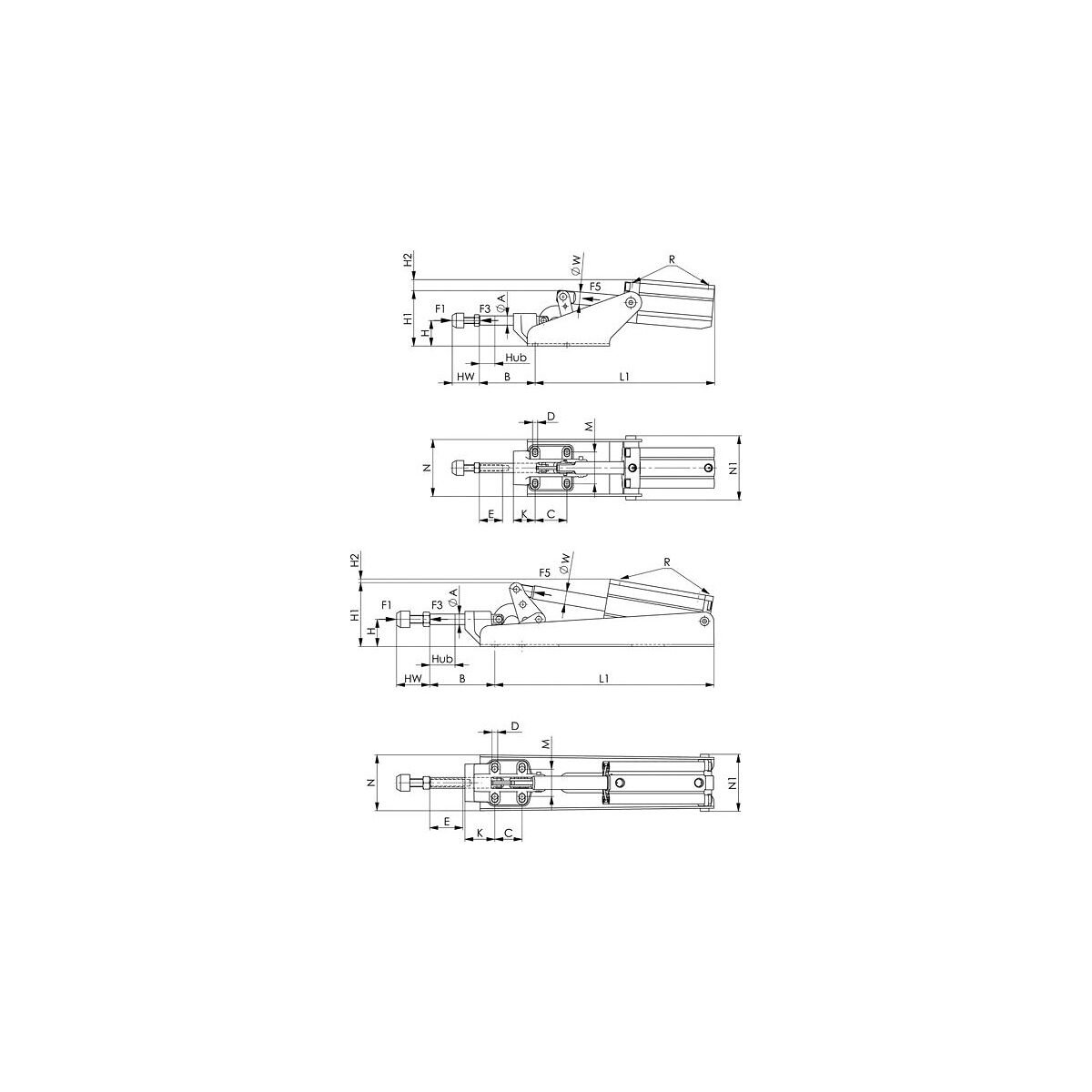

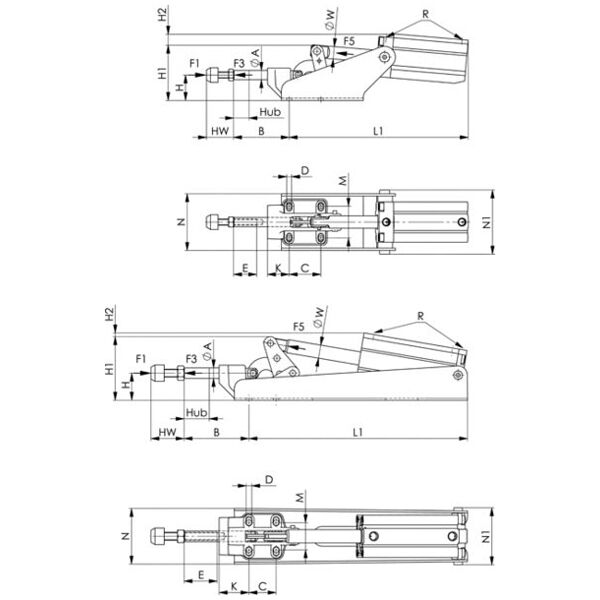

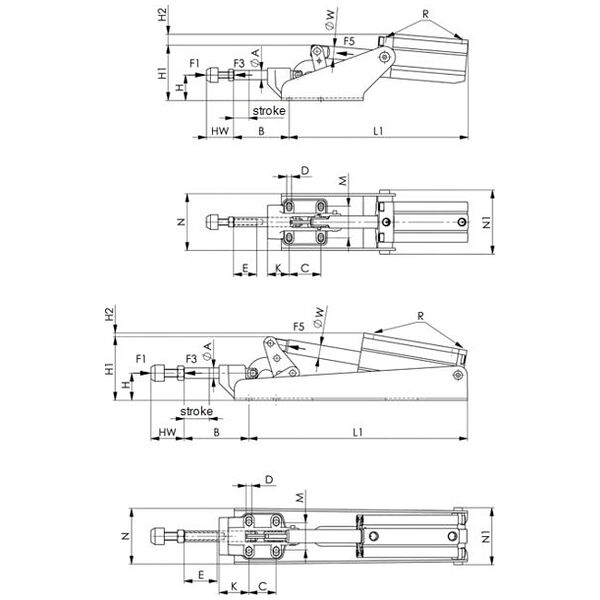

Feature:
- Size: 5
- F1: 10 kN
- F3: 5.0 kN
- F5: 1.00 kN
- UN: 0.37 dm³
- Contact screw: M12 x 50
- Weight: 5265 g
- Size: 5
- ØA: 16
- B: 98
- C: 41
- D: 8.5
- E: 50
- H: 41
- H1: 96
- H2: 22
- Stroke: 29
- HW min.: 30.0
- HW max.: 50
- O: 45
- L1: 316
- M: 41
- N: 84.0
- N1: 86
- R: G1/4
- ØW: 20
- Piston Ø
: 50
