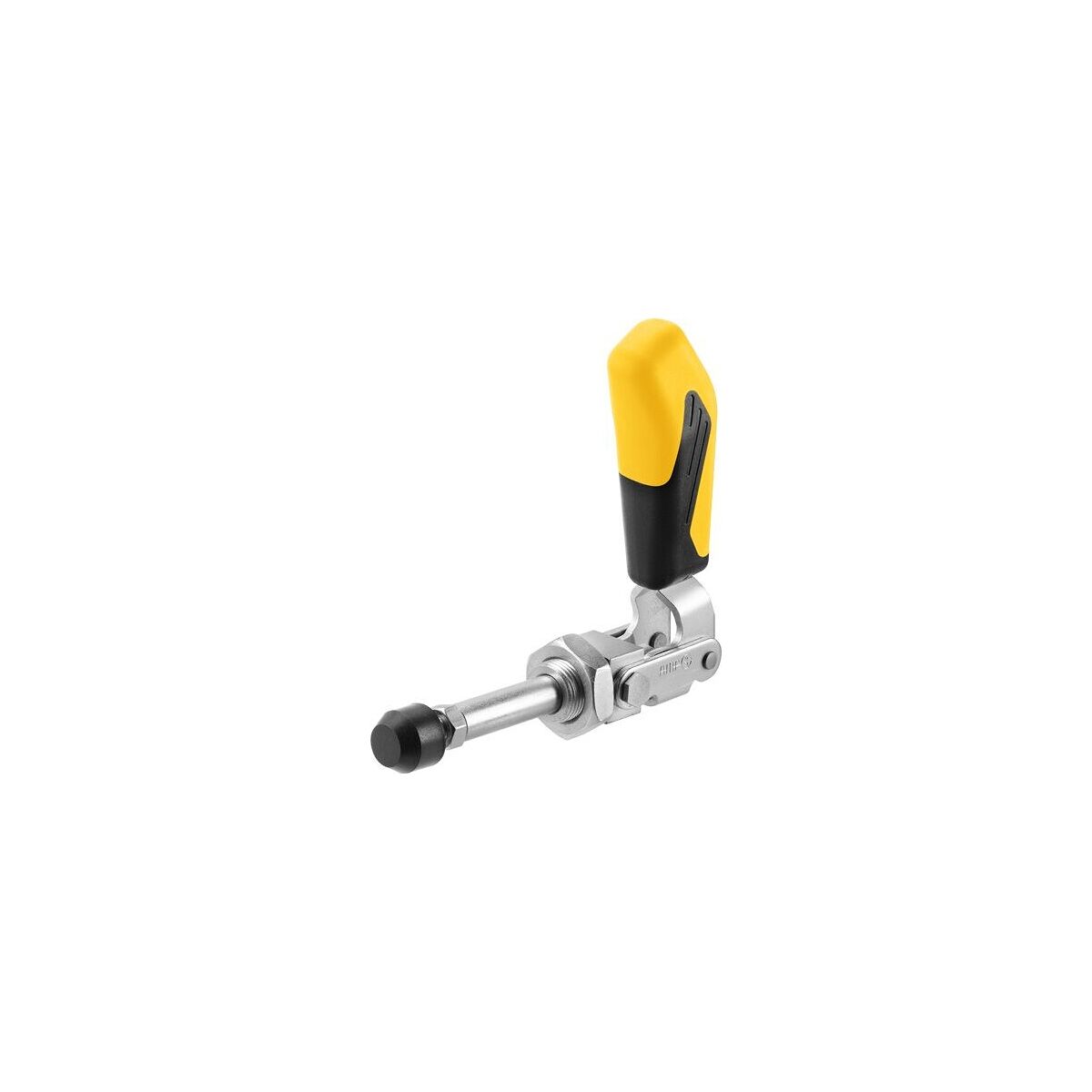

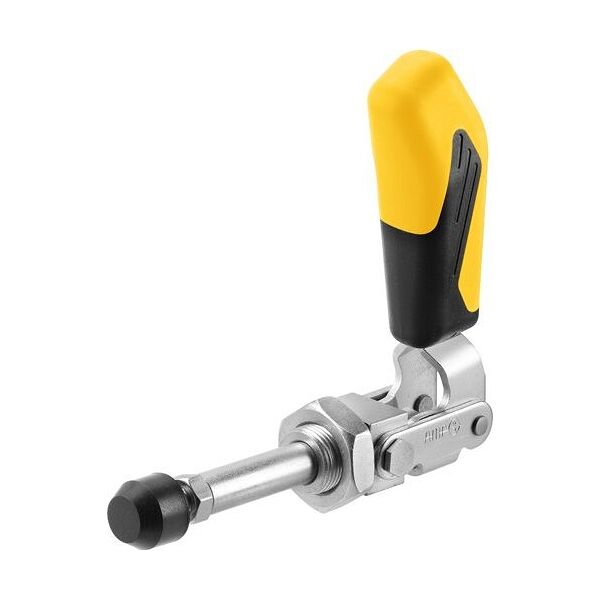

Push-pull clamp with yellow handle
Article no.: 557170
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
557170
Copy |
|
| EAN / GTIN |
4020772006600
Copy |
|
| Manufacturer number |
557170
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:
Push-rod tensioner with yellow handle, short design. Compression and tension clamps.
Long push rod guide with fastening thread and nut. Galvanized and passivated. Stainless steel rivets. Hardened shoulder screws. Bearing points are greased.
Ergonomic, oil-resistant handle with large palm rest and soft component.
Complete with tempered, zinc-plated push-on screw
No. 6880.
Long push rod guide with fastening thread and nut. Galvanized and passivated. Stainless steel rivets. Hardened shoulder screws. Bearing points are greased.
Ergonomic, oil-resistant handle with large palm rest and soft component.
Complete with tempered, zinc-plated push-on screw
No. 6880.
Feature:
- Size: 5-M27
- F1: 4.0 kN
- F2: 4.0 kN
- Contact screw: M12x50
- Weight: 1200 g

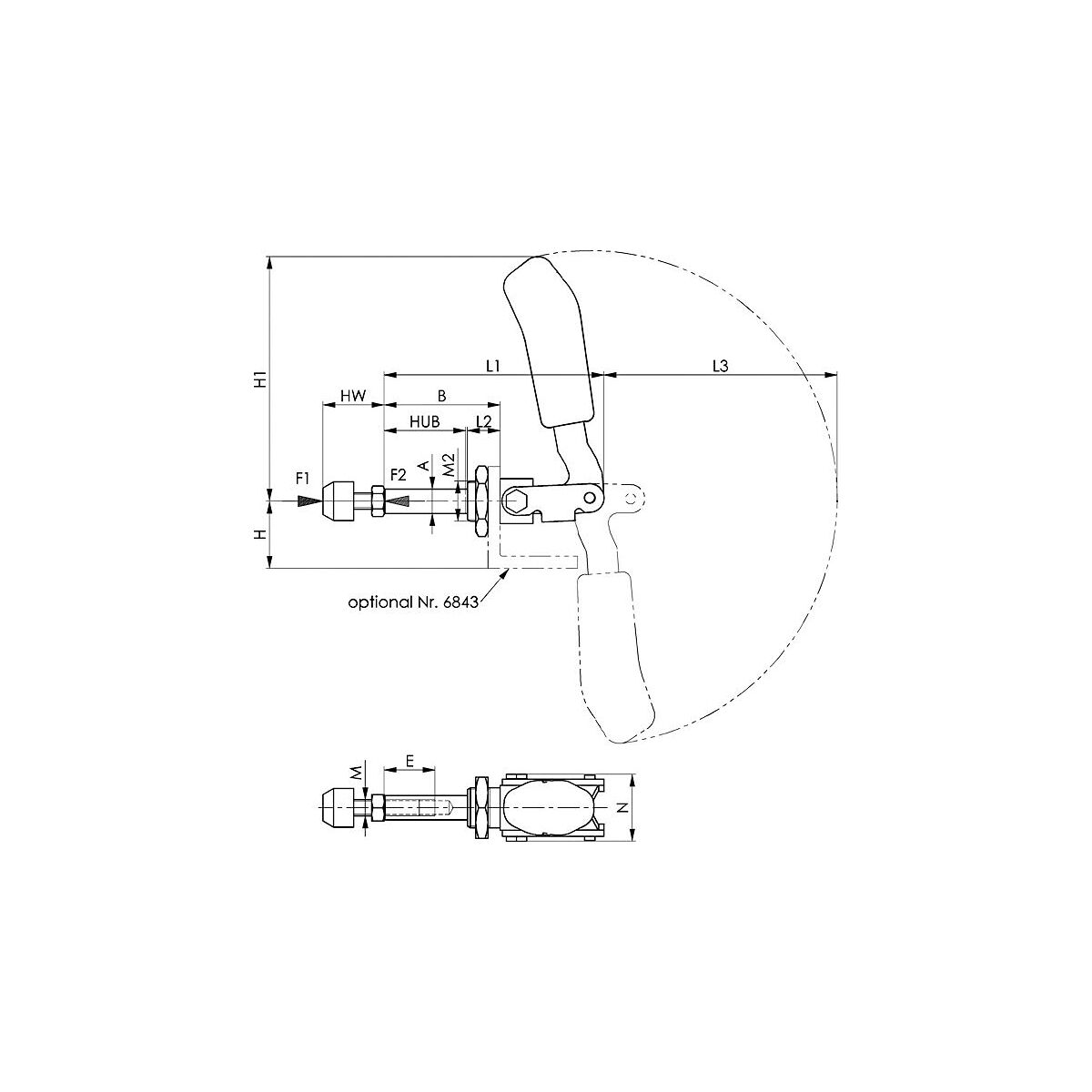

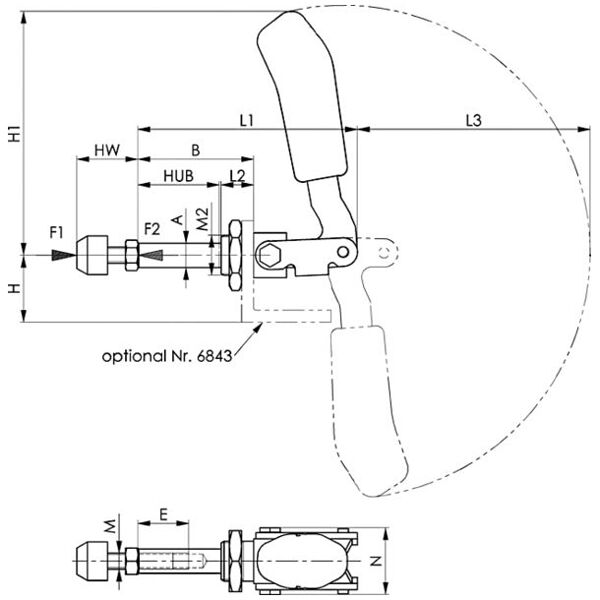

- Size: 5-M27
- A: 16
- B: 92
- E: 45
- H: 37
- H1: 149
- Stroke: 67.0
- HW min.: 30
- HW max.: 50
- L1: 175.0
- L2: 24
- L3: 139
- M: M12
- M2: M27x2.0
- N: 49.0
