Pneumatic clamp with hand lever
Article no.: 555083
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
555083
Copy |
|
| EAN / GTIN |
4020772004200
Copy |
|
| Manufacturer number |
555083
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:

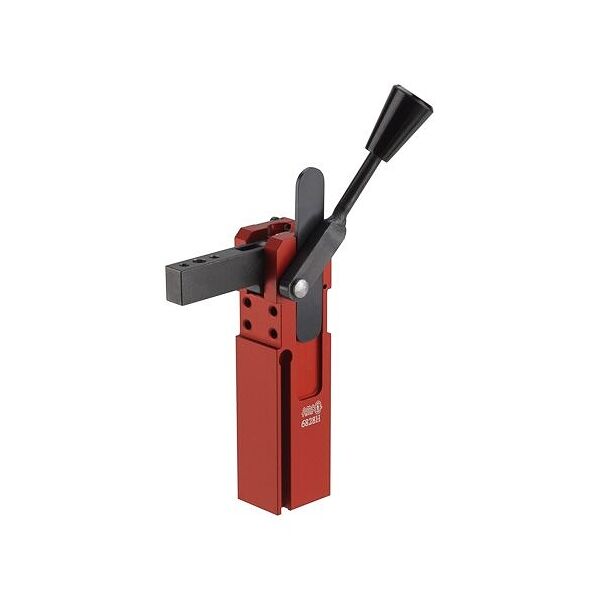

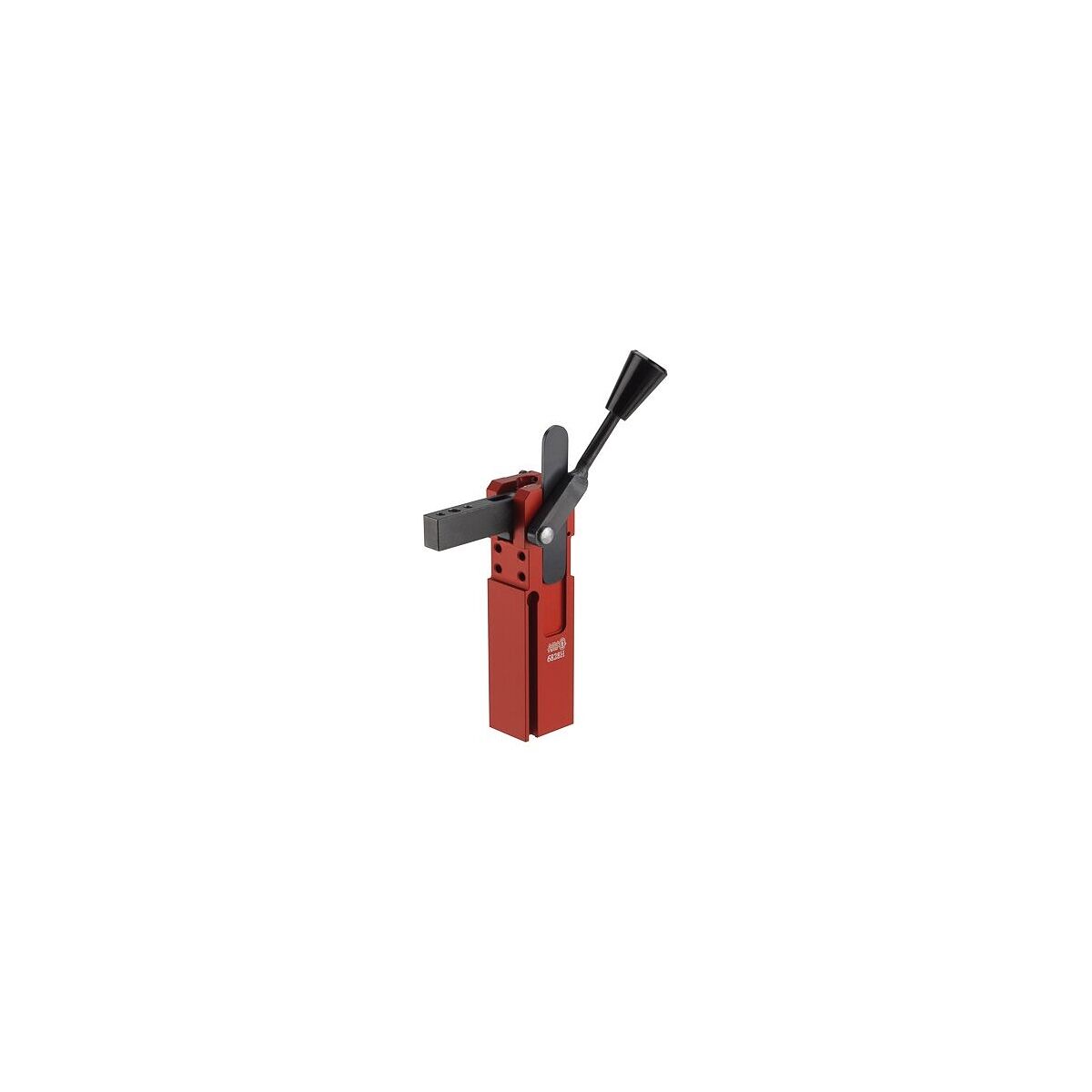

Pneumatic clamp with hand lever, double acting and with additional hand lever for manual opening and/or closing.
Max. Operating pressure 6 bar.
Mini version in block version for clamping and gripping technology. High-strength anodized aluminum housing. Magnetic piston for end position detection. Clamping arm made of steel, burnished, with three bores.
Max. Operating pressure 6 bar.
Mini version in block version for clamping and gripping technology. High-strength anodized aluminum housing. Magnetic piston for end position detection. Clamping arm made of steel, burnished, with three bores.
Feature:
- Size: 16
- Tension torque at 5 bar: 8 Nm
- Manual lever
left-hand
: - - Manual lever
right-hand
: Yes - Holding torque max.: 25 Nm
- Weight: 320 g

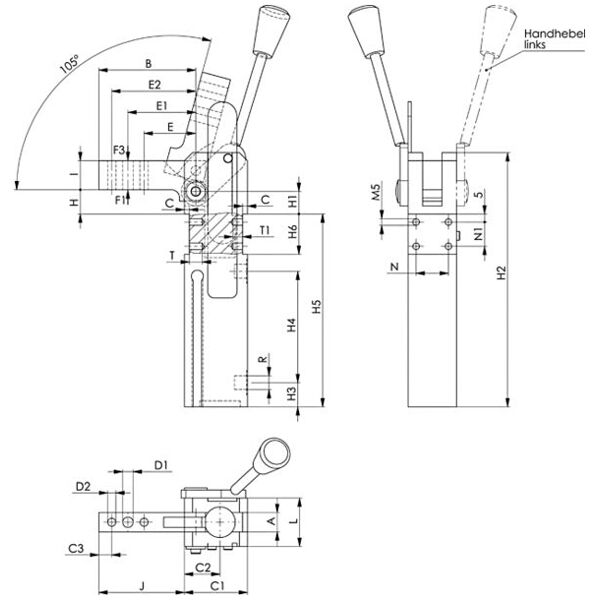

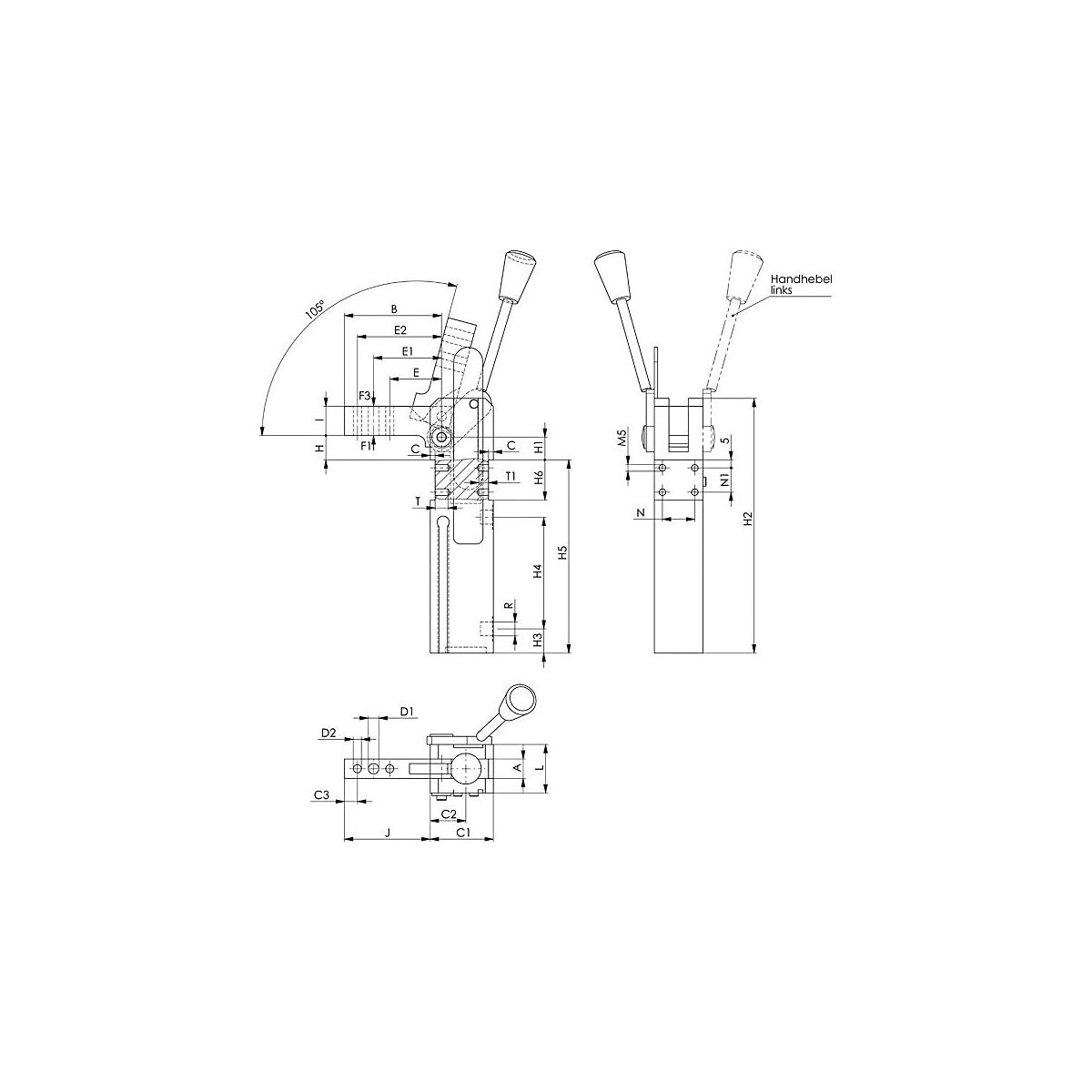

- Size: 16
- A: 10
- B: 50
- C: 2.5
- C1: 32
- C2: 18
- C3: 6
- D1: 5.5
- D2 H7: 4
- E: 28
- E1: 36.0
- E2: 44
- H: 7.5
- H1: 7.5
- H2: 123
- H3: 12.0
- H4: 57
- H5: 96
- H6 +0.1: 20
- I: 15
- J: 44
- L: 26
- N ±0.1: 16
- N1 ±0.1: 10
- R: M5
- T: 7
- T1: 5
- Piston Ø
: 16
