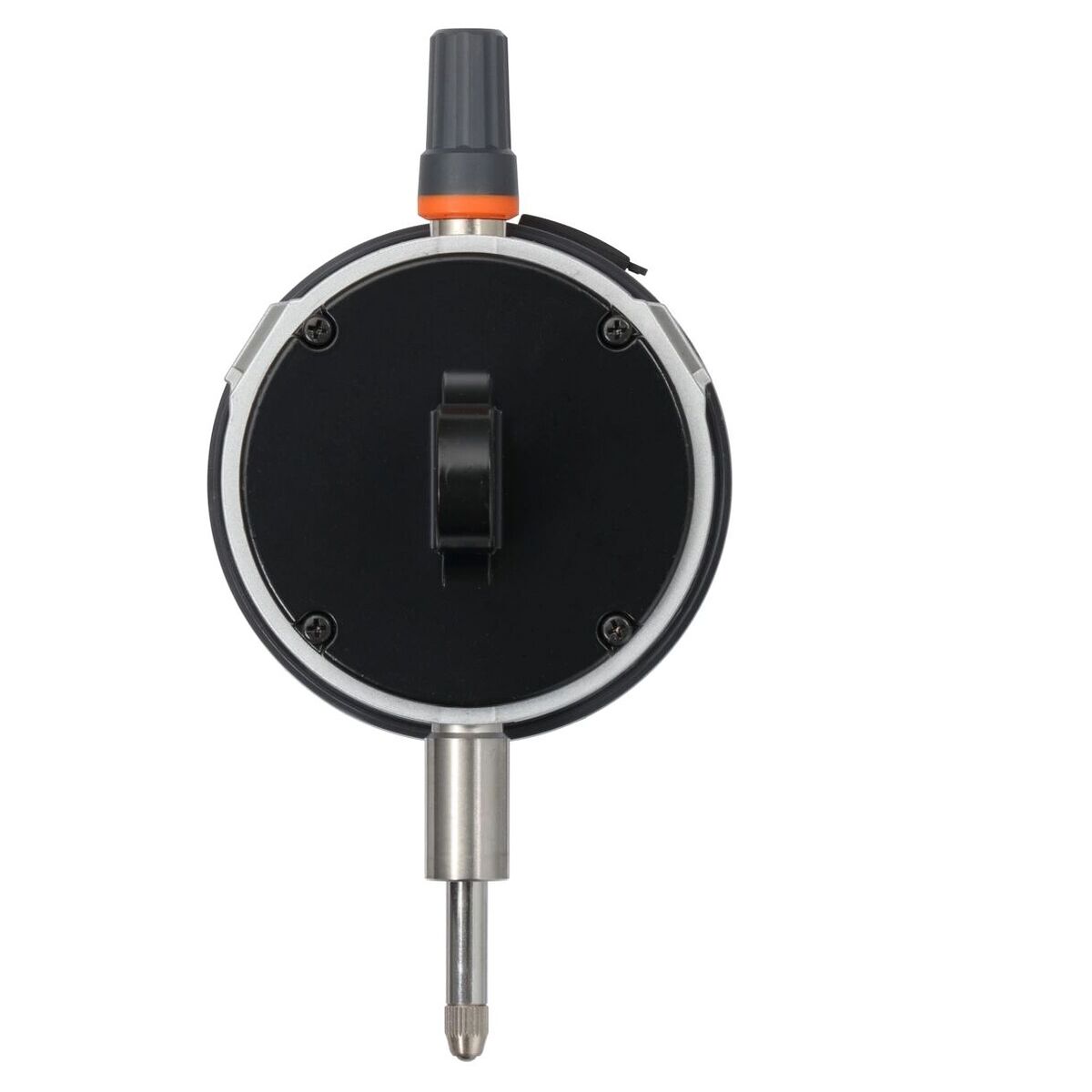

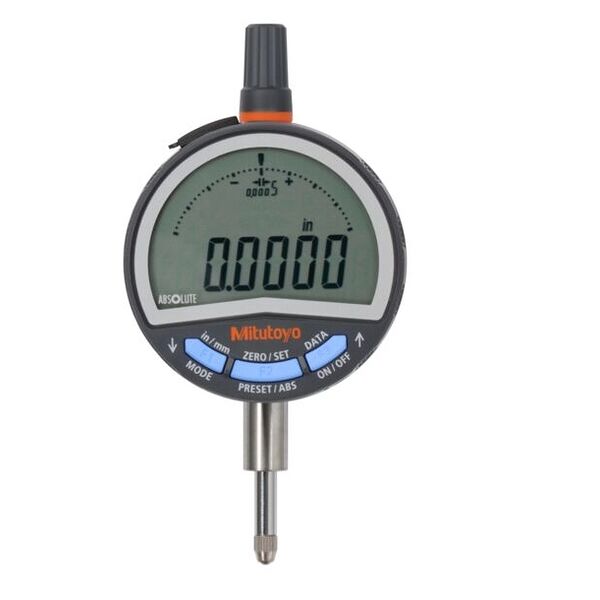

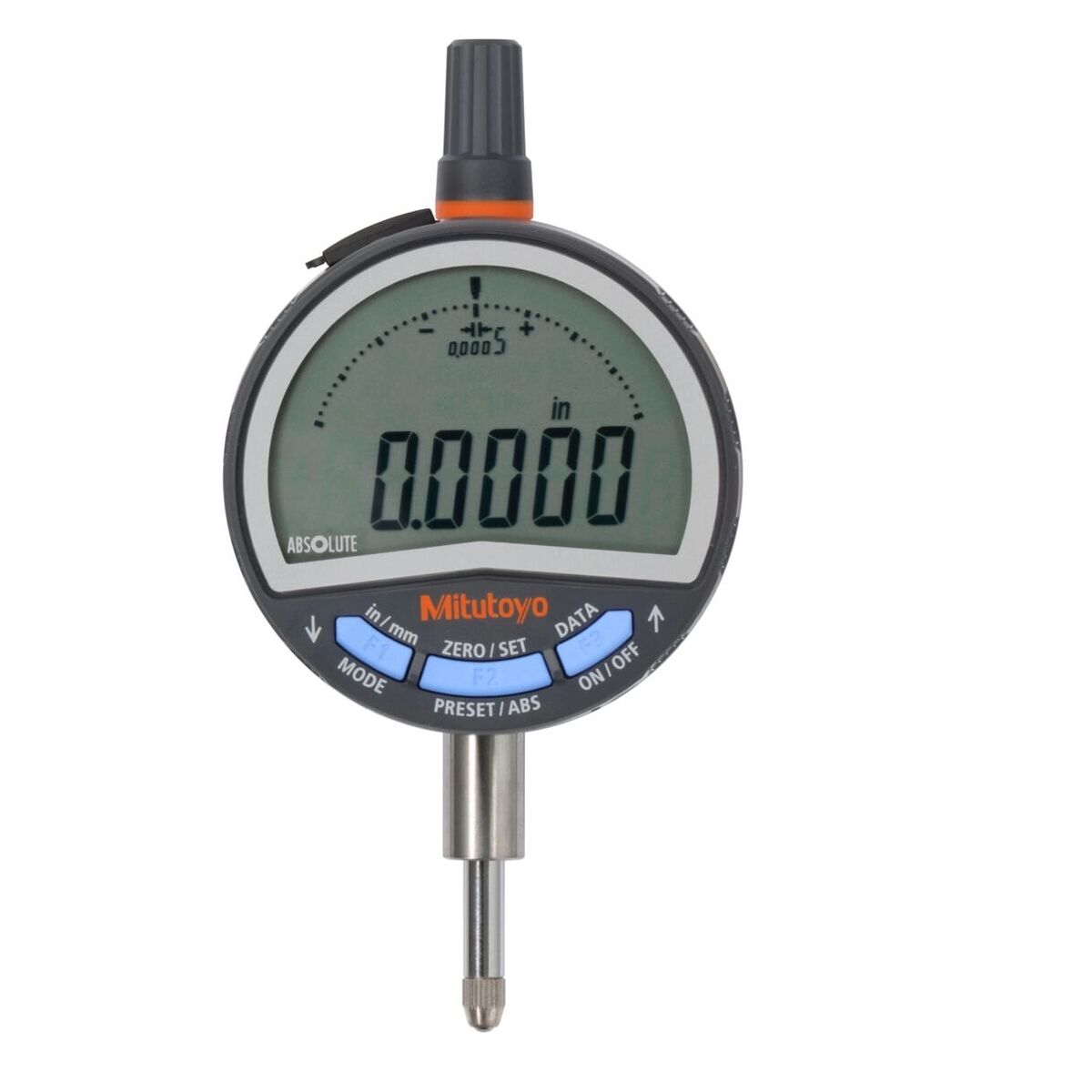

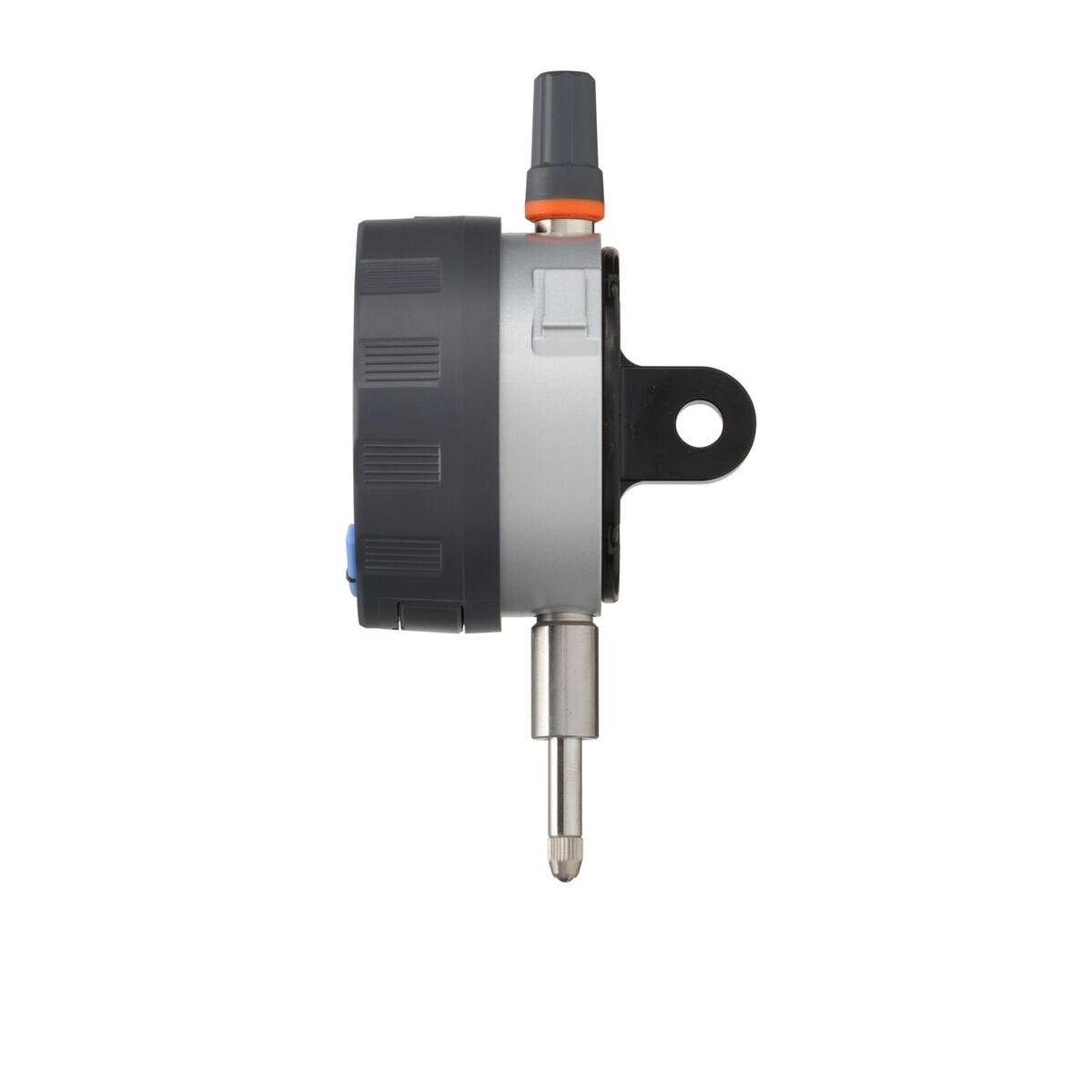

Digital Indicator ID-C, ASME/ANSI Type, Inch/Metric, 0,5", 0,0005", Lug Back Plate
Article no.: 543-712
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Measurement technology | digital | |
| Type of product | dial gauge |
Identification & Classification
| Article number |
543-712
Copy |
|
| EAN / GTIN |
4946368850184
Copy |
|
| Manufacturer number |
543-712
Copy |
|
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Description:
This is a multifunction standard indicator that is reliable and easy to use.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display
Model with 0,5 µm digital step is available
Measurements such as simple calculation and peak detection are possible
Equipped with a calibration schedule warning function
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display
Model with 0,5 µm digital step is available
Measurements such as simple calculation and peak detection are possible
Equipped with a calibration schedule warning function
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.
Feature:
Calibration warning function: Yes
Digital/Analog: Digital
Analog bar resolution selection: Yes
Digimatic S1 Bidirectional interface: Yes
Digital step switchable: No
Inch/Metric switchable: Yes
Delivered: Including CR-2032 battery, battery lid opener, spindle lifting handle (25,4 and 50,8 mm models), weight (low force models), certificate of inspection
Max. response speed: Unlimited
Customizing keys: Yes
Scale: Electrostatic capacitance type absolute linear encoder
Analog bar resolution switchable: Yes
Auto Power OFF setting: Yes
Digital/Analog: Digital
Analog bar resolution selection: Yes
Digimatic S1 Bidirectional interface: Yes
Digital step switchable: No
Inch/Metric switchable: Yes
Delivered: Including CR-2032 battery, battery lid opener, spindle lifting handle (25,4 and 50,8 mm models), weight (low force models), certificate of inspection
Max. response speed: Unlimited
Customizing keys: Yes
Scale: Electrostatic capacitance type absolute linear encoder
Analog bar resolution switchable: Yes
Auto Power OFF setting: Yes
