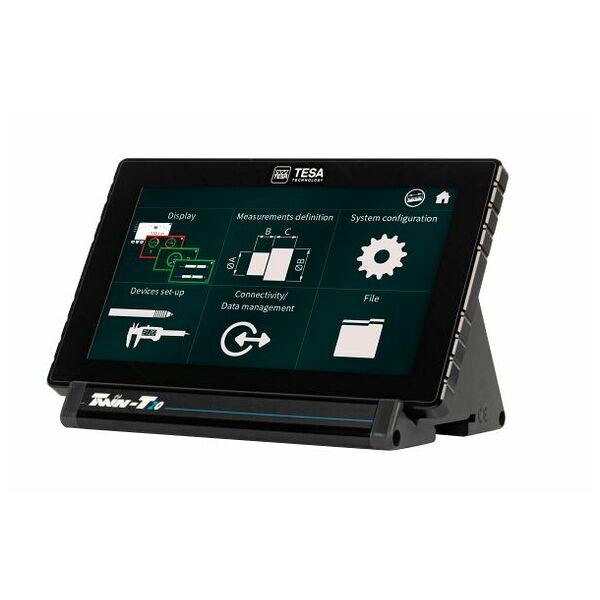

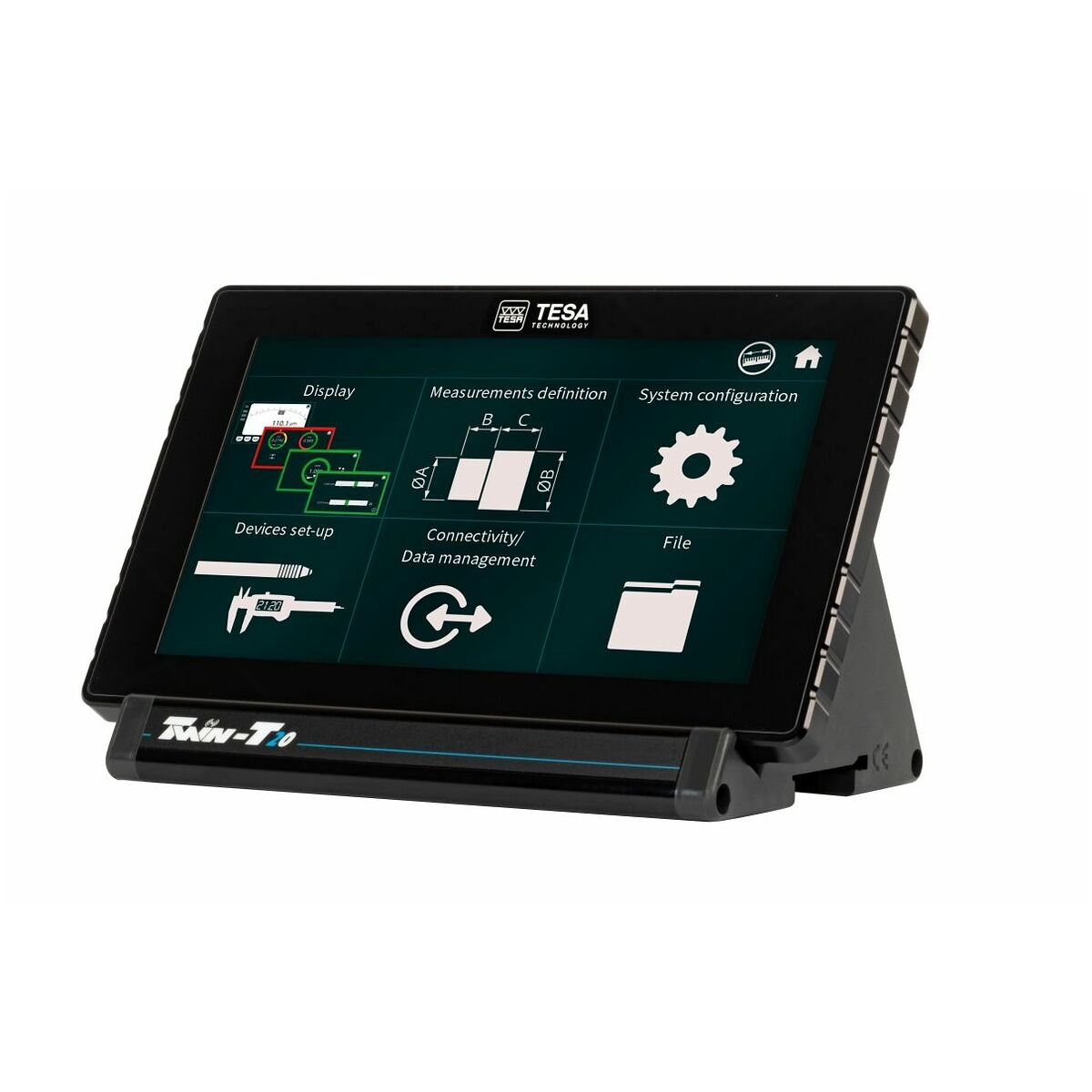

Display unit for precision measurements, Type: TWT20
Article no.: 434725 TWT20
Copy
Article code:
Copy
- Interface: Digimatic interface; Bluetooth® interface
- IP Index of Protection: IP 65
Product details
Technical Data
| Measuring range | ±5000 µm | |
| Display | digital | |
| Display | 7-inch touch screen | |
| maximum resolution | 0.1 µm | |
| Digital display error limit | ± (0.2 % + 0.3 µm) | |
| Interface | Digimatic interface; Bluetooth® interface | |
| Number of USB interfaces | 2 | |
| Number of connections for inductive edge finder | 2 | |
| IP Index of Protection | IP 65 | |
| Power supply | Battery-powered | |
| Length | 190 mm | |
| Width | 112 mm | |
| Height | 120 mm | |
| Weight | 1.2 kg | |
| Type of product | Display unit |
Identification & Classification
| Article number |
434725 TWT20
Copy |
|
| EAN / GTIN |
7630041149852
Copy |
|
| Manufacturer number |
04430014
Copy |
Description
Version:
Display unit for measured values with easy-to-read 7-inch colour touch screen. Simultaneous display of multiple measurements possible via the ports for inductive contact points or the USB inputs. 4 display modes are available for optimum reading of the results. TESA contact points are recognised automatically.
Recording of measurements with 4300 measurements per second. Simultaneous display of 2 values.
Function:
- Basic formulas (+A, -A, +B, -B and combinations from A and B).
- Dynamic measurements (min., max., max.–min., average, etc.).
- Adjustable tolerances with OK/NOK display.
- Function for classification integrated (8 max.).
- Data output via RS232, USB or Bluetooth®.
IP65: Protected against jets of water from all directions and protected against penetration by dust (dust-tight), also completely protected against touching.
Application:
Ideal for inspection work in the inspection laboratory and in production.
Supplied with:
Incl. mains cable for screwing on to the display, adapters for EU, ZH, UK and US.
Note:
Twin T20 nano display unit for visualization of Heidenhain contact point available on request.
