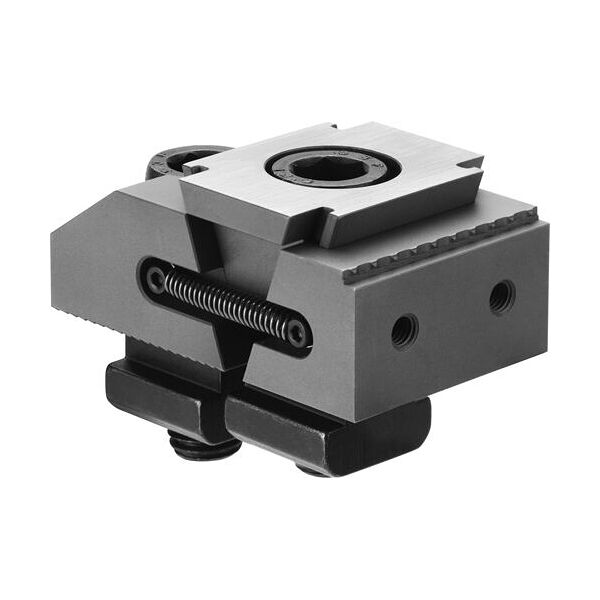

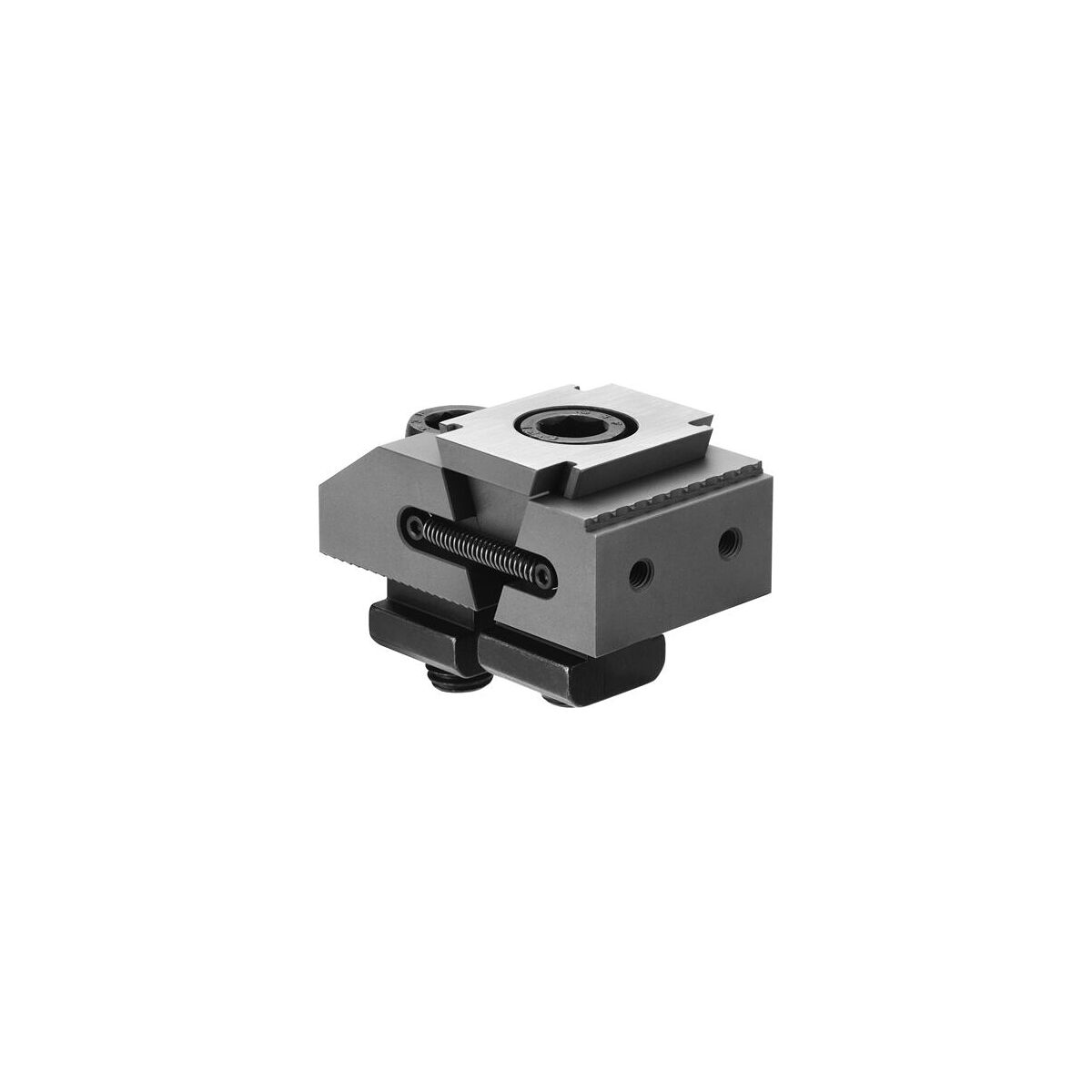

Wedge clamp with fixed jaw, claw jaws
Article no.: 429639
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
429639
Copy |
|
| EAN / GTIN |
4020772429638
Copy |
|
| Manufacturer number |
429639
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:
Wedge clamp with fixed jaw, jaw jaws, for 5-axis tensioners, 2 mm stepped clamping step.
With mounting bolt and groove stone.
With mounting bolt and groove stone.

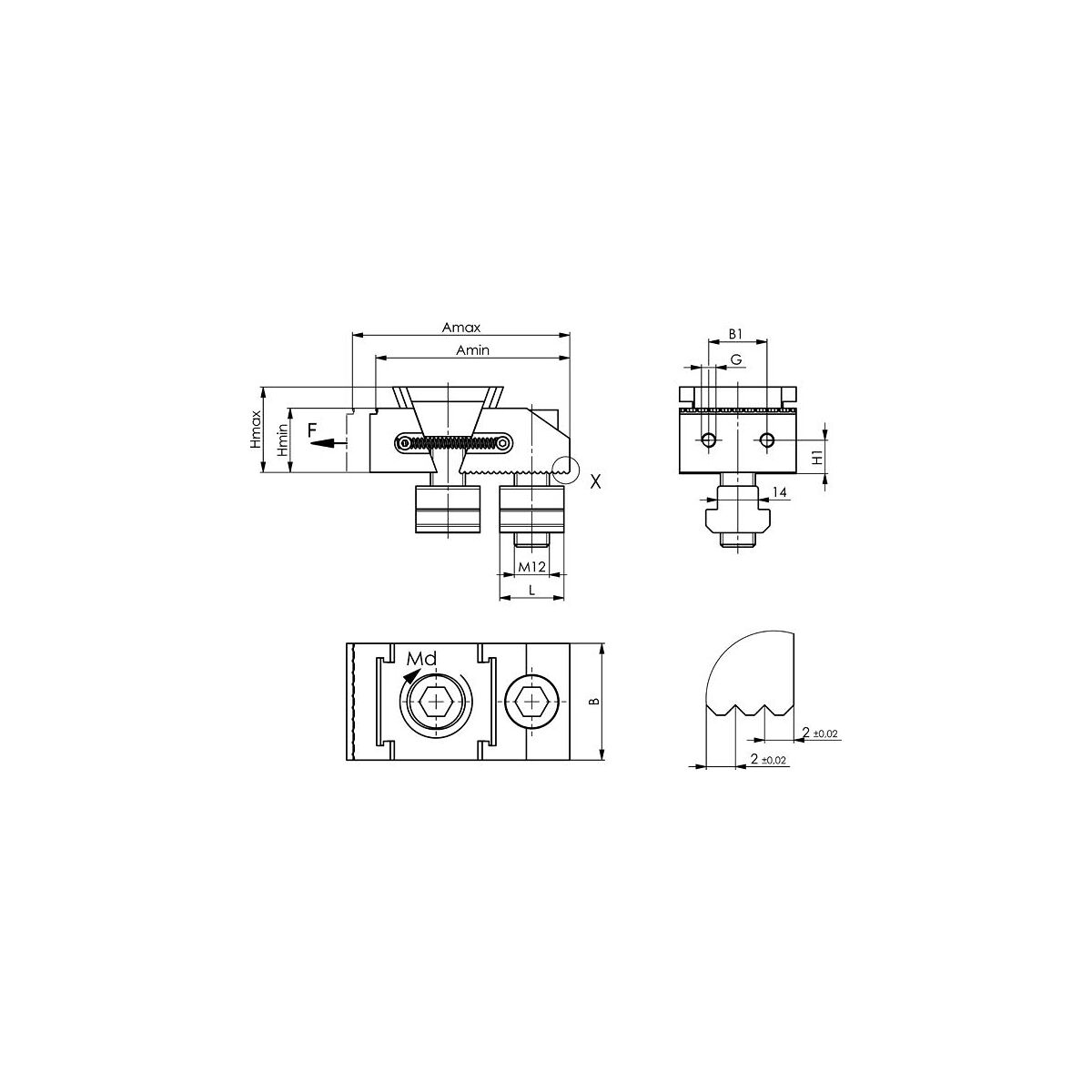

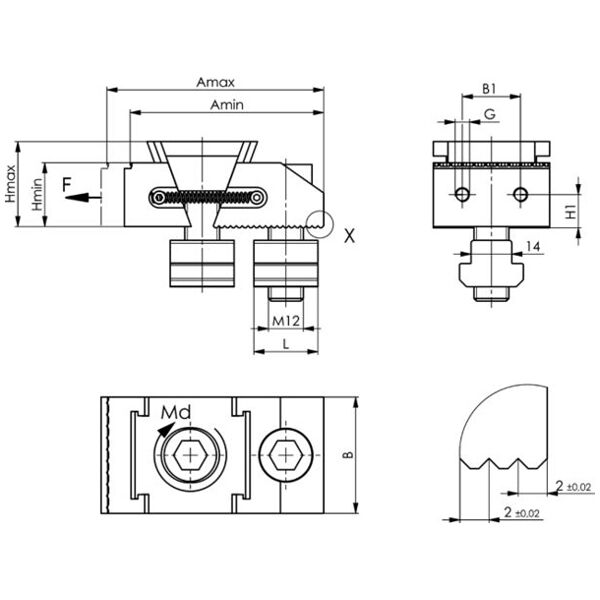

Feature:
- Size: 72
- A min.: 63.0
- A max.: 74.0
- B: 72
- B1: 36
- G: M6
- H min: 29 mm
- H max.: 39.5 mm
- H1: 14.5
- L: 22
- MD max.: 65 Nm
- Clamping force F: 30 kN
- Weight: 1085 g
