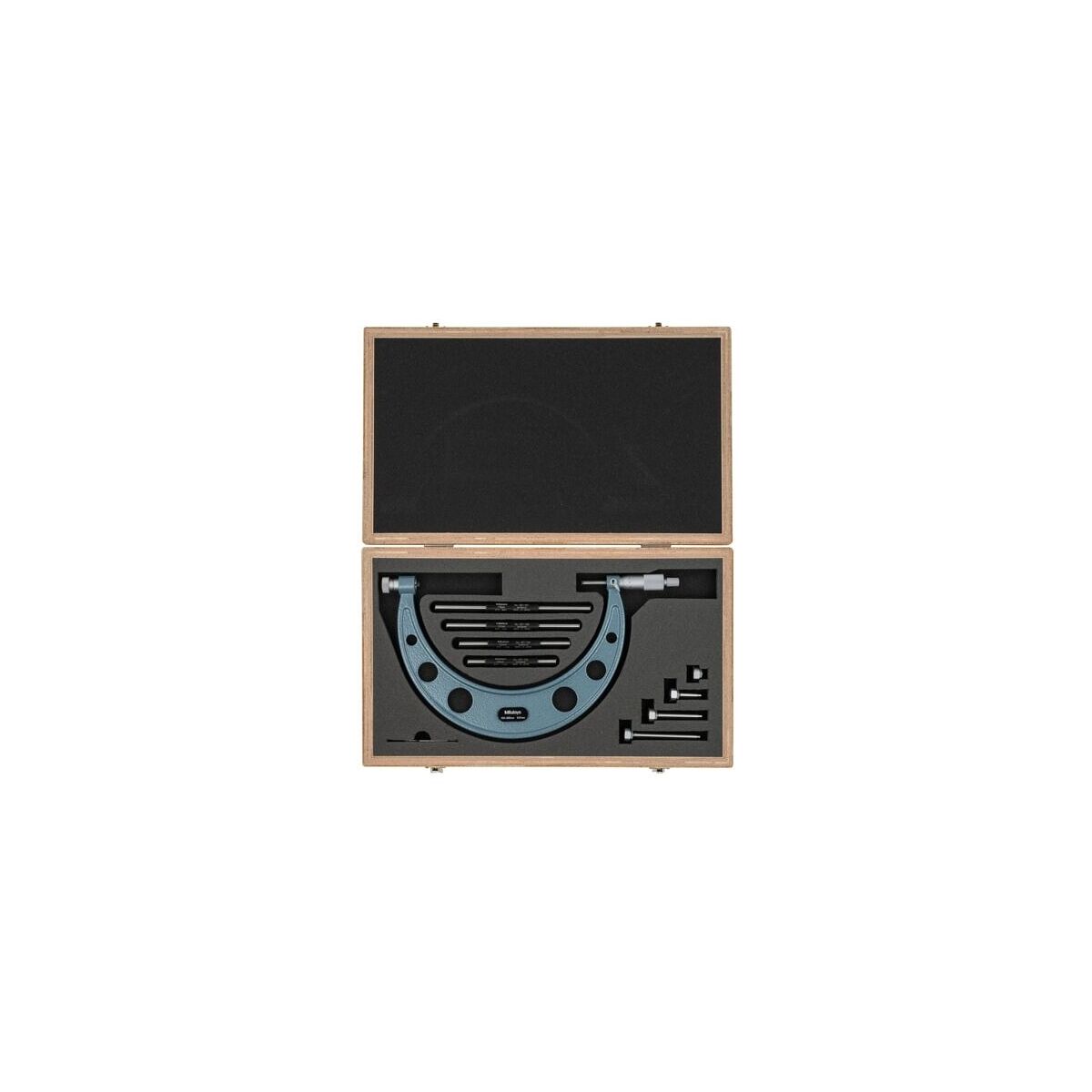

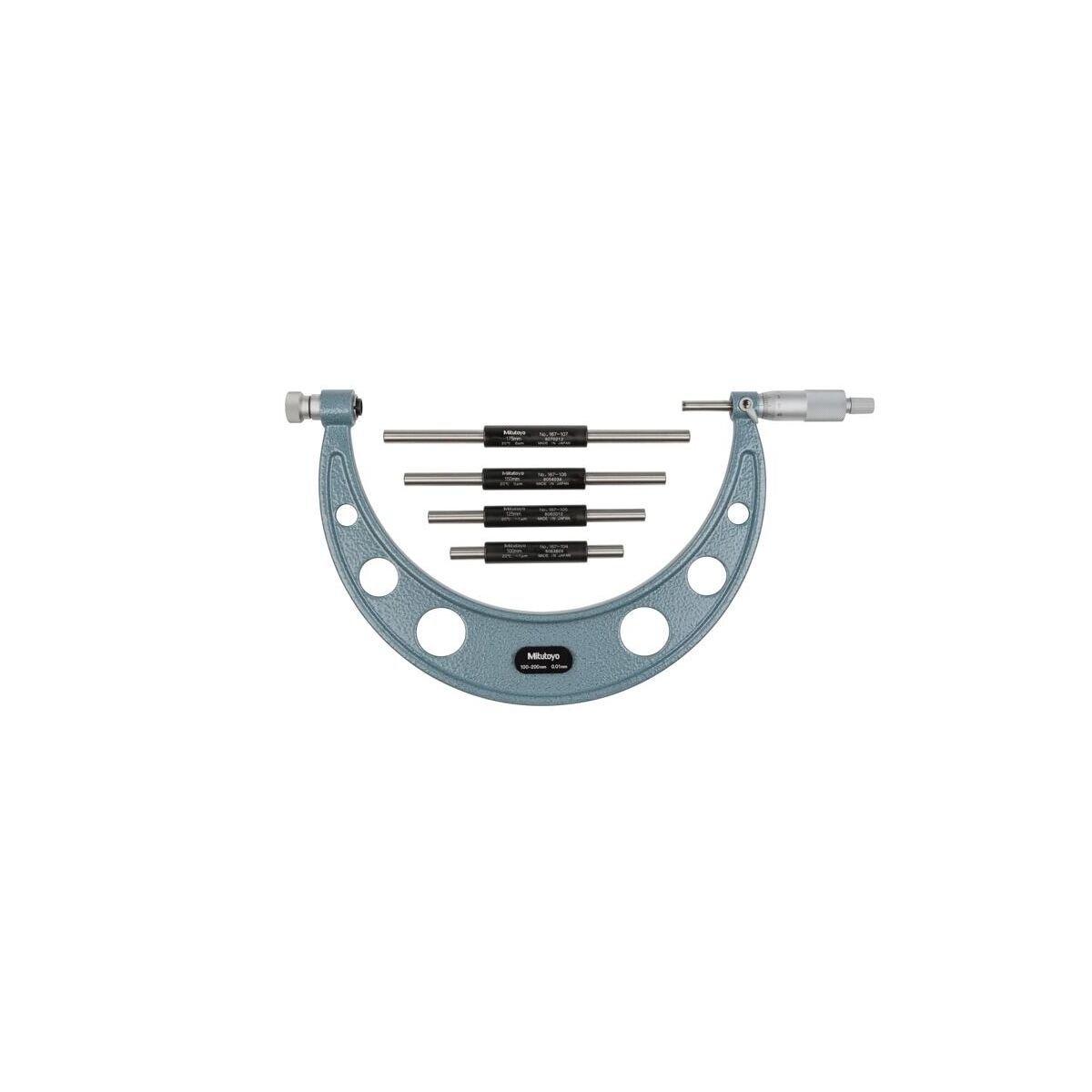

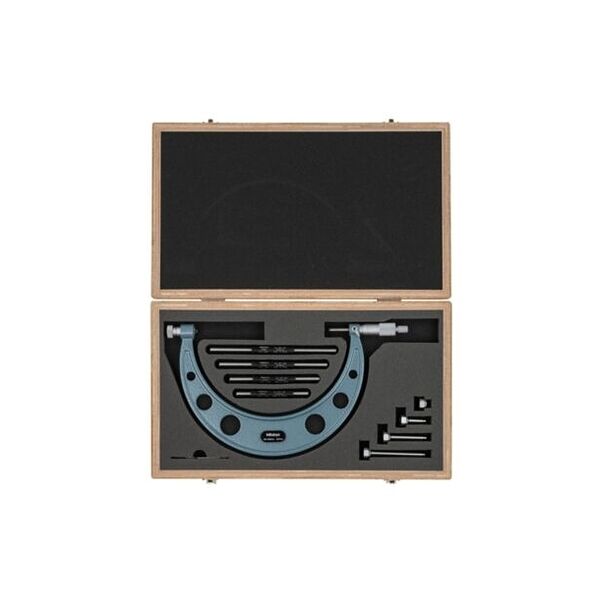

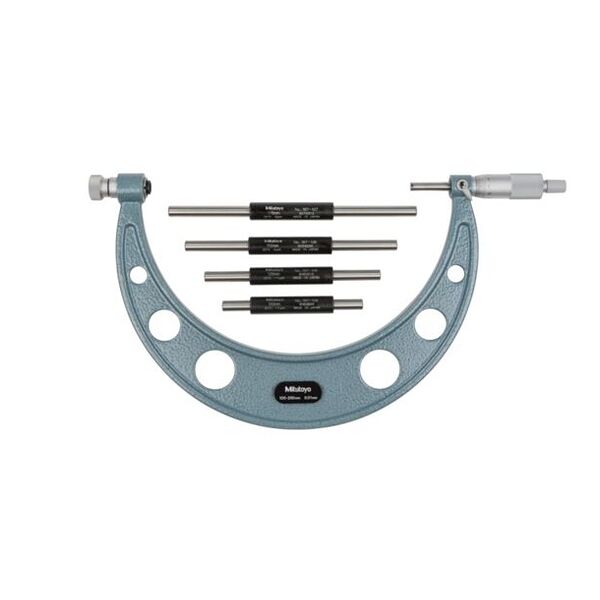

Large external micrometer, Measuring range: 100-200mm
Article no.: 420810 100-200
Copy
Article code:
Copy
- Standard: Works standard
- Micrometer barrel graduations: 1/50
- Packaging: sturdy box
Product details
Technical Data
| Standard | Works standard | |
| Measuring range | 100 mm - 200 mm | |
| Scale divisions | 0.01 mm | |
| Micrometer barrel graduations | 1/50 mm | |
| Error limit | 7 µm | |
| Spindle ⌀ | 6.35 mm | |
| Spindle travel | 25 mm | |
| Barrel ⌀ | 18 mm | |
| Measurement technology | analogue | |
| Weight | 1.8 kg | |
| Number of measuring tips | 4 | |
| Number of micrometer standards | 4 | |
| Packaging | sturdy box | |
| Type of product | External tube micrometer |
Identification & Classification
| Article number |
420810 100-200
Copy |
|
| EAN / GTIN |
4946368215129
Copy |
|
| Manufacturer number |
104-140A
Copy |
|
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Version:
Hardened and ground measuring spindle and measuring faces; locked by locking lever. With ratchet. Glare-free satin chrome-plated barrel with 1/50 scale and cleanly engraved black graduations and numerals.
4 easily interchangeable anvils give a measurement range of 100 mm per size.
4 easily interchangeable anvils give a measurement range of 100 mm per size.
