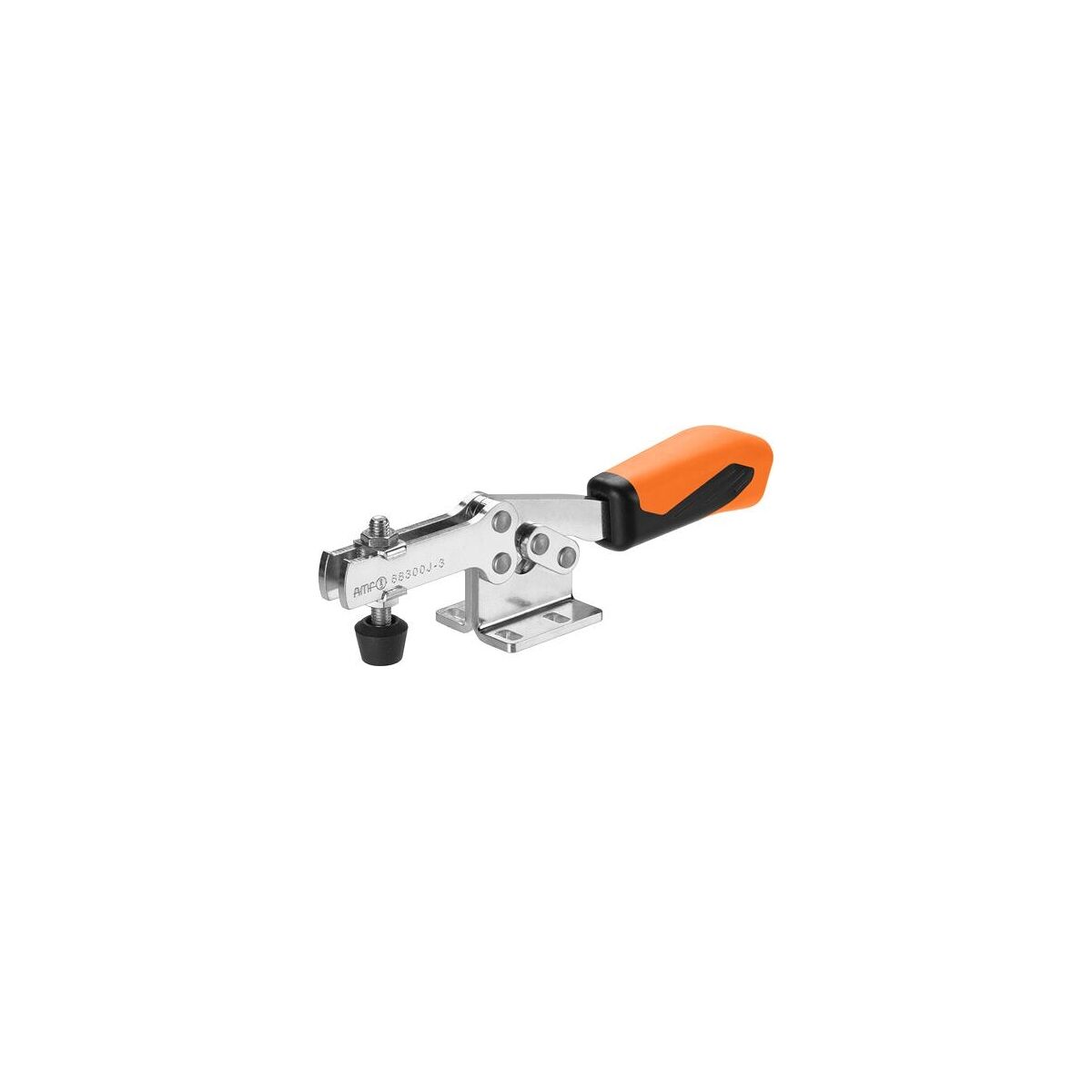

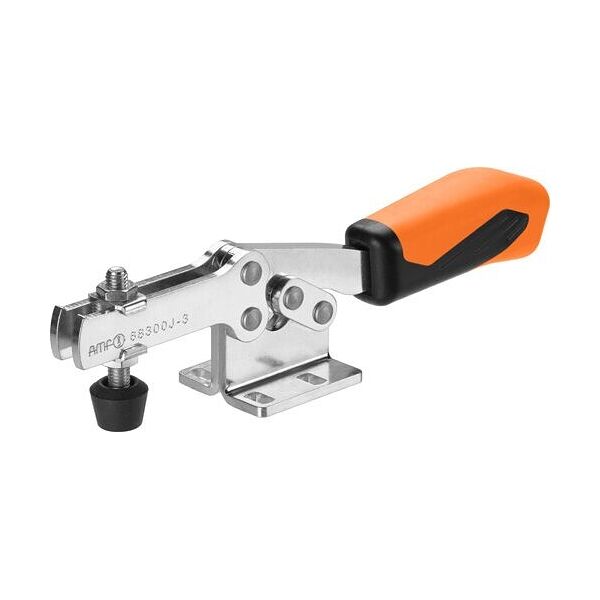

Horizontal toggle clamp plus, with horizontal base, Type: 2

Article no.: 376615 2
Copy
Price per 1 Piece
plus VAT at the current rate Prices plus delivery costs
Individual prices for business customers after login.
In stock

Select article variation and quantity

Type Unit price incl. VAT

Availability

Add to wishlist

Share this product

or copy this link

Product details

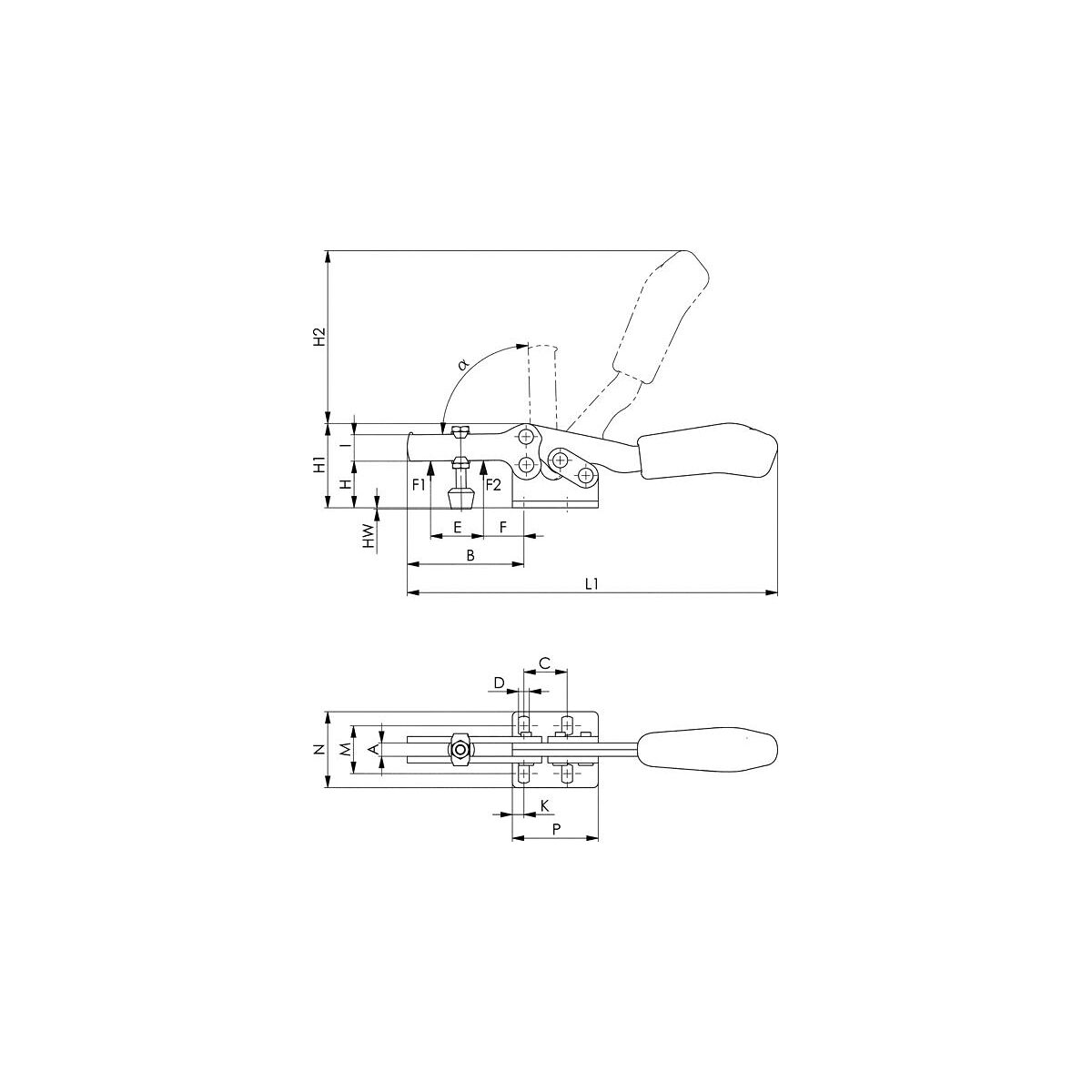

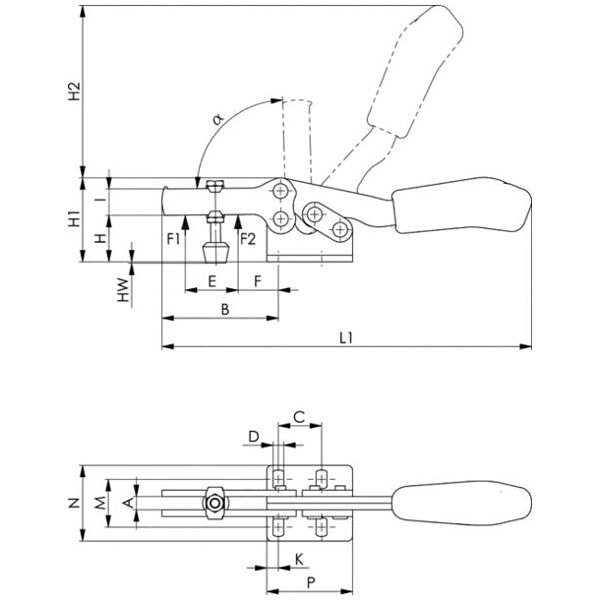

Technical Data

Type 68300J
Hole spacing e 26 mm
Hole spacing f 19.5-29.5 mm
Bore ⌀ d 5.6 mm
Clamping height H 28 mm
Clamping force P1 1,600 N
Clamping force P2 3,000 N
overall height 51 mm
overall length 224 mm
Contact screw M6×50 mm
Type of product Horizontal toggle clamp

Identification & Classification

Article number 376615 2
Copy
EAN / GTIN 4020772017736
Copy
Manufacturer number 557935
Copy
Manufacturer/responsible person Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de

Description

Version:

Captive contact screws.
Compact design due to new handle.
Reinforced version with increased retaining strength
With horizontal base for fixing to base plates etc.
Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.

Application:

For quick clamping and releasing of parts in series production or for installation as part of special clamping jigs. Suitable for clamping during drilling, reaming, grinding, bending, welding, fitting etc.
