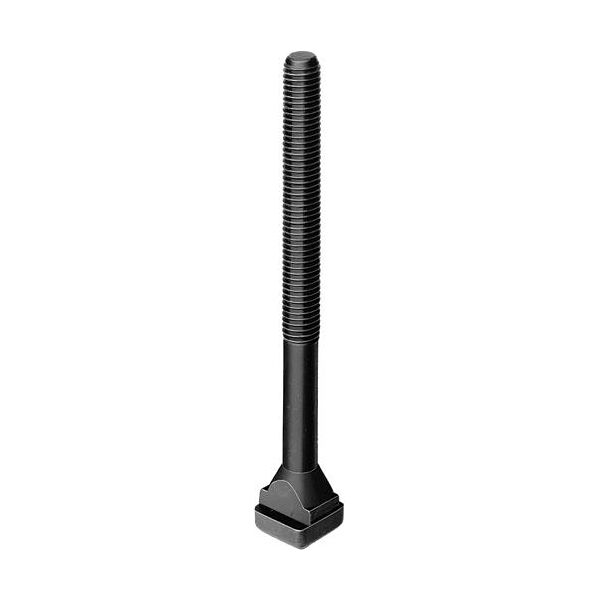

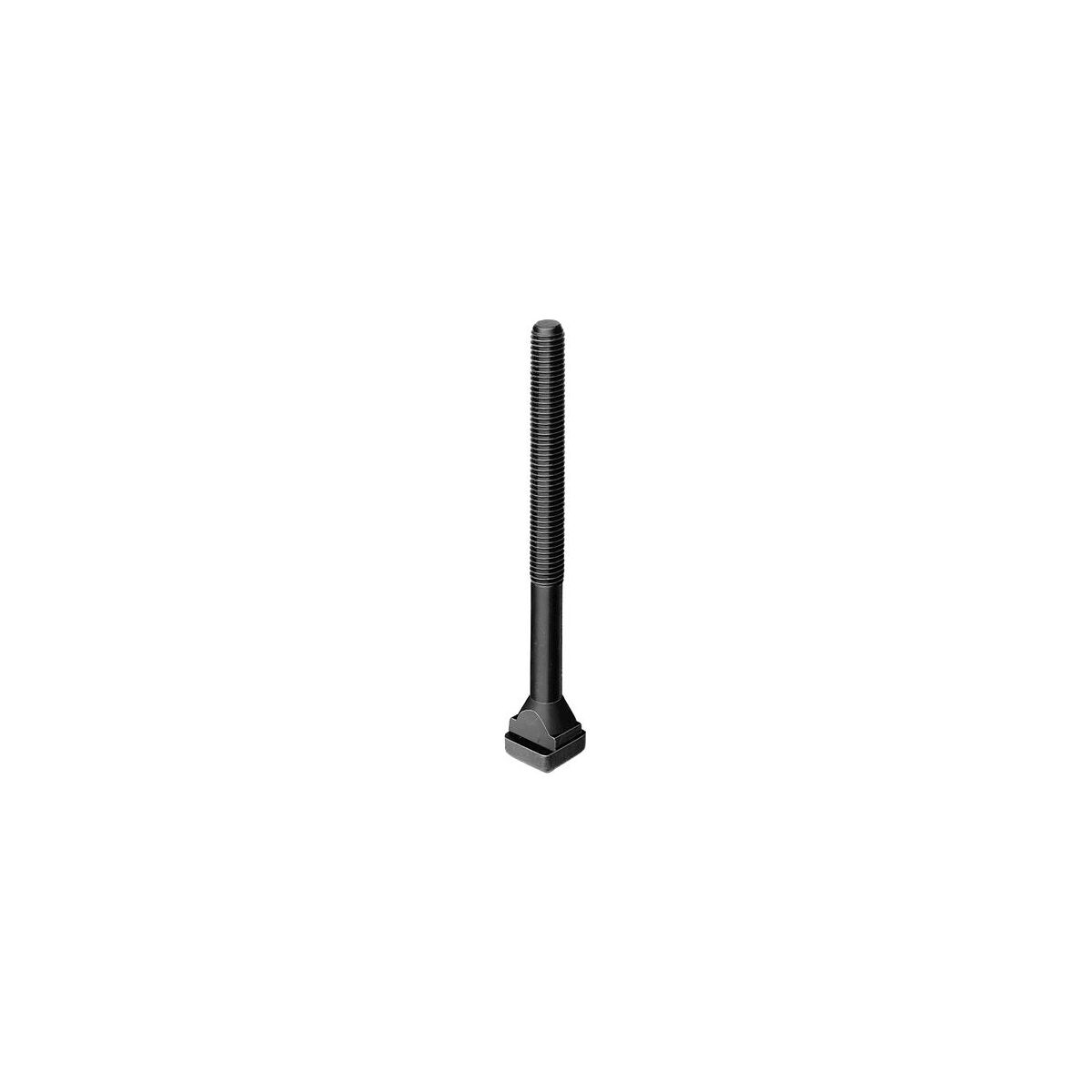

Tee bolt (10.9. / 8.8.) single, Type: 1412200
Article no.: 375305 1412200
Copy
Article code:
Copy
Product details
Technical Data

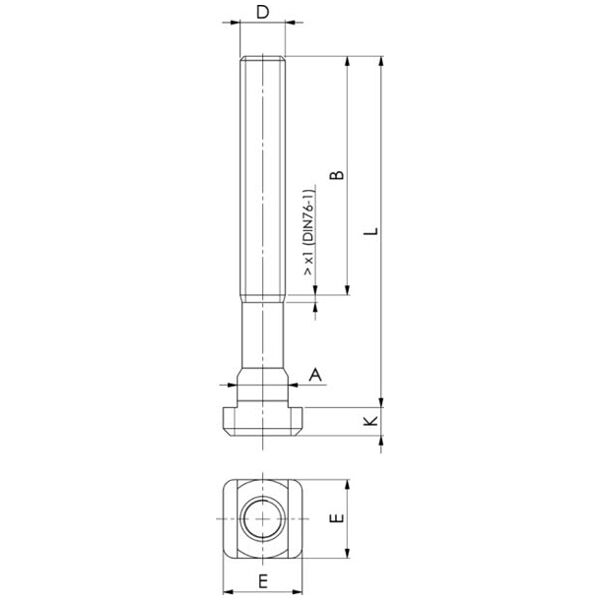

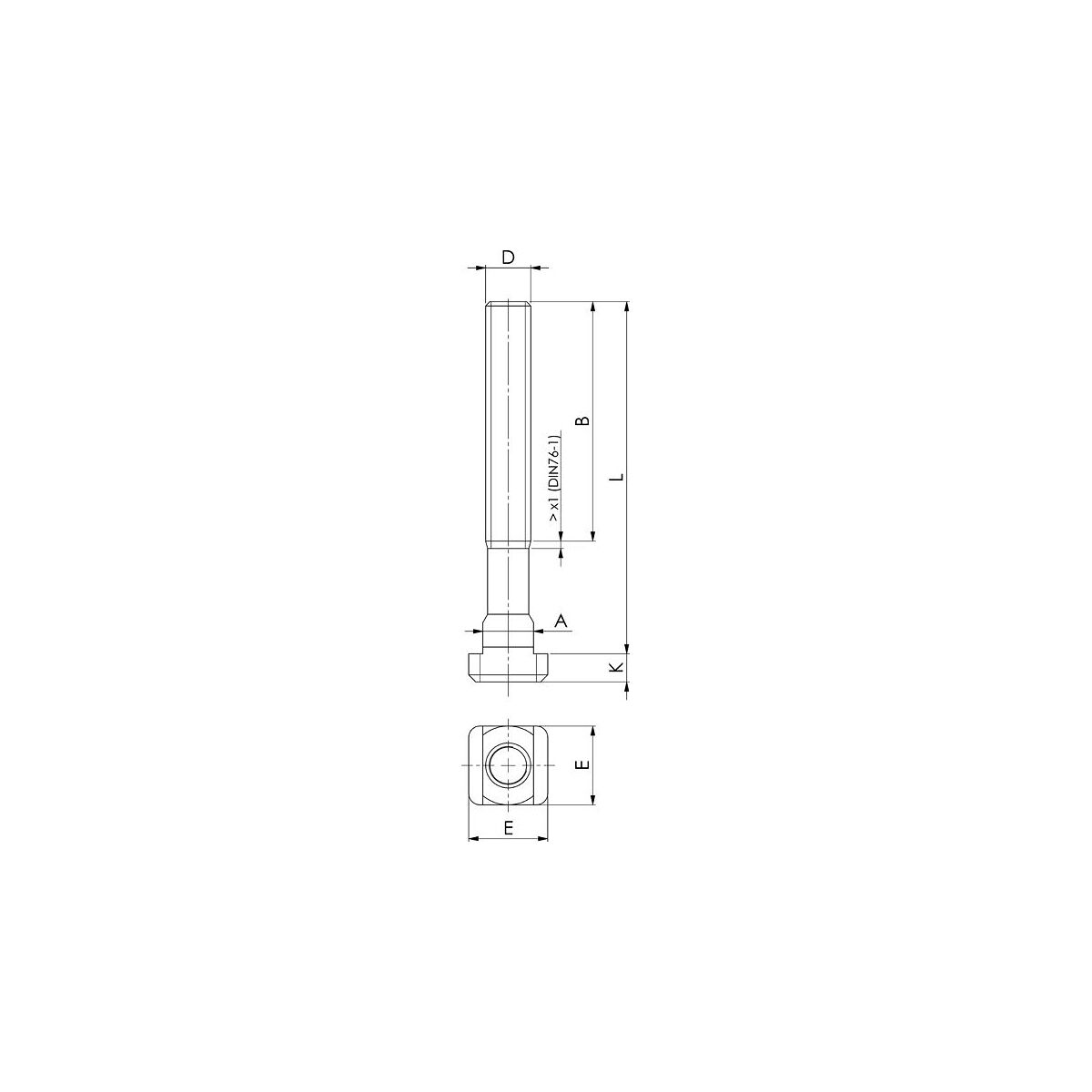

| Type | 787 | |
| T-slot nominal size | 14 mm | |
| Thread G | M12 | |
| Length L | 200 mm | |
| Thread length b | 120 mm | |
| narrow nut width a | 13.7 mm | |
| Nut width e | 22 mm | |
| Height k | 8 mm | |
| Type of product | Tee-bolt |
Identification & Classification
| Article number |
375305 1412200
Copy |
|
| EAN / GTIN |
4020772080488
Copy |
|
| Manufacturer number |
80481
Copy |
|
| Manufacturer | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:

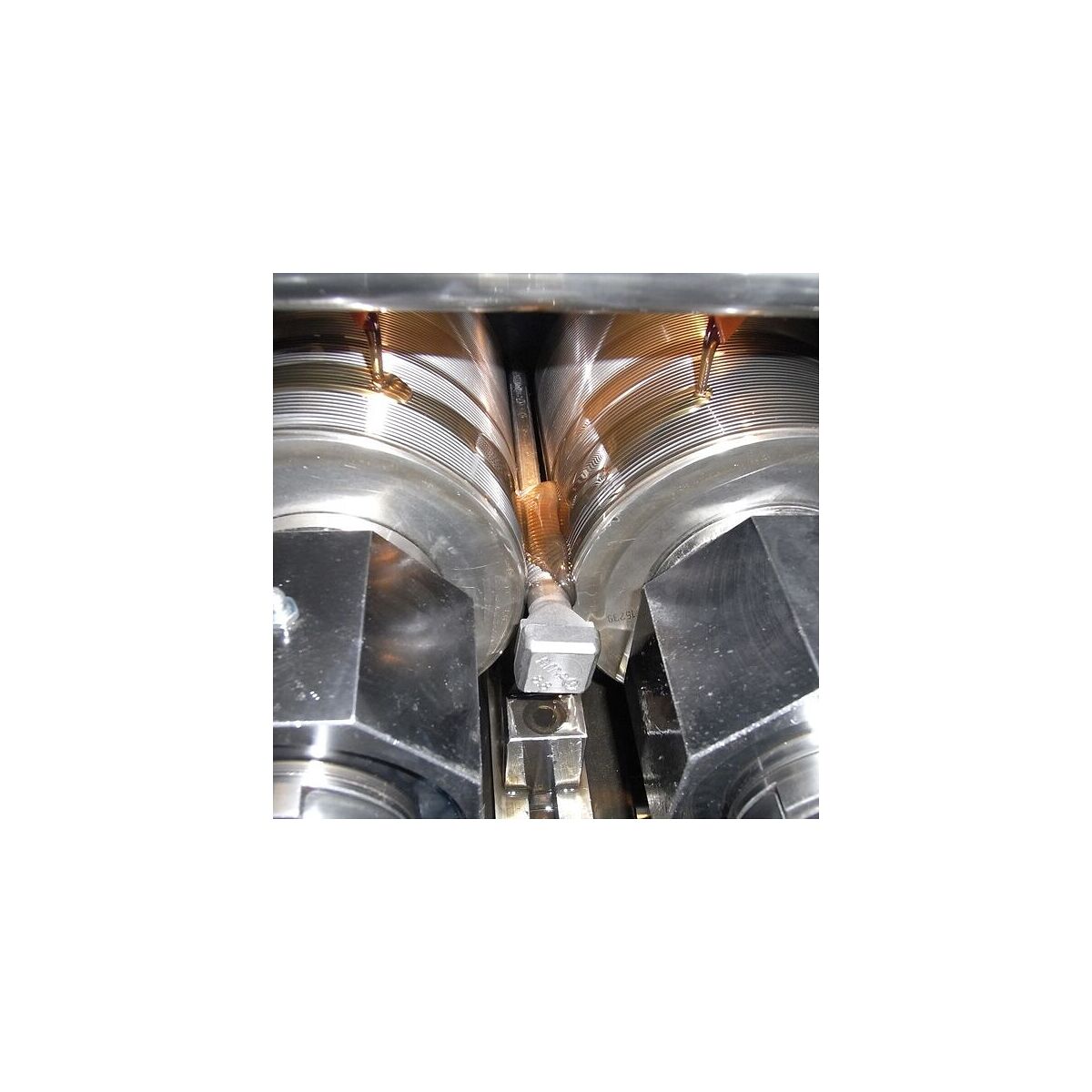

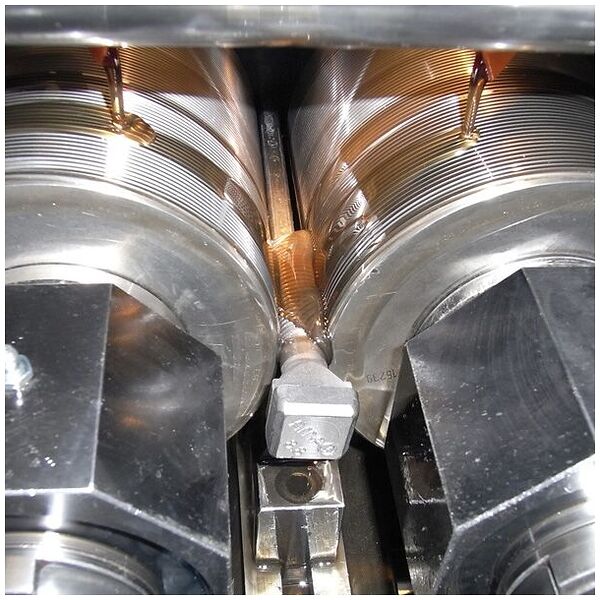

T-bolt, forged and rolled thread.
Standard design, strength class = 10.9 (for M6 − M12) and strength class = 8.8 (for M14 − M24).
Standard design, strength class = 10.9 (for M6 − M12) and strength class = 8.8 (for M14 − M24).
Standard:
DIN 787
Supplied with:
Single, without nut and washer.
Optional extras:
Note:
- Reading example − size 6625 means: T-slot = 6 mm, thread G = M6, length L = 25 mm.
