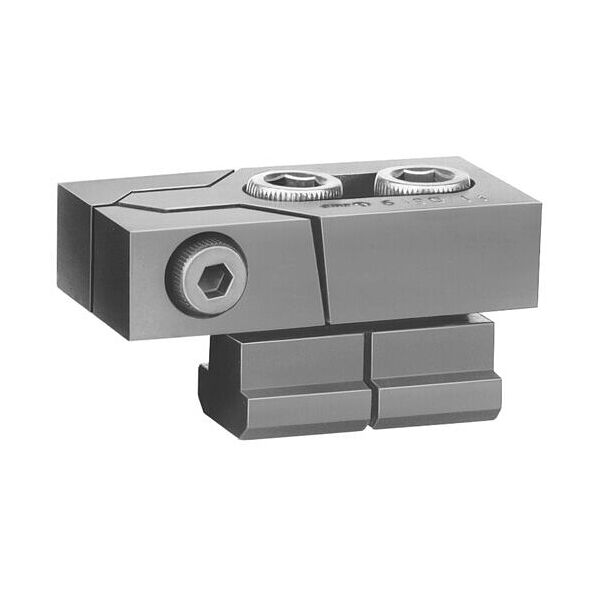

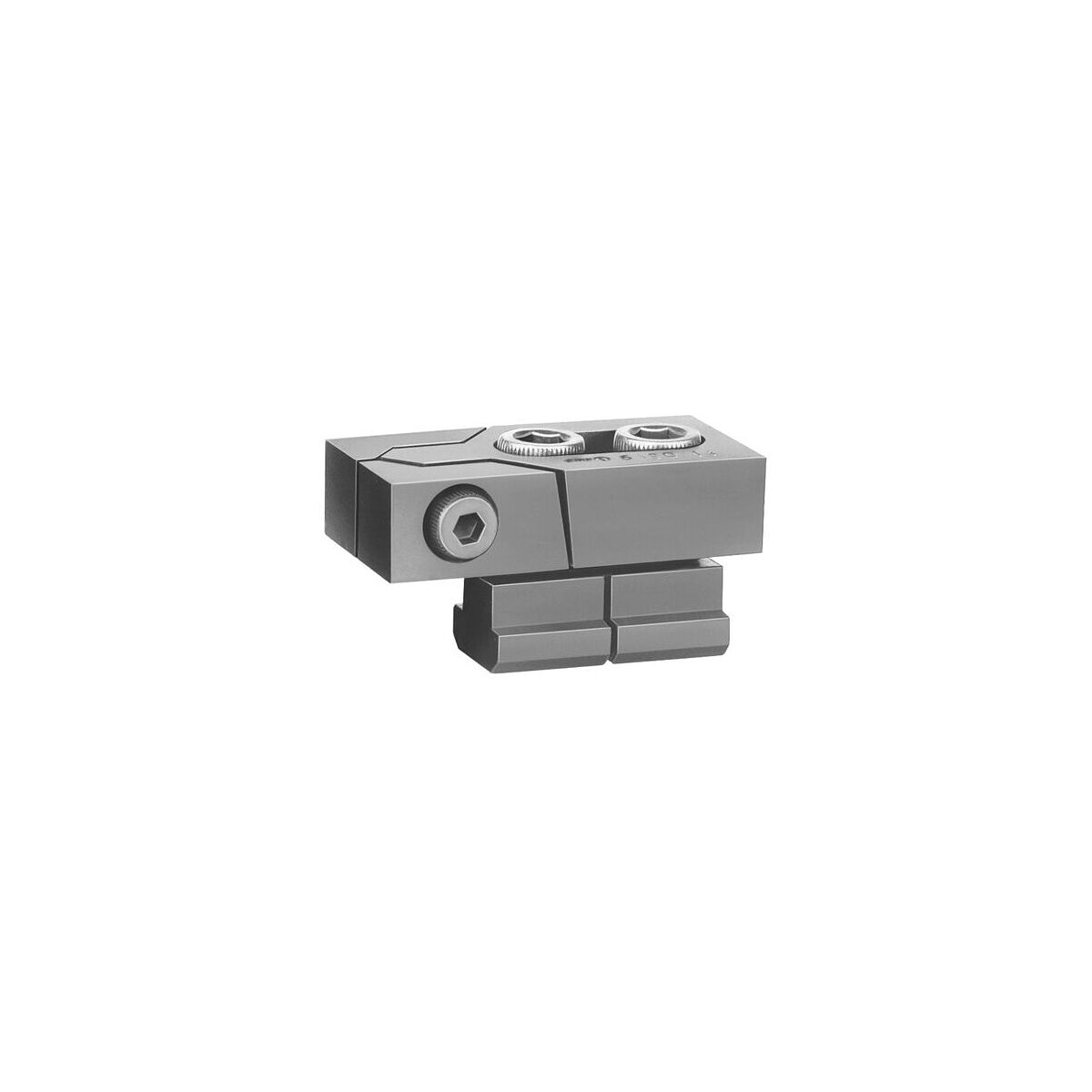

Pair of low height clamping jaws Bulle with accessories, Slot width a: 12mm
Article no.: 375110 12
Copy
Article code:
Copy
Product details
Technical Data

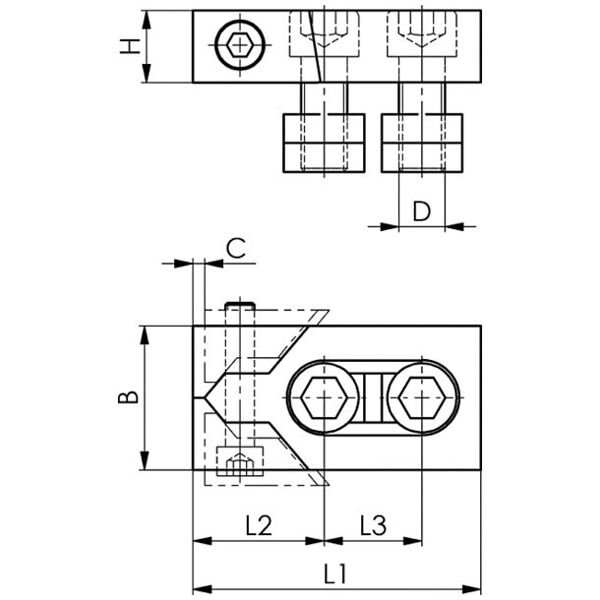

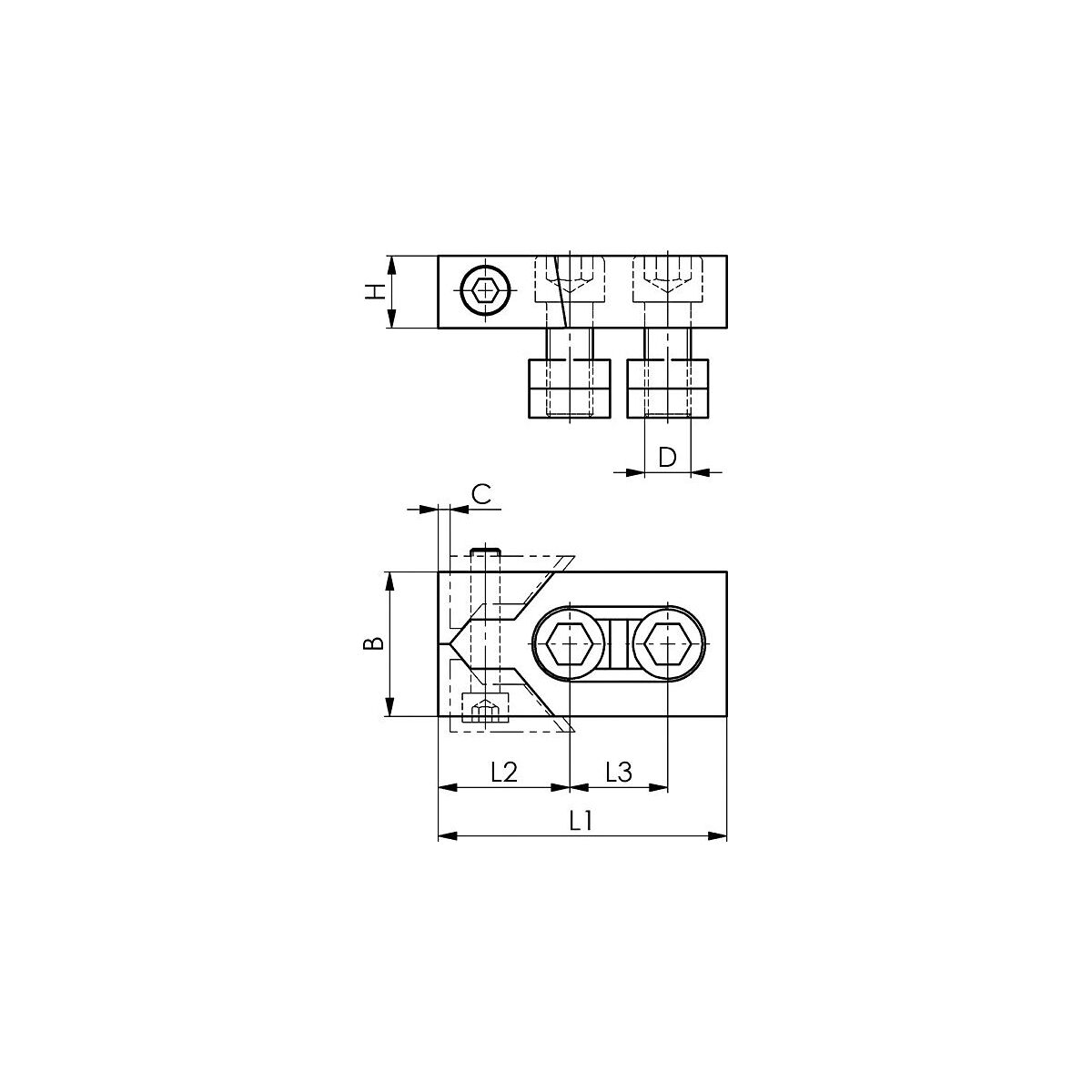

| Type | 6490 | |
| Slot width a | 12 mm | |
| Length | 80 mm | |
| Width | 40 mm | |
| Height | 20 mm | |
| for clamping screws | M10 | |
| Type of product | Side clamps |
Identification & Classification
| Article number |
375110 12
Copy |
|
| EAN / GTIN |
4020772072957
Copy |
|
| Manufacturer number |
72959
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:

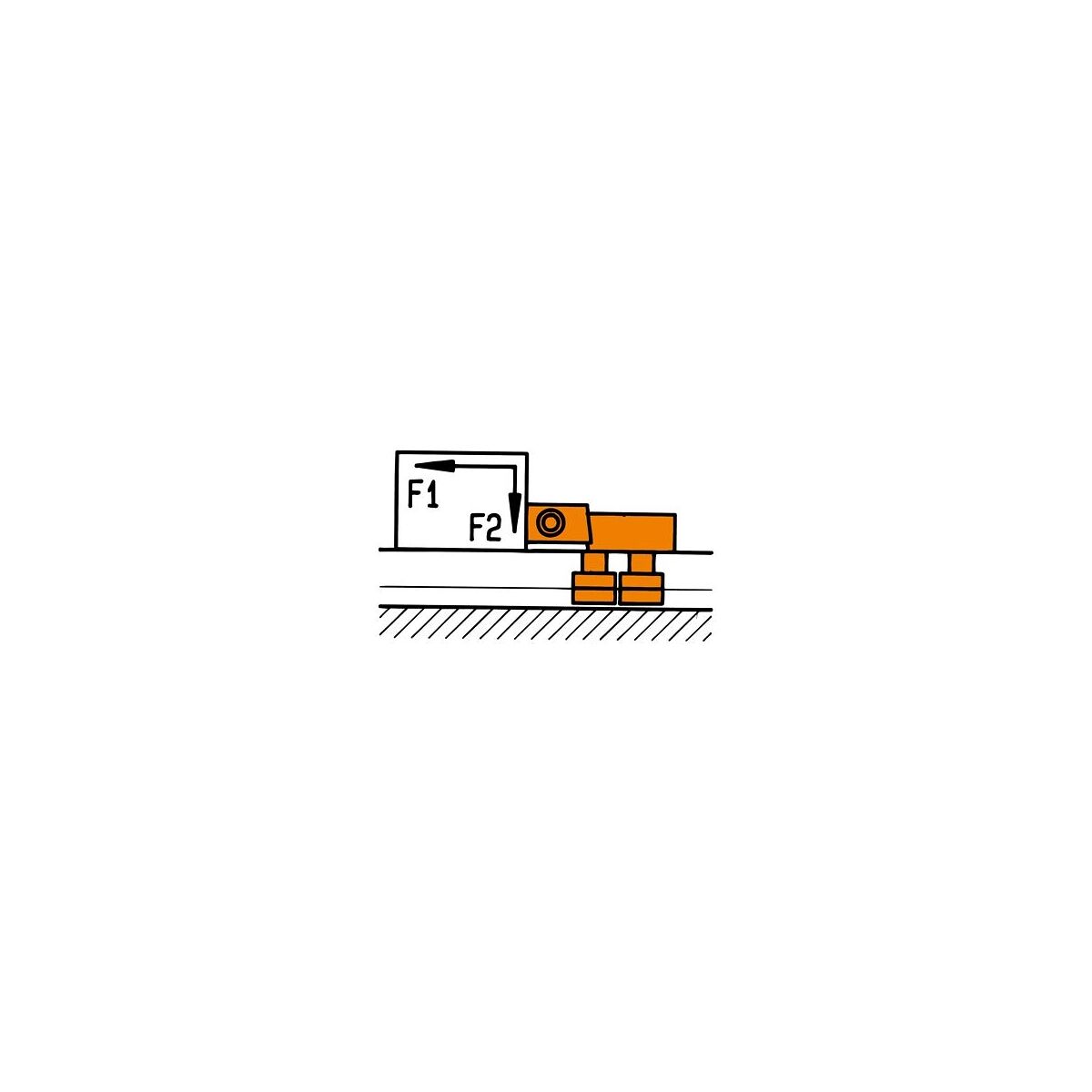

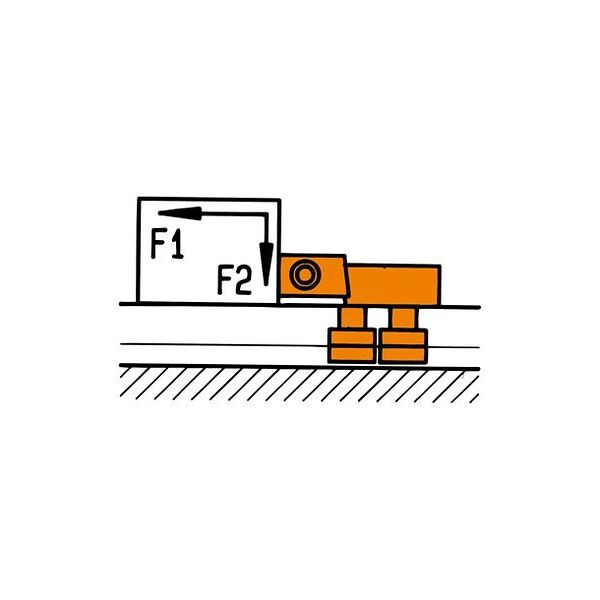

Flat design, no protruding T-bolts. Clamps at any angle to table slot. When the side screw is tightened, the component is securely clamped down on to the table by the wedge effect.
Application:
For lateral clamping of flat plates directly on the machine table.
Material:
Hardened steel, burnished finish.
Supplied with:
2 fastening screws, DIN 912, 10.9, T-nuts, and hexagon key L-wrench ISO 2936 C.
Note:
Only supplied in pairs!
