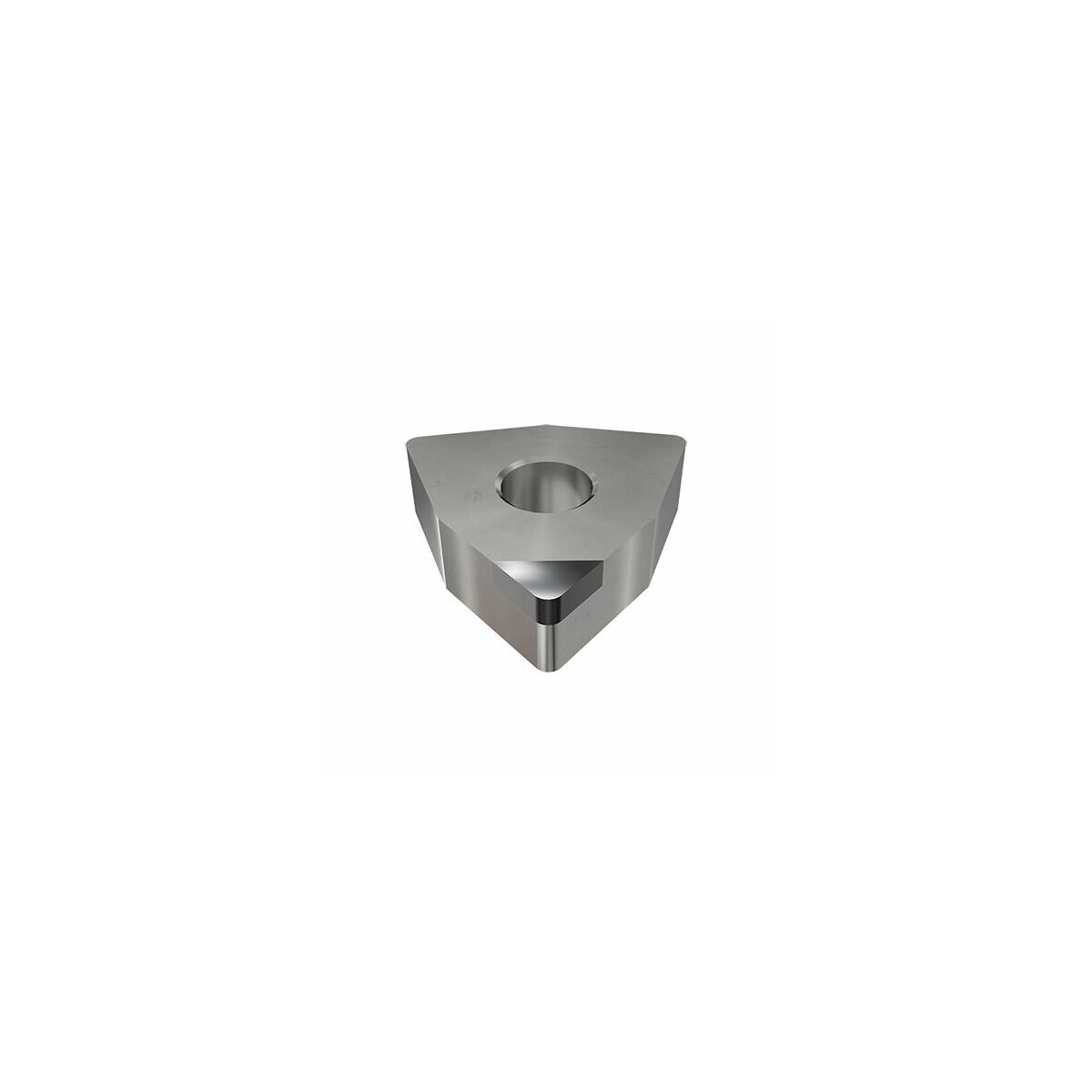

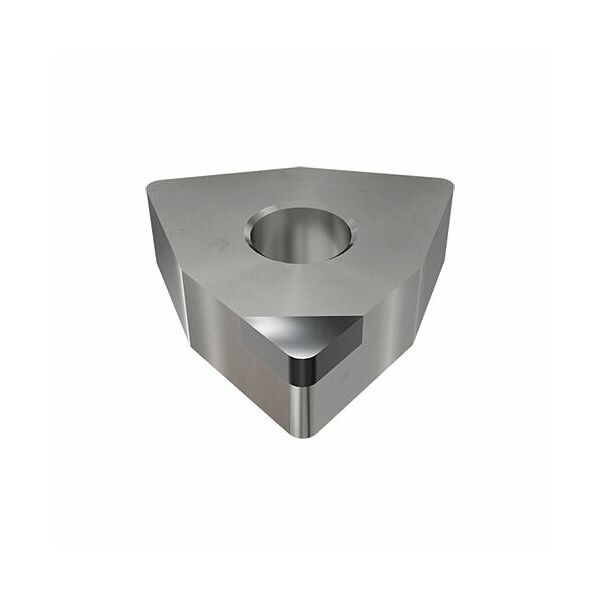

WNGA 080408F ID5 Negative 80° trigon cutting inserts with a PCD cutting edge and flat rake angle for finishing non-ferrous metals
Article no.: 3436264
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number |
3436264
Copy |
|
| EAN / GTIN |
7291075550290
Copy |
|
| Manufacturer number |
3436264
Copy |
Description
Description:
WSP - turning / grooving, corner radius (RE) 0.8 mm, cutting edge length (L) 8.69 mm, diameters Incircle (IC) 12.7 mm, cutting insert thickness (S) 4.76 mm
Feature:
- Corner radius (RE): 0.8 mm
- Cutting edge length (L): 8.69 mm
- Maximum cutting length (APMX): 1 mm
- Mounting hole diameter (D1): 5.5 mm
- Diameters Incircle (IC): 12.7 mm
- WSP size 432F
- Insert thickness (S): 4.76 mm
- Maximum feed 0.6 mm/rev.
- Min. Cutting depth 0.05 mm
- Min. Feed rotation (ft(min)): 0.03 mm/rev.
