Digital 3 Flute V-Anvil Micrometer 10-25mm
Article no.: 314-262-30
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Measurement technology | digital | |
| Type of product | External tube micrometer |
Identification & Classification
| Article number |
314-262-30
Copy |
|
| EAN / GTIN |
4946368695624
Copy |
|
| Manufacturer number |
314-262-30
Copy |
|
| L-Number |
L40010 11175
Copy |
|
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Description:

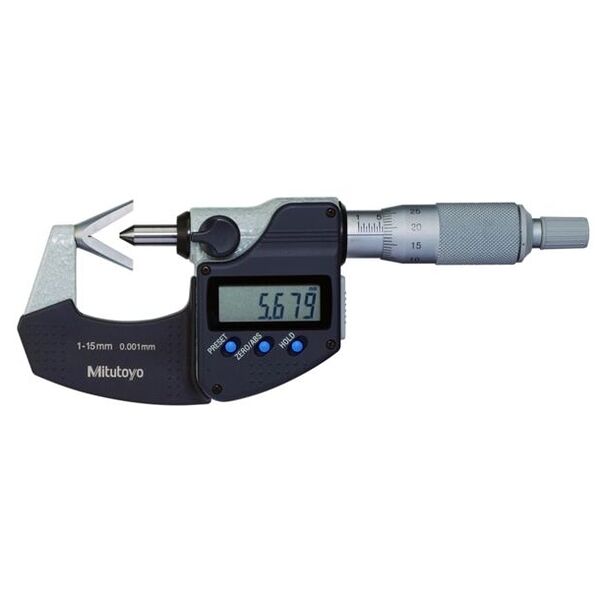

This Digimatic V-Anvil Micrometer helps you measure cutting tools and taps. It offers the following benefits: It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes. V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
Feature:
Digital/Analogue: Digital
Measuring range: 10 - 25
Digit step value: 0.001 mm
Limit value of the measurement deviation J MPE: ±4 µm
Remarks: -
Scale: Scale drum and sleeve satin chrome plated, ø18 mm
Display: LCD, digit height 7.5 mm
Measuring force: 5-10
ABS / INC (INC ZERO): Yes
Low voltage alarm: Yes
Inch/metric: metric
Scope of delivery: Incl. box, setting standard, setting key, 1x battery
Power supply: 1x battery SR-44
Battery life: Approx. 2.4 years
Measuring range: 10 - 25
Digit step value: 0.001 mm
Limit value of the measurement deviation J MPE: ±4 µm
Remarks: -
Scale: Scale drum and sleeve satin chrome plated, ø18 mm
Display: LCD, digit height 7.5 mm
Measuring force: 5-10
ABS / INC (INC ZERO): Yes
Low voltage alarm: Yes
Inch/metric: metric
Scope of delivery: Incl. box, setting standard, setting key, 1x battery
Power supply: 1x battery SR-44
Battery life: Approx. 2.4 years
