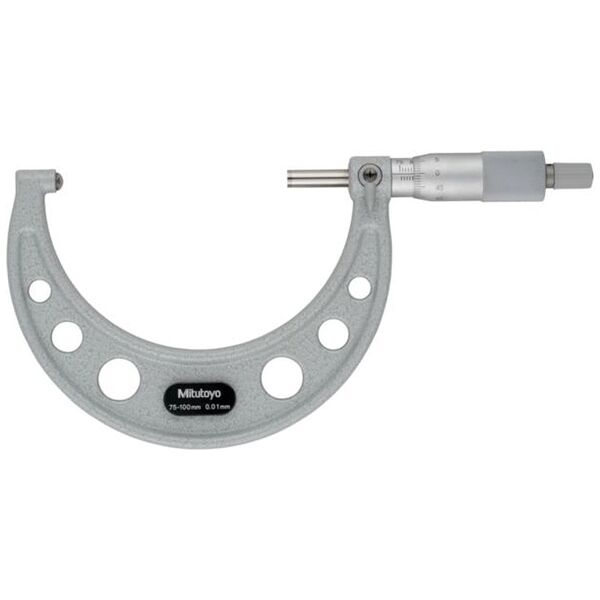

Tube Micrometer, Spherical Anvil 75-100mm
Article no.: 115-118
Copy
Article code:
Copy
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Measurement technology | analog | |
| Type of product | External tube micrometer |
Identification & Classification
| Article number |
115-118
Copy |
|
| EAN / GTIN |
4946368010441
Copy |
|
| Manufacturer number |
115-118
Copy |
|
| L-Number |
L40010 1900
Copy |
|
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Description:
This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.
Feature:
Digital/Analogue: Analogue
Measuring range: 75 - 100
Graduation: 0.01 mm
Limit value of the measurement deviation J MPE: ±4 µm
Remarks: Type E
Scale: Scale drum and sleeve satin chrome plated, ø18 mm
Inch/metric: metric

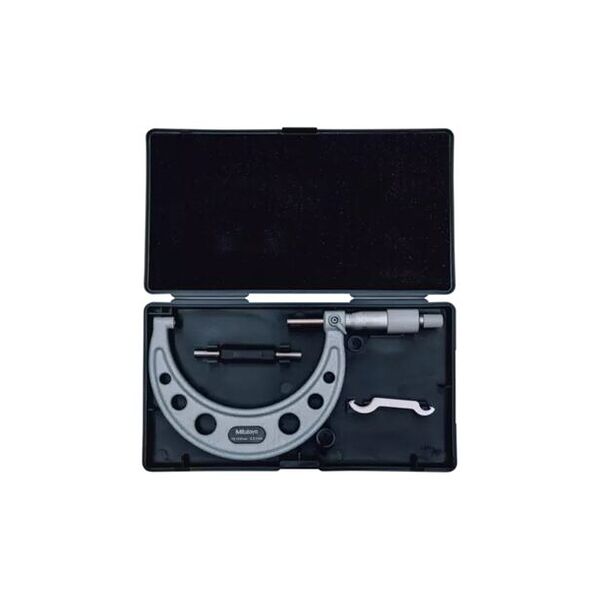

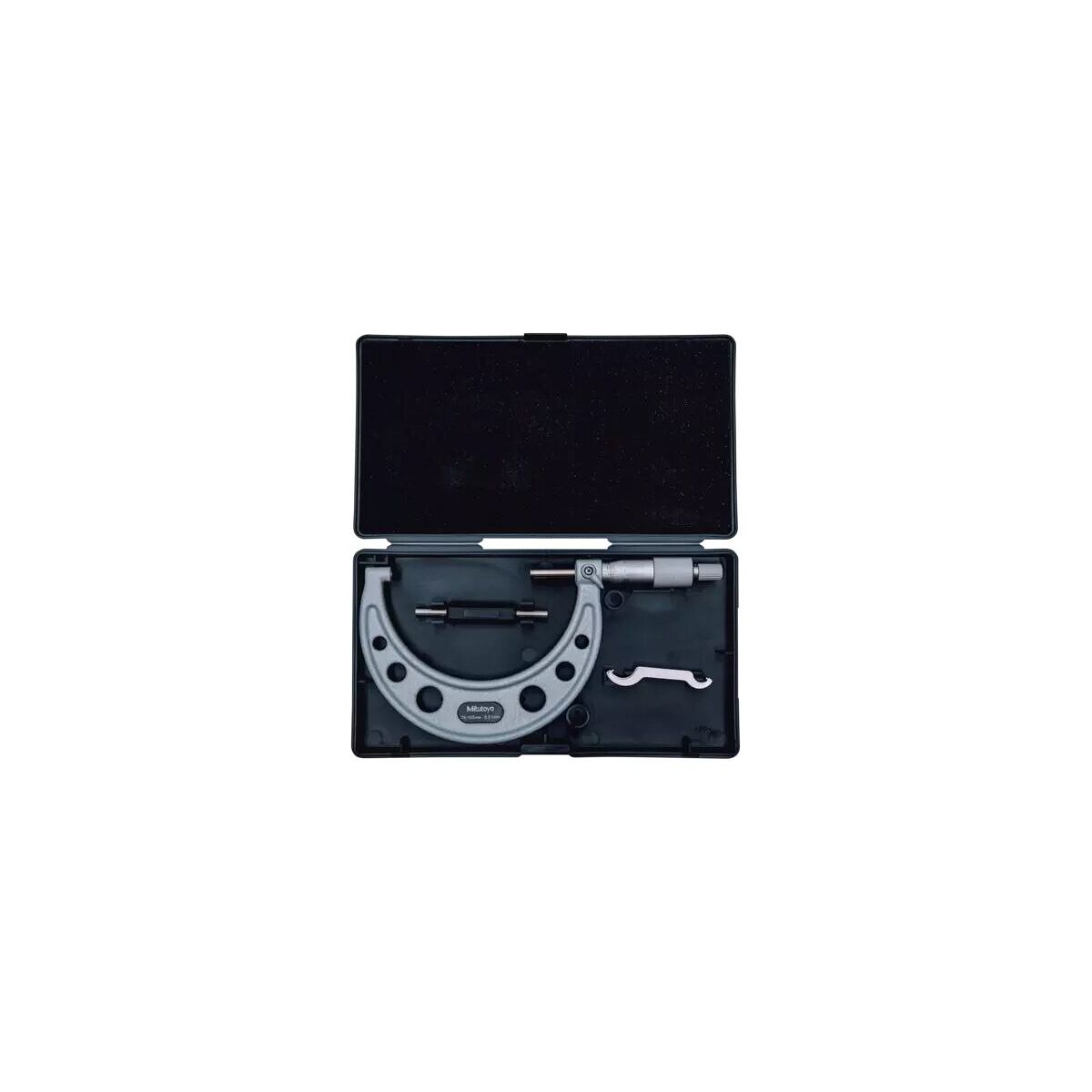

Scope of delivery: Incl. box, setting standard (from 25 mm), setting key
Measuring range: 75 - 100
Graduation: 0.01 mm
Limit value of the measurement deviation J MPE: ±4 µm
Remarks: Type E
Scale: Scale drum and sleeve satin chrome plated, ø18 mm
Inch/metric: metric
Scope of delivery: Incl. box, setting standard (from 25 mm), setting key
