NC high pressure vice version LC, Type: 125
Article no.: 360510 125
Copy
Article code:
Copy
- Version: Zero point clamping system
Product details
Technical Data

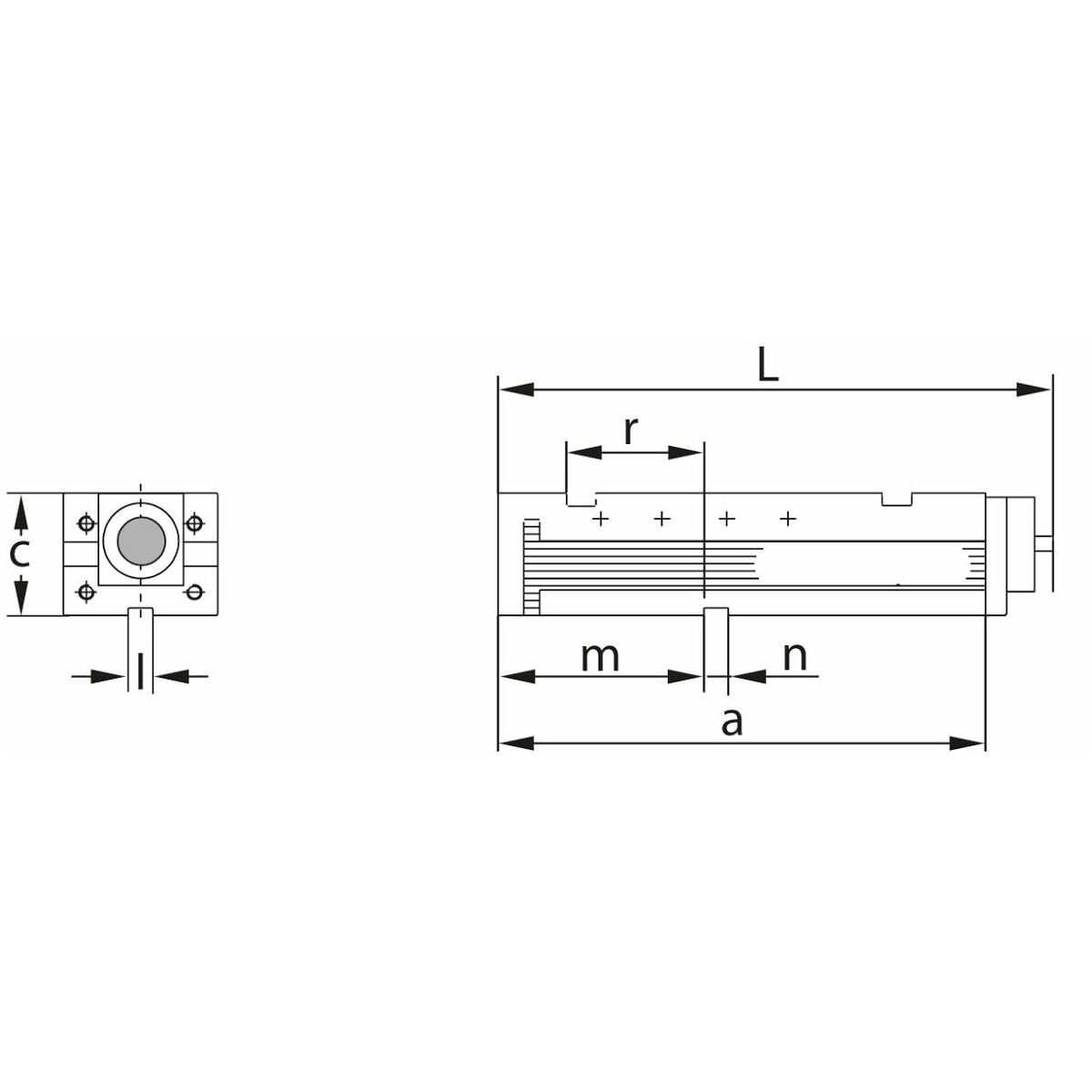

| Type | 125 | |
| Version | Zero point clamping system | |
| Clamping force up to maximum | 40 kN | |
| Weight | 34 kg | |
| Overall length L | 446 mm | |
| Base body length a | 398 mm | |
| Clamping range b | 0 mm - 182 mm | |
| Base body height c -0.02 | 100 mm | |
| Clamping range d | 131 mm - 313 mm | |
| Jaw height h | 39.5 mm | |
| Longitudinal slot l H7 | 20 mm | |
| m | 180 mm | |
| Cross-slot n H7 | 20 mm | |
| r ±0.015 | 118 mm | |
| t | 144 mm | |
| Colour code for suitable accessories | LC-GARANT | |
| Type of product | Machine vice |
Identification & Classification
| Article number |
360510 125
Copy |
|
| EAN / GTIN |
4250364401500
Copy |
|
| Manufacturer number |
360510 125
Copy |
|
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
- Compact size; optimum ratio between jaw span and overall length. Clamping force can be checked visually by the 4 ring marks. Maximum clamping pressure reproducible using integral fixed stop.
- Particularly rigid base body made of spheroidal graphite iron, top and bottom faces; pairing accuracy 0.02 mm.
- Supplied with 25H6 M10 holes for zero point clamping systems, pitch 200 mm.
Feature:
- Click quick-change system for parallel inserts / jaws. Short set-up times and high flexibility.
- Fully enclosed and nitrided spindle (increased operational reliability, optimised swarf protection, minimised cleaning requirement).
Application:
Universal clamping system for machining centres.
Supplied with:
2 stepped jaws, 1 crank handle, 4 steplessly adjustable clamps, and 1 hexagon L-wrench.
Optional extras:
- For tenon and Tee nut set see No. 360530.
- See No. 360555; 352650 and 360800 for spare component backstop / spare crank handle.
- See No. 360850 for hand crank extension.
- See also No. 361380 − 361770 and 362390 − 362600 for other jaws.
- For spare stepped jaws see No. 361400; 361420 and 361295; 361296.
- Clamping stud No. 360025.
- Adapter plates for jaw quick-change system Xtrix No. 361293 and 361294 size 125.
- Adapter plates No. 361297 and 361298 size 125.
